◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11140 - FSR-RHD(EU)SPACE EU4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#14994) — 41 parça

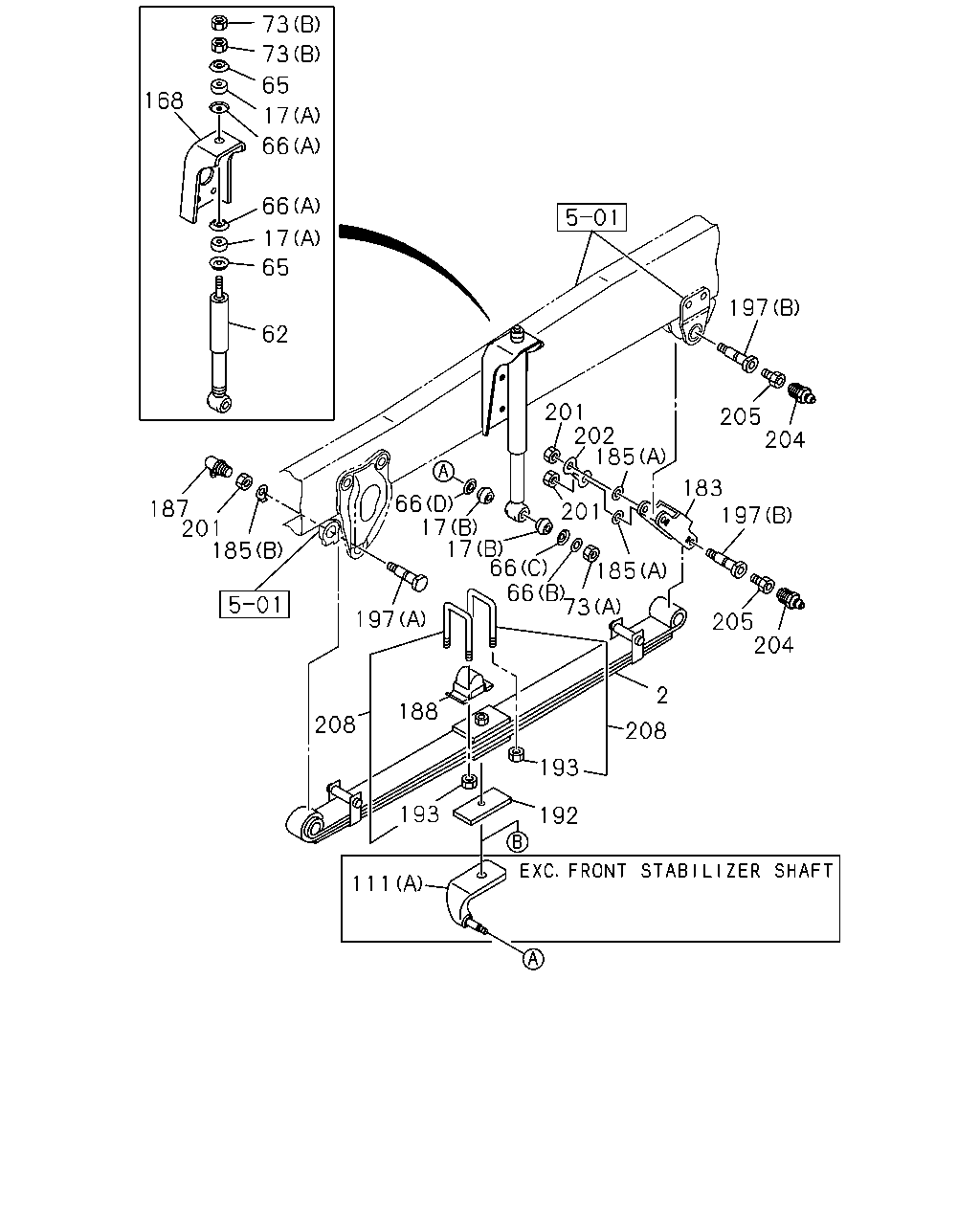

çizim 29077
73 73 65 168 17 66 66 17 65 197 62 201 202 185 205 204 183 197 66 17 17 66 66 73 187 201 185 201 185 197 205 204 2 188 208 208 193 193 192 111
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98063-483-0 01 1 0803-1407 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98229-528-0 01 1 1408- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98063-484-0 01 1 0803-1407 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98229-529-0 01 1 1408- ● ●
17 BUSHING; RUBBER,S/ABS
(B) 		1-51631-009-1 04 1 0803- ● ●
17 BUSHING; RUBBER,S/ABS
(A) 		9-51631-050-0 04 1 0803- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-302-0 02 1 0803- ● ●
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 04 1 0803- ● ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 0803- ● ●
66 WASHER; LK,S/ABS SETTING
(D) ID=23 		1-51631-019-0 02 1 0803- ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=17 		1-51631-020-0 02 1 0803- ● ●
66 WASHER; LK,S/ABS SETTING
(A) ID=16.8 		1-51631-022-0 04 1 0803- ● ●
73 NUT; BRKT,SHOCK
(A) M16 		0-91110-516-0 02 1 0803- ● ●
73 NUT; BRKT,SHOCK
(B) M12 		8-98010-412-0 04 1 0803- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		8-98010-629-1 01 1 0803- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		8-98010-630-1 01 1 0803- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-641-2 01 1 0803- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-642-2 01 1 0803- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-820-0 02 1 0803- ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 0803- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 0803- ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 0803- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0803- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-124-0 02 1 0803- ● ●
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 0803- ● ●
193 NUT; U BOLT
M18 FLANGE 		1-09440-039-1 08 1 0803- ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 0803- ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 0803- ● ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0803- ● ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 0803- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0803- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 0803- ● ●
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-444-0 04 1 0803- ● ●

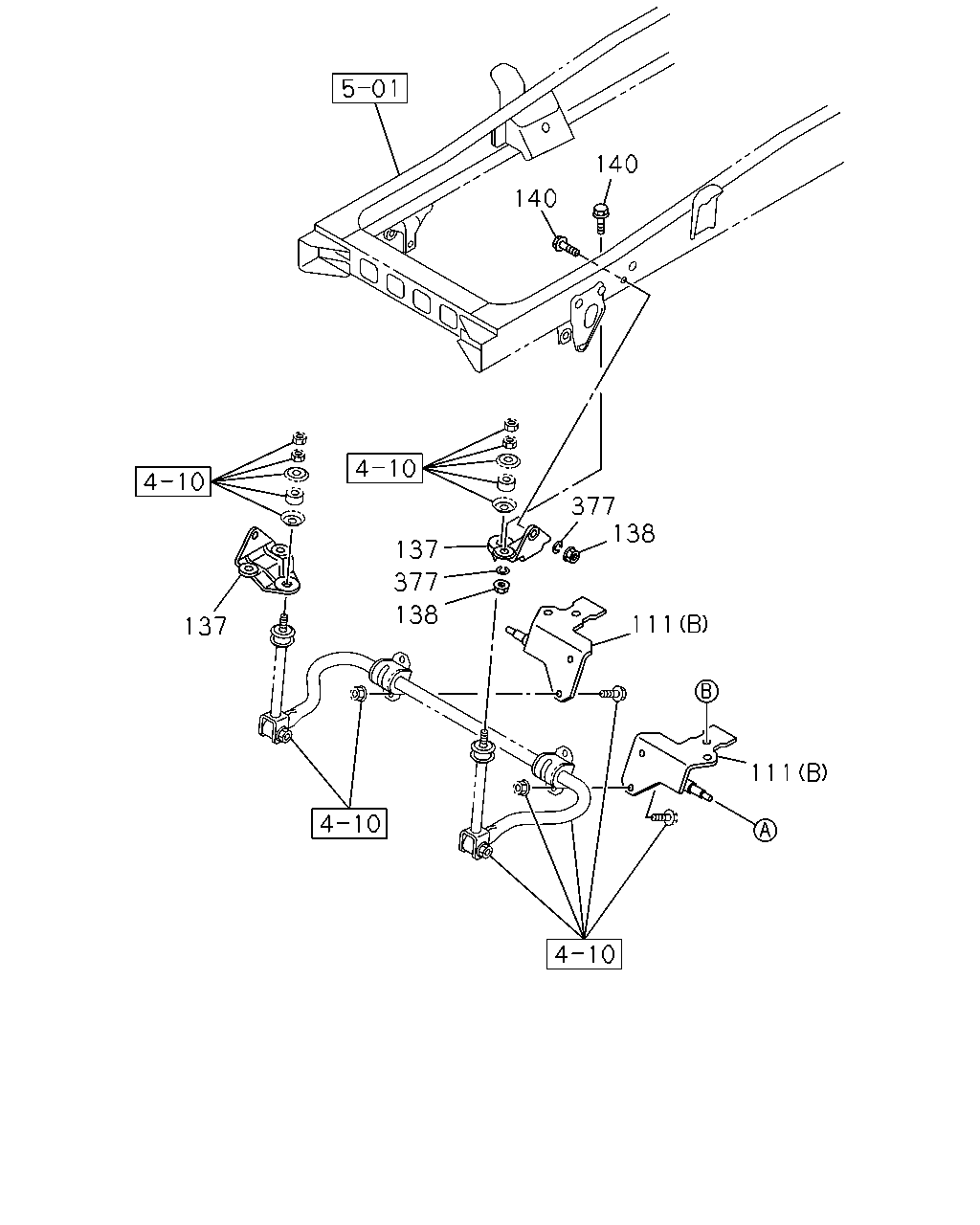

çizim 29168
140 140 377 138 137 377 138 111 137 111
BalonParca AdiParca NoAdetTipApplied Date A B
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		8-98010-629-1 01 1 0803- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		8-98010-630-1 01 1 0803- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-641-2 01 1 0803- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-642-2 01 1 0803- ● ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-98021-304-0 02 1 0803- ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 06 1 0803- ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X40 		0-20951-440-0 06 1 0803- ● ●
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 06 1 0803- ● ●
