◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11140 - FSR-RHD(EU)SPACE EU4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#14992) — 56 parça

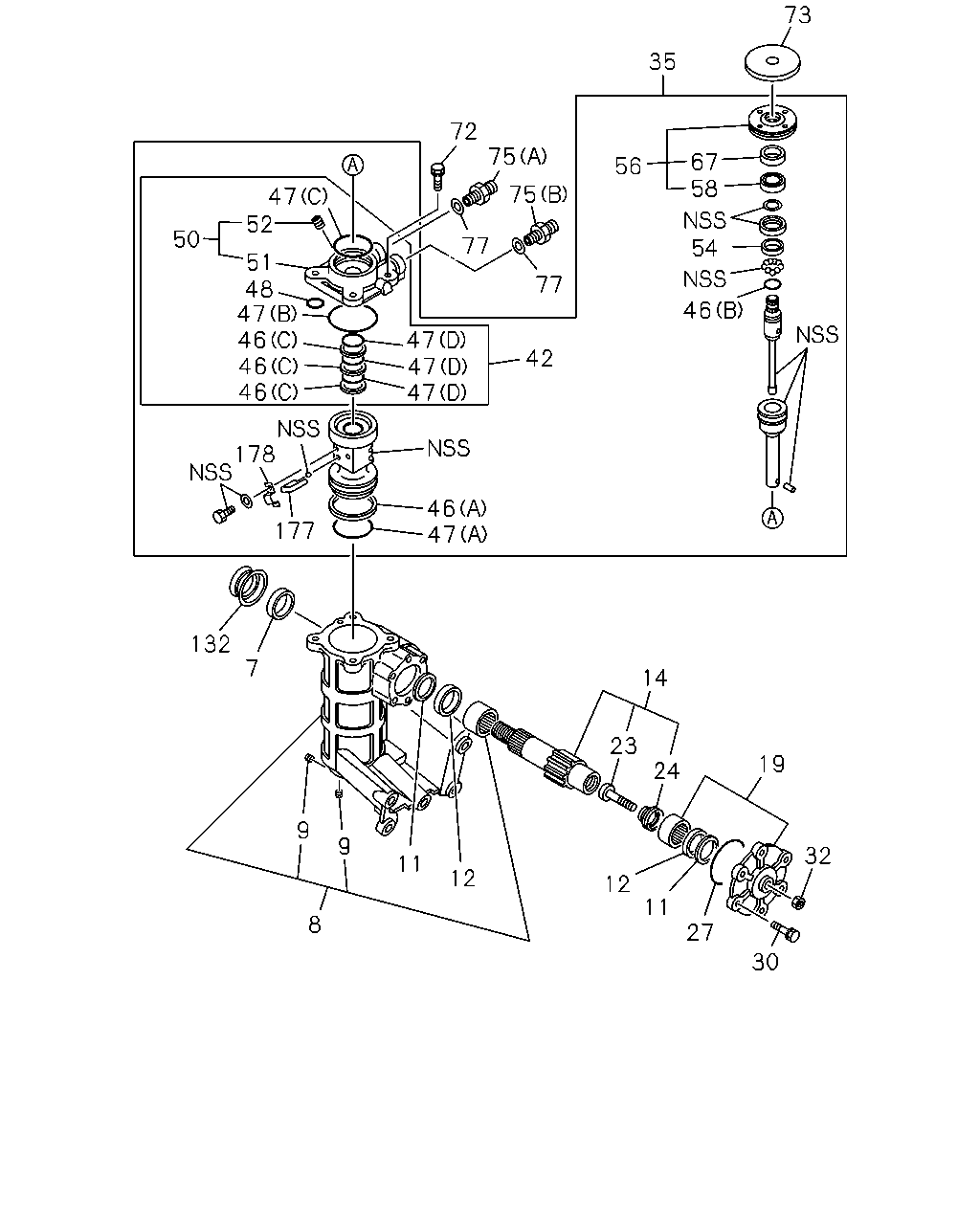

çizim 29792
73 35 72 75 67 58 56 75 47 52 54 50 77 51 48 47 46 46 46 77 46 47 47 47 42 178 46 47 177 132 7 14 23 19 24 9 9 32 11 12 12 11 8 27 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44240-124-0 01 1 -1001
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98159-675-0 01 1 1002-
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-103-0 02 1 -
12 GASKET; SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-226-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44320-026-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44261-029-0 01 1 -1001
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98159-681-0 01 1 1002-
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-109-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-107-0 06 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44269-037-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98095-590-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44560-052-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-952-2 		1-44519-101-0 03 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44560-053-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44561-015-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44259-029-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44259-036-1 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98074-089-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-952-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-952-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-952-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44151-017-0 02 1 1002-
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44159-252-0 02 1 -1001
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44159-034-0 01 1 -

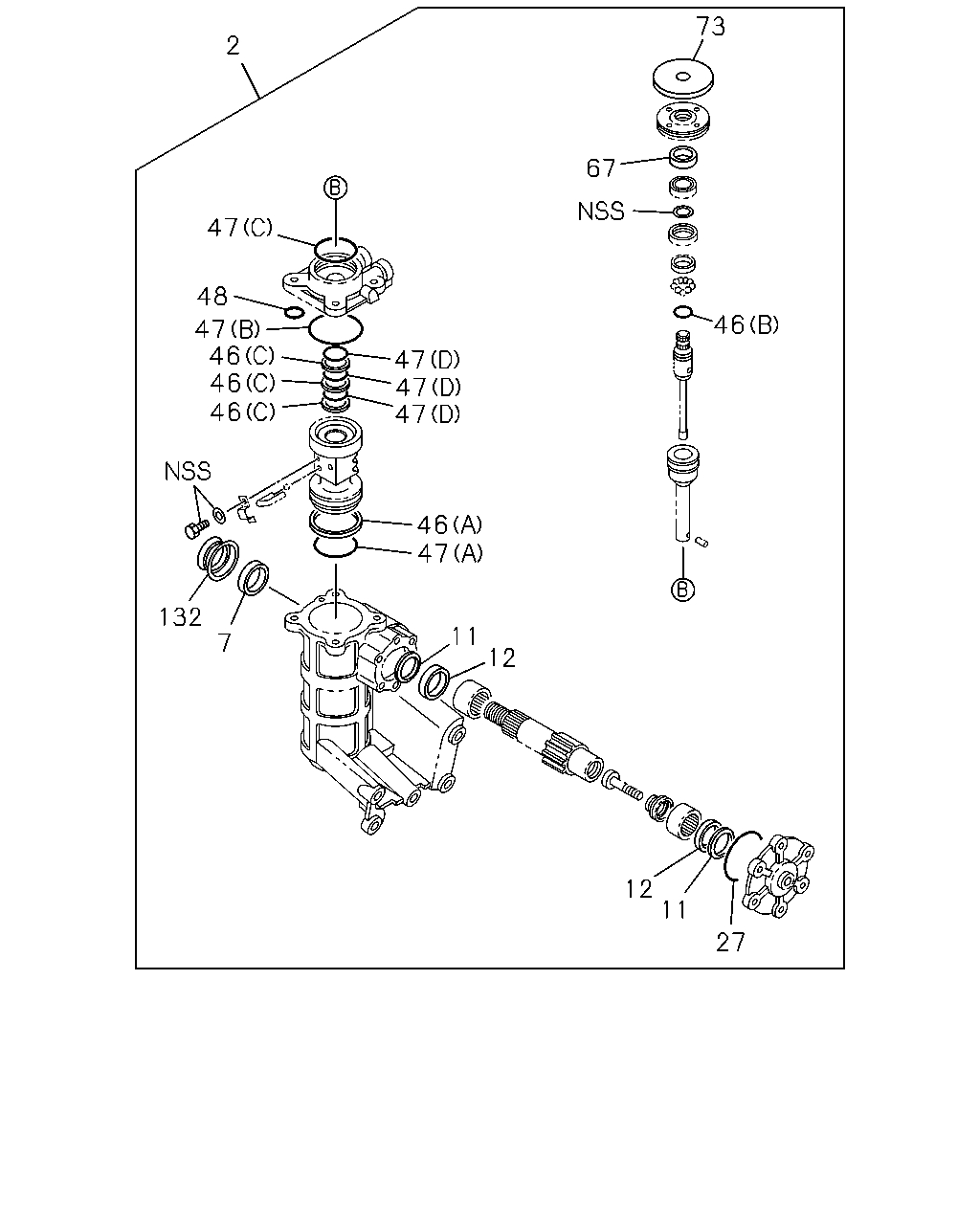

çizim 94927
73 2 67 47 48 46 47 46 46 46 47 47 47 46 47 132 11 7 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-952-2 		8-98075-903-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-102-0 01 1 -
11 RING; BACKUP,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-103-0 02 1 -
12 GASKET; SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-226-0 02 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-109-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-952-2 		1-44519-101-0 03 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-097-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44259-036-1 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98074-089-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44159-119-0 01 1 -
