◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11140 - FSR-RHD(EU)SPACE EU4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#14987) — 23 parça

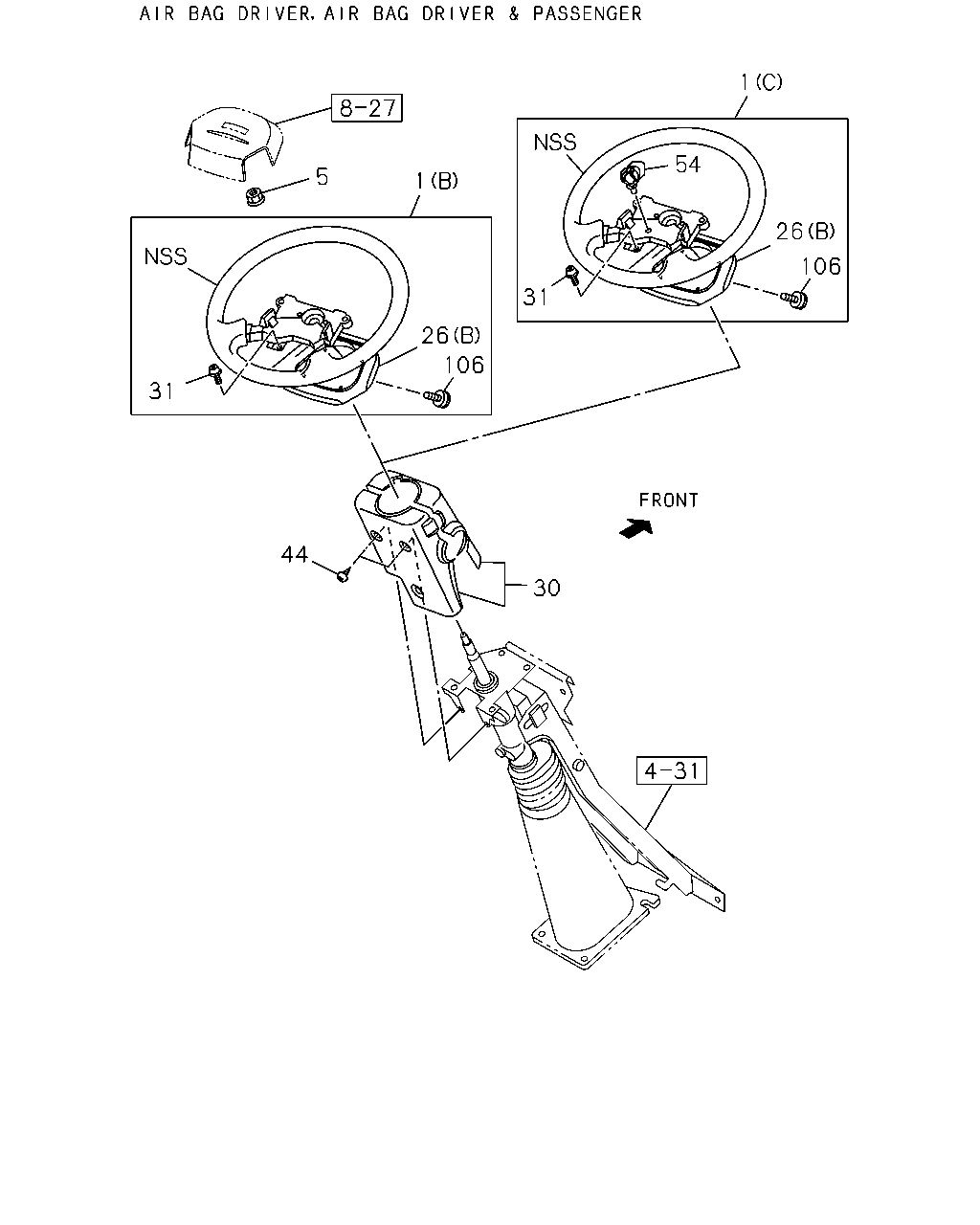

çizim 94944
5 1 31 26 106 31 1 54 26 106 44 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97407-720-0 01 1 0803-1210 ● ●
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (C) DARK GRAY 		8-97423-998-0 01 1 1211- ● ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97412-555-1 01 1 0803- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0803- ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97405-841-0 01 1 0803- ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97409-275-2 01 1 0803- ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 0803- ● ●
31 SCREW; BOSS TO COVER
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12 		8-97167-588-0 04 1 0803- ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 0803- ● ●
54 CLIP; HARNESS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98165-703-0 01 1 1211- ● ●
106 BOLT; TORX 8-98231-397-0 02 1 0803- ● ●
çizim 95856
81 20 5 1 26 6 106 30 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97407-720-0 01 1 0803-1210 ● ●
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (C) DARK GRAY 		8-97423-998-0 01 1 1211- ● ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97412-555-1 01 1 0803- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0803- ● ●
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12 		8-97167-588-0 04 1 0803- ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97405-985-1 01 1 0803- ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97405-841-0 01 1 0803- ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97409-275-2 01 1 0803- ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 0803- ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 0803- ● ●
81 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97405-986-0 01 1 0803- ● ●
106 BOLT; TORX 8-98231-397-0 02 1 0803- ● ●
