Isuzu WW
▶
TRUCKS
▶
FSR
▶
11140 - FSR-RHD(EU)SPACE EU4
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#14981) — 53 parça
Tümü
A - FCD5CS
B - FCR5CS
◀
[378A] NO.3 (21 parça)
[378A] NO.2 (15 parça)
[378A] NO.1 (17 parça)
▶

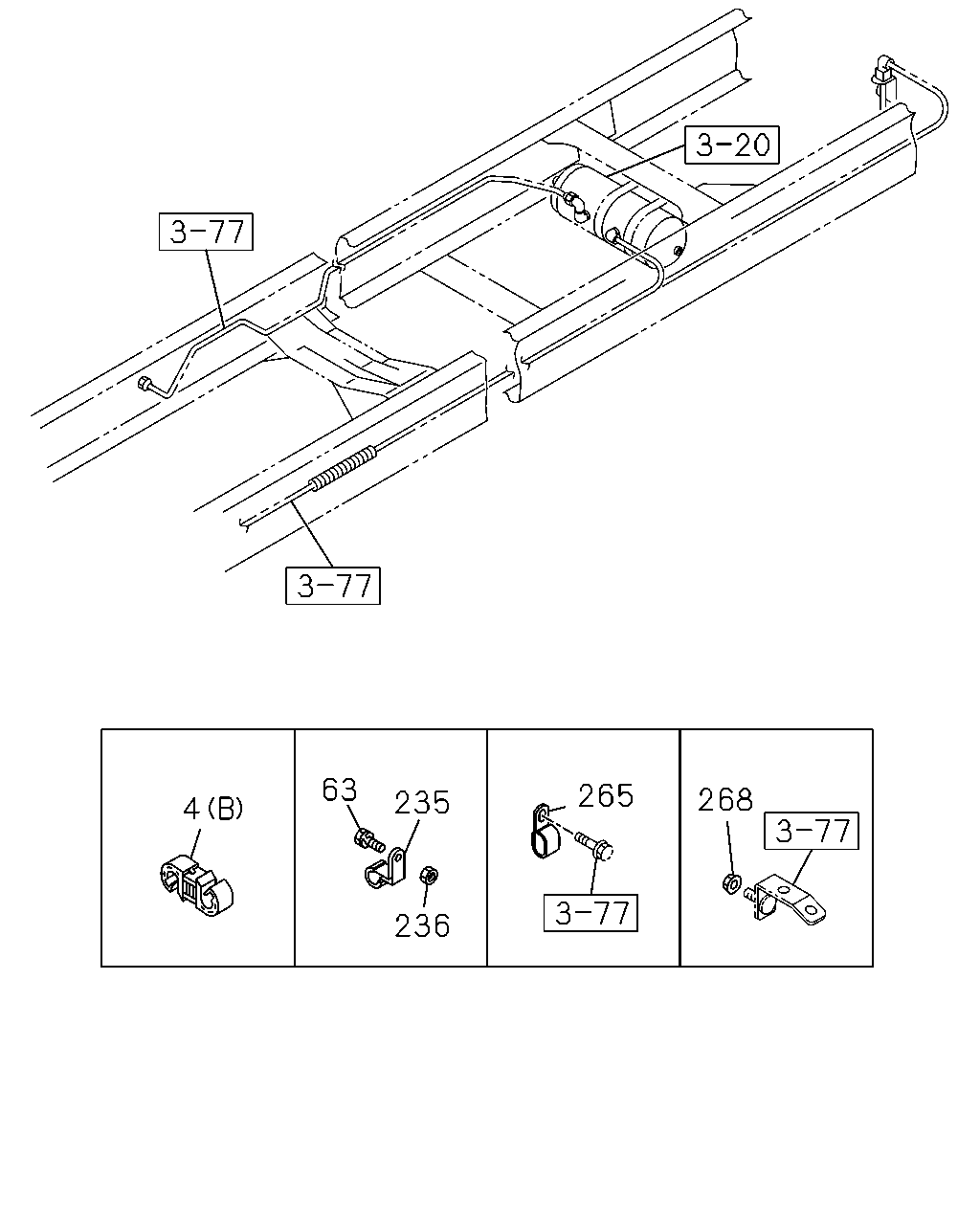

63
265
268
235
4
236
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
0803-
●
●
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
02
1
0803-0901
●
●
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
0902-
●
●
4
CLIP; AIR PIPE
(A) ID=12 & 12
1-09709-280-1
01
1
0803-0901
●
●
63
BOLT; CLIP
WHEEL BASE 4900MM(49W) M8X25 FLANGE
0-28650-825-0
05
1
0803-0810
●
63
BOLT; CLIP
WHEEL BASE 4900MM(49W) M8X25 FLANGE
0-28650-825-0
05
1
0811-
●
63
BOLT; CLIP
WHEEL BASE 4600MM(46W) M8X25 FLANGE
0-28650-825-0
05
1
0811-
●
63
BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X25 FLANGE
0-28650-825-0
03
1
0803-
●
63
BOLT; CLIP
WHEEL BASE 4600MM(46W) M8X25 FLANGE
0-28650-825-0
04
1
0803-0810
●
235
CLIP; AIR PIPE
WHEEL BASE 4900MM(49W) ID=11 H=20 L=20
8-98033-780-0
05
1
0803-0810
●
235
CLIP; AIR PIPE
WHEEL BASE 4900MM(49W) ID=11 H=20 L=20
8-98033-780-0
05
1
0811-
●
235
CLIP; AIR PIPE
WHEEL BASE 4600MM(46W) ID=11 H=20 L=20
8-98033-780-0
05
1
0811-
●
235
CLIP; AIR PIPE
WHEEL BASE 3700MM(37W) ID=11 H=20 L=20
8-98033-780-0
03
1
0803-
●
235
CLIP; AIR PIPE
WHEEL BASE 4600MM(46W) ID=11 H=20 L=20
8-98033-780-0
04
1
0803-0810
●
236
NUT; CLIP
WHEEL BASE 4900MM(49W) M8 FLANGE
0-91180-108-0
05
1
0803-0810
●
236
NUT; CLIP
WHEEL BASE 4900MM(49W) M8 FLANGE
0-91180-108-0
05
1
0811-
●
236
NUT; CLIP
WHEEL BASE 4600MM(46W) M8 FLANGE
0-91180-108-0
05
1
0811-
●
236
NUT; CLIP
WHEEL BASE 3700MM(37W) M8 FLANGE
0-91180-108-0
03
1
0803-
●
236
NUT; CLIP
WHEEL BASE 4600MM(46W) M8 FLANGE
0-91180-108-0
04
1
0803-0810
●
265
CLIP; NYLON TUBE
ID=21 H=25.5 L=26
8-94176-806-0
01
1
0803-
●
●
268
NUT; CLIP BRKT
WHEEL BASE 4600MM(46W) M10 FLANGE
0-91180-210-0
01
1
0803-
●

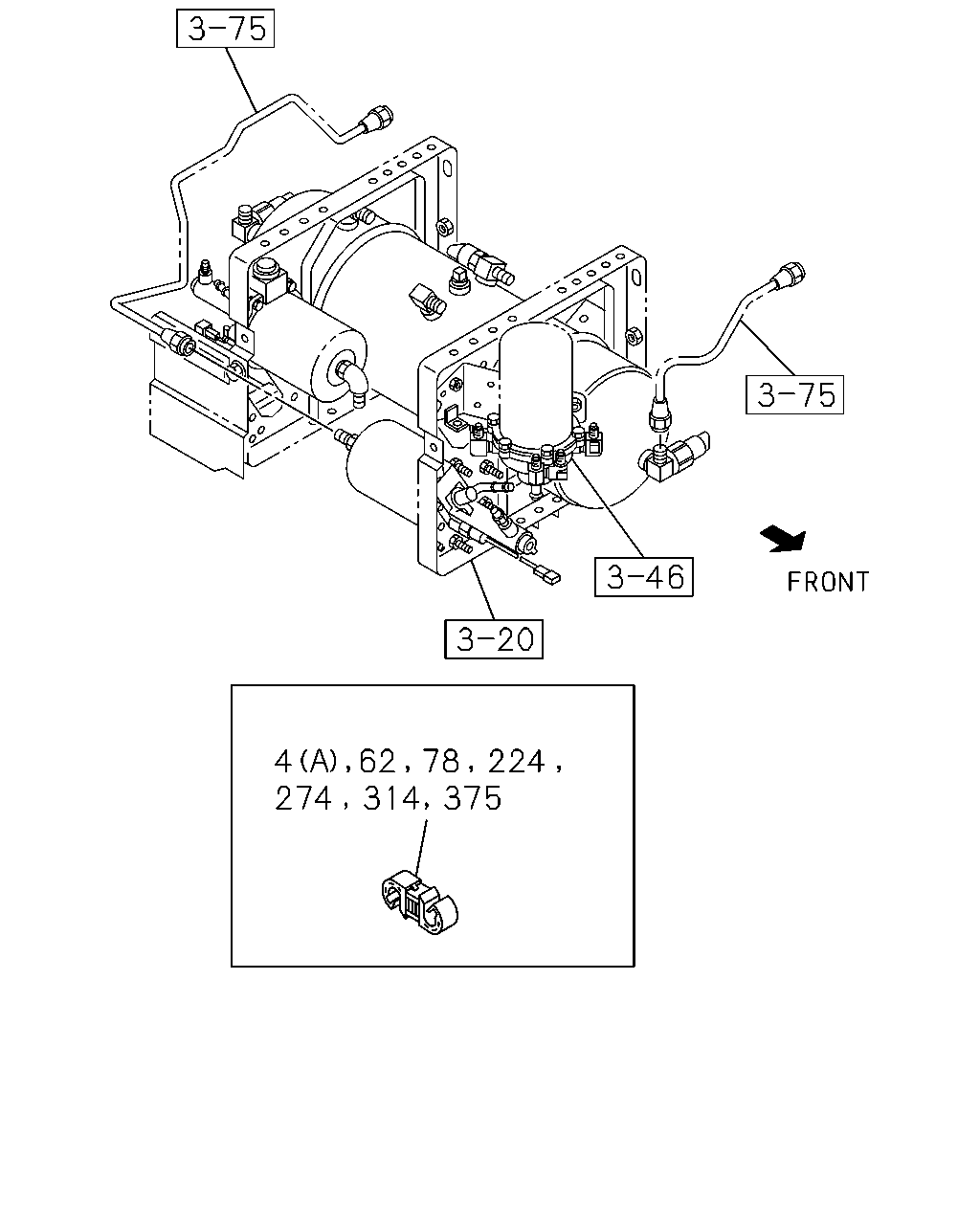

4
62
78
224
375
314
274
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
0803-
●
●
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
02
1
0803-0901
●
●
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
0902-
●
●
4
CLIP; AIR PIPE
(A) ID=12 & 12
1-09709-280-1
01
1
0803-0901
●
●
62
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
0803-0809
●
●
78
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
01
1
0803-0901
●
●
224
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
0803-
●
●
224
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
03
1
0803-0901
●
●
274
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0
1-09709-274-1
01
1
0803-0805
●
●
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0
1-09709-274-1
03
1
0803-0805
●
●
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
01
1
0803-0805
●
●
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
04
1
0803-0805
●
●
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=4.76 & 10.0
1-09709-305-0
01
1
0803-0805
●
●
314
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0
1-09709-274-1
01
1
0803-0805
●
●
375
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
0803-0901
●
●

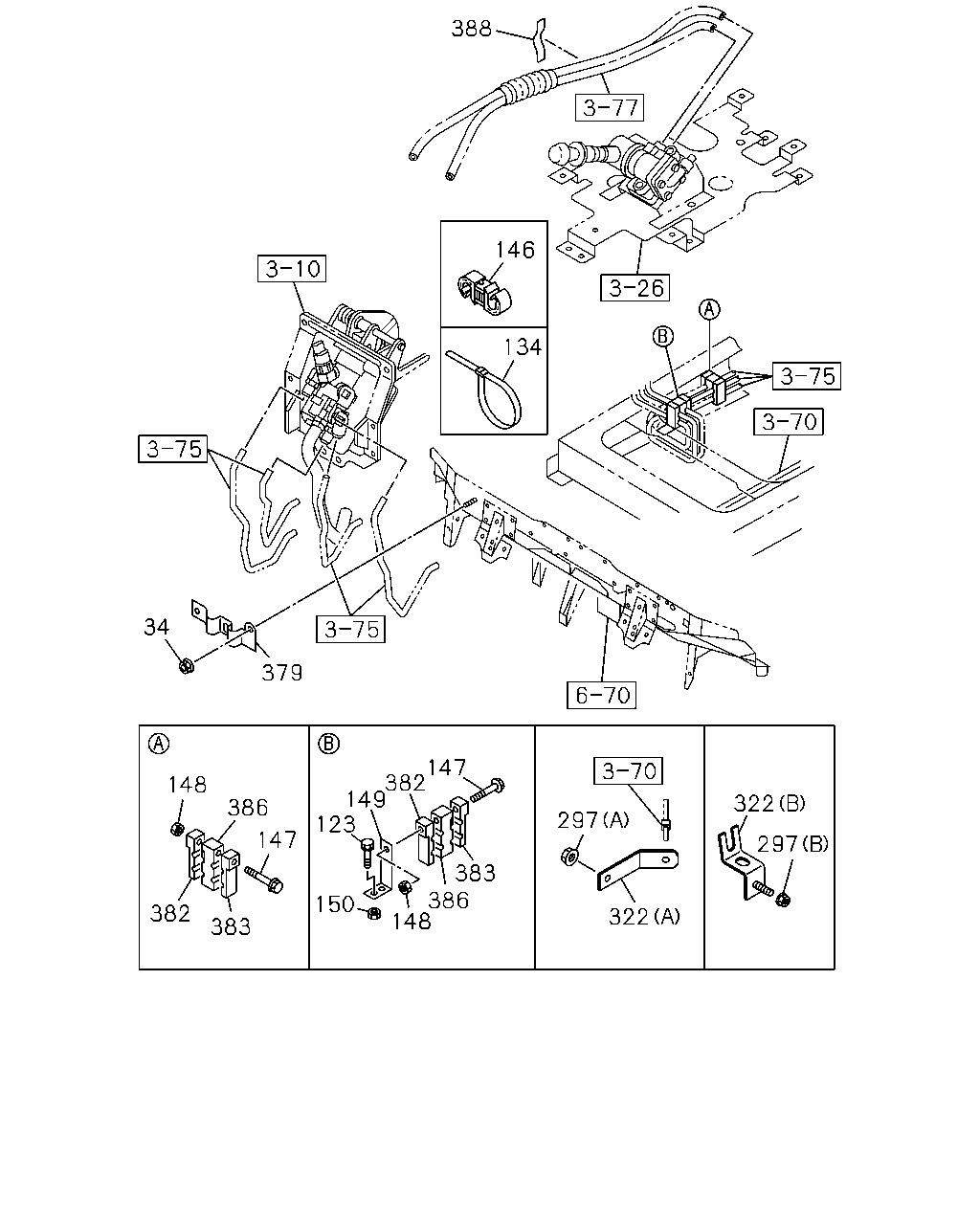

388
146
134
34
379
147
382
149
123
148
322
386
297
147
297
383
386
148
150
382
322
383
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
0803-
●
●
123
BOLT; PIPE CLIP
M8X25 FLANGE
0-28650-825-0
02
1
0803-
●
●
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
0809-
●
●
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
0803-0908
●
●
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
04
1
0803-
●
●
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
04
1
0803-
●
●
149
BRACKET; PIPE CLIP
8-98052-170-1
01
1
0803-
●
●
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
0803-
●
●
297
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
0803-
●
●
297
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
01
1
0803-
●
322
BRACKET; CLIP
(A)
1-47479-936-1
02
1
0803-
●
●
322
BRACKET; CLIP
(B)
8-98096-272-0
01
1
0803-
●
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
0803-
●
●
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
04
1
0803-
●
●
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
04
1
0803-
●
●
386
CLIP; CENTER
ID=10
1-09709-242-0
04
1
0803-
●
●
388
SEAL
100X40
1-72498-022-1
03
1
0803-
●
●
