3-77 — BRAKE PIPING; AIR,REAR (#14980) — 75 parça

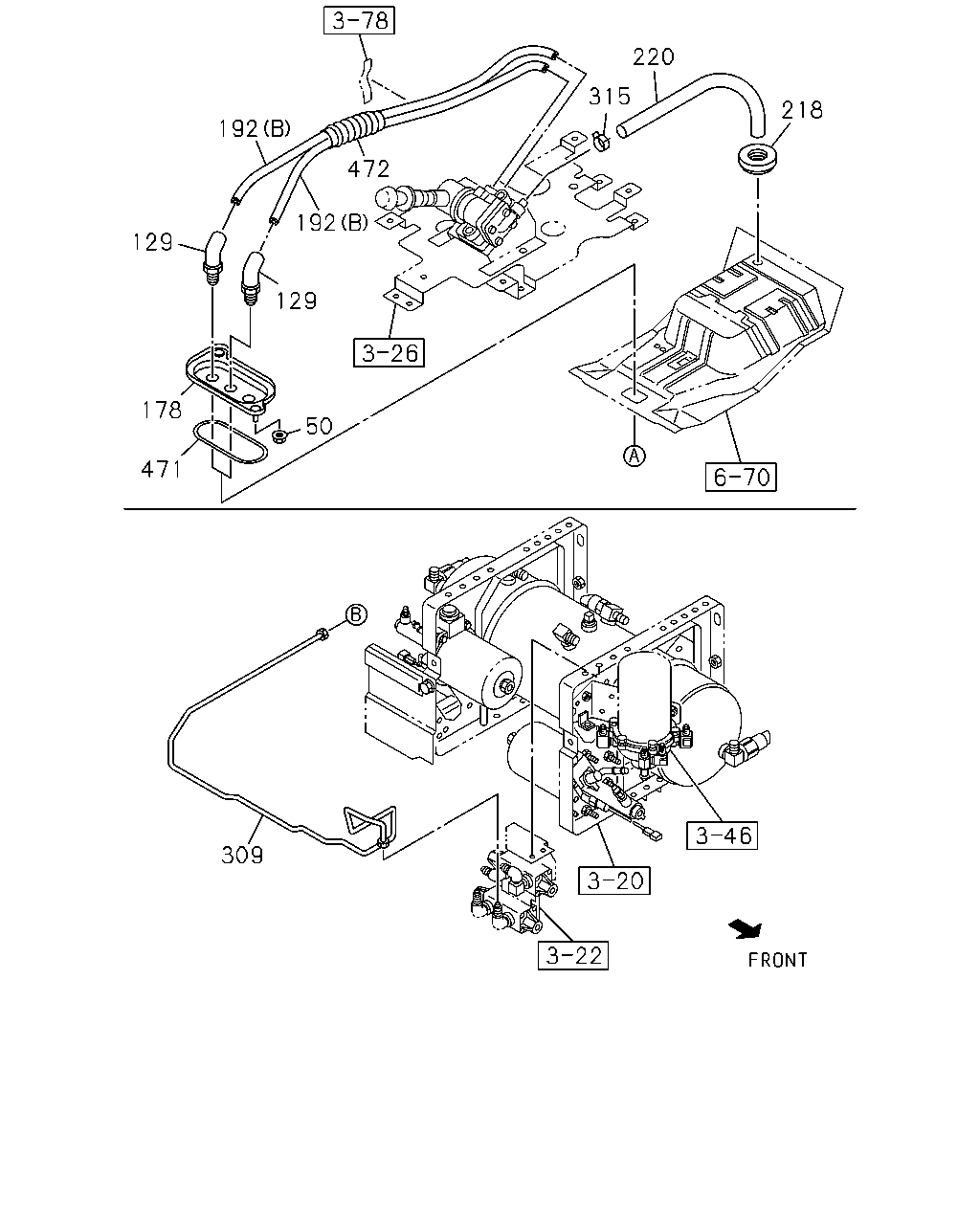

çizim 27734
220 218 315 192 129 178 471 50 129 192 472 309
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 0803- ● ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 0803- ● ●
178 BRACKET; UNION 8-98017-054-1 01 1 0803- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0803- ● ●
192 TUBE; NYLON
WHEEL BASE 4900MM(49W) (B) SERVICED BY L=8000 OD=8 		1-87411-009-0 02 1 0803- ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0803- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 01 1 0803- ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 01 1 0803- ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 0803- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0803- ● ●
309 PIPE; AIR,MPV TO UNION
L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0803- ● ●
315 CLIP
ID=14 		8-94238-572-0 01 1 0803- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 0803- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0803- ● ●

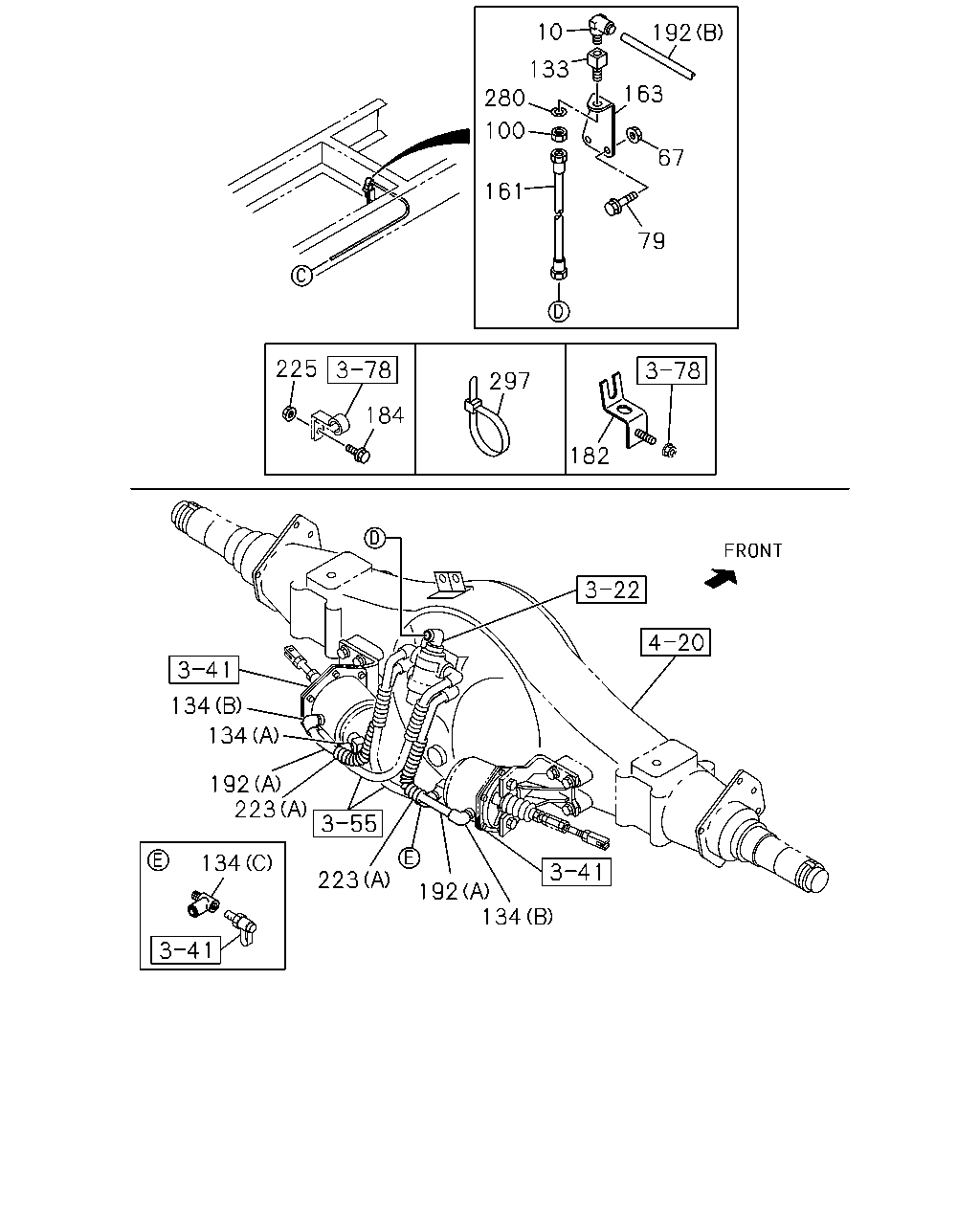

çizim 94945
161 100 280 133 10 163 192 67 79 182 184 225 297 134 134 192 223 223 192 134 134
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0803- ● ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0803- ● ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
100 NUT; UNION
M16 		0-91111-516-0 01 1 0803- ● ●
133 UNION; NIPPLE 1-09654-258-2 01 1 0803-1111 ● ●
133 UNION; NIPPLE 8-98202-001-0 01 1 1112- ● ●
134 CONNECTOR
(C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0803- ● ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0803- ● ●
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0803- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=420 		1-09363-805-0 01 1 0803- ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=460 		1-09363-963-0 01 1 0803- ●
163 BRACKET; FLEX HOSE 8-98044-842-0 01 1 0803- ● ●
182 BRACKET; TUBE CLIP
WHEEL BASE 4600MM(46W) 		8-98096-272-0 01 1 0803- ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0803- ● ●
192 TUBE; NYLON
WHEEL BASE 4900MM(49W) (B) SERVICED BY L=8000 OD=8 		1-87411-009-0 02 1 0803- ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0803- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 01 1 0803- ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 01 1 0803- ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 0803- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0803- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 01 1 0803- ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
280 WASHER; LK
ID=16.2 		0-91510-816-0 01 1 0803-0808 ● ●
297 CLIP; BAND
WHEEL BASE 4900MM(49W) L=350 		1-09707-183-0 11 1 0803-1109 ●
297 CLIP; BAND
L=350 		1-09707-183-0 01 1 1110- ●
297 CLIP; BAND
WHEEL BASE 4900MM(49W) L=250 		1-09707-126-0 10 1 0803-1109 ●
297 CLIP; BAND
WHEEL BASE 4600MM(46W) L=250 		1-09707-126-0 10 1 0803-1109 ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) L=250 		1-09707-126-0 05 1 0803-1109 ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) L=350 		1-09707-183-0 05 1 0803- ●
297 CLIP; BAND
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 09 1 0803- ●
çizim 95142
98 37 144 97 318 192 223
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0803- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0803- ● ●
97 UNION; AIR PIPE
M16 L=42 		0-92123-010-0 01 1 0803- ● ●
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803- ● ●
144 PIPE; AIR,UNION TO UNION
L=1197 SERVICED BY L=1250 		1-47428-876-0 01 1 0803- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0803- ● ●
192 TUBE; NYLON
WHEEL BASE 4900MM(49W) (B) SERVICED BY L=8000 OD=8 		1-87411-009-0 02 1 0803- ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0803- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 01 1 0803- ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 01 1 0803- ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 0803- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0803- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 01 1 0803- ● ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4900MM(49W) L=1740 SERVICED BY L=1900 		1-47428-881-0 01 1 0803- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 0803- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4600MM(46W) L=1458 SERVICED BY L=1550 		1-47428-879-0 01 1 0803- ●

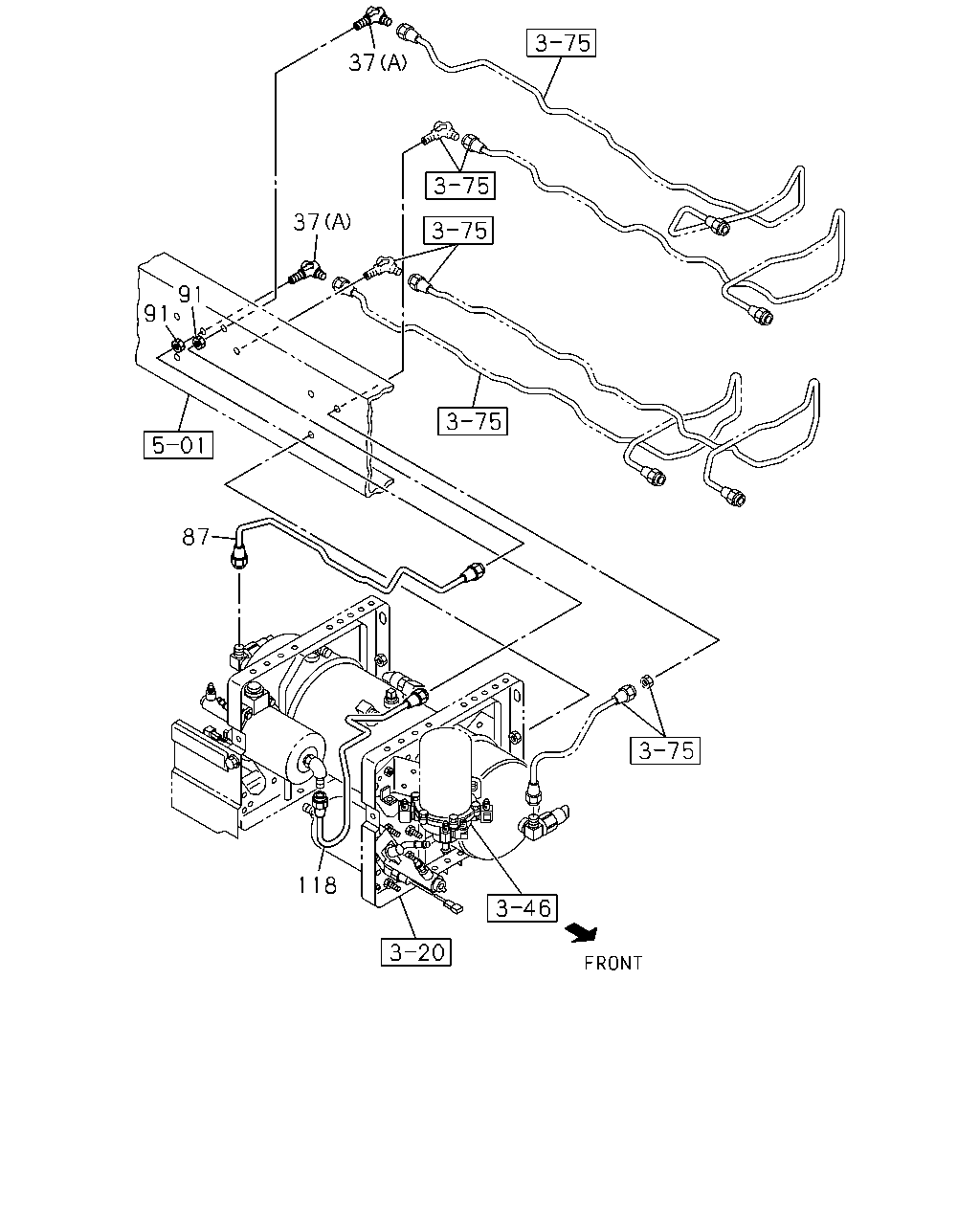

çizim 95184
37 37 91 91 87 118
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0803- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0803- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0803- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0803- ● ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=692 SERVICED BY L=700 		1-47428-870-0 01 1 0803-0805 ● ●
118 PIPE; AIR,UNION TO AIR MASTER
L=692 SERVICED BY L=700 		1-47428-870-0 01 1 0806- ● ●

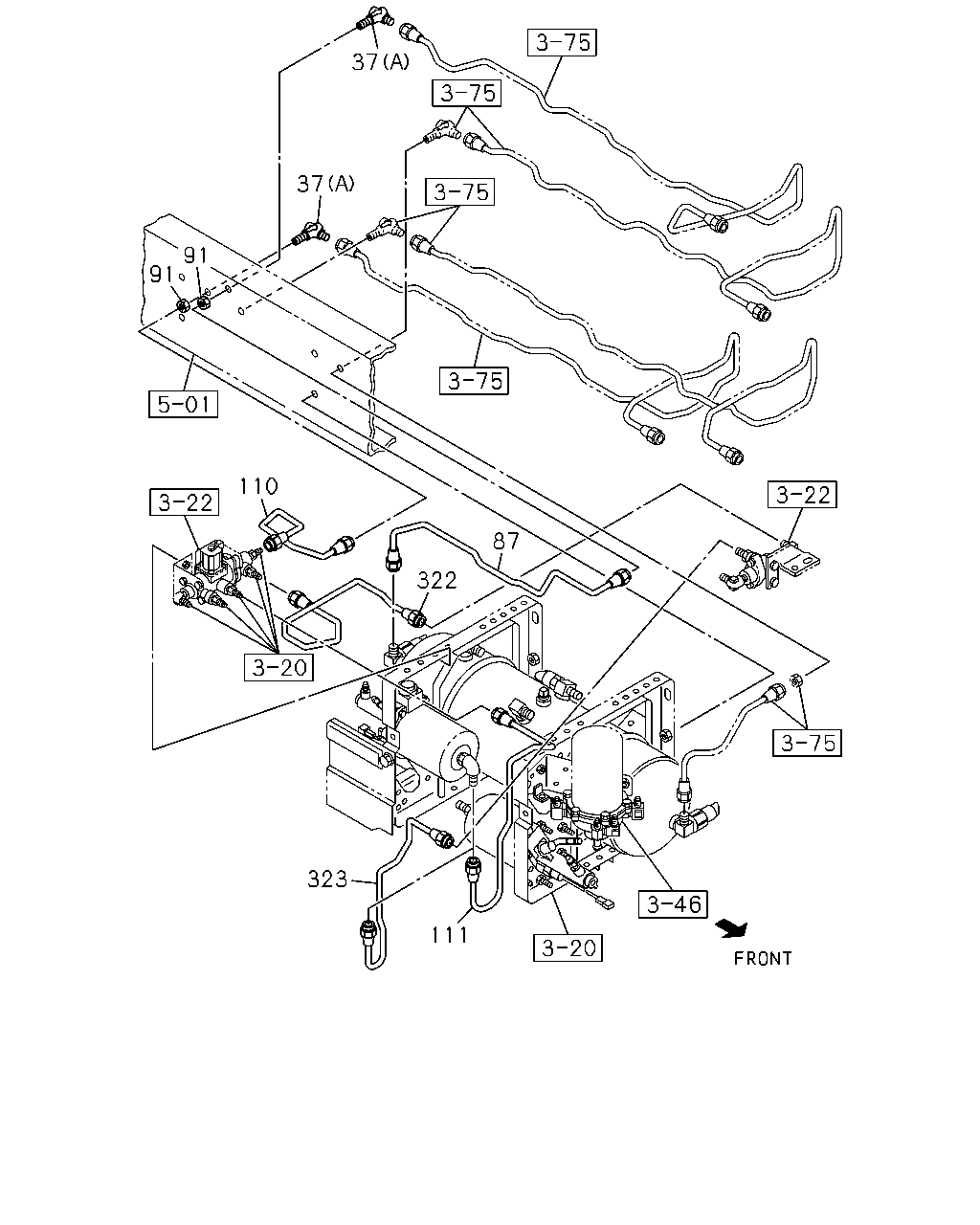

çizim 95857
37 37 91 91 110 87 322 323 111
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0803- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0803- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0803- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0803- ● ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 0803-0805 ● ●
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600 		1-47428-868-0 01 1 0803-0805 ● ●
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 0803-0805 ● ●
323 PIPE; AIR,DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600 		1-47428-868-0 01 1 0803-0805 ● ●
