Isuzu WW
▶
TRUCKS
▶
FSR
▶
11140 - FSR-RHD(EU)SPACE EU4
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#14979) — 42 parça
Tümü
A - FCD5CS
B - FCR5CS
◀

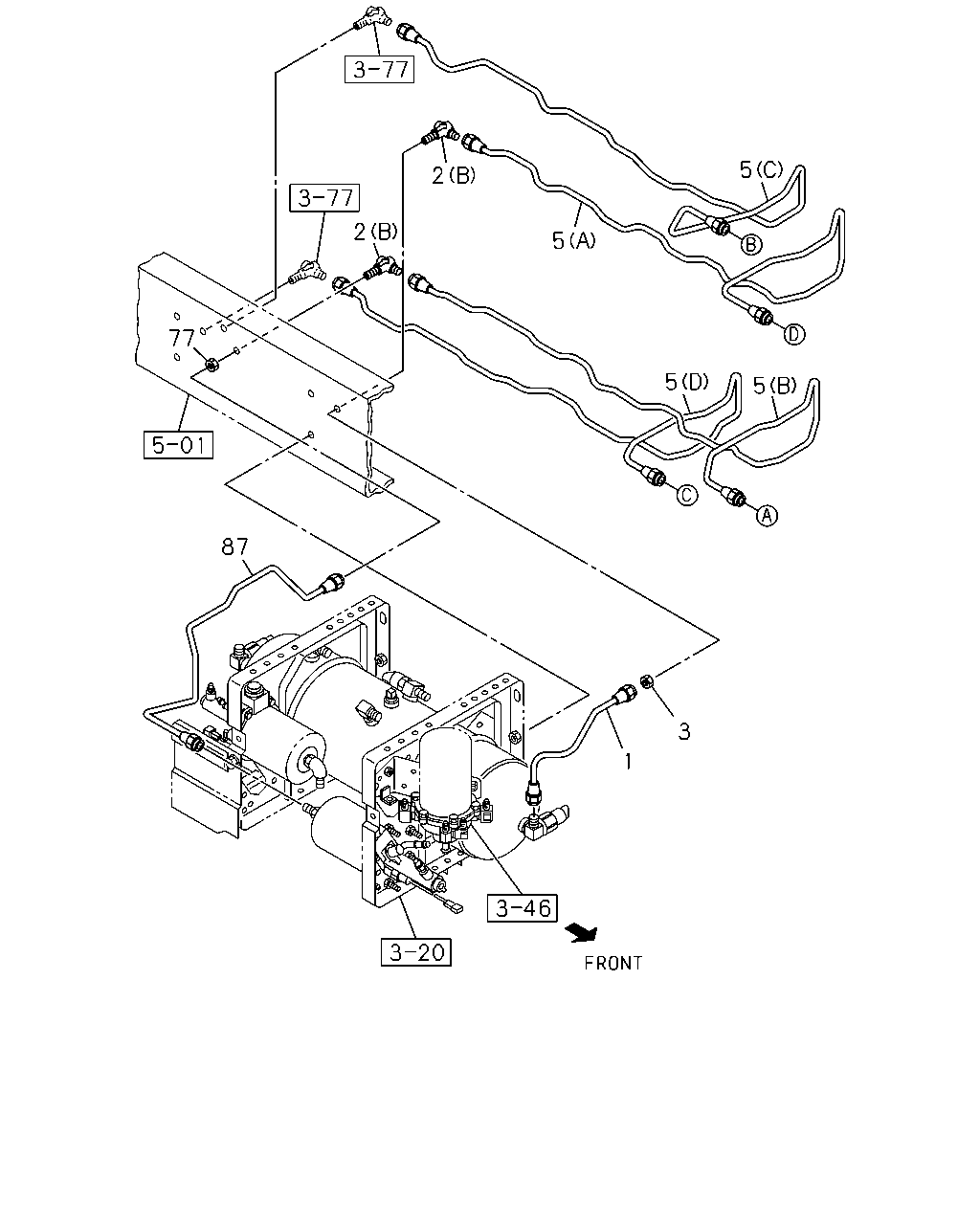

[375A] FRAME SIDE;EXC.H.S.A SYSTEM (12 parça)

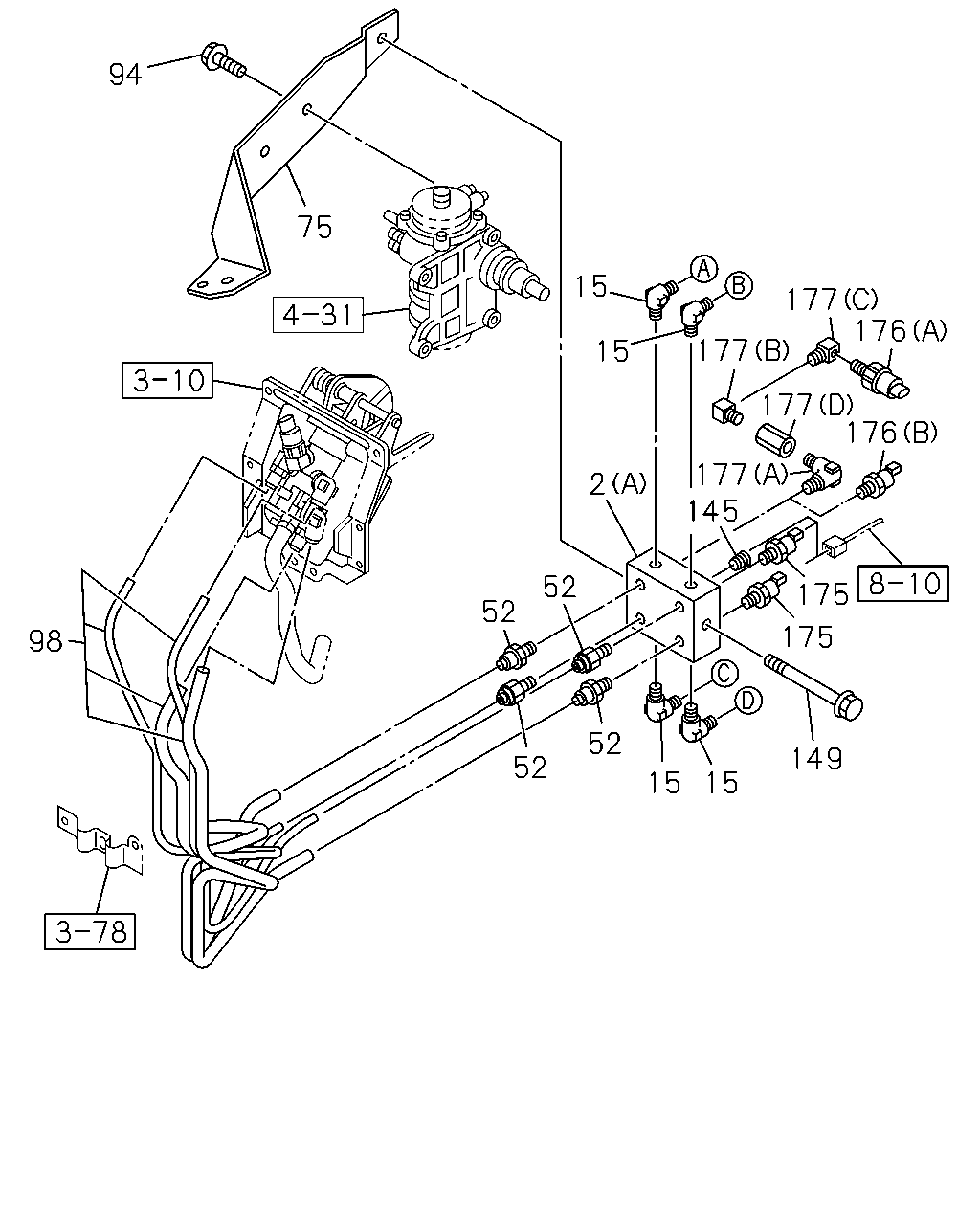

[375A] CAB UNDER (18 parça)

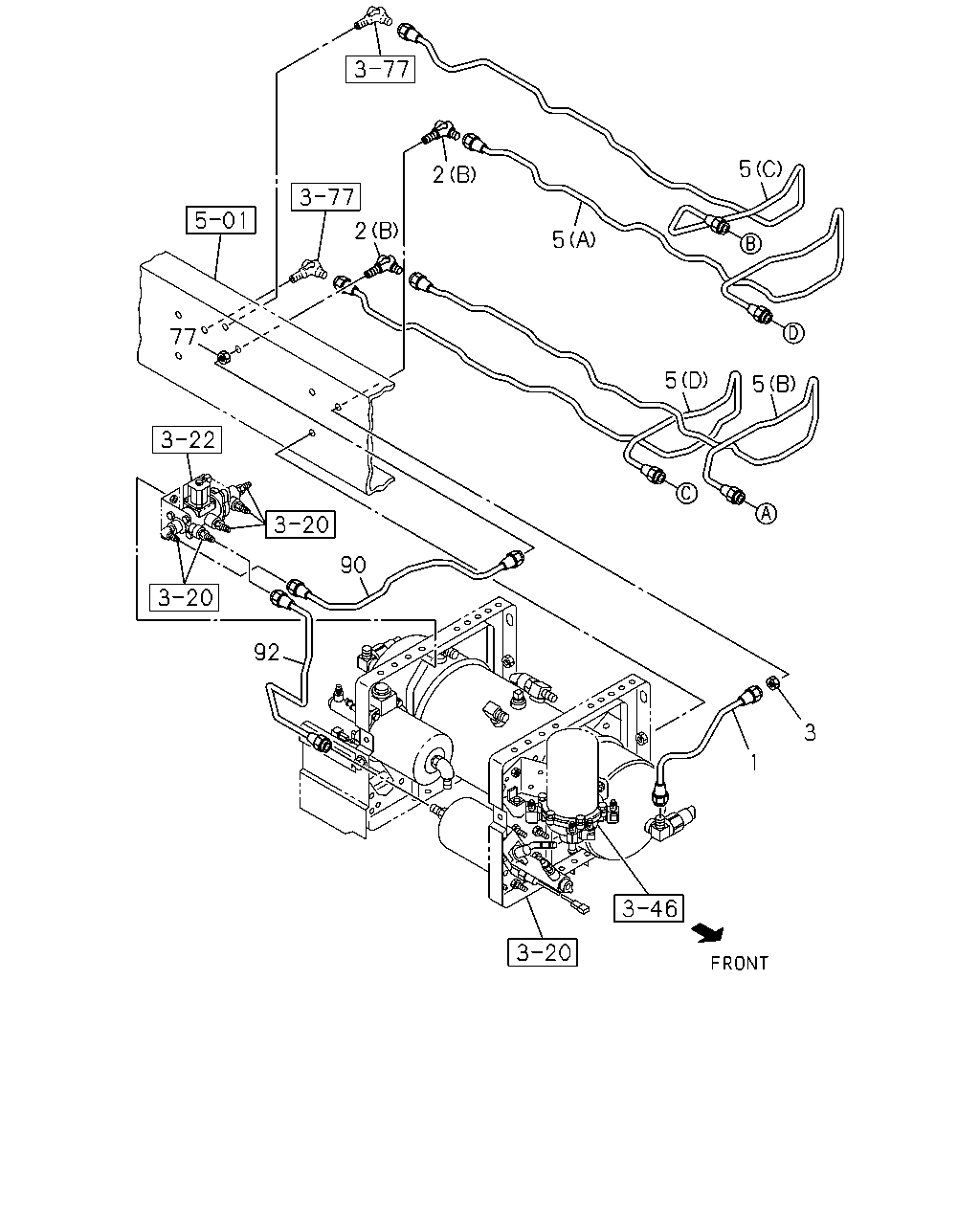

[375A] FRAME SIDE;H.S.A SYSTEM (12 parça)
▶
5
2
2
5
77
5
5
87
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; AIR,AIR TANK TO UNION
L=290
8-98044-172-0
01
1
0803-
●
●
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
02
1
0803-
●
●
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
0803-
●
●
3
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0803-
●
●
3
NUT; PIPE UNION
M8 FLANGE
0-91180-108-0
01
1
0803-
●
●
5
PIPE; AIR,UNION TO UNION
(A) L=1982 SERVICED BY L=2100
1-47428-882-0
01
1
0803-
●
●
5
PIPE; AIR,UNION TO UNION
(B) L=2357 SERVICED BY L=2500
1-47428-883-0
01
1
0803-
●
●
5
PIPE; AIR,UNION TO UNION
(C) L=2227 SERVICED BY L=2500
1-47428-883-0
01
1
0803-
●
●
5
PIPE; AIR,UNION TO UNION
(D) L=2456 SERVICED BY L=2500
1-47428-883-0
01
1
0803-
●
●
77
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0803-
●
●
87
PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800
1-47428-872-0
01
1
0803-0805
●
●
87
PIPE; AIR,UNION TO AIR MASTER
L=798 SERVICED BY L=800
1-47428-872-0
01
1
0806-
●
●
94
75
15
177
176
177
15
177
176
177
145
2
52
175
52
175
98
52
149
52
15
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
02
1
0803-
●
●
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
0803-
●
●
15
CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW
0-92134-310-0
04
1
0803-
●
●
52
CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT
1-09660-967-0
04
1
0803-
●
●
75
BRACKET; UNION
8-98066-785-0
01
1
0803-
●
●
94
BOLT; BRKT
M10X16 FLANGE
0-28151-016-0
02
1
0803-0911
●
●
94
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
02
1
0912-
●
●
98
TUBE; NYLON
8-98079-179-0
01
1
0803-
●
●
145
PLUG
PT1/4
9-99204-513-0
01
1
0803-
●
●
149
BOLT; UNION
M8X100 FLANGE
0-28050-800-0
01
1
0803-
●
●
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
0803-
●
●
176
SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> (A) STAMP 0.7
8-97622-710-0
01
1
0803-0805
●
●
176
SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP> (B) STAMP 0.3
8-98010-857-0
01
1
0803-0805
●
●
176
SWITCH; AIR PRESS
(B) STAMP 0.3
8-98010-857-0
01
1
0806-
●
●
177
CONNECTOR
H.S.A SYSTEM<6EP> (A)
1-09650-433-0
01
1
0803-0805
●
●
177
CONNECTOR
H.S.A SYSTEM<6EP> (B) PT3/8 ELBOW
1-09660-696-0
01
1
0803-0805
●
●
177
CONNECTOR
H.S.A SYSTEM<6EP> (C) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0803-0805
●
●
177
CONNECTOR
H.S.A SYSTEM<6EP> (D)
1-09660-881-0
01
1
0803-0805
●
●
5
2
5
77
5
5
90
92
3
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; AIR,AIR TANK TO UNION
L=290
8-98044-172-0
01
1
0803-
●
●
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
02
1
0803-
●
●
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
0803-
●
●
3
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0803-
●
●
3
NUT; PIPE UNION
M8 FLANGE
0-91180-108-0
01
1
0803-
●
●
5
PIPE; AIR,UNION TO UNION
(A) L=1982 SERVICED BY L=2100
1-47428-882-0
01
1
0803-
●
●
5
PIPE; AIR,UNION TO UNION
(B) L=2357 SERVICED BY L=2500
1-47428-883-0
01
1
0803-
●
●
5
PIPE; AIR,UNION TO UNION
(C) L=2227 SERVICED BY L=2500
1-47428-883-0
01
1
0803-
●
●
5
PIPE; AIR,UNION TO UNION
(D) L=2456 SERVICED BY L=2500
1-47428-883-0
01
1
0803-
●
●
77
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0803-
●
●
90
PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493
8-98077-878-0
01
1
0803-0805
●
●
92
PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=513 SERVICED BY L=550
1-47428-867-0
01
1
0803-0805
●
●
