3-70 — BRAKE PIPING; AIR,AIR MASTER (#14978) — 86 parça

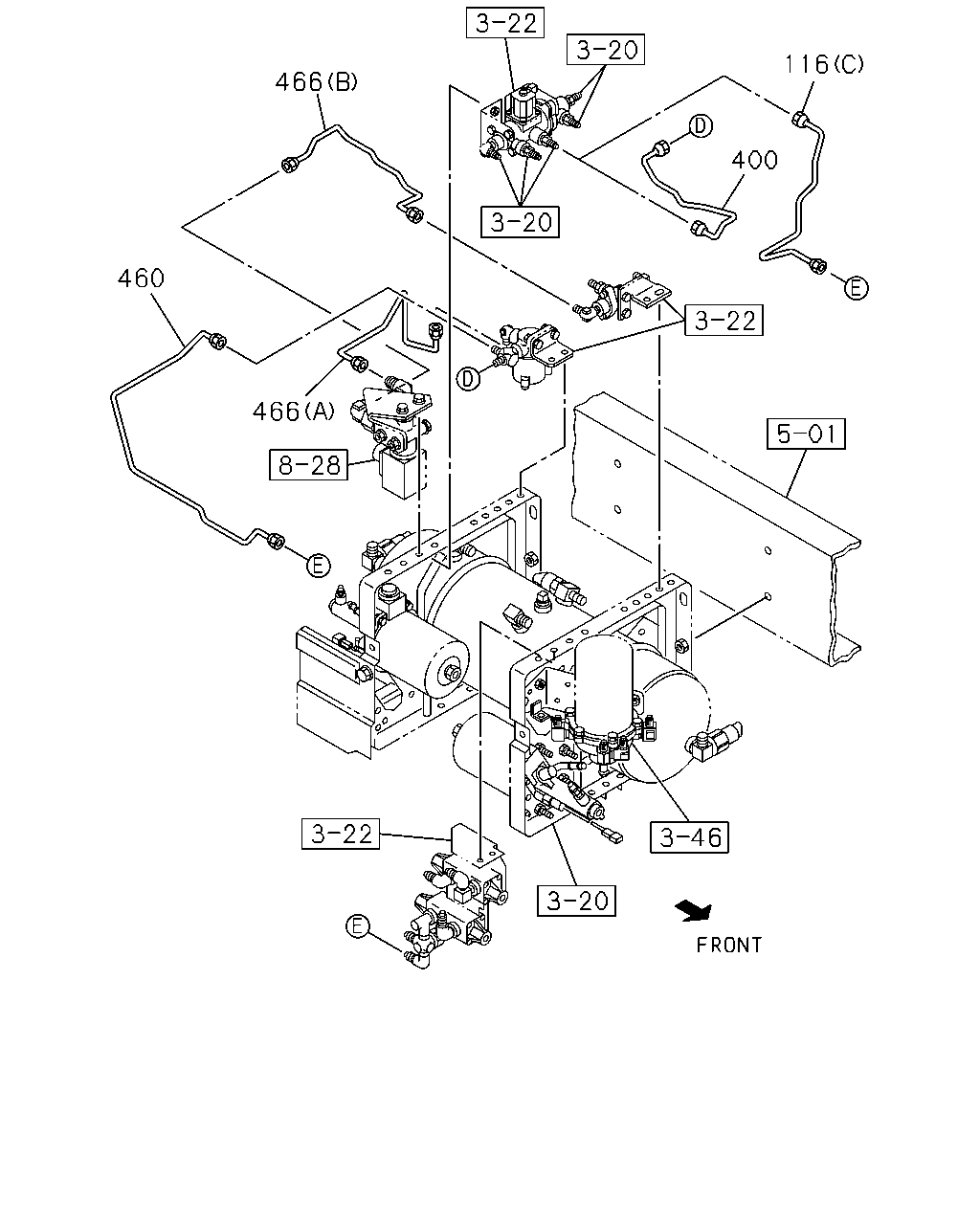

çizim 28021
116 466 400 460 466
BalonParca AdiParca NoAdetTipApplied Date A B
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0803-0805 ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0803- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0803- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0803- ● ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 0803-0805 ● ●
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) 		8-98066-846-0 01 1 0803-0805 ● ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800 		1-47428-872-0 01 1 0803-0805 ● ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 0803-0805 ● ●

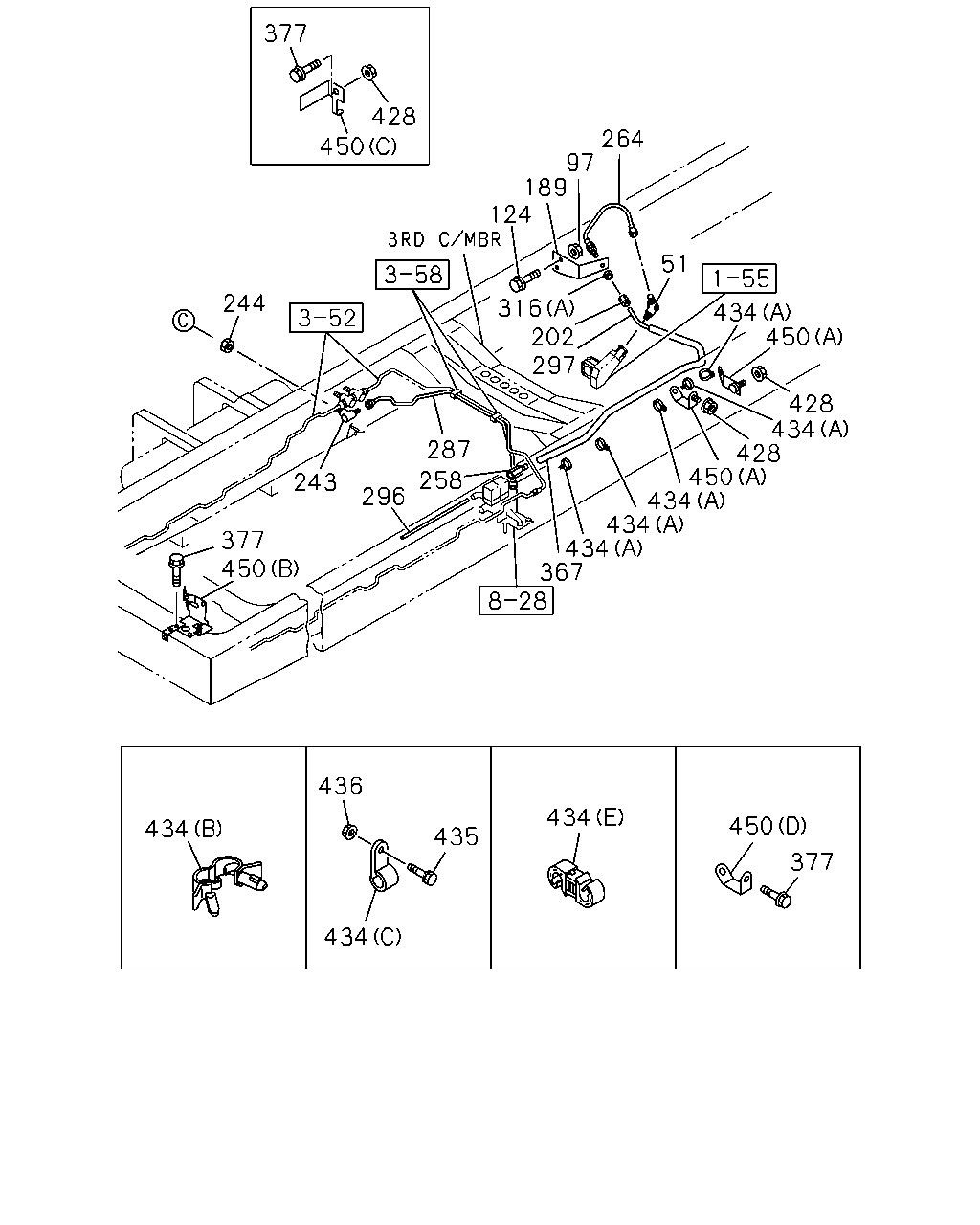

çizim 28800
377 428 264 97 189 124 450 51 244 316 202 297 434 450 428 434 428 450 434 434 434 367 287 258 243 296 377 450 436 434 450 434 435 377 434
BalonParca AdiParca NoAdetTipApplied Date A B
51 UNION
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803- ● ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803- ● ●
124 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0803- ● ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0803- ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0803- ● ●
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0803- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0803- ● ●
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0803- ● ●
264 HOSE; FLEX
L=280 		1-09363-610-0 01 1 0803- ● ●
287 PIPE; AIR,MAG VLV
L=863 SERVICED BY L=900 		1-47428-813-0 01 1 0803- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0803- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0803- ● ●
297 TUBE; NYLON
WHEEL BASE 4900MM(49W) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0803- ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0803- ●
316 NUT; FLEX HOSE
(B) M22 		0-91111-522-0 01 1 0809- ● ●
316 NUT; FLEX HOSE
(A) M12 		9-09840-280-0 01 1 0803- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0803- ● ●
367 TUBE; CORRUGATE
WHEEL BASE 4900MM(49W) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0803- ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 0803- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 01 1 0803- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0803- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 0803- ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-0803 ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0803- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0806- ● ●
434 CLIP
WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 0803- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0803- ● ●
434 CLIP
(D) ID=15 H=24 L=20 		1-09700-606-0 02 1 0803- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0803- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0803- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 11 1 0803- ● ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 0803- ● ●
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0803- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 08 1 0803- ●
434 CLIP
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 07 1 0803- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0803-0901 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0902- ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0803-0901 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
450 BRACKET; CLIP
(B) 		8-98070-055-0 01 1 0803- ● ●
450 BRACKET; CLIP
(C) 		8-98100-216-1 01 1 0803- ● ●
450 BRACKET; CLIP
(A) 		8-98021-994-1 02 1 0803-0803 ● ●
450 BRACKET; CLIP
(D) 		8-98117-686-0 02 1 0804- ● ●

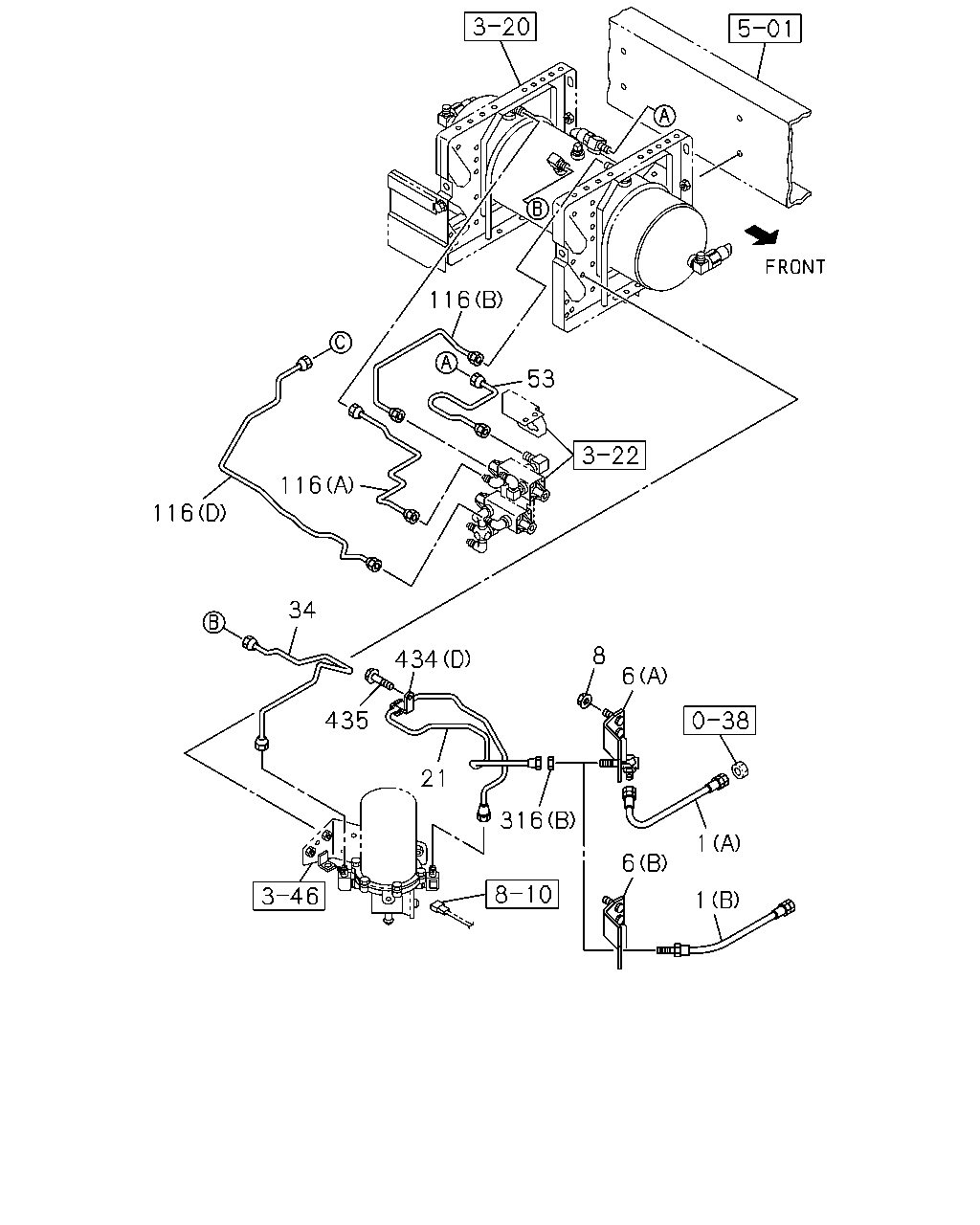

çizim 94794
116 53 116 116 34 8 434 6 435 21 316 1 6 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
(A) 		1-09363-864-0 01 1 0803-0805 ● ●
1 HOSE; FLEX,AIR TANK
(A) 		8-97607-418-0 01 1 0806-0808 ● ●
1 HOSE; FLEX,AIR TANK
(B) 		1-09363-975-0 01 1 0809-0810 ● ●
1 HOSE; FLEX,AIR TANK
(B) 		8-98079-971-0 01 1 0811- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98110-582-0 01 1 0803-0805 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98124-960-0 01 1 0806-0808 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98131-155-0 01 1 0809- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91180-108-0 02 1 0803- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1700 		8-98110-180-0 01 1 0803-0805 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1688 		8-98124-959-0 01 1 0806-0808 ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1974 		8-98131-197-0 01 1 0809- ● ●
34 PIPE; AIR
L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0803- ● ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98061-086-0 01 1 0803- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0803-0805 ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0803- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0803- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0803- ● ●
316 NUT; FLEX HOSE
(B) M22 		0-91111-522-0 01 1 0809- ● ●
316 NUT; FLEX HOSE
(A) M12 		9-09840-280-0 01 1 0803- ● ●
434 CLIP
WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 0803- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0803- ● ●
434 CLIP
(D) ID=15 H=24 L=20 		1-09700-606-0 02 1 0803- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0803- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0803- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 11 1 0803- ● ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 0803- ● ●
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0803- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 08 1 0803- ●
434 CLIP
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 07 1 0803- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0803-0901 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0902- ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
