◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11140 - FSR-RHD(EU)SPACE EU4 ▶ 3 - Brakes, Brake System ▶ 3-33 - AIR MASTER ▶
3-33 — AIR MASTER (#14971) — 24 parça

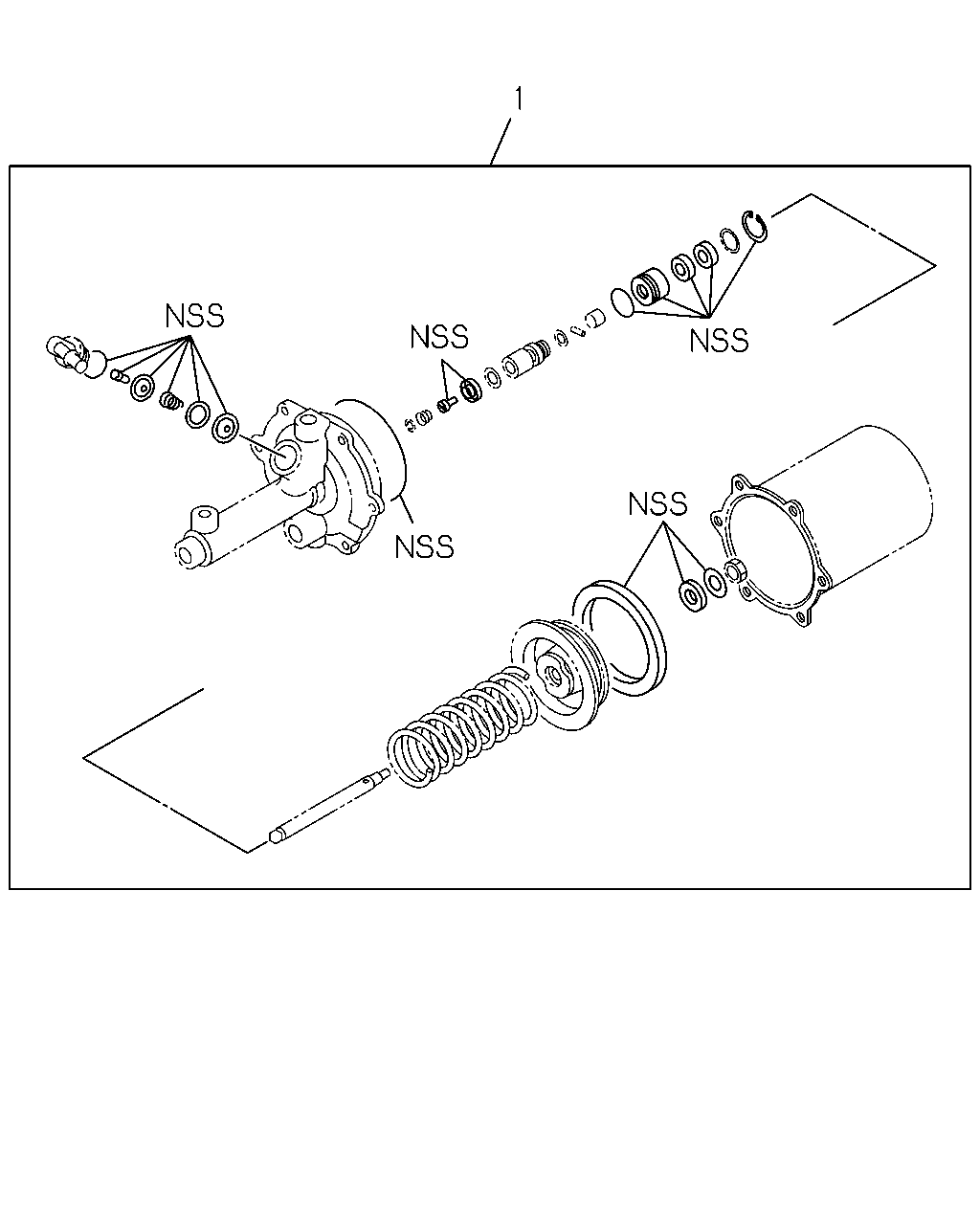

çizim 94934
1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; AIR MASTER
1 YEAR ASM PART: A = 1-47800-777-0 		1-85576-308-0 01 1 -
1 REPAIR KIT; AIR MASTER
2 YEAR ASM PART: B = 1-47800-826-0 		1-85576-480-0 01 1 -

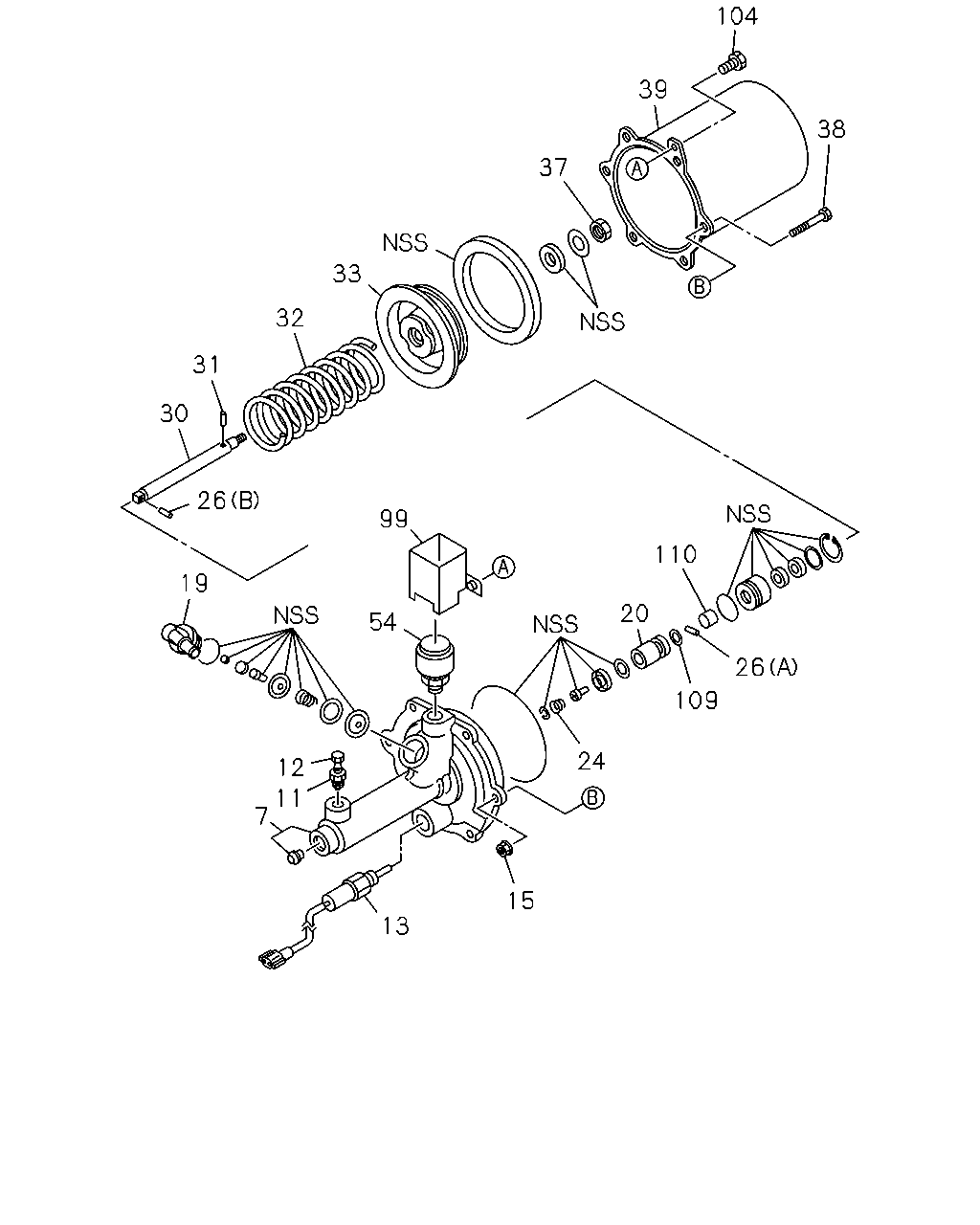

çizim 95122
104 39 38 37 33 32 31 30 26 99 110 19 20 54 26 109 24 12 11 7 15 13
BalonParca AdiParca NoAdetTipApplied Date
7 PLATE; END,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47841-095-0 01 1 -
11 PLUG; CAP,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47819-197-0 01 1 -
12 PROTECTOR; CAP,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47819-198-0 01 1 -
13 SWITCH; WARNING,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47819-196-0 01 1 -
15 NUT; END PLATE TO SHELL,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47819-200-0 06 1 -
19 CONNECTOR; END PLATE,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47819-195-0 01 1 -
20 PISTON ASM; HYDRAULIC
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47821-053-0 01 1 -
24 SPRING; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47824-041-0 01 1 -
26 PIN; HYD PISTON,AIR MASTER
(B) ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47829-101-0 01 1 -
26 PIN; HYD PISTON,AIR MASTER
(A) ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47829-141-0 01 1 -
30 ROD; PUSH,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47829-102-0 01 1 -
31 PIN; STRAIGHT
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47829-103-0 01 1 -
32 SPRING; CYL SHELL,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47824-035-0 01 1 -
33 PLATE; PISTON,SHELL,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47829-104-0 01 1 -
37 NUT; PUSH ROD,SHELL,AIR MASTER
M12 ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47829-105-0 01 1 -
38 BOLT; END PLATE TO SHELL,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47819-199-0 06 1 -
39 SHELL; CYL,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47811-137-0 01 1 -
54 COVER; EXH,END PLATE,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47819-194-0 01 1 -
99 BRACKET; AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47819-202-0 01 1 -
104 BOLT; BRKT,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47819-201-0 01 1 -
109 CLIP; PIN,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47829-098-0 01 1 -
110 GUIDE; PIN,AIR MASTER
ASM PART: A = 1-47800-777-0, B = 1-47800-826-0 		1-47829-142-0 01 1 -
