◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11140 - FSR-RHD(EU)SPACE EU4 ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#14965) — 29 parça

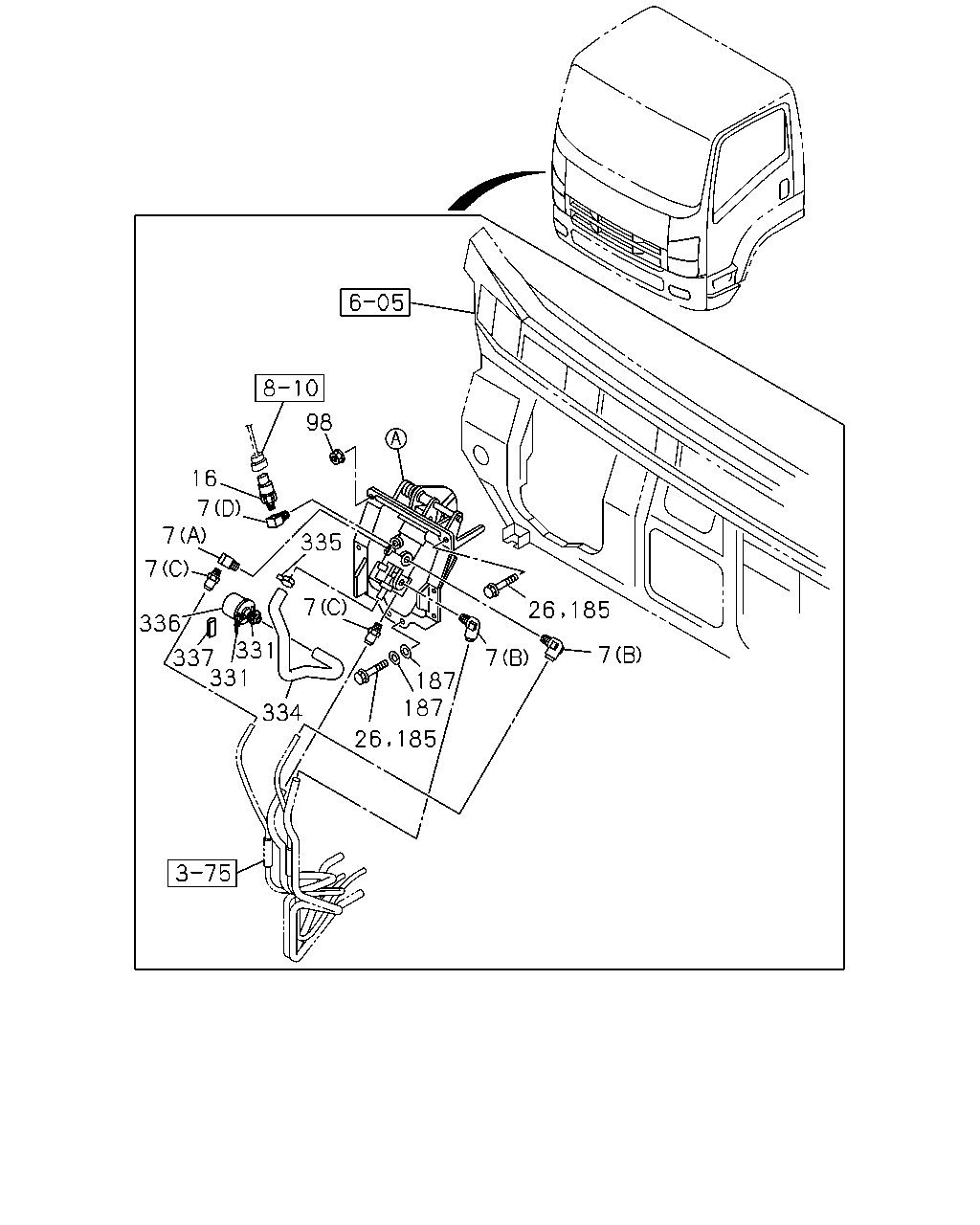

çizim 94946
98 16 7 335 7 7 7 336 331 337 331 7 7 187 187 334 26 185 26 185
BalonParca AdiParca NoAdetTipApplied Date A B
7 CONNECTOR; BRK VALVE
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0803- ● ●
7 CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 0803- ● ●
7 CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0803- ● ●
7 CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0803- ● ●
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 01 1 0803- ● ●
26 BOLT; PEDAL
M8X25 FLANGE 		8-98057-109-0 07 1 0803-0908 ● ●
98 NUT; BRKT
M8 FLANGE 		0-91180-208-0 01 1 0803- ● ●
185 BOLT; BRKT
M8X25 FLANGE 		8-98057-109-0 07 1 0909- ● ●
187 WASHER; PL,BRKT
ID=8.4 OD=26 		0-91614-808-0 04 1 0803- ● ●
331 CLIP; BAND
L=197 		1-83574-032-0 02 1 0803- ● ●
334 HOSE; AIR,BRK 8-98017-118-4 01 1 0803- ● ●
335 CLAMP; HOSE
ID=24 		8-98025-921-0 01 1 0803- ● ●
336 SILENCER; AIR 1-48199-544-0 01 1 0803- ● ●
337 PROTECTOR; AIR BRK
L=30 L=50 		8-94270-377-1 01 1 0803- ● ●

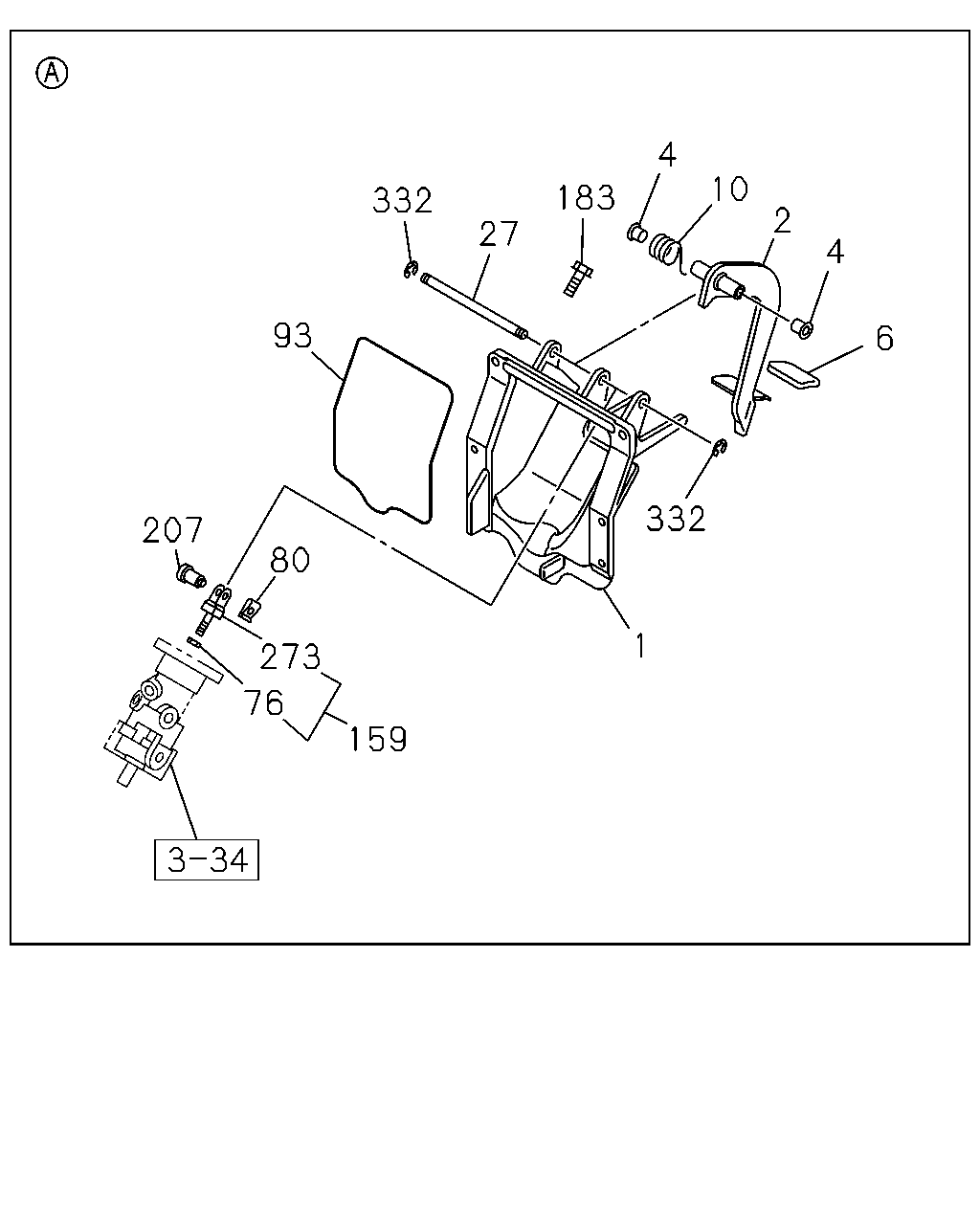

çizim 96545
4 10 183 332 2 27 4 93 6 332 207 80 1 273 76 159
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL 8-98071-972-1 01 1 0803- ● ●
2 PEDAL; BRK 8-98057-226-0 01 1 0803- ● ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 0803- ● ●
6 COVER; BRK PEDAL 8-98056-865-0 01 1 0803- ● ●
10 SPRING; RETURN,BRK PEDAL 8-98057-232-1 01 1 0803- ● ●
27 SHAFT; BRK PEDAL 8-98057-231-0 01 1 0803- ● ●
76 NUT; PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 0803- ● ●
93 SEAL; BRK PEDAL 1-48199-534-0 01 1 0803- ● ●
159 ROD ASM; PUSH,BRK 8-98057-234-0 01 1 0803- ● ●
183 BOLT; BRK VLV
M8X30 FLANGE 		0-28660-830-0 04 1 0803- ● ●
207 PIN; JOINT,BRK PEDAL LINK 8-97387-230-0 01 1 0803-1007 ● ●
207 PIN; JOINT,BRK PEDAL LINK 8-98147-657-0 01 1 1008- ● ●
273 ROD; PULL 8-98057-233-0 01 1 0803- ● ●
332 RING; SNAP
ID=12 		0-91805-512-0 02 1 0803- ● ●
