2-20 — MANUAL TRANSMISSION ASM AND CASE (#14953) — 152 parça

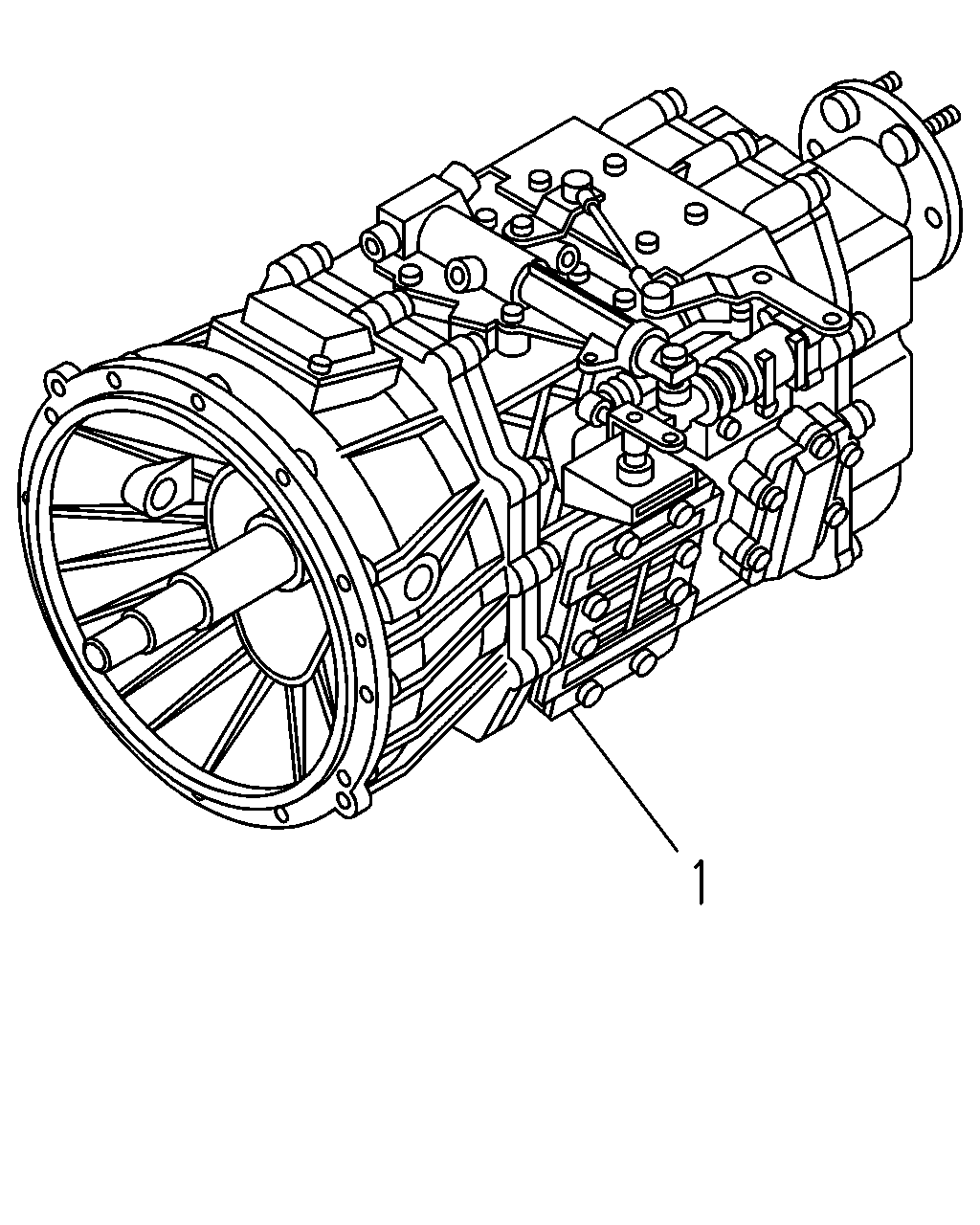

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-819-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-532-0	01	1	0804-0812	●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98115-532-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98115-543-0	01	1	0804-0812	●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98115-543-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-819-0	01	1	0803-0812	●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C>	8-98041-819-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0803-0812	●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-299-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-298-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33044-298-0	01	1	0807-		●

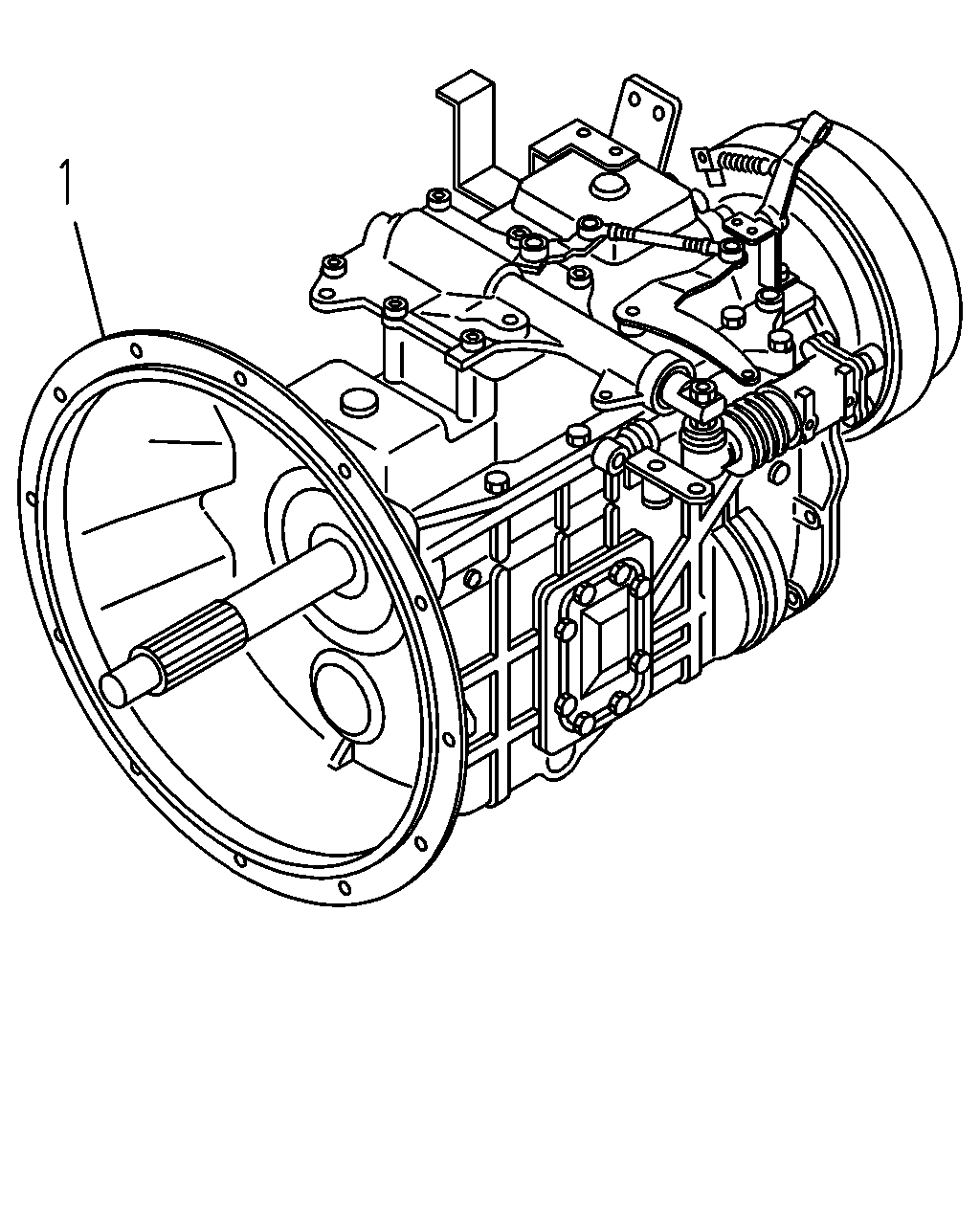

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-819-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-532-0	01	1	0804-0812	●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98115-532-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98115-543-0	01	1	0804-0812	●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98115-543-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-819-0	01	1	0803-0812	●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C>	8-98041-819-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0803-0812	●
1	TRANSMISSION ASM; MANUAL 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-299-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-298-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33044-298-0	01	1	0807-		●

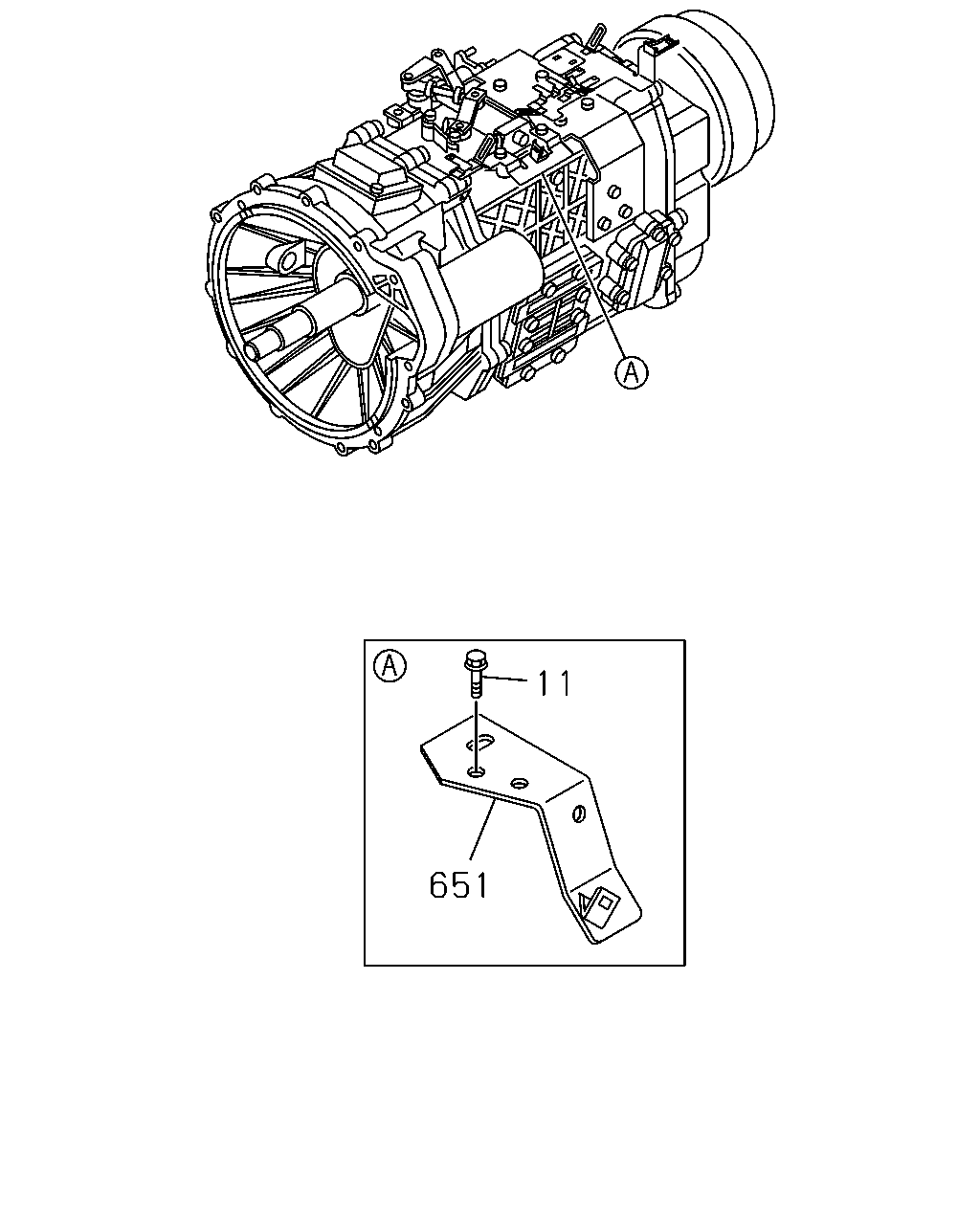

11 651

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	11	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0807-		●
	651	BRACKET; T/M HARNESS	8-97627-300-0	01	1	0807-		●

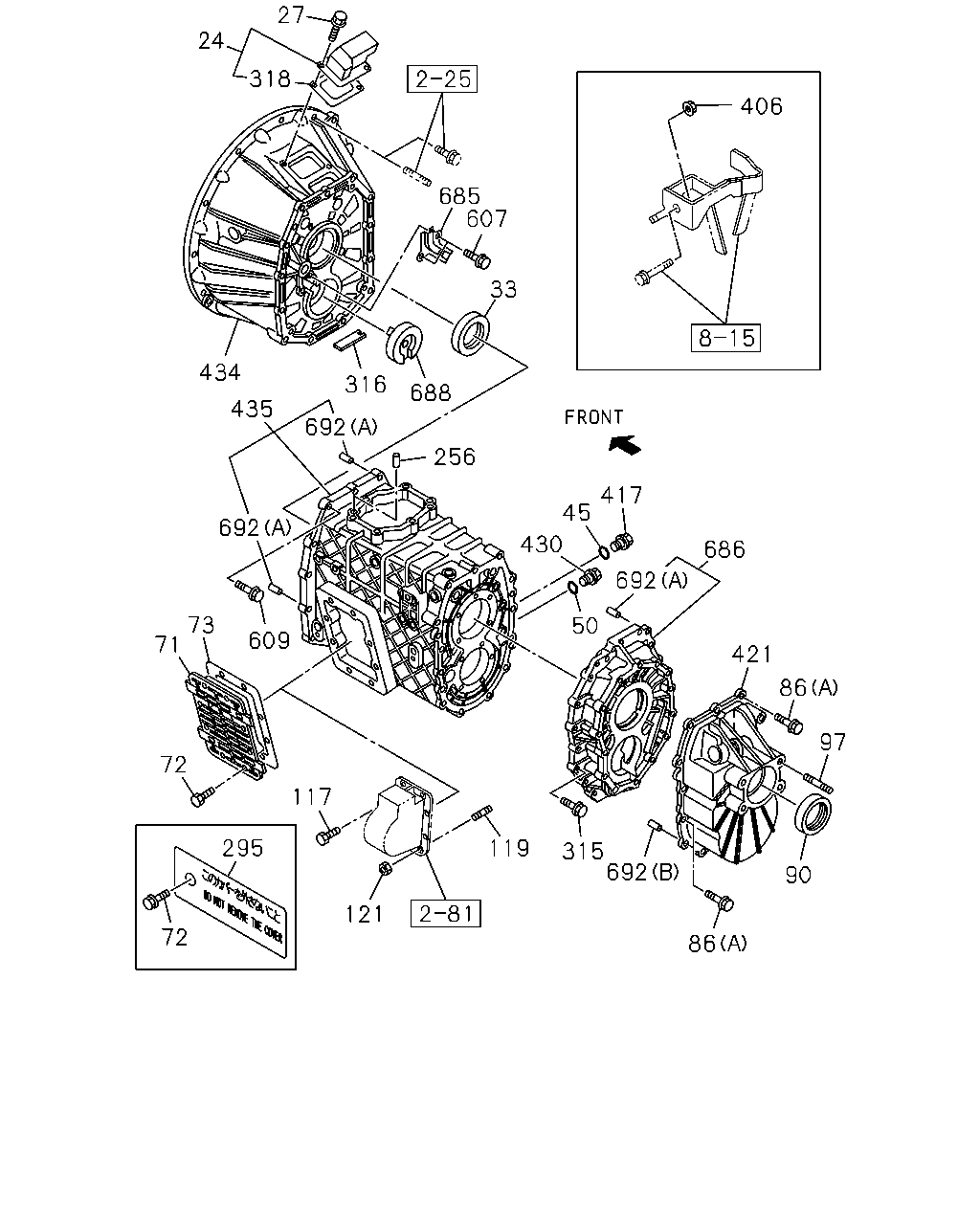

27 318 24 685 33 607 688 316 692 434 435 692 609 73 71 72 117 295 72 121 119 315 692 86 90 97 86 421 686 417 45 430 692 50 256 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	8-98283-062-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0803-0806	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0807-1410	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0803-1410	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0807-1410		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0803-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0807-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0803-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0807-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0803-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0807-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97377-949-0	01	1	0803-0901	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97252-624-2	01	1	0902-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	0807-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0807-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	0803-0803	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0804-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0804-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0803-0806	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0807-	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0803-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0807-		●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0807-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0803-0806	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0807-1103	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0803-0806	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0807-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0803-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0807-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0803-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0807-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0803-0806	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0807-	●	●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0803-	●
295	PLATE; COVER,PTO EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-575-0	01	1	0804-	●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0803-	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0803-	●
318	GASKET; COVER	1-31139-023-0	01	1	1411-	●
406	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0803	●	●
406	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0804-0901	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0803-	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0807-		●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0803-	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0807-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0803-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0807-		●
434	HOUSING; CLU	8-98004-506-2	01	1	0803-	●
434	HOUSING; CLU	1-31110-169-0	01	1	0807-		●
435	CASE; TRANS	8-97388-872-4	01	1	0803-	●
435	CASE; TRANS	1-33111-355-0	01	1	0807-		●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0803-	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0803-	●
685	COVER; OIL PORT	8-98018-864-1	01	1	0803-	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0803-	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0803-1110	●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-	●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0803-	●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0803-	●

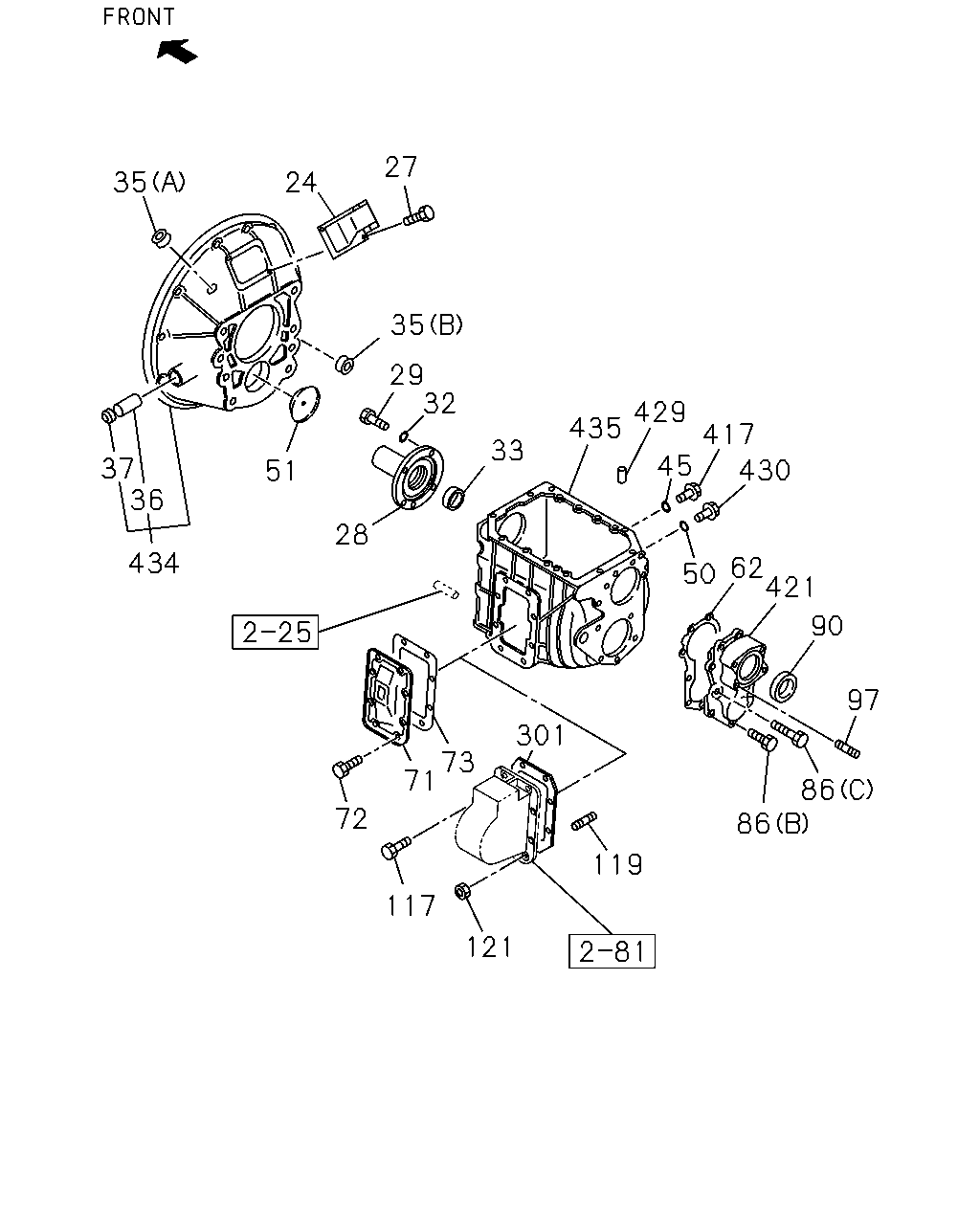

27 24 35 35 29 32 429 435 417 45 33 37 36 430 51 28 434 62 421 50 90 97 301 73 71 86 86 72 119 117 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	8-98283-062-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0803-0806	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0807-1410	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0803-1410	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0807-1410		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0807-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0807-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0807-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0803-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0807-		●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	0807-		●
35	GROMMET; CLU HSG (A)	9-09575-796-0	01	1	0807-		●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0807-		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0807-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0803-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0807-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0803-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0807-		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0807-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0807-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97377-949-0	01	1	0803-0901	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97252-624-2	01	1	0902-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	0807-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0807-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	0803-0803	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0804-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0804-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0803-0806	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0807-	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0803-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0807-		●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0807-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0803-0806	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0807-1103	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0803-0806	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0807-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0803-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0807-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0803-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0807-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0803-0806	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0807-	●	●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	0807-		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0803-	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0807-		●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0803-	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0807-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0807-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0803-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0807-		●
434	HOUSING; CLU	8-98004-506-2	01	1	0803-	●
434	HOUSING; CLU	1-31110-169-0	01	1	0807-		●
435	CASE; TRANS	8-97388-872-4	01	1	0803-	●
435	CASE; TRANS	1-33111-355-0	01	1	0807-		●
