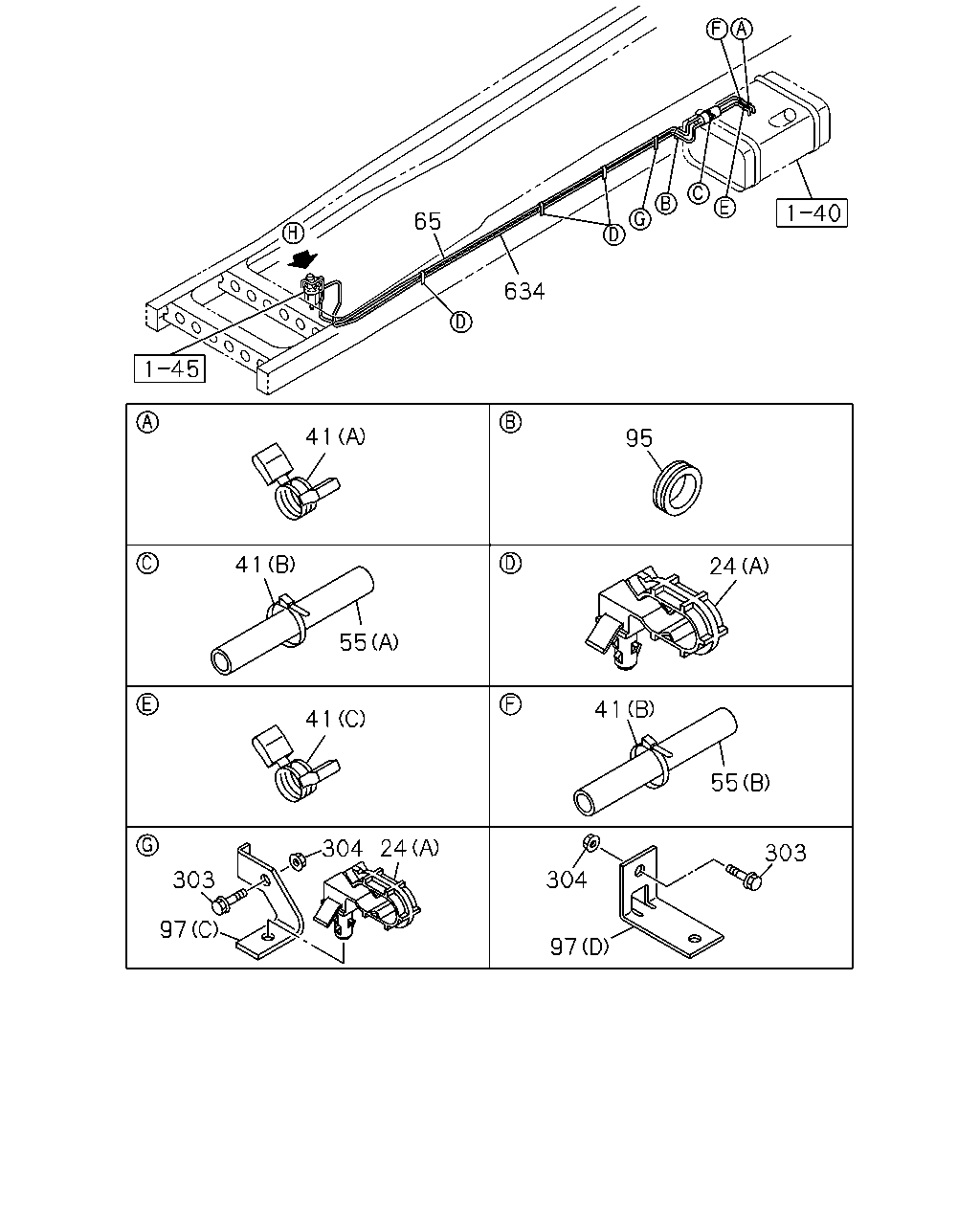

1-41 — FUEL PIPING; CHASSIS (#14942) — 83 parça

65 634 41 95 41 24 55 41 41 55 24 304 303 304 303 97 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0803-	●
24	CLIP; FUEL HOSE (D) ID=16X2 L=20	0-95325-535-0	03	1	0803-	●	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0803-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	0803-		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	0803-0806		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0807-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0803-	●	●
55	COVER; PIPE,FUEL TANK (B) ID=17 OD=21 L=40	1-09337-012-0	01	1	0803-0808	●	●
55	COVER; PIPE,FUEL TANK (B) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0809-	●	●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0803-0805	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) L=3700 SERVICED BY L=8000	0-01260-800-0	01	1	0803-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0803-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=3400 SERVICED BY L=8000	0-01260-800-0	01	1	0803-		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0803-	●	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0809-0809	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (D)	8-98109-768-0	01	1	0809-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (D)	8-98109-768-0	01	1	0809-		●
97	BRACKET; CLIP (A)	8-98070-115-0	01	1	0803-	●	●
97	BRACKET; CLIP (B)	8-98082-343-0	01	1	0803-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (C)	8-98083-349-0	01	1	0803-0805	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (C)	8-98083-349-0	01	1	0803-0805		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (C)	8-98083-349-0	01	1	0806-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0902-	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-0809	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M10X30 FLANGE	0-28651-030-0	01	1	0809-	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	0809-		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M8X30 FLANGE	0-28650-830-0	02	1	0803-0805	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M8X30 FLANGE	0-28650-830-0	02	1	0803-0805		●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0809	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M10 FLANGE	0-91180-210-0	01	1	0809-	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	0809-		●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	0803-0805	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	01	1	0803-0805		●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	0806-0901	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0902-	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	0902-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) L=3800 SERVICED BY L=7000	0-01558-700-0	01	1	0803-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=2200 SERVICED BY L=3000	0-01558-300-0	01	1	0803-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=3600 SERVICED BY L=7000	0-01558-700-0	01	1	0803-		●

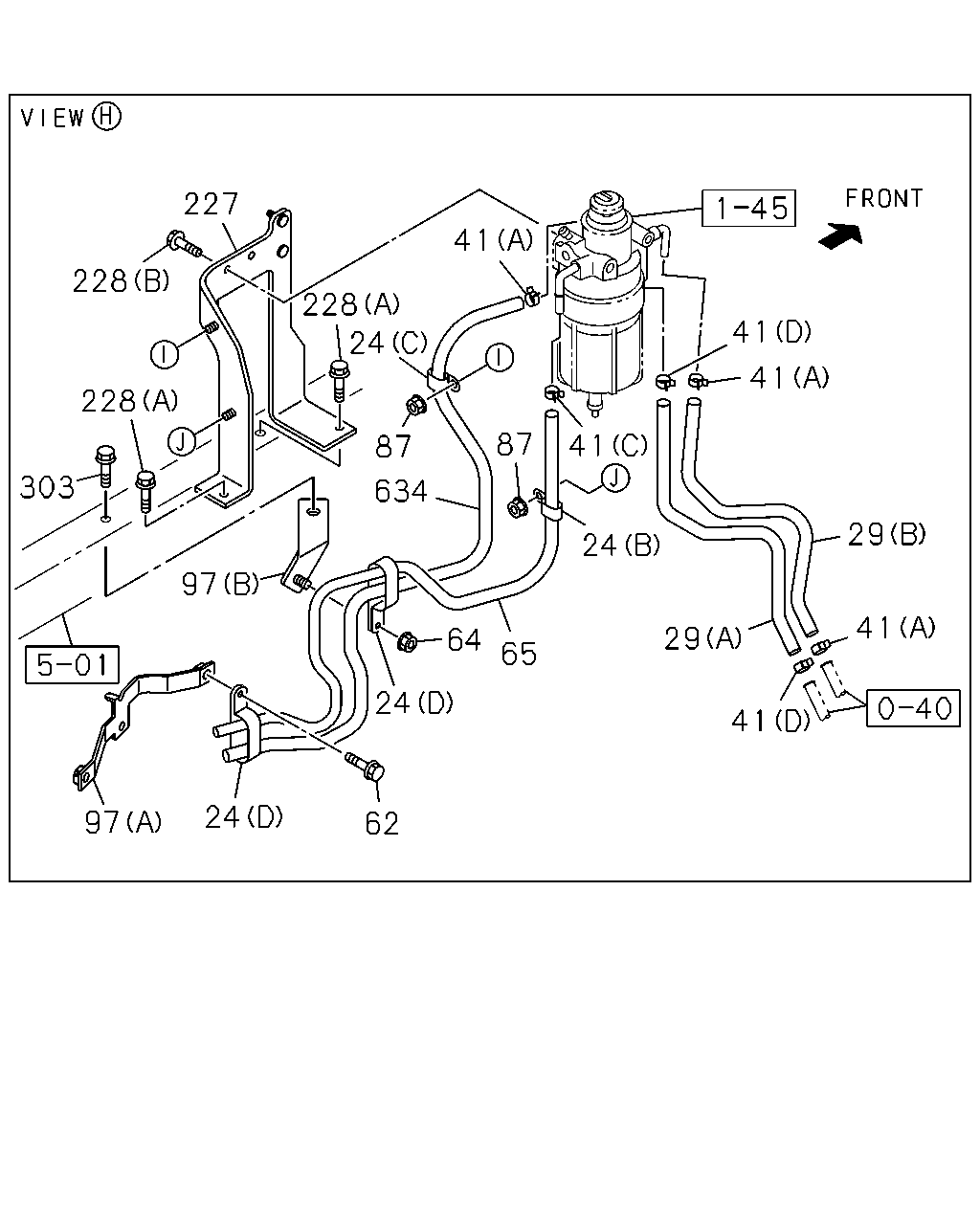

227 41 228 228 24 41 41 228 87 41 87 303 634 29 24 97 41 29 64 65 41 24 24 97 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0803-	●
24	CLIP; FUEL HOSE (D) ID=16X2 L=20	0-95325-535-0	03	1	0803-	●	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0803-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	0803-		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	0803-0806		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0807-		●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0803-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0803-	●	●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	03	1	0803-0901	●	●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0902-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) L=3700 SERVICED BY L=8000	0-01260-800-0	01	1	0803-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0803-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=3400 SERVICED BY L=8000	0-01260-800-0	01	1	0803-		●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0809-0809	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (D)	8-98109-768-0	01	1	0809-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (D)	8-98109-768-0	01	1	0809-		●
97	BRACKET; CLIP (A)	8-98070-115-0	01	1	0803-	●	●
97	BRACKET; CLIP (B)	8-98082-343-0	01	1	0803-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (C)	8-98083-349-0	01	1	0803-0805	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (C)	8-98083-349-0	01	1	0803-0805		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (C)	8-98083-349-0	01	1	0806-	●
227	BRACKET; FUEL SEDIMENTER	8-98093-028-1	01	1	0803-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0803-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0902-	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-0809	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M10X30 FLANGE	0-28651-030-0	01	1	0809-	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	0809-		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M8X30 FLANGE	0-28650-830-0	02	1	0803-0805	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M8X30 FLANGE	0-28650-830-0	02	1	0803-0805		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) L=3800 SERVICED BY L=7000	0-01558-700-0	01	1	0803-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=2200 SERVICED BY L=3000	0-01558-300-0	01	1	0803-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=3600 SERVICED BY L=7000	0-01558-700-0	01	1	0803-		●
