Isuzu WW
▶
TRUCKS
▶
FSR
▶
11140 - FSR-RHD(EU)SPACE EU4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#14939) — 42 parça
◀

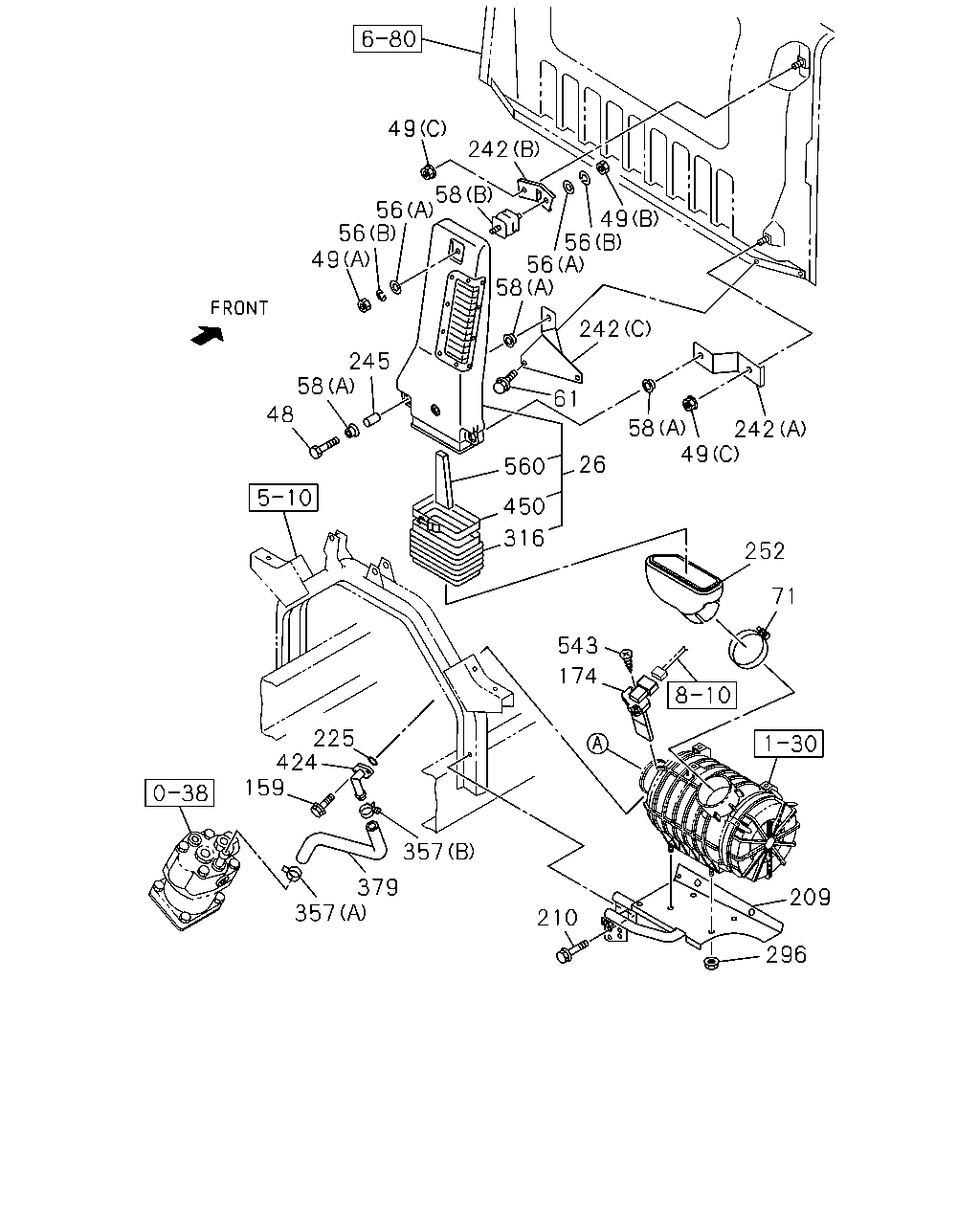

[131A] DUCT FIXING (33 parça)
[131A] PIPING (9 parça)
▶
49
242
58
56
56
49
49
56
56
58
242
245
61
58
242
49
48
58
26
560
450
316
252
71
543
174
225
424
159
357
379
209
357
210
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
0803-
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
0803-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
0803-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
0803-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
0803-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
0803-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
0803-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
0803-
58
SUPPORT; AIR INL DUCT
(B)
1-14119-452-0
01
1
0803-0810
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
0811-
61
BOLT; BRKT,AIR DUCT
M8X20 FLANGE
8-98061-920-0
02
1
0803-0807
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
0808-
71
CLIP; AIR DUCT
ID=104-139
1-09707-200-0
01
1
0803-0812
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
0901-
159
BOLT; AIR PIPE
M6X16 FLANGE
0-28050-616-0
02
1
0803-
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
0803-
209
BRACKET; ACL
8-98010-343-4
01
1
0803-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
0803-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
0803-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
0803-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
0803-
242
BRACKET; AIR DUCT
(A)
8-98019-303-1
01
1
0803-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
0803-
252
DUCT; AIR INT
8-98010-639-1
01
1
0803-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
0803-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
0908-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
01
1
0803-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
0803-
379
HOSE; RUBBER
8-98063-173-0
01
1
0803-
424
PIPE; AIR,INL
8-98081-834-0
01
1
0803-
450
CLAMP; HOSE
9-09915-504-1
01
1
0803-
543
SCREW; SENSOR
M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
0803-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
0803-
353
353
353
353
488
353
353
548
353
353
320
5
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=100-120
8-98133-366-0
01
1
0901-
5
CLIP; AIR DUCT
(A) ID=104-139
1-09707-200-0
01
1
0803-0812
5
CLIP; AIR DUCT
(A) ID=110-130
8-98133-359-0
01
1
0901-
5
CLIP; AIR DUCT
(B) ID=114
8-15178-030-0
01
1
0803-
320
HOSE; CONN,ACL
8-98010-645-2
01
1
0803-
353
CLIP; RUBBER HOSE
ID=58-76
1-09707-203-0
08
1
0803-0811
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
08
1
0812-
488
HOSE; RUBBER,PIPE
8-98013-914-0
01
1
0803-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98065-042-0
01
1
0803-
