0-66 — GENERATOR (#14934) — 77 parça

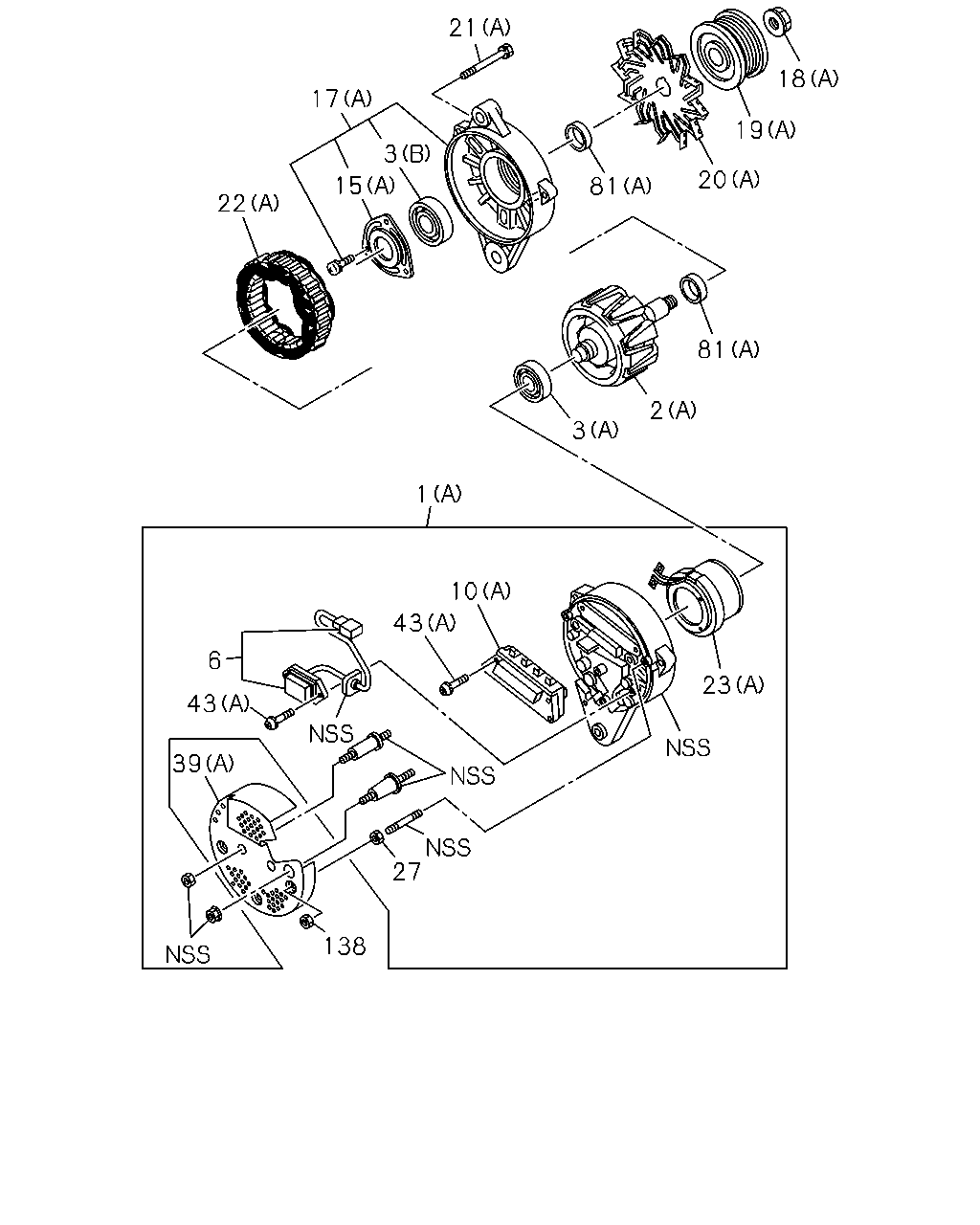

22 17 21 3 15 81 20 19 18 81 2 3 1 23 10 43 6 43 39 27 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98040-684-0	01	1	-
1	COVER ASM; RR,GEN (B) ASM PART: C = 8-98013-463-2	8-98048-009-0	01	1	-
2	ROTOR; GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98040-638-0	01	1	-
2	ROTOR; GEN (B) ASM PART: C = 8-98013-463-2	8-98048-000-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: C = 8-98013-463-2	1-81229-631-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	1-81229-758-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: C = 8-98013-463-2	8-98048-001-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-98013-461-4, B = 8-98013-462-4, C = 8-98013-463-2	8-98040-688-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98040-686-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: C = 8-98013-463-2	8-98048-011-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	1-81229-760-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: C = 8-98013-463-2	8-98048-004-0	01	1	-
17	COVER ASM; FRT,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-97382-872-0	01	1	-
17	COVER ASM; FRT,GEN (B) ASM PART: C = 8-98013-463-2	8-98048-003-0	01	1	-
18	NUT; PULLEY,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98040-643-0	01	1	-
18	NUT; PULLEY,GEN (B) ASM PART: C = 8-98013-463-2	9-82216-098-0	01	1	-
19	PULLEY; GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98040-641-0	01	1	-
19	PULLEY; GEN (B) ASM PART: C = 8-98013-463-2	8-98048-007-0	01	1	-
20	FAN; GEN (B) ASM PART: C = 8-98013-463-2	1-81223-003-1	01	1	-
20	FAN; GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-97382-874-0	01	1	-
21	BOLT; THROUGH,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	1-81229-382-0	03	1	-
21	BOLT; THROUGH,GEN (B) ASM PART: C = 8-98013-463-2	1-81229-661-0	04	1	-
22	STATOR; GEN (A) ASM PART: A = 8-98013-461-4	8-98040-639-0	01	1	-
22	STATOR; GEN (A) ASM PART: B = 8-98013-462-4	8-98040-640-0	01	1	-
22	STATOR; GEN (B) ASM PART: C = 8-98013-463-2	8-98048-002-0	01	1	-
23	COIL; ROTOR GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98040-645-0	01	1	-
23	COIL; ROTOR GEN (B) ASM PART: C = 8-98013-463-2	8-98048-008-1	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 8-98013-461-4, B = 8-98013-462-4, C = 8-98013-463-2	8-98040-687-0	01	1	-
39	COVER; END,RR COVER,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98040-689-0	01	1	-1011
39	COVER; END,RR COVER,GEN (B) ASM PART: C = 8-98013-463-2	8-98048-012-0	01	1	-
39	COVER; END,RR COVER,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98181-103-0	01	1	1012-
43	SCREW; RR END COVER (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	1-81229-476-0	03	1	-
43	SCREW; RR END COVER (B) ASM PART: C = 8-98013-463-2	8-98048-058-0	04	1	-
81	SPACER; ROTOR,GEN (B) ASM PART: C = 8-98013-463-2	1-81229-627-0	01	1	-
81	SPACER; ROTOR,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-97382-870-0	02	1	-
138	NUT; COVER,GENERATOR ASM PART: A = 8-98013-461-4, B = 8-98013-462-4, C = 8-98013-463-2	8-98040-690-0	03	1	-

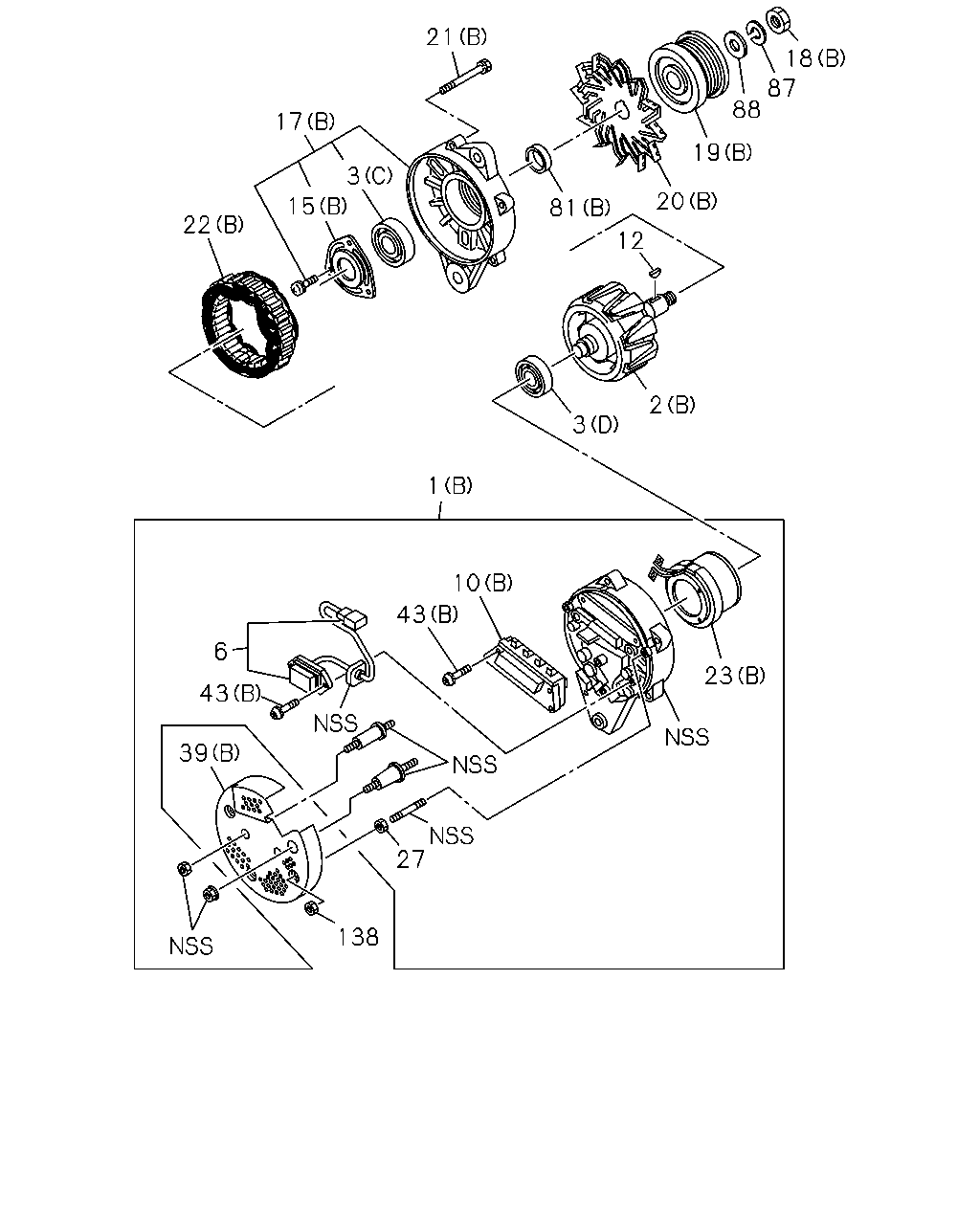

138 27 23 10 43 6 43 1 39 2 3 12 81 20 19 88 87 18 21 3 17 15 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98040-684-0	01	1	-
1	COVER ASM; RR,GEN (B) ASM PART: C = 8-98013-463-2	8-98048-009-0	01	1	-
2	ROTOR; GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98040-638-0	01	1	-
2	ROTOR; GEN (B) ASM PART: C = 8-98013-463-2	8-98048-000-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: C = 8-98013-463-2	1-81229-631-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	1-81229-758-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: C = 8-98013-463-2	8-98048-001-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-98013-461-4, B = 8-98013-462-4, C = 8-98013-463-2	8-98040-688-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98040-686-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: C = 8-98013-463-2	8-98048-011-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: C = 8-98013-463-2	9-82215-867-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	1-81229-760-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: C = 8-98013-463-2	8-98048-004-0	01	1	-
17	COVER ASM; FRT,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-97382-872-0	01	1	-
17	COVER ASM; FRT,GEN (B) ASM PART: C = 8-98013-463-2	8-98048-003-0	01	1	-
18	NUT; PULLEY,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98040-643-0	01	1	-
18	NUT; PULLEY,GEN (B) ASM PART: C = 8-98013-463-2	9-82216-098-0	01	1	-
19	PULLEY; GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98040-641-0	01	1	-
19	PULLEY; GEN (B) ASM PART: C = 8-98013-463-2	8-98048-007-0	01	1	-
20	FAN; GEN (B) ASM PART: C = 8-98013-463-2	1-81223-003-1	01	1	-
20	FAN; GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-97382-874-0	01	1	-
21	BOLT; THROUGH,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	1-81229-382-0	03	1	-
21	BOLT; THROUGH,GEN (B) ASM PART: C = 8-98013-463-2	1-81229-661-0	04	1	-
22	STATOR; GEN (A) ASM PART: A = 8-98013-461-4	8-98040-639-0	01	1	-
22	STATOR; GEN (A) ASM PART: B = 8-98013-462-4	8-98040-640-0	01	1	-
22	STATOR; GEN (B) ASM PART: C = 8-98013-463-2	8-98048-002-0	01	1	-
23	COIL; ROTOR GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98040-645-0	01	1	-
23	COIL; ROTOR GEN (B) ASM PART: C = 8-98013-463-2	8-98048-008-1	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 8-98013-461-4, B = 8-98013-462-4, C = 8-98013-463-2	8-98040-687-0	01	1	-
39	COVER; END,RR COVER,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98040-689-0	01	1	-1011
39	COVER; END,RR COVER,GEN (B) ASM PART: C = 8-98013-463-2	8-98048-012-0	01	1	-
39	COVER; END,RR COVER,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-98181-103-0	01	1	1012-
43	SCREW; RR END COVER (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	1-81229-476-0	03	1	-
43	SCREW; RR END COVER (B) ASM PART: C = 8-98013-463-2	8-98048-058-0	04	1	-
81	SPACER; ROTOR,GEN (B) ASM PART: C = 8-98013-463-2	1-81229-627-0	01	1	-
81	SPACER; ROTOR,GEN (A) ASM PART: A = 8-98013-461-4, B = 8-98013-462-4	8-97382-870-0	02	1	-
87	WASHER; PULLEY,GEN ASM PART: C = 8-98013-463-2	1-81229-672-0	01	1	-
88	WASHER; PL,PULLEY GEN ASM PART: C = 8-98013-463-2	1-81229-673-0	01	1	-
138	NUT; COVER,GENERATOR ASM PART: A = 8-98013-461-4, B = 8-98013-462-4, C = 8-98013-463-2	8-98040-690-0	03	1	-
