0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#14932) — 47 parça

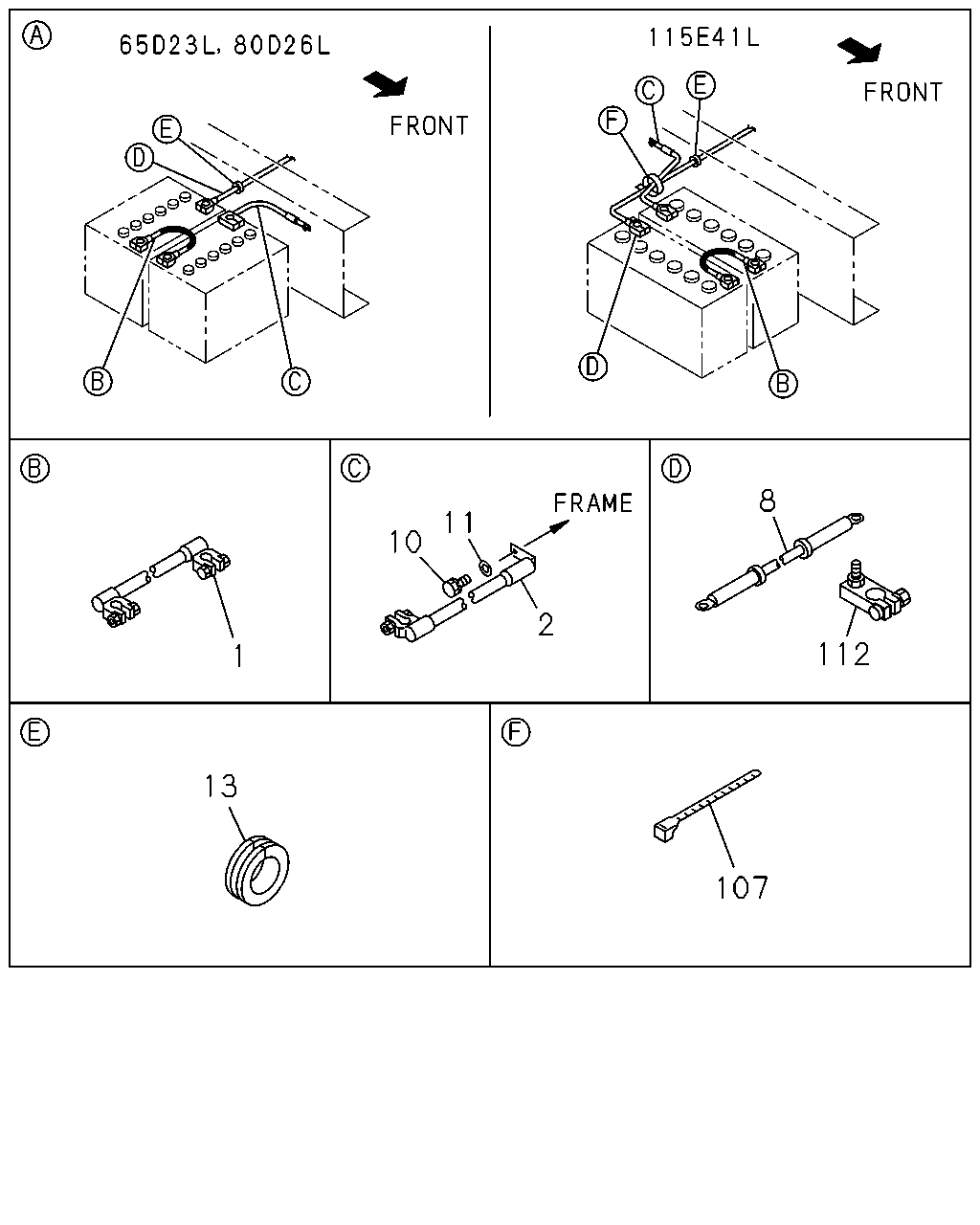

çizim 28446
8 11 10 2 112 1 13 107
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0803- ● ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240 		8-97619-727-1 01 1 0803- ● ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=400 		8-97619-733-1 01 1 0803- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1705 		8-98116-066-2 01 1 0803-1012 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98176-193-0 01 1 1101- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=1855 		8-98116-067-0 01 1 0803-0805 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=1855 		8-98123-461-2 01 1 0806-1012 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98176-195-0 01 1 1101- ● ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0803- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0806- ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0803- ● ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 0803- ● ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0803-1408 ● ●
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409- ● ●

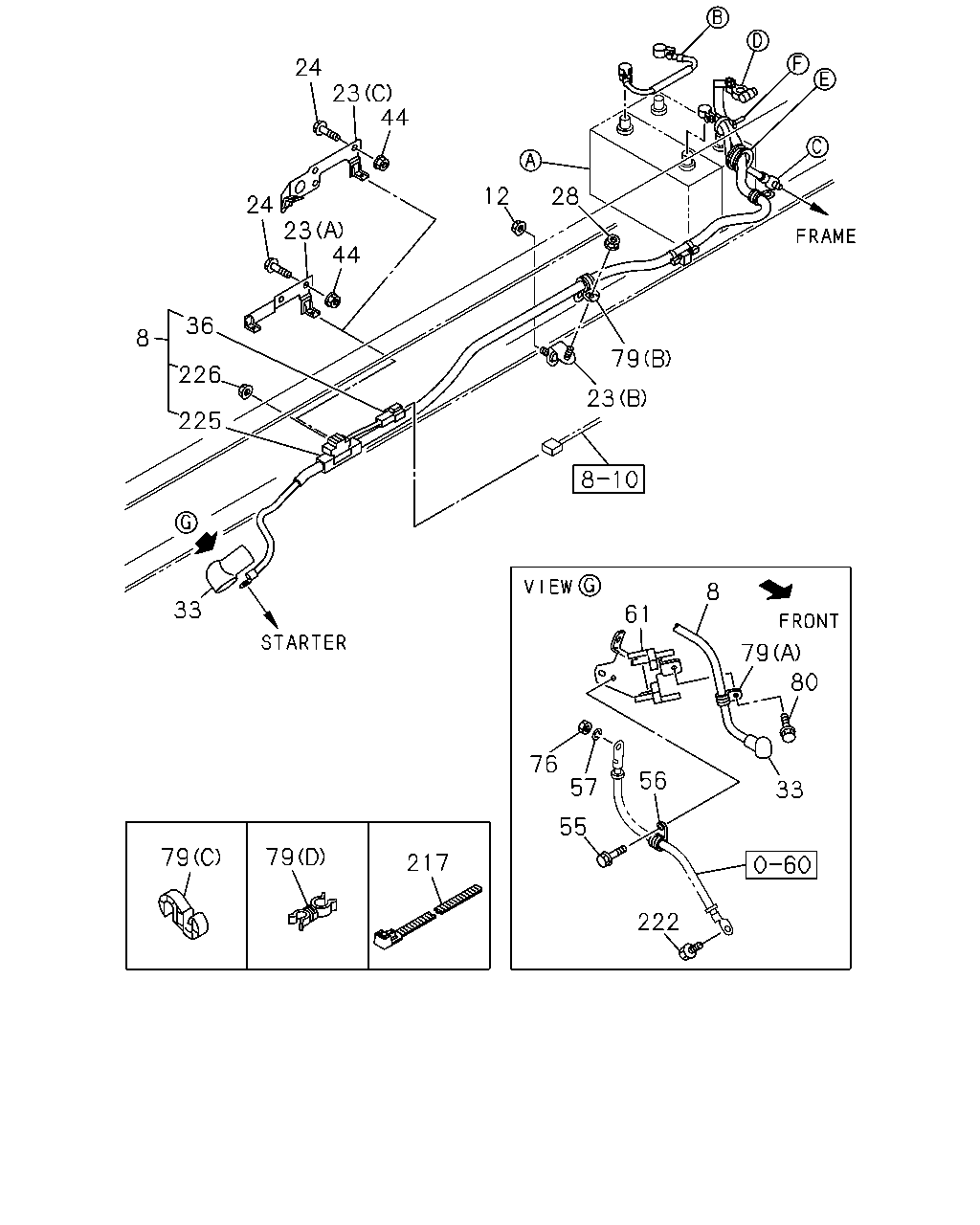

çizim 96526
24 23 44 12 28 24 23 44 36 8 79 226 23 225 8 33 61 79 80 76 56 57 33 55 79 79 217 222
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1705 		8-98116-066-2 01 1 0803-1012 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98176-193-0 01 1 1101- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=1855 		8-98116-067-0 01 1 0803-0805 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=1855 		8-98123-461-2 01 1 0806-1012 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98176-195-0 01 1 1101- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98051-380-1 01 1 0803-1012 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98176-167-0 01 1 1101- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98051-381-2 01 1 0803- ● ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 0803-1012 ● ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 03 1 1101- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 0803- ● ●
36 FUSIBLE LINK; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> 		8-97615-498-1 01 1 0803- ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0803-0804 ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0805-1012 ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1101- ● ●
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 0803- ● ●
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0803- ● ●
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0803- ● ●
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 0803- ● ●
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 0803- ● ●
79 CLIP; BATTERY CABLE
(A) ID=14.5 L=40 		1-09701-014-0 01 1 0803-1012 ● ●
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1101- ● ●
79 CLIP; BATTERY CABLE
(C) ID=6.35 & 15 		1-09709-276-1 01 1 0803- ● ●
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 01 1 0803- ● ●
79 CLIP; BATTERY CABLE
(D) ID=20 & 16.5 		8-94486-835-0 01 1 0803-0805 ● ●
79 CLIP; BATTERY CABLE
(D) ID=21 & 9.8 		8-97309-945-0 01 1 0806- ● ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0803- ● ●
217 CLIP; BAND,CABLE
L=250 		1-09707-126-0 01 1 0803- ● ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0803- ● ●
225 BLOCK; TERMINAL
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> 		8-98029-689-0 01 1 0803- ● ●
226 NUT; FUSIBLE LINK
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M6 W/LK WASHER 		8-94424-179-0 01 1 0803- ● ●
