Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10633 - FVZ-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-84 - BACK TRIM
▶

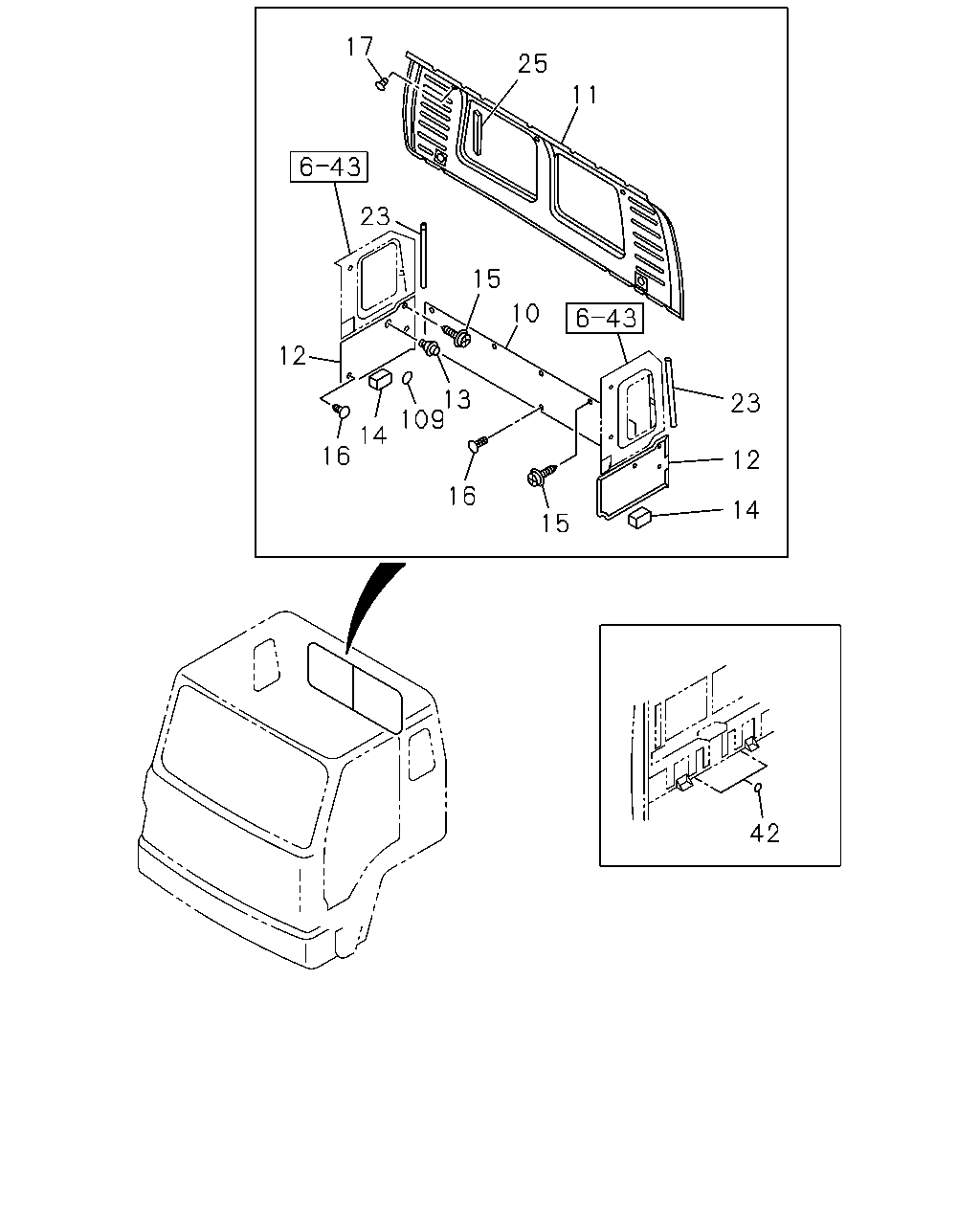

6-84 — BACK TRIM
(#1492) — 18 parça
17
25
11
23
15
10
12
13
109
23
14
16
12
16
14
15
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
TRIM; BED ROOM CENTER
DARK GRAY
1-73348-358-2
01
1
9203-9312
10
TRIM; BED ROOM CENTER
1-73348-398-0
01
1
9401-
11
TRIM; ROOM,BACK INNER
DELUXE CAB(W14) GRAY
1-73348-339-1
01
1
9203-
12
PAD; TRIM,BED ROOM SIDE
DARK GRAY
1-73348-293-3
01
1
9203-
12
PAD; TRIM,BED ROOM SIDE
DARK GRAY
1-73348-292-3
01
1
9203-
13
CLIP; BED ROOM TRIM
1-09987-119-1
02
1
9203-
14
INSULATOR; FLOOR SIDE REAR
1-73377-160-0
02
1
9203-
15
HOOK; BED ROOM TRIM
M4X14 HOOK MALE
1-09981-370-0
11
1
9203-
16
CLIP; TRIM,BED ROOM
D6X23 BLACK
1-09987-114-0
05
1
9203-
17
CLIP; ANCHOR,TRIM BACK INNER
DELUXE CAB(W14)
1-09987-203-0
03
1
9203-
23
FINISHER; BACK INNER PANEL
DELUXE CAB(W14) GRAY
1-73338-319-1
02
1
9203-
23
FINISHER; BACK INNER PANEL
EXC. DELUXE CAB(W14) WHITE
1-73337-264-0
02
1
9203-
25
SPACER; ROOM TRIM
DELUXE CAB(W14) L=400
1-73348-364-0
02
1
9203-
25
SPACER; ROOM TRIM
DELUXE CAB(W14) L=450
1-73348-386-0
02
1
9203-
42
SEAL; BACK OUTER PANEL
OD=36 WHITE
1-76778-007-0
02
1
9203-
109
SEAL; HOLE
BODY COLOR ARC WHITE(729),BODY COLOR CALM WHITE(820),BODY COLOR GLACIAL WHITE(844) EXC. DELUXE CAB(W14) WHITE
1-76777-076-0
03
1
9203-
109
SEAL; HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR PURUTAMINA BLUE(918) EXC. DELUXE CAB(W14)
1-76777-075-0
03
1
9203-
109
SEAL; HOLE
BODY COLOR SUNRISE RED(816),BODY COLOR SAHARA BEIGE(829),BODY COLOR DARK GREEN(903),BODY COLOR GOLDEN YELLOW(904),BODY COLOR SMOKE YELLOW(905),BODY COLOROMAHA ORANGE(906),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR WHEATLAND YELLOW(910),BODY COLOR LIME GREEN(911),BODY COLOR NEPAL ORANGE(912),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY YELLOW(916),BODY COLOR CATERPILLAR YELLOW(917),BODY COLOR PRIMER PA INT(927),BODY COLOR BCL YELLOW(930),BODY COLOR HIGHWAY ORANGE(944) EXC. DELUXE CAB(W14) OD=20 T=0.4 BLACK
1-76798-020-0
03
1
9203-
