0-31 — THERMOSTAT AND HOUSING (#14918) — 15 parça

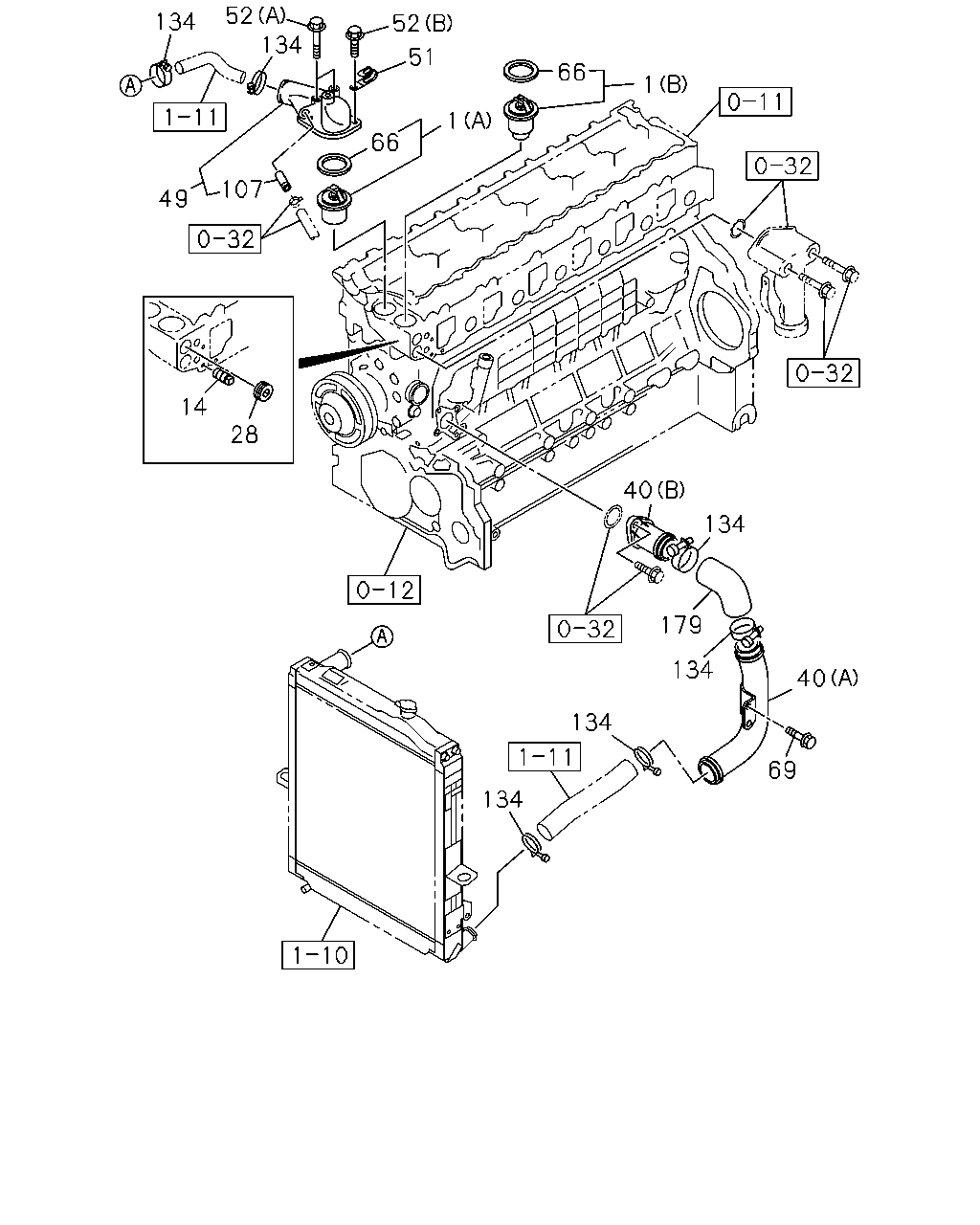

çizim 96070
52 134 134 52 51 66 1 1 66 107 49 14 28 40 134 179 134 40 134 69 134
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-2 01 1 0803-
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0803-
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 0803-
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0803-
40 DUCT; WATER,SUCTION
(A) 		8-94394-404-1 01 1 0803-
40 DUCT; WATER,SUCTION
(B) 		8-94391-091-1 01 1 0803-
49 PIPE; WATER OUTLET 8-97602-039-0 01 1 0803-
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0803-
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0803-
52 BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE 		8-97023-062-0 02 1 0803-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0803-
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0803-
107 PIPE; WATER,BYPASS 8-94129-650-0 01 1 0803-
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 06 1 0803-
179 HOSE; RUBBER,WATER DUCT 8-94390-400-3 01 1 0803-
