Isuzu WW
▶
TRUCKS
▶
FSR
▶
11140 - FSR-RHD(EU)SPACE EU4
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#14914) — 28 parça
◀

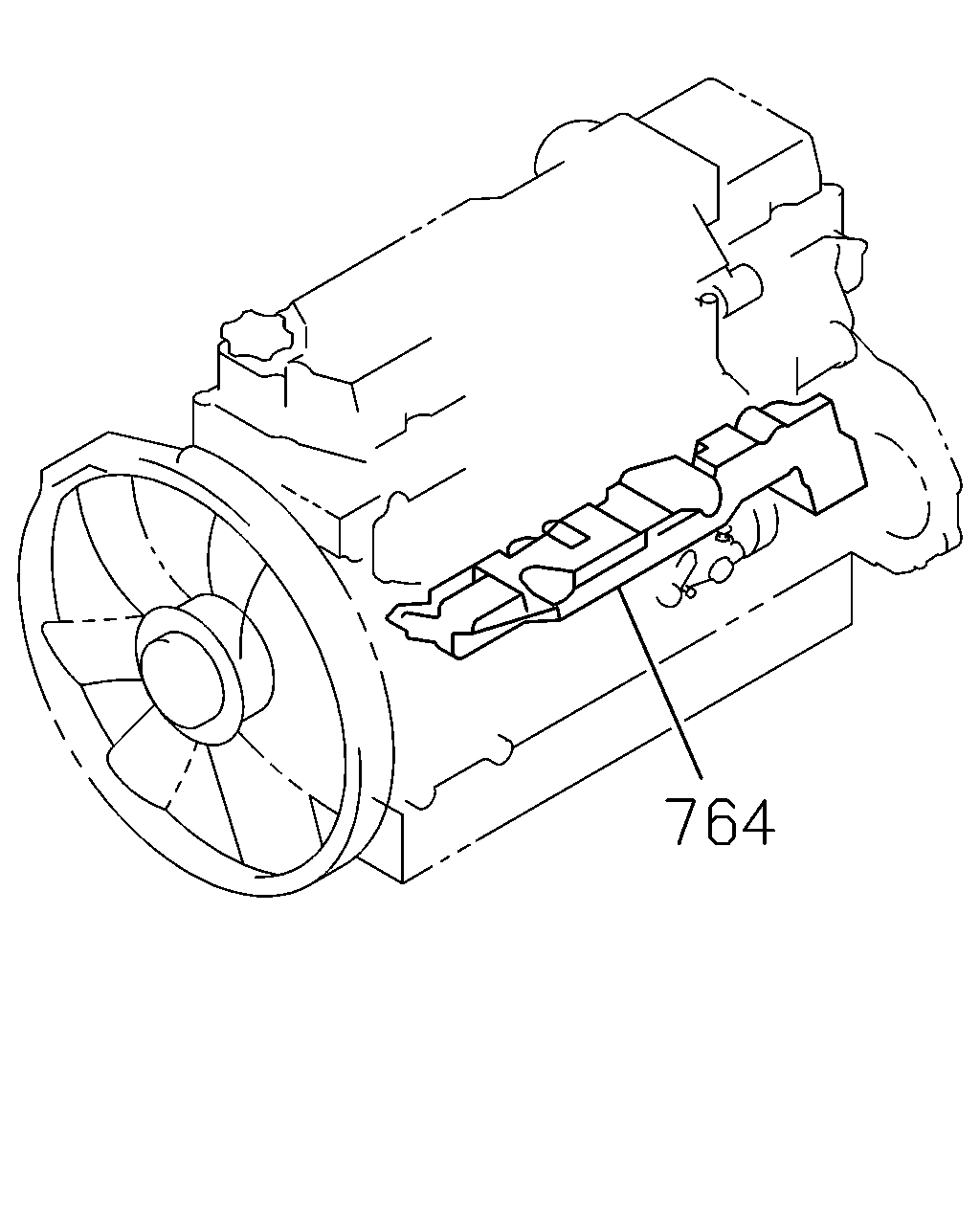

[025A] SPACER;INL COVER (1 parça)

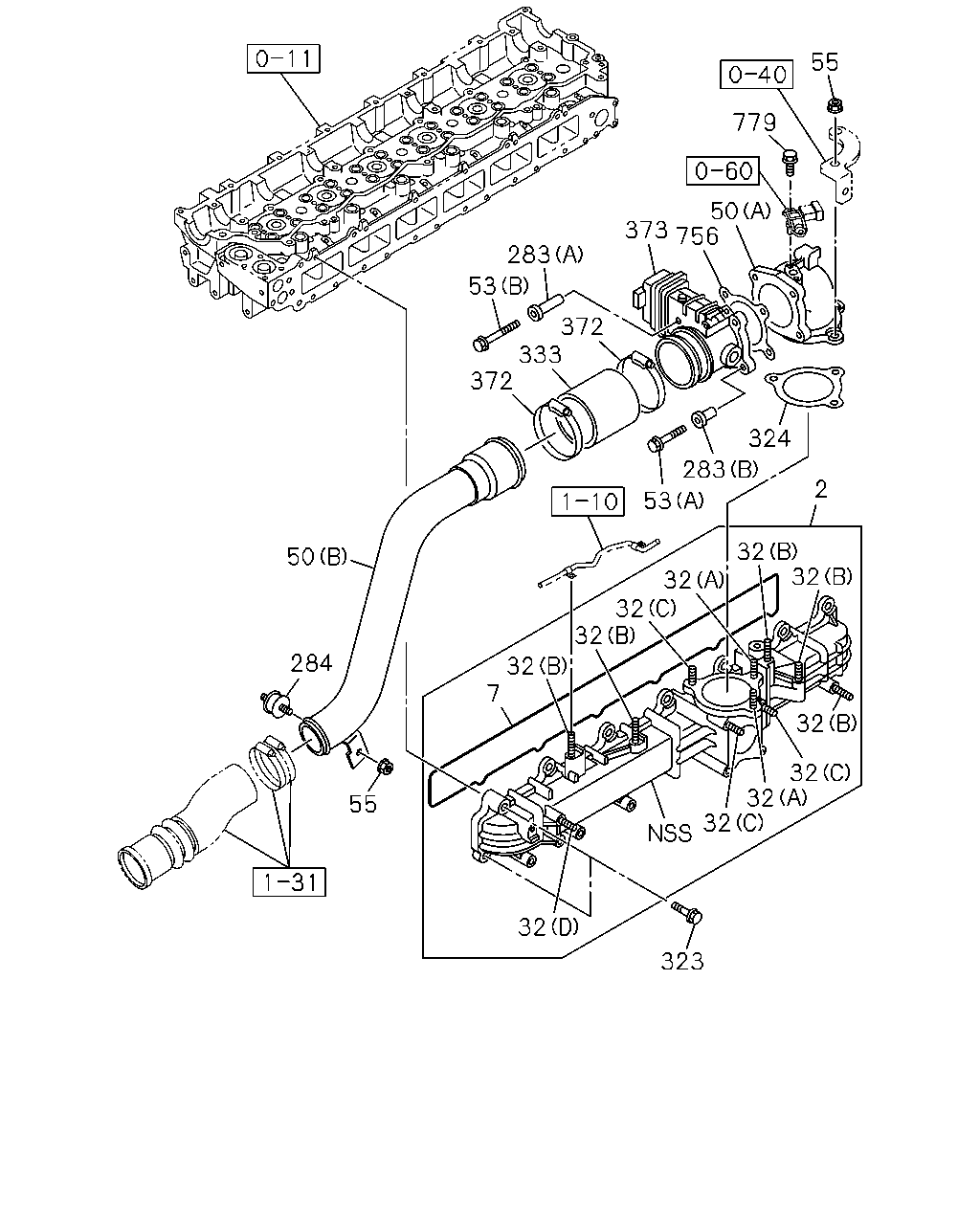

[025A] INLET MANIF AND PIPE (26 parça)
[025A] GASKET;INTAKE DUCT (1 parça)
▶
764
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
764
SPACER; INL COVER
8-98023-639-2
01
1
0803-
55
779
50
373
756
283
53
372
333
372
324
283
2
53
32
32
50
32
32
32
284
32
7
32
32
32
32
55
32
323
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; INL
8-98061-091-0
01
1
0803-
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-775-0
01
1
0803-
32
STUD; INL PIPE
(B) M6X30 L=38
0-41010-630-0
05
1
0803-
32
STUD; INL PIPE
(C) M8X28 L=40
0-41010-828-0
03
1
0803-
32
STUD; INL PIPE
(A) M8X40 L=52
0-41010-840-0
02
1
0803-
32
STUD; INL PIPE
(D) M10X30 L=45
0-44011-030-0
01
1
0803-
50
PIPE; INL
(A)
8-97604-940-0
01
1
0803-1305
50
PIPE; INL
(A)
8-98239-524-0
01
1
1306-
50
PIPE; INL
(B)
8-97610-837-2
01
1
0803-
53
BOLT; INL PIPE
(A) M8X30 FLANGE
0-28050-830-0
02
1
0803-
53
BOLT; INL PIPE
(B)
8-98057-442-0
02
1
0803-
55
NUT; INL PIPE
M8 FLANGE
0-91180-108-0
05
1
0803-
283
RUBBER
(B) L=18
8-97219-650-0
02
1
0803-
283
RUBBER
(A) L=58
8-97387-995-1
02
1
0803-
284
RUBBER; INL PIPE MTG
8-94394-268-1
01
1
0803-0910
323
BOLT; DUCT
M8X50 FLANGE
0-28050-850-0
06
1
0803-
323
BOLT; DUCT
M8X25 FLANGE
0-28650-825-0
06
1
0803-
323
BOLT; DUCT
M8X48 FLANGE
8-97229-317-1
02
1
0803-
324
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97601-777-0
01
1
0803-
333
HOSE; RUBBER,INL PIPE
8-97611-306-0
01
1
0803-
372
CLIP; HOSE
ID=77-95
1-09707-198-0
02
1
0803-0810
372
CLIP; HOSE
ID=75-95
8-98133-357-0
02
1
0811-0902
372
CLIP; HOSE
ID=77-99
1-09707-141-0
02
1
0903-
373
THROTTLE ASM; INT
8-98061-061-3
01
1
0803-
756
GASKET; INTAKE,THROTTLE
ID=88
8-97387-009-0
01
1
0803-
779
BOLT; SENSOR
M4X10 W/PL WASHER
8-97316-615-0
02
1
0803-
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98196-271-0
01
1
1107-
