8-80 — WINDSHIELD WIPER AND WASHER (#14905) — 58 parça

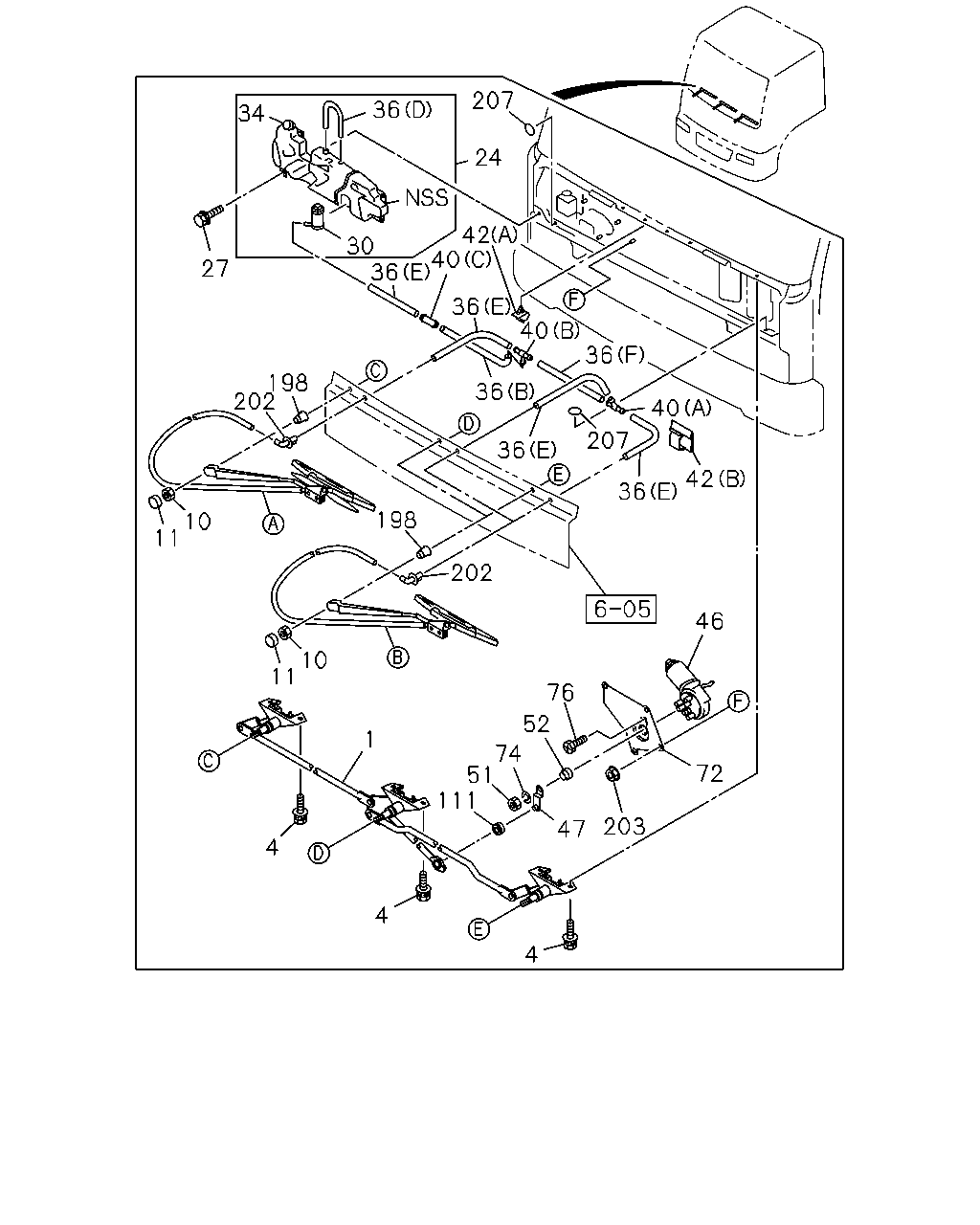

çizim 141939
207 36 34 24 42 30 40 36 27 36 40 36 198 202 36 40 207 36 42 36 198 10 11 202 46 10 11 76 52 1 74 51 111 72 203 47 4 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER 1-83312-112-2 01 1 0710- ● ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0710-0904 ● ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 0710- ● ●
11 COVER; WIPER ARM 1-86810-028-0 03 1 0710- ● ●
24 TANK ASM; WASHER 1-86815-013-7 01 1 0710- ● ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0710- ● ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 0710- ● ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 0710- ● ●
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 0710- ● ●
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 0710- ● ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 0710- ● ●
36 HOSE; WASHER
(F) SERVICED BY L=10000 		8-94153-780-0 01 1 0710- ● ●
36 HOSE; WASHER
(E) SERVICED BY L=10000 		8-94389-303-0 01 1 0710- ● ●
36 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 0710- ● ●
40 JOINT; WASHER HOSE
(B) 3WAY 		1-83338-005-0 01 1 0710- ● ●
40 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-033-0 01 1 0710- ● ●
40 JOINT; WASHER HOSE
(C) 2WAY 		8-94239-402-0 01 1 0710- ● ●
42 CLIP; WASHER HOSE
(B) 1 SET=5 PIECE 		1-09987-214-0 01 1 0710- ● ●
42 CLIP; WASHER HOSE
(A) 		1-09987-247-0 06 1 0710- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-121-0 01 1 0710-1301 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98232-330-0 01 1 1302-1405 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98281-677-0 01 1 1406- ● ●
47 ARM; CRANK,WIPER MOTOR 1-86810-123-0 01 1 0710- ● ●
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 0710- ● ●
52 BUSHING; BRKT,WIPER MOTOR 1-83318-020-0 01 1 0710- ● ●
72 BRACKET; WIPER MOTOR 1-86810-122-0 01 1 0710- ● ●
74 WASHER; ARM TO MOTOR
ID=8.2 		9-09150-508-0 01 1 0710- ● ●
76 SCREW; BRKT TO WIPER MOTOR 8-94232-910-0 03 1 0710- ● ●
111 SEAL; FRT WIPER MOTOR TO BRKT 8-94167-624-0 01 1 0710- ● ●
198 COVER; PIVOT,WIPER 1-86810-017-0 03 1 0710- ● ●
202 GROMMET; WIPER 1-86815-003-2 03 1 0710- ● ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0710- ● ●
207 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0710- ● ●

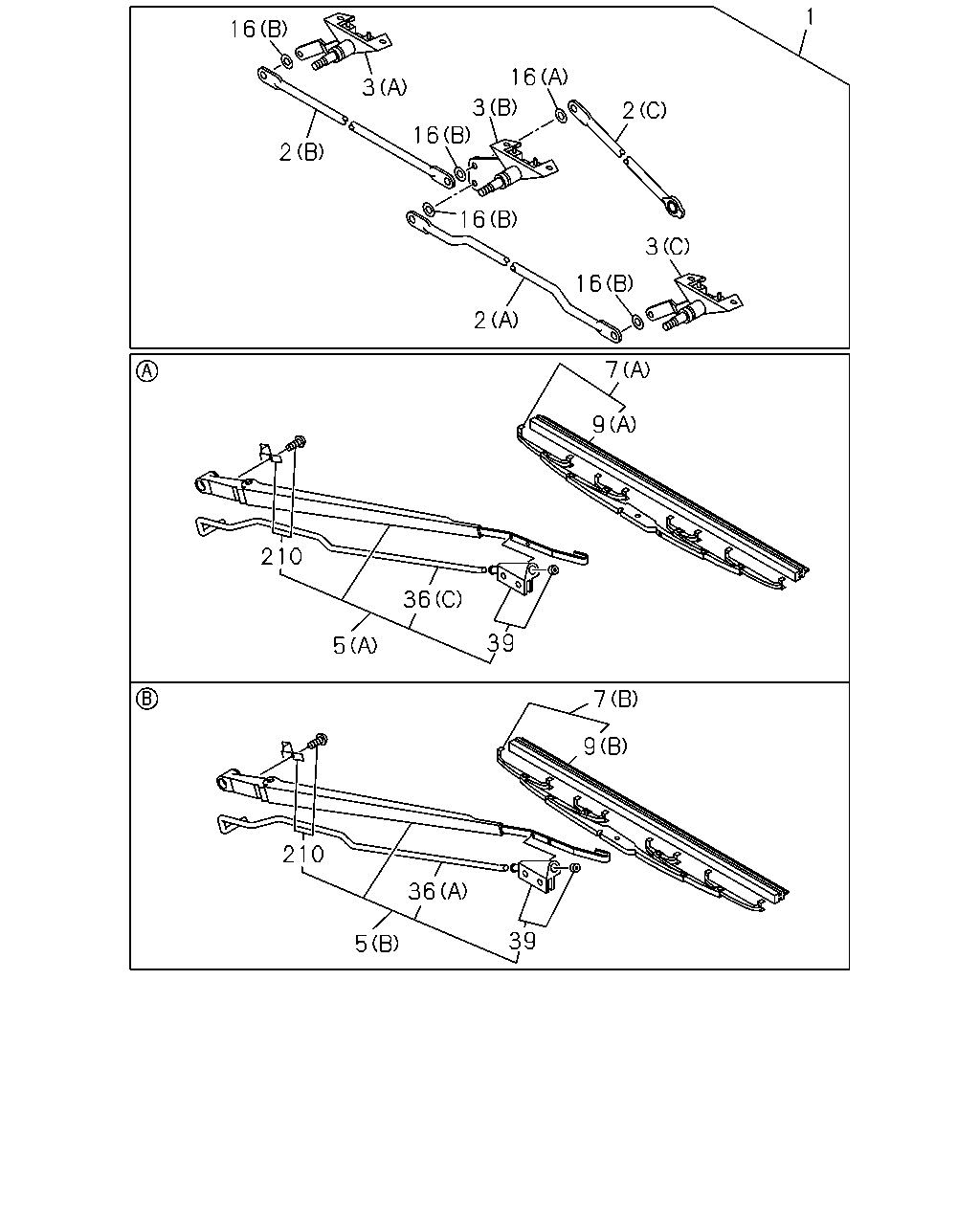

çizim 142277
1 16 16 3 3 16 2 2 16 3 16 2 7 9 210 36 39 5 7 9 210 36 39 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER 1-83312-112-2 01 1 0710- ● ●
2 LINK; FRT WIPER
(A) 		1-83312-131-0 01 1 0710- ● ●
2 LINK; FRT WIPER
(B) 		1-83312-132-0 01 1 0710- ● ●
2 LINK; FRT WIPER
(C) 		1-83312-133-0 01 1 0710- ● ●
3 PIVOT ASM; FRT WIPER
(A) 		1-83313-104-0 01 1 0710- ● ●
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-105-0 01 1 0710- ● ●
3 PIVOT ASM; FRT WIPER
(C) 		1-83313-106-0 01 1 0710- ● ●
5 ARM; WIPER
(A) 		1-86810-031-0 01 1 0710- ● ●
5 ARM; WIPER
(B) 		1-86810-032-0 02 1 0710- ● ●
7 BLADE; WIPER
(A) L=550 		1-86810-029-0 01 1 0710- ● ●
7 BLADE; WIPER
(A) BEST VALUE PARTS 		5-87610-035-0 01 1 0710- ● ●
7 BLADE; WIPER
(B) L=500 		8-97134-563-1 02 1 0710- ● ●
9 RUBBER; FRT WIPER BLADE
(B) 		1-83355-017-0 02 1 0710- ● ●
9 RUBBER; FRT WIPER BLADE
(A) L=550 		1-86810-051-0 01 1 0710- ● ●
16 SEAL; BALL JOINT
(B) 		1-83318-115-0 04 1 0710- ● ●
16 SEAL; BALL JOINT
(A) 		1-83318-116-0 01 1 0710- ● ●
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 0710- ● ●
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 0710- ● ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 0710- ● ●
36 HOSE; WASHER
(F) SERVICED BY L=10000 		8-94153-780-0 01 1 0710- ● ●
36 HOSE; WASHER
(E) SERVICED BY L=10000 		8-94389-303-0 01 1 0710- ● ●
36 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 0710- ● ●
39 NOZZLE; WINDSHIELD WASHER
3WAY 		1-86810-055-0 03 1 0710- ● ●
210 BRACKET KIT; HOSE 1-86810-046-0 03 1 0710- ● ●
