Isuzu WW
▶
TRUCKS
▶
CXY
▶
11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

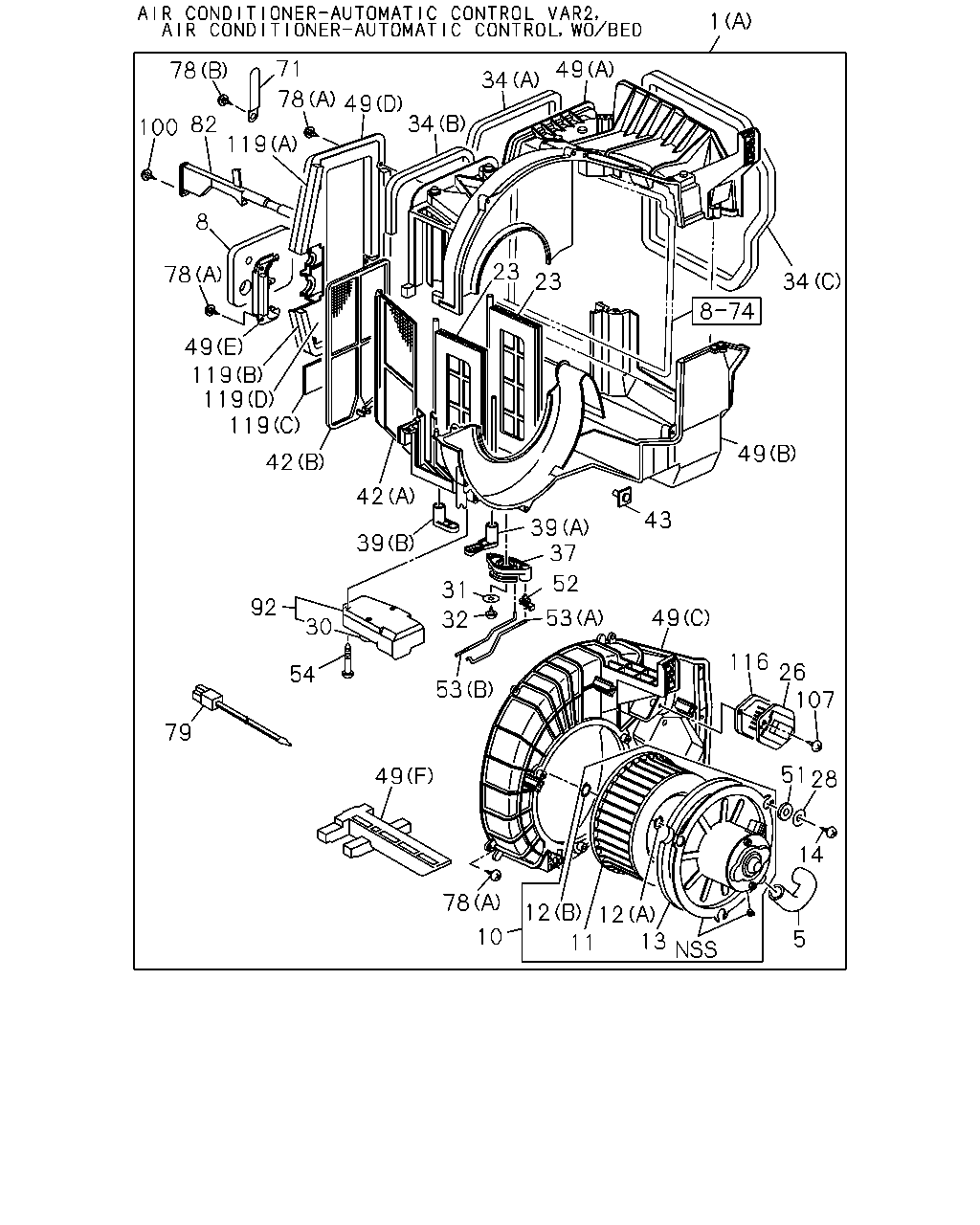

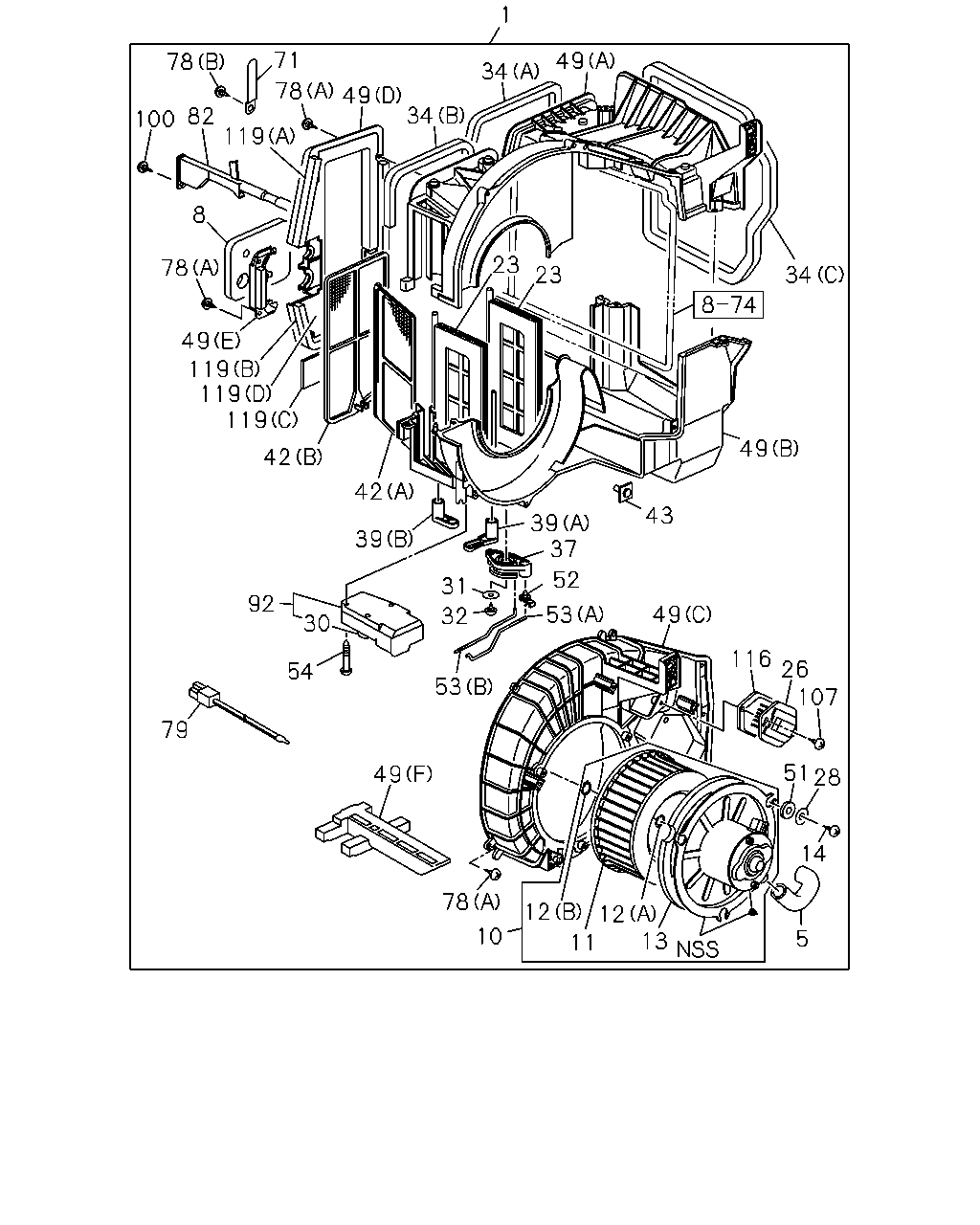

8-73 - BLOWER UNIT
▶
8-73 — BLOWER UNIT
(#14902) — 96 parça
Tümü
A - CXY5MC
B - CXY5MF
◀
[873A01] (48 parça)
[873A02] (48 parça)
▶
1
71
49
78
34
78
49
34
82
100
119
8
23
78
23
34
49
119
119
119
49
42
42
43
39
37
39
52
31
92
49
53
32
30
116
26
107
54
53
79
51
28
49
14
78
12
12
13
10
5
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BLOWER ASM
1-83561-154-5
01
1
0710-
●
●
5
HOSE; AIR
1-83563-140-0
01
1
0710-
●
●
8
SEAL; BLOWER UNIT
1-83539-261-1
01
1
0710-
●
●
10
MOTOR ASM; FAN,BLOWER UNIT
1-83561-161-0
01
1
0710-
●
●
11
IMPELLER; FAN MOTOR
1-83579-635-0
01
1
0710-
●
●
12
RING; SNAP,FAN MOTOR
(A)
5-83569-088-0
01
1
0710-
●
●
12
RING; SNAP,FAN MOTOR
(B)
8-94243-962-0
01
1
0710-
●
●
13
LINING; BLOWER UNIT
1-83579-636-0
01
1
0710-
●
●
14
SCREW; COVER TO CASE
M5X20
9-09829-324-1
03
1
0710-
●
●
23
SHUTTER; BLOWER UNIT
1-83579-637-0
02
1
0710-
●
●
26
TRANSISTOR; BLOWER UNIT
1-83579-654-0
01
1
0710-
●
●
28
WASHER; PL,FAN MOTOR
1-83579-170-0
03
1
0710-
●
●
30
LEVER; ACTUATOR
1-83564-345-1
01
1
0710-
●
●
31
WASHER; LEVER
1-83579-095-0
01
1
0710-
●
●
32
SCREW; LEVER
M5X20
9-09829-324-1
01
1
0710-
●
●
34
LINING; BLOWER UNIT
(A)
1-83579-633-2
01
1
0710-
●
●
34
LINING; BLOWER UNIT
(B)
1-83579-634-2
01
1
0710-
●
●
34
LINING; BLOWER UNIT
(C)
1-83579-644-0
01
1
0710-
●
●
37
LEVER; MODE LEVER
1-83564-344-0
01
1
0710-
●
●
39
LEVER; SHUTTER,BLOWER UNIT
(A)
1-83564-342-0
01
1
0710-
●
●
39
LEVER; SHUTTER,BLOWER UNIT
(B)
1-83564-343-0
01
1
0710-
●
●
42
FILTER; BLOWER UNIT
(B)
1-83579-643-3
01
1
0710-
●
●
42
FILTER; BLOWER UNIT
(A)
1-83579-993-0
02
1
0710-
●
●
43
BOLT; CASE
1-83579-657-2
04
1
0710-
●
●
49
CASE; BLOWER UNIT
(C)
1-83564-337-4
01
1
0710-
●
●
49
CASE; BLOWER UNIT
(E)
1-83564-339-1
01
1
0710-
●
●
49
CASE; BLOWER UNIT
(A)
1-83564-351-1
01
1
0710-
●
●
49
CASE; BLOWER UNIT
(D)
1-83564-353-1
01
1
0710-
●
●
49
CASE; BLOWER UNIT
(F)
1-83564-340-1
01
1
0710-
●
●
49
CASE; BLOWER UNIT
(B)
1-83564-406-1
01
1
0710-
●
●
51
ISOLATOR; BLOWER UNIT
1-83579-496-0
03
1
0710-
●
●
52
CLIP; LEVER TO CASE
8-94248-794-0
02
1
0710-
●
●
53
ROD; ACTUATOR,BLOWER UNIT
(A)
1-83579-638-0
01
1
0710-
●
●
53
ROD; ACTUATOR,BLOWER UNIT
(B)
1-83579-639-0
01
1
0710-
●
●
54
SCREW; ACTUATOR TO CASE
8-94348-809-0
02
1
0710-
●
●
71
CLIP; HARNESS
1-83574-080-0
01
1
0710-
●
●
78
SCREW; CASE TO CASE
(A) M4X16
8-94324-850-0
17
1
0710-
●
●
78
SCREW; CASE TO CASE
(B) M5X10 TAPPING W/PL WASHER
0-74300-510-0
01
1
0710-
●
●
79
SENSOR; BLOWER UNIT
1-83544-037-0
01
1
0710-
●
●
82
BRACKET; BLOWER UNIT
1-83571-871-1
01
1
0710-
●
●
92
ACTUATOR; BLOWER UNIT
1-83579-640-1
01
1
0710-
●
●
100
SCREW; BRKT
M4X16
8-94324-850-0
01
1
0710-
●
●
107
SCREW; TRANSISTOR
M4X16
8-94324-850-0
02
1
0710-
●
●
116
SEAL; TRANSISTOR
1-83579-656-0
01
1
0710-
●
●
119
LINING; CASE
(A)
1-83579-670-1
01
1
0710-
●
●
119
LINING; CASE
(B)
1-83579-671-1
01
1
0710-
●
●
119
LINING; CASE
(D)
1-83578-032-0
01
1
0710-
●
●
119
LINING; CASE
(C)
1-83579-961-0
01
1
0710-
●
●
1
49
34
34
49
78
71
78
100
82
119
8
78
49
119
119
119
42
42
39
92
30
54
79
49
31
32
53
78
10
12
11
12
13
5
14
51
28
107
26
116
49
53
52
37
39
43
49
34
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BLOWER ASM
1-83561-154-5
01
1
0710-
●
●
5
HOSE; AIR
1-83563-140-0
01
1
0710-
●
●
8
SEAL; BLOWER UNIT
1-83539-261-1
01
1
0710-
●
●
10
MOTOR ASM; FAN,BLOWER UNIT
1-83561-161-0
01
1
0710-
●
●
11
IMPELLER; FAN MOTOR
1-83579-635-0
01
1
0710-
●
●
12
RING; SNAP,FAN MOTOR
(A)
5-83569-088-0
01
1
0710-
●
●
12
RING; SNAP,FAN MOTOR
(B)
8-94243-962-0
01
1
0710-
●
●
13
LINING; BLOWER UNIT
1-83579-636-0
01
1
0710-
●
●
14
SCREW; COVER TO CASE
M5X20
9-09829-324-1
03
1
0710-
●
●
23
SHUTTER; BLOWER UNIT
1-83579-637-0
02
1
0710-
●
●
26
TRANSISTOR; BLOWER UNIT
1-83579-654-0
01
1
0710-
●
●
28
WASHER; PL,FAN MOTOR
1-83579-170-0
03
1
0710-
●
●
30
LEVER; ACTUATOR
1-83564-345-1
01
1
0710-
●
●
31
WASHER; LEVER
1-83579-095-0
01
1
0710-
●
●
32
SCREW; LEVER
M5X20
9-09829-324-1
01
1
0710-
●
●
34
LINING; BLOWER UNIT
(A)
1-83579-633-2
01
1
0710-
●
●
34
LINING; BLOWER UNIT
(B)
1-83579-634-2
01
1
0710-
●
●
34
LINING; BLOWER UNIT
(C)
1-83579-644-0
01
1
0710-
●
●
37
LEVER; MODE LEVER
1-83564-344-0
01
1
0710-
●
●
39
LEVER; SHUTTER,BLOWER UNIT
(A)
1-83564-342-0
01
1
0710-
●
●
39
LEVER; SHUTTER,BLOWER UNIT
(B)
1-83564-343-0
01
1
0710-
●
●
42
FILTER; BLOWER UNIT
(B)
1-83579-643-3
01
1
0710-
●
●
42
FILTER; BLOWER UNIT
(A)
1-83579-993-0
02
1
0710-
●
●
43
BOLT; CASE
1-83579-657-2
04
1
0710-
●
●
49
CASE; BLOWER UNIT
(C)
1-83564-337-4
01
1
0710-
●
●
49
CASE; BLOWER UNIT
(E)
1-83564-339-1
01
1
0710-
●
●
49
CASE; BLOWER UNIT
(A)
1-83564-351-1
01
1
0710-
●
●
49
CASE; BLOWER UNIT
(D)
1-83564-353-1
01
1
0710-
●
●
49
CASE; BLOWER UNIT
(F)
1-83564-340-1
01
1
0710-
●
●
49
CASE; BLOWER UNIT
(B)
1-83564-406-1
01
1
0710-
●
●
51
ISOLATOR; BLOWER UNIT
1-83579-496-0
03
1
0710-
●
●
52
CLIP; LEVER TO CASE
8-94248-794-0
02
1
0710-
●
●
53
ROD; ACTUATOR,BLOWER UNIT
(A)
1-83579-638-0
01
1
0710-
●
●
53
ROD; ACTUATOR,BLOWER UNIT
(B)
1-83579-639-0
01
1
0710-
●
●
54
SCREW; ACTUATOR TO CASE
8-94348-809-0
02
1
0710-
●
●
71
CLIP; HARNESS
1-83574-080-0
01
1
0710-
●
●
78
SCREW; CASE TO CASE
(A) M4X16
8-94324-850-0
17
1
0710-
●
●
78
SCREW; CASE TO CASE
(B) M5X10 TAPPING W/PL WASHER
0-74300-510-0
01
1
0710-
●
●
79
SENSOR; BLOWER UNIT
1-83544-037-0
01
1
0710-
●
●
82
BRACKET; BLOWER UNIT
1-83571-871-1
01
1
0710-
●
●
92
ACTUATOR; BLOWER UNIT
1-83579-640-1
01
1
0710-
●
●
100
SCREW; BRKT
M4X16
8-94324-850-0
01
1
0710-
●
●
107
SCREW; TRANSISTOR
M4X16
8-94324-850-0
02
1
0710-
●
●
116
SEAL; TRANSISTOR
1-83579-656-0
01
1
0710-
●
●
119
LINING; CASE
(A)
1-83579-670-1
01
1
0710-
●
●
119
LINING; CASE
(B)
1-83579-671-1
01
1
0710-
●
●
119
LINING; CASE
(D)
1-83578-032-0
01
1
0710-
●
●
119
LINING; CASE
(C)
1-83579-961-0
01
1
0710-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
