8-52 — PIPING; AIR CONDITIONING (#14899) — 71 parça
çizim 141903
8 11 9 9 25 21 23 26
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
9 PIPE; COOLER,HOSE TO HOSE
(A) 		1-83567-899-0 01 1 0710- ● ●
9 PIPE; COOLER,HOSE TO HOSE
(B) 		1-83567-900-0 01 1 0710- ● ●
11 CLIP; COOLER PIPE
(A) ID=20 & 20 		1-83574-195-1 01 1 0710- ● ●
11 CLIP; COOLER PIPE
(B) ID=12 & 14.5 		1-83574-257-0 01 1 0710- ● ●
21 BRACKET; COOLER HOSE 1-83573-297-0 01 1 0710- ● ●
23 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 0710- ● ●
23 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
25 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0710- ● ●
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●

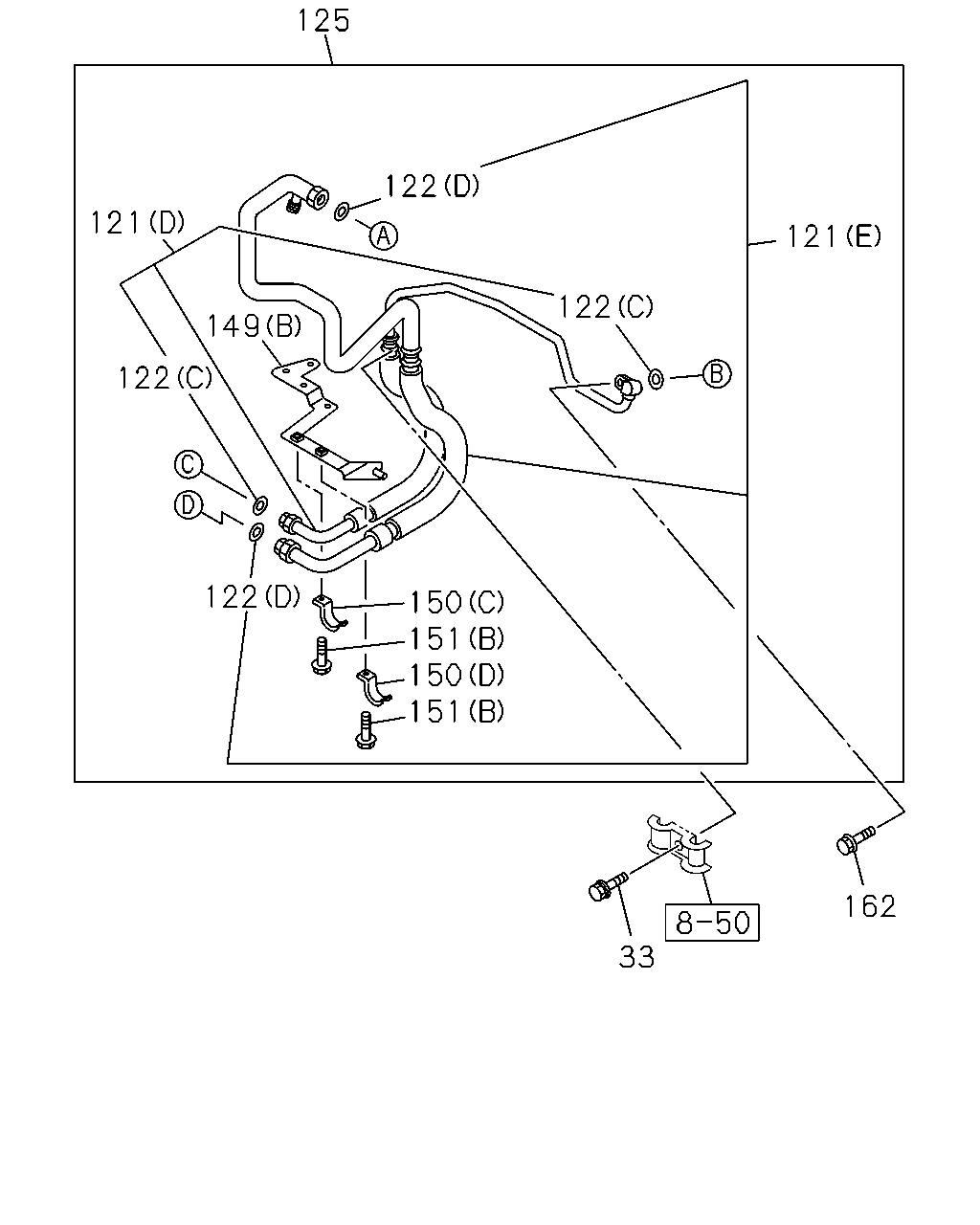

çizim 141917
125 122 121 121 122 149 122 122 150 151 150 151 162 33
BalonParca AdiParca NoAdetTipApplied Date A B
33 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904 ● ●
33 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
121 HOSE; COOLER
(D) 		1-83577-129-0 01 1 0710- ● ●
121 HOSE; COOLER
(E) 		1-83577-130-0 01 1 0710- ● ●
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0710- ● ●
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0710- ● ●
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0710- ● ●
122 GASKET
(C) ID=11.7 		1-83539-317-0 02 1 0710- ● ●
122 GASKET
(D) ID=14.5 		1-83539-324-0 02 1 0710- ● ●
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0710- ● ●
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0710- ● ●
125 HOSE; FLEX,UNIT TO CMPR 8-98028-191-0 01 1 0710- ● ●
149 BRACKET; COOLER HOSE
(B) 		1-83573-265-0 01 1 0710- ● ●
149 BRACKET; COOLER HOSE
(A) 		1-83573-255-0 01 1 0710- ● ●
150 CLIP; HOSE
(C) 		1-83574-262-0 01 1 0710- ● ●
150 CLIP; HOSE
(D) 		1-83574-263-0 01 1 0710- ● ●
150 CLIP; HOSE
(A) 		1-83574-249-0 01 1 0710- ● ●
150 CLIP; HOSE
(B) 		1-83574-264-0 01 1 0710- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
(B) 		1-83539-336-0 02 1 0710- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
(A) 		1-83578-098-0 02 1 0710- ● ●
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0710- ● ●

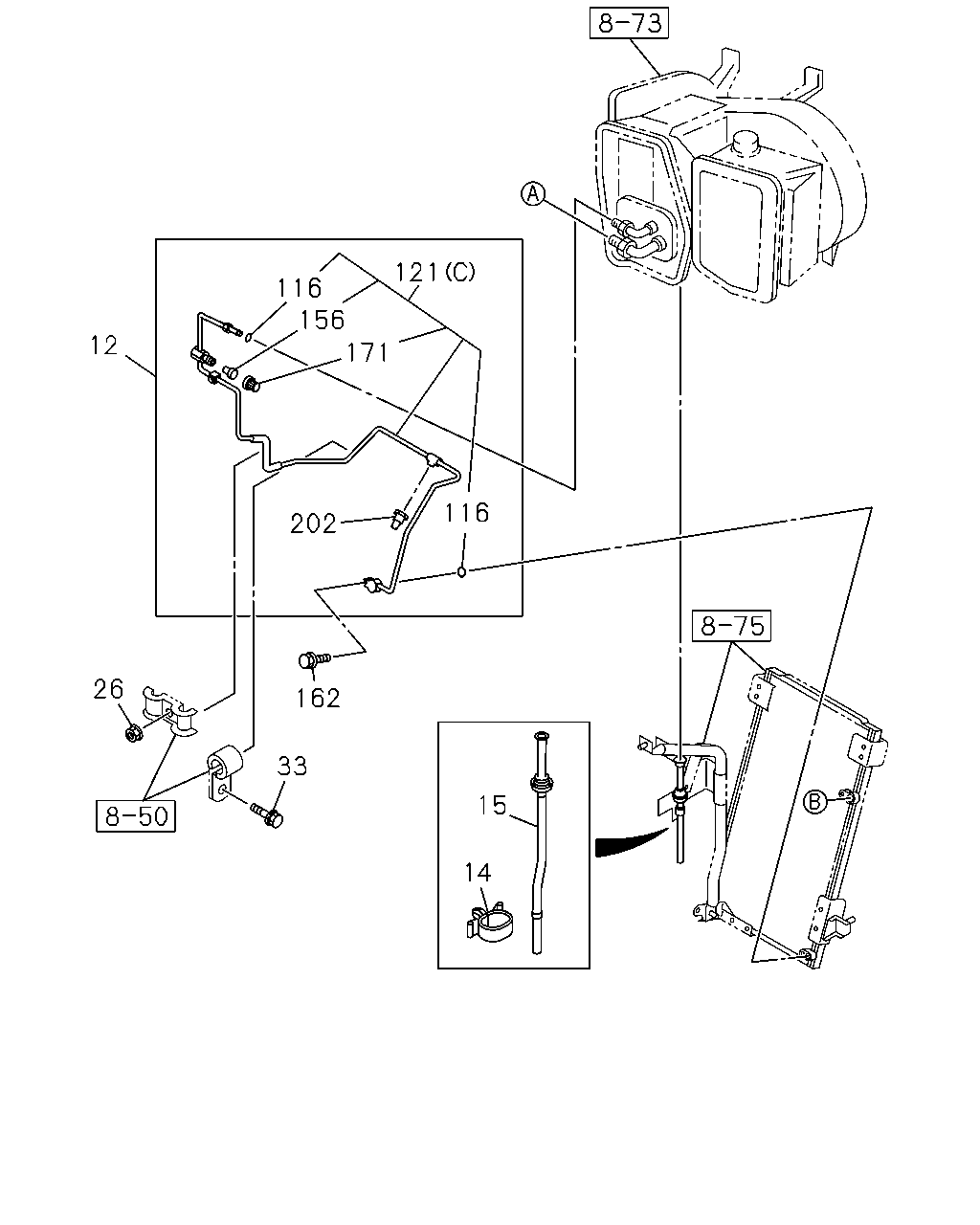

çizim 141920
121 116 156 12 171 116 202 26 162 33 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
12 PIPE; COOLER,EVAP TO TANK 1-83567-877-1 01 1 0710- ● ●
14 CLIP; BAND,EVAP DRAIN HOSE
ID=20 		8-94410-200-0 01 1 0710- ● ●
15 HOSE; DRAIN 1-83572-635-0 01 1 0710- ● ●
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
33 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904 ● ●
33 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
116 GASKET; PIPE
ID=7.4 		8-97095-906-0 02 1 0710- ● ●
121 HOSE; COOLER
(D) 		1-83577-129-0 01 1 0710- ● ●
121 HOSE; COOLER
(E) 		1-83577-130-0 01 1 0710- ● ●
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0710- ● ●
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0710- ● ●
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0710- ● ●
156 VALVE; PIPE 8-97095-909-0 01 1 0710- ● ●
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0710- ● ●
171 CAP; PIPE
CAP MARK H 		8-97095-911-0 01 1 0710- ● ●
202 SWITCH; PRESSURE 1-83564-392-1 01 1 0710- ● ●

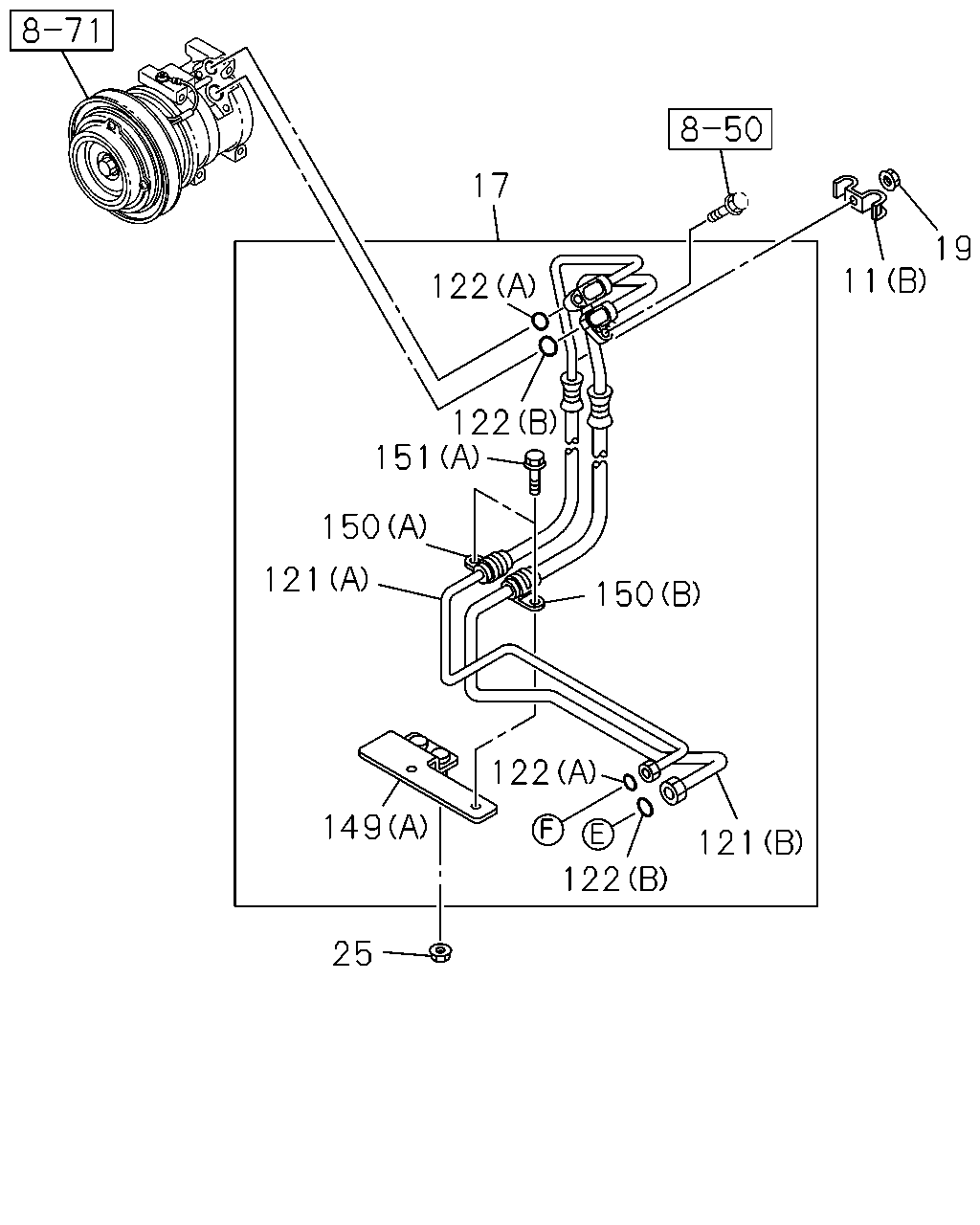

çizim 141922
17 19 11 122 122 151 150 121 150 122 149 121 122 25
BalonParca AdiParca NoAdetTipApplied Date A B
11 CLIP; COOLER PIPE
(A) ID=20 & 20 		1-83574-195-1 01 1 0710- ● ●
11 CLIP; COOLER PIPE
(B) ID=12 & 14.5 		1-83574-257-0 01 1 0710- ● ●
17 HOSE; FLEX,CMPR TO PIPE 1-83577-062-1 01 1 0710- ● ●
19 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
25 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0710- ● ●
121 HOSE; COOLER
(D) 		1-83577-129-0 01 1 0710- ● ●
121 HOSE; COOLER
(E) 		1-83577-130-0 01 1 0710- ● ●
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0710- ● ●
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0710- ● ●
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0710- ● ●
122 GASKET
(C) ID=11.7 		1-83539-317-0 02 1 0710- ● ●
122 GASKET
(D) ID=14.5 		1-83539-324-0 02 1 0710- ● ●
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0710- ● ●
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0710- ● ●
149 BRACKET; COOLER HOSE
(B) 		1-83573-265-0 01 1 0710- ● ●
149 BRACKET; COOLER HOSE
(A) 		1-83573-255-0 01 1 0710- ● ●
150 CLIP; HOSE
(C) 		1-83574-262-0 01 1 0710- ● ●
150 CLIP; HOSE
(D) 		1-83574-263-0 01 1 0710- ● ●
150 CLIP; HOSE
(A) 		1-83574-249-0 01 1 0710- ● ●
150 CLIP; HOSE
(B) 		1-83574-264-0 01 1 0710- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
(B) 		1-83539-336-0 02 1 0710- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
(A) 		1-83578-098-0 02 1 0710- ● ●
