8-50 — AIR CONDITIONING SYSTEM; FRONT (#14898) — 22 parça

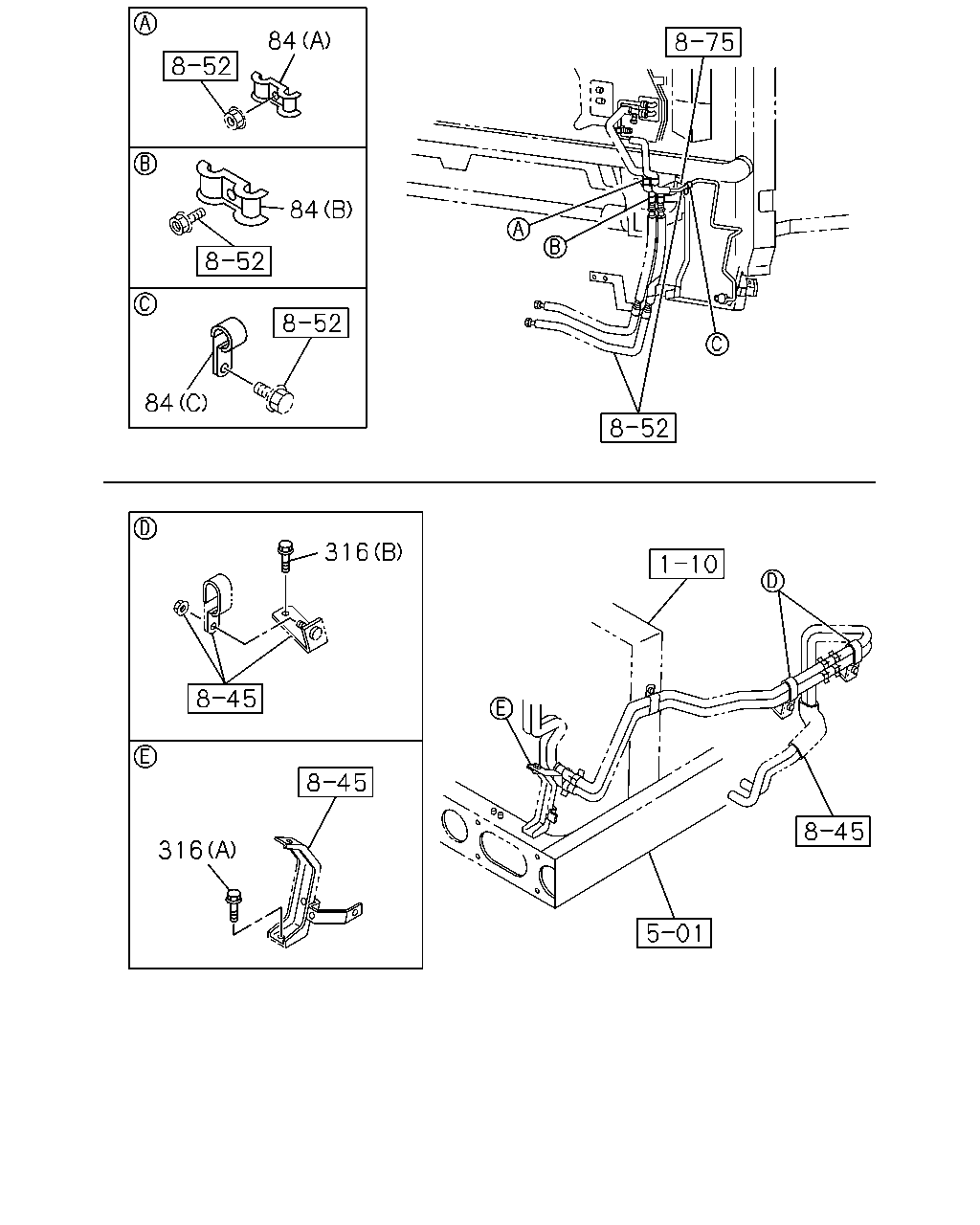

84 84 84 316 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	CLIP; PIPE (C) ID=9 L=20	0-95234-835-0	01	1	0710-	●	●
84	CLIP; PIPE (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0710-	●	●
84	CLIP; PIPE (B) ID=20 & 20	1-83574-195-1	01	1	0710-	●	●
316	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28050-820-0	01	1	0710-	●	●
316	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●

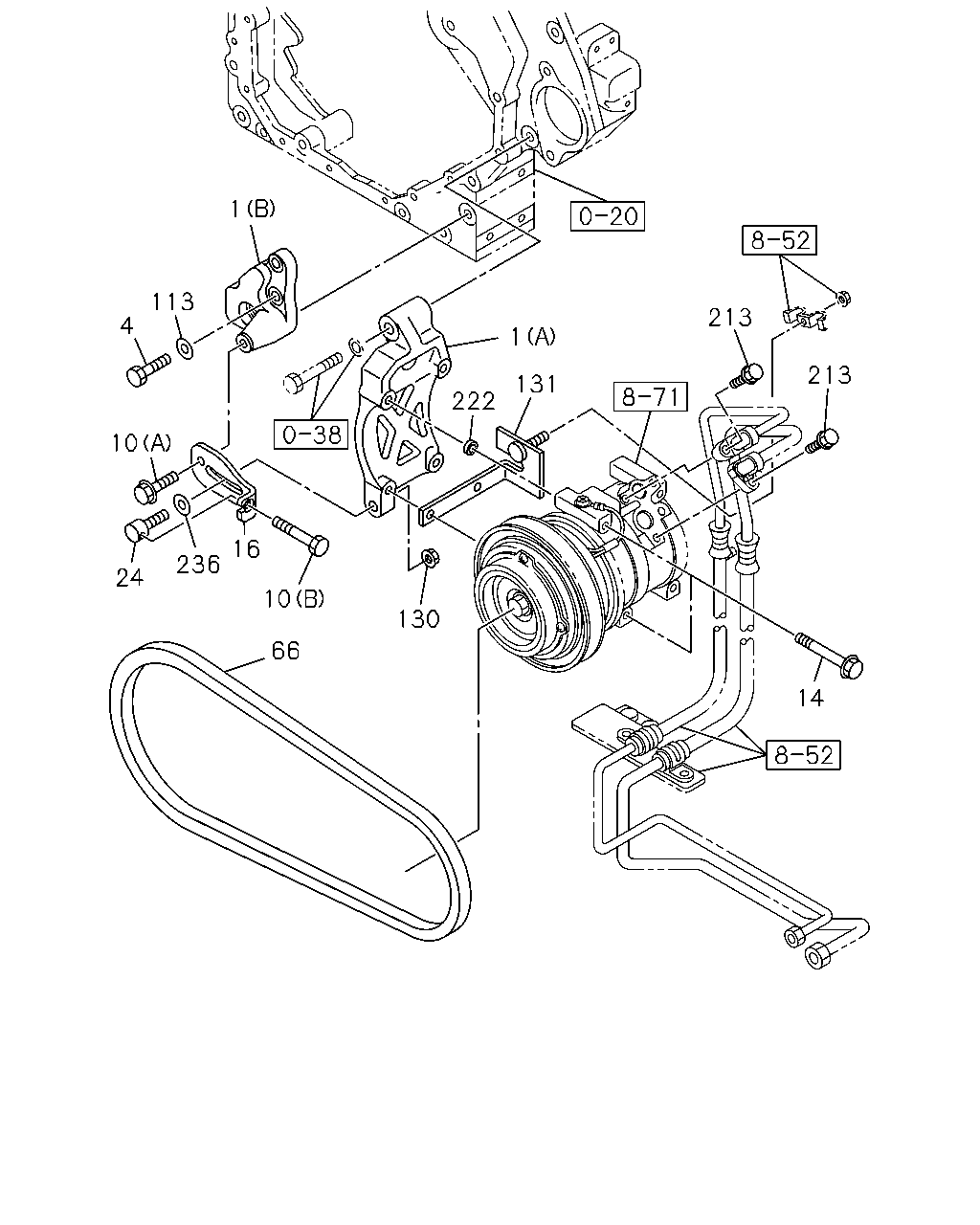

1 113 213 4 1 213 131 222 10 16 236 24 10 130 66 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; A/C (A)	1-83573-095-3	01	1	0710-	●	●
1	BRACKET; A/C (B)	1-83573-119-0	01	1	0710-	●	●
4	BOLT; A/C CMPR BRKT M14X135	1-09020-055-0	03	1	0710-	●	●
10	BOLT; ADJ PLATE (A) M12X40 FLANGE	0-28181-240-0	01	1	0710-0804	●	●
10	BOLT; ADJ PLATE (A) M12X40 FLANGE	0-28151-240-0	01	1	0805-	●	●
10	BOLT; ADJ PLATE (B) M10X90	1-09009-151-0	01	1	0710-	●	●
14	BOLT; CMPR M8X80 FLANGE	0-28050-880-0	04	1	0710-	●	●
16	PLATE; ADJ,CMPR	1-13674-293-2	01	1	0710-	●	●
24	PIECE; SLIDING M12X45	1-13674-160-0	01	1	0710-	●	●
66	BELT; A/C CMPR BEST VALUE PARTS	1-87610-103-0	01	1	0710-	●	●
66	BELT; A/C CMPR L=1189	8-97604-138-1	01	1	0710-	●	●
113	WASHER; PL,BRKT ID=15 OD=26	9-09164-514-0	03	1	0710-	●	●
130	NUT; ADJ BRKT M12 FLANGE	0-91180-112-0	01	1	0710-	●	●
131	STAY; CMPR BRKT	1-83573-244-0	01	1	0710-	●	●
213	BOLT; FLEX HOSE TO CMPR M6X25 FLANGE	0-28050-625-0	02	1	0710-	●	●
222	GASKET; CONNECTOR ID=8.4 OD=19	5-11779-001-0	02	1	0710-	●	●
236	WASHER; PL,ADJ BOLT ID=12.5 OD=32	9-09160-712-0	01	1	0710-	●	●
