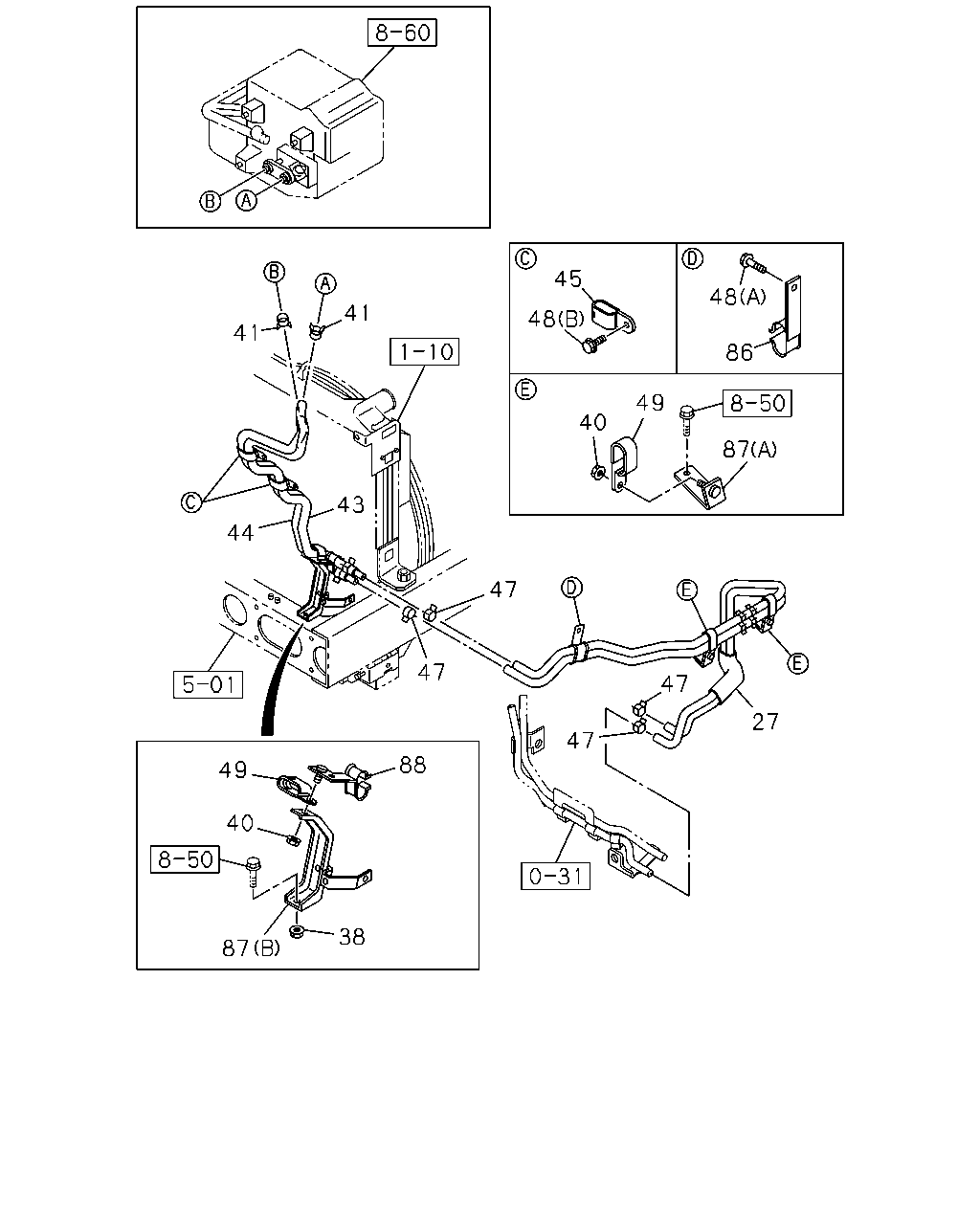

8-45 — HEATER PIPING (#14897) — 16 parça

45 48 41 48 41 86 49 40 43 44 47 47 47 27 47 88 49 40 38 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE	1-83565-839-1	01	1	0710-	●	●
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	0710-	●	●
43	HOSE; WATER,OUTLET,HTR	1-83565-828-1	01	1	0710-	●	●
44	HOSE; WATER,HTR,INL	1-83565-826-1	01	1	0710-	●	●
45	CLIP; WATER PIPE	1-09701-238-0	02	1	0710-	●	●
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	0710-	●	●
48	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
48	BOLT; CLIP FIX (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
48	BOLT; CLIP FIX (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0710-	●	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	0710-	●	●
86	CLIP; HTR HOSE	1-83573-076-0	01	1	0710-	●	●
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	02	1	0710-	●	●
87	BRACKET; HTR HOSE CLIP (B)	8-98066-735-0	01	1	0710-	●	●
88	STAY; WATER HOSE	1-83573-291-1	01	1	0710-	●	●
