8-40 — HEATER SYSTEM (#14896) — 83 parça

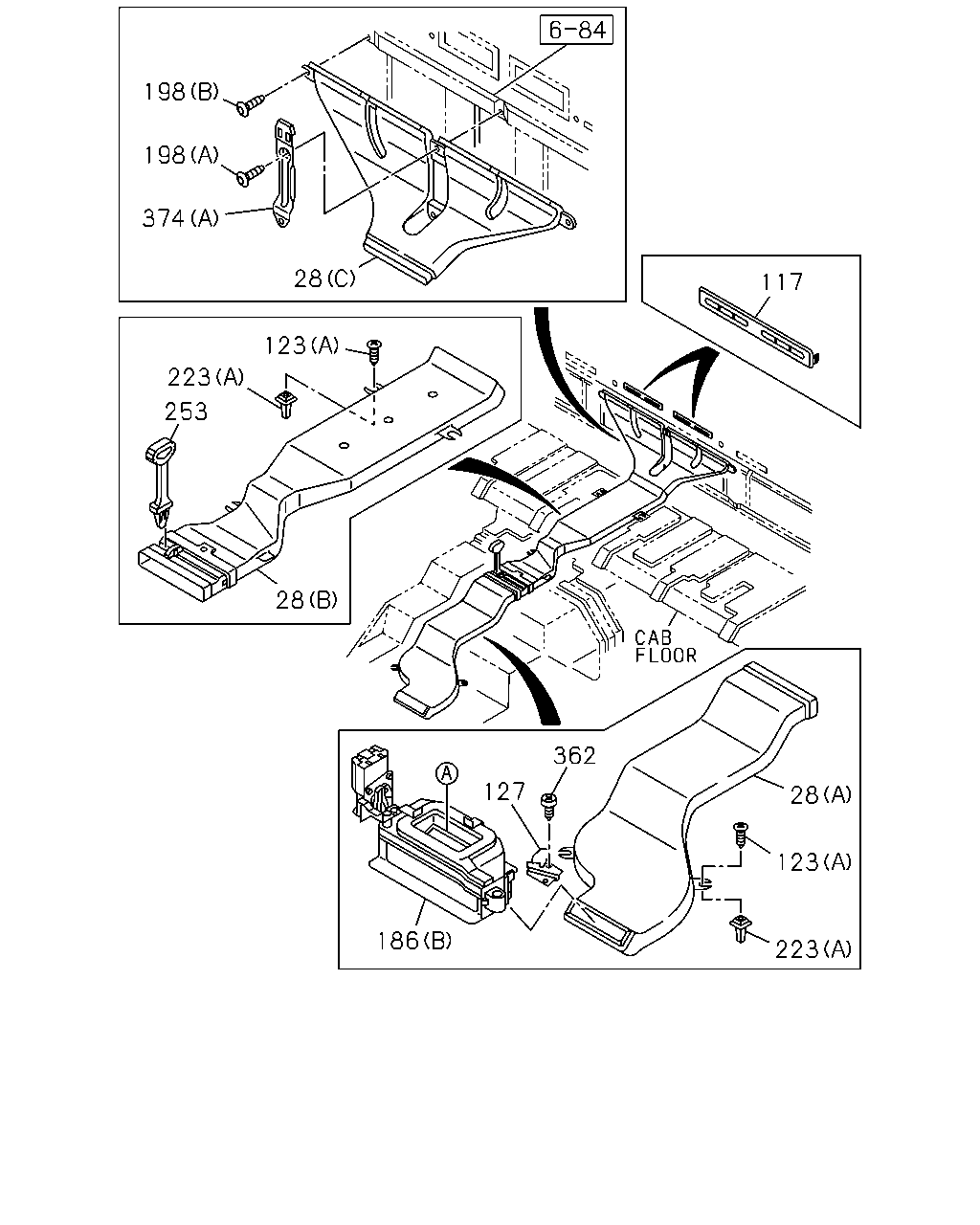

198 198 374 8 117 123 223 253 28 362 127 28 123 186 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	DUCT; HTR AIR,DRIVER FOOT	1-76377-208-0	01	1	0710-	●	●
28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-76377-180-2	01	1	0710-	●	●
28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-76377-186-1	01	1	0710-	●	●
28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-76377-203-0	01	1	0710-	●	●
117	GRILLE; VENTILATOR CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-76377-188-5	01	1	0710-	●	●
117	GRILLE; VENTILATOR CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-76377-187-5	01	1	0710-	●	●
123	SCREW; DUCT (B) M5X14	8-94279-325-0	12	1	0710-	●	●
123	SCREW; DUCT CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0710-	●	●
127	BRACKET; VENT DUCT EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-76397-019-0	01	1	0710-	●	●
186	DUCT; VENTILATOR (A)	1-76377-243-1	01	1	0710-	●	●
186	DUCT; VENTILATOR (A)	1-76377-173-6	01	1	0710-0710	●	●
186	DUCT; VENTILATOR (A)	1-76377-246-0	01	1	0711-	●	●
186	DUCT; VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83542-107-3	01	1	0710-	●	●
198	CLIP; DUCT CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) D6X23 BLACK	1-09987-114-0	02	1	0710-1204	●	●
198	CLIP; DUCT CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) D6X23 LIGHT GRAY	1-73318-629-0	02	1	1205-	●	●
198	CLIP; DUCT CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	0710-1204	●	●
198	CLIP; DUCT CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1205-	●	●
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0710-	●	●
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0710-	●	●
253	KNOB; CONT LEVER CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-76377-185-1	01	1	0710-	●	●
362	SCREW; DUCT EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X14	8-94279-325-0	02	1	0710-	●	●
374	HOLDER; DUCT (B)	1-76398-012-1	01	1	0710-	●	●
374	HOLDER; DUCT CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-76377-189-3	01	1	0710-	●	●

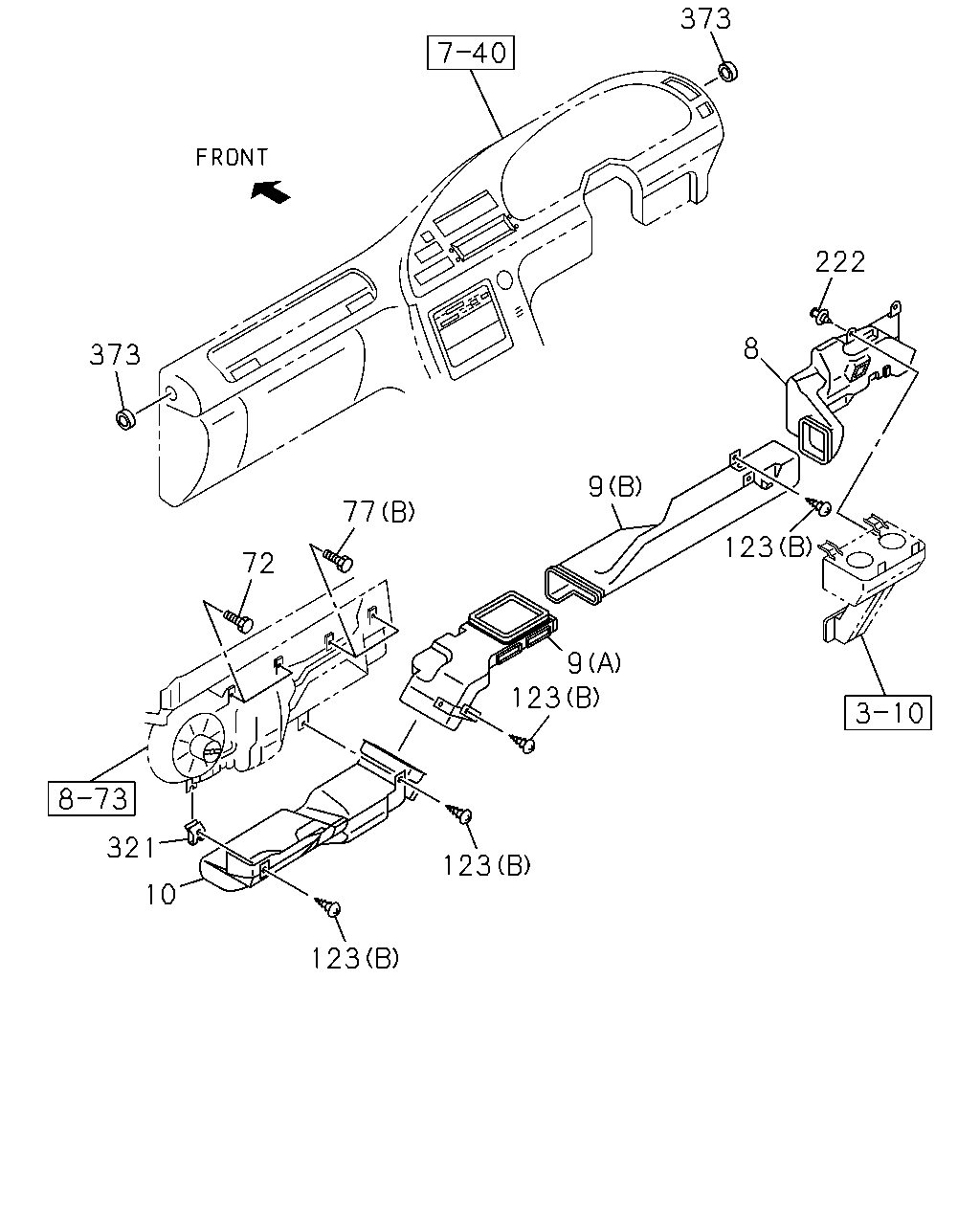

373 222 8 373 9 77 123 72 9 123 321 123 10 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	DUCT; HTR AIR,DRIVER FOOT	1-76377-208-0	01	1	0710-	●	●
9	DUCT; HTR AIR,FOOT CENTER (B)	1-76377-210-1	01	1	0710-	●	●
9	DUCT; HTR AIR,FOOT CENTER AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-76377-226-2	01	1	0710-	●	●
9	DUCT; HTR AIR,FOOT CENTER EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-76377-227-2	01	1	0710-	●	●
10	DUCT; HTR AIR,ASSIST FOOT	1-76377-204-2	01	1	0710-	●	●
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0710-	●	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0710-	●	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0710-	●	●
123	SCREW; DUCT (B) M5X14	8-94279-325-0	12	1	0710-	●	●
123	SCREW; DUCT CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0710-	●	●
222	FASTENER; DUCT D6X12.5	8-94146-425-0	02	1	0710-	●	●
321	NUT; DUCT FIX M5	1-09984-196-0	01	1	0710-	●	●
373	RUBBER; JOINT	1-76378-291-0	02	1	0710-	●	●

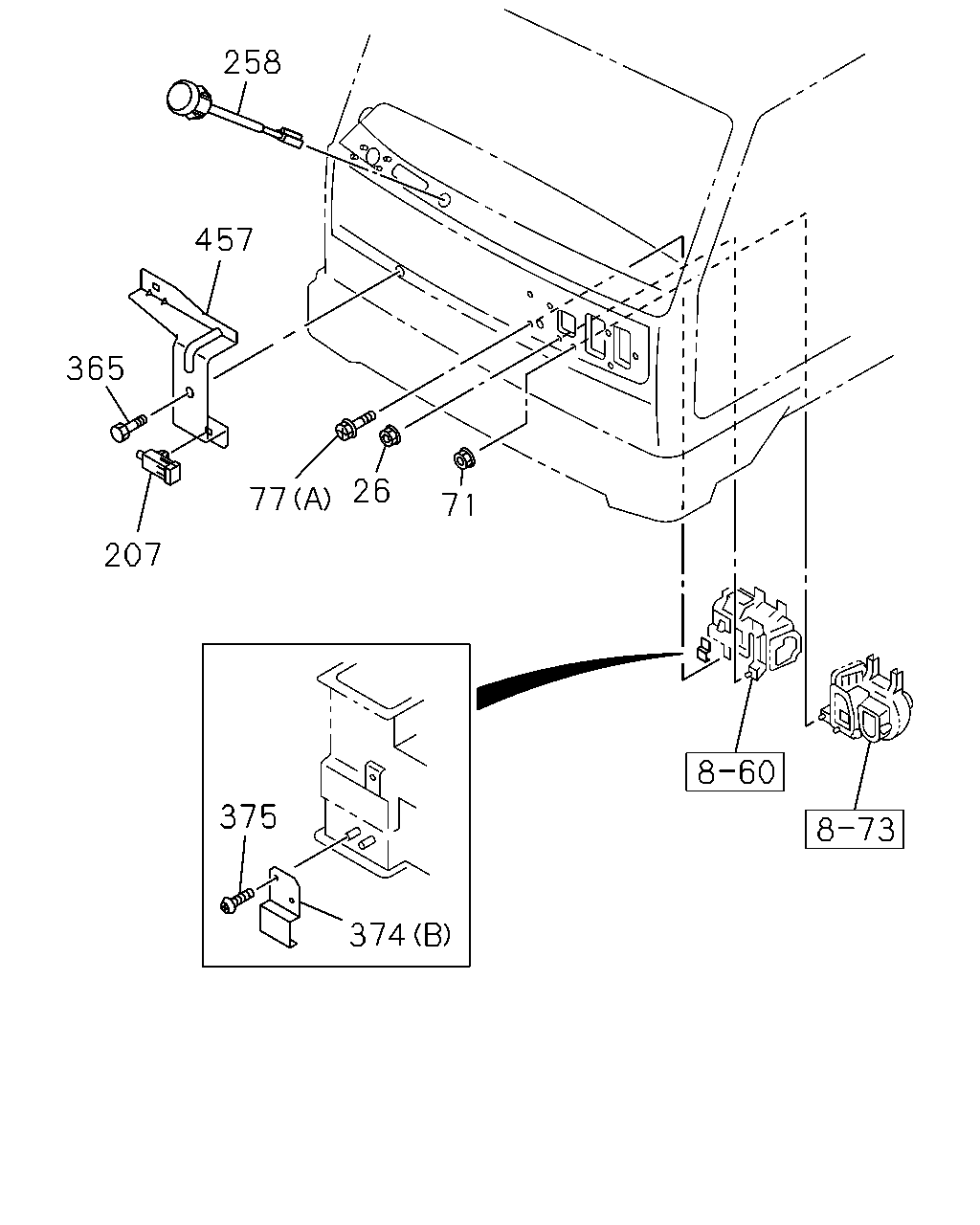

258 457 365 26 77 71 207 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0710-	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0710-	●	●
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0710-	●	●
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0710-	●	●
207	SENSOR; AMBIENT	8-97177-549-0	01	1	0710-1204	●	●
207	SENSOR; AMBIENT	8-98214-375-0	01	1	1205-	●	●
258	SENSOR; SUN	8-94472-043-2	01	1	0710-	●	●
365	BOLT; SENSOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0710-	●	●
374	HOLDER; DUCT (B)	1-76398-012-1	01	1	0710-	●	●
374	HOLDER; DUCT CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-76377-189-3	01	1	0710-	●	●
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	0710-	●	●
457	BRACKET; SENSOR	1-71907-603-1	01	1	0710-	●	●

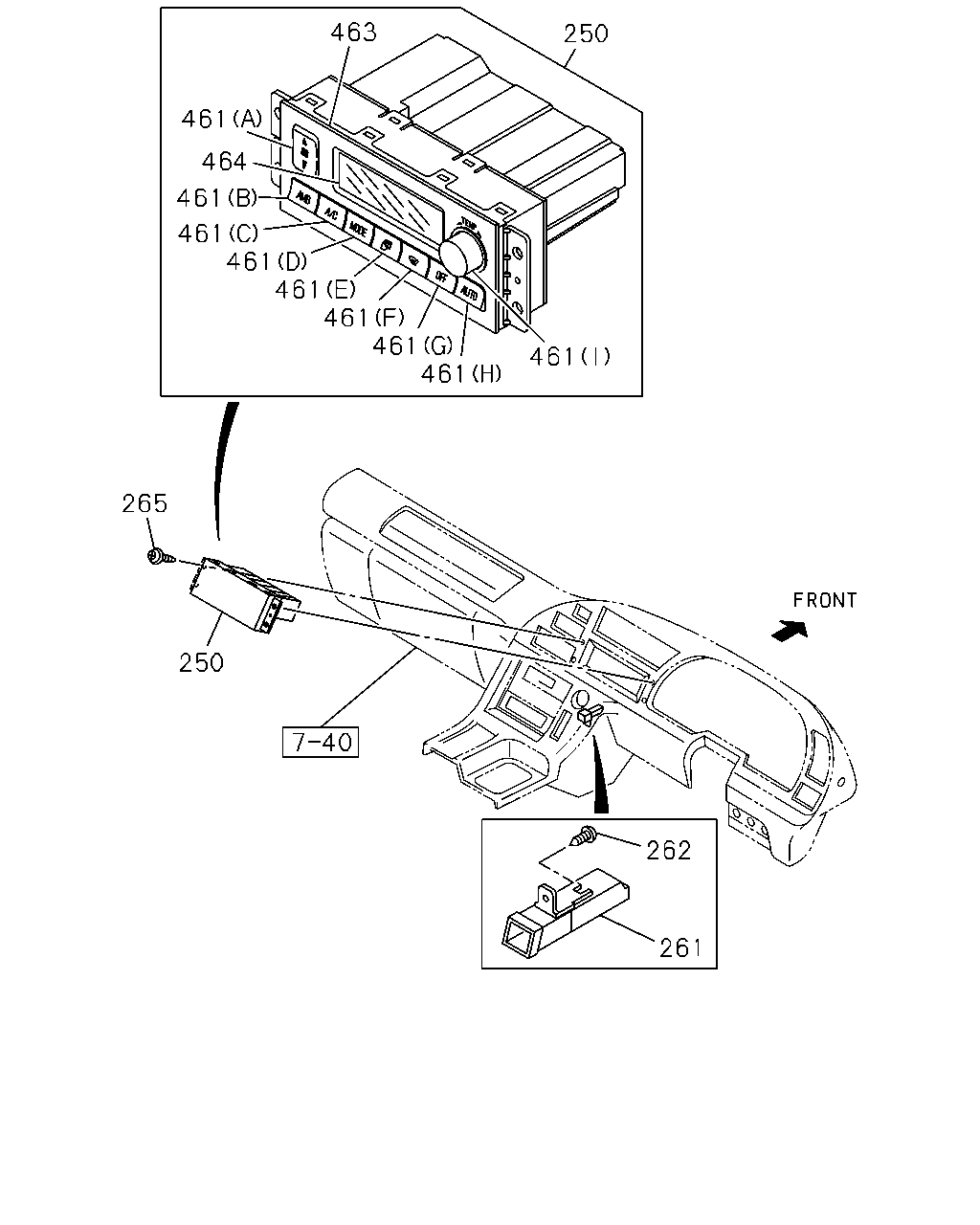

463 250 461 464 461 461 461 461 461 461 461 461 265 250 262 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
250	CONTROL ASM; A/C	1-83543-038-1	01	1	0710-	●	●
261	SENSOR; IN CAR	1-83544-023-1	01	1	0710-	●	●
262	SCREW; IN CAR SENSOR M5X14	8-94279-325-0	01	1	0710-	●	●
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0710-	●	●
461	KNOB; CONTROL ASM,A/C (A) FAN	1-83549-018-0	01	1	0710-	●	●
461	KNOB; CONTROL ASM,A/C (B) AMB	1-83549-019-0	01	1	0710-	●	●
461	KNOB; CONTROL ASM,A/C (C) A/C	1-83549-020-0	01	1	0710-	●	●
461	KNOB; CONTROL ASM,A/C (D) MODE	1-83549-021-0	01	1	0710-	●	●
461	KNOB; CONTROL ASM,A/C (E) REC	1-83549-022-0	01	1	0710-	●	●
461	KNOB; CONTROL ASM,A/C (F) DEF	1-83549-023-0	01	1	0710-	●	●
461	KNOB; CONTROL ASM,A/C (G) OFF	1-83549-024-0	01	1	0710-	●	●
461	KNOB; CONTROL ASM,A/C (H) AUTO	1-83549-025-0	01	1	0710-	●	●
461	KNOB; CONTROL ASM,A/C (I) TEMP	1-83549-026-0	01	1	0710-	●	●
463	BEZEL; CONTROL PANEL	1-83549-027-0	01	1	0710-	●	●
464	PLATE; CONTROL PANEL	1-83549-028-0	01	1	0710-	●	●

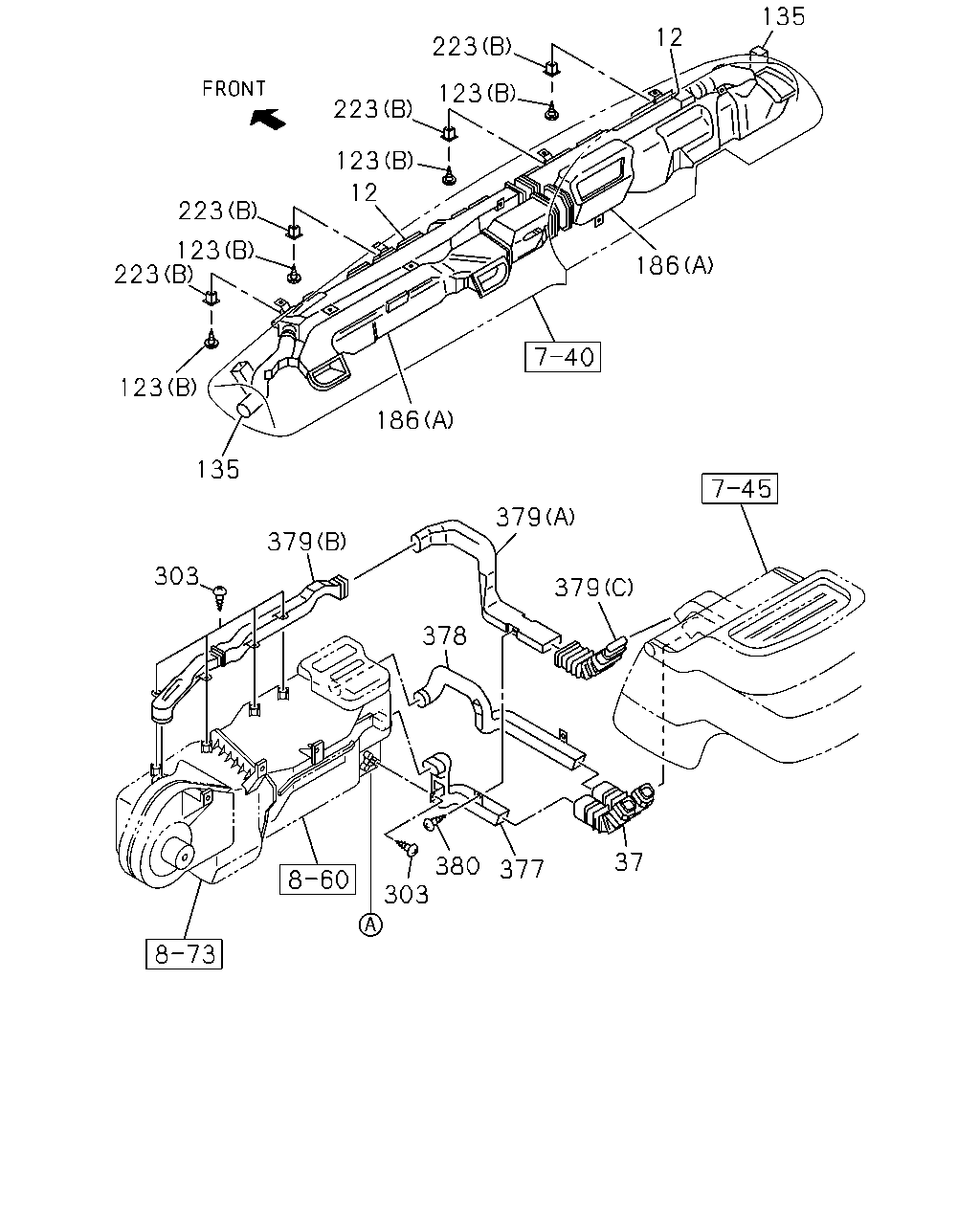

135 12 223 123 223 123 12 223 123 223 186 123 186 135 379 379 303 379 378 37 380 303 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER	1-76377-153-5	01	1	0710-	●	●
12	NOZZLE; DEFROSTER	1-76377-172-7	01	1	0710-	●	●
37	HOSE; AIR,HTR COOL & HOT BOX<TMU>	1-76377-193-3	01	1	0710-	●	●
123	SCREW; DUCT (B) M5X14	8-94279-325-0	12	1	0710-	●	●
123	SCREW; DUCT CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0710-	●	●
135	HOSE; DEFROSTER	1-76378-253-4	01	1	0710-	●	●
135	HOSE; DEFROSTER	1-76378-252-7	01	1	0710-	●	●
186	DUCT; VENTILATOR (A)	1-76377-243-1	01	1	0710-	●	●
186	DUCT; VENTILATOR (A)	1-76377-173-6	01	1	0710-0710	●	●
186	DUCT; VENTILATOR (A)	1-76377-246-0	01	1	0711-	●	●
186	DUCT; VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83542-107-3	01	1	0710-	●	●
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0710-	●	●
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0710-	●	●
303	SCREW; HOSE COOL & HOT BOX<TMU> M5X14	8-94279-325-0	05	1	0710-	●	●
377	HOSE; BOX,INLET,COOL COOL & HOT BOX<TMU>	1-76377-159-5	01	1	0710-	●	●
378	HOSE; BOX,INLET,HOT COOL & HOT BOX<TMU>	1-76377-161-6	01	1	0710-	●	●
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (A)	1-76377-163-5	01	1	0710-	●	●
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (B)	1-76377-164-3	01	1	0710-	●	●
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (C)	1-76377-192-4	01	1	0710-	●	●
380	FASTENER; HOSE COOL & HOT BOX<TMU> D4.6X14.7 BLACK	1-09983-104-0	03	1	0710-	●	●
