Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#14895) — 990 parça

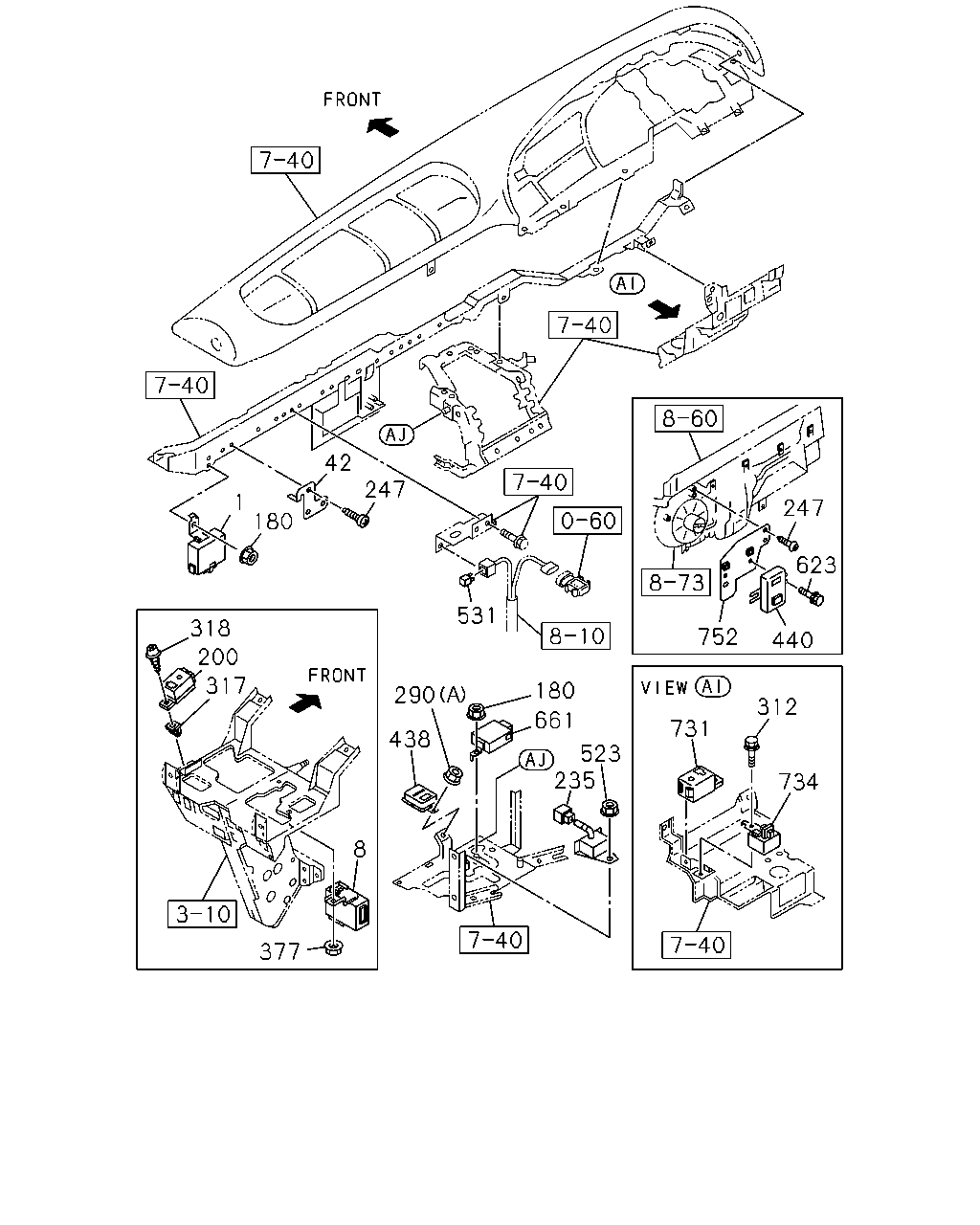

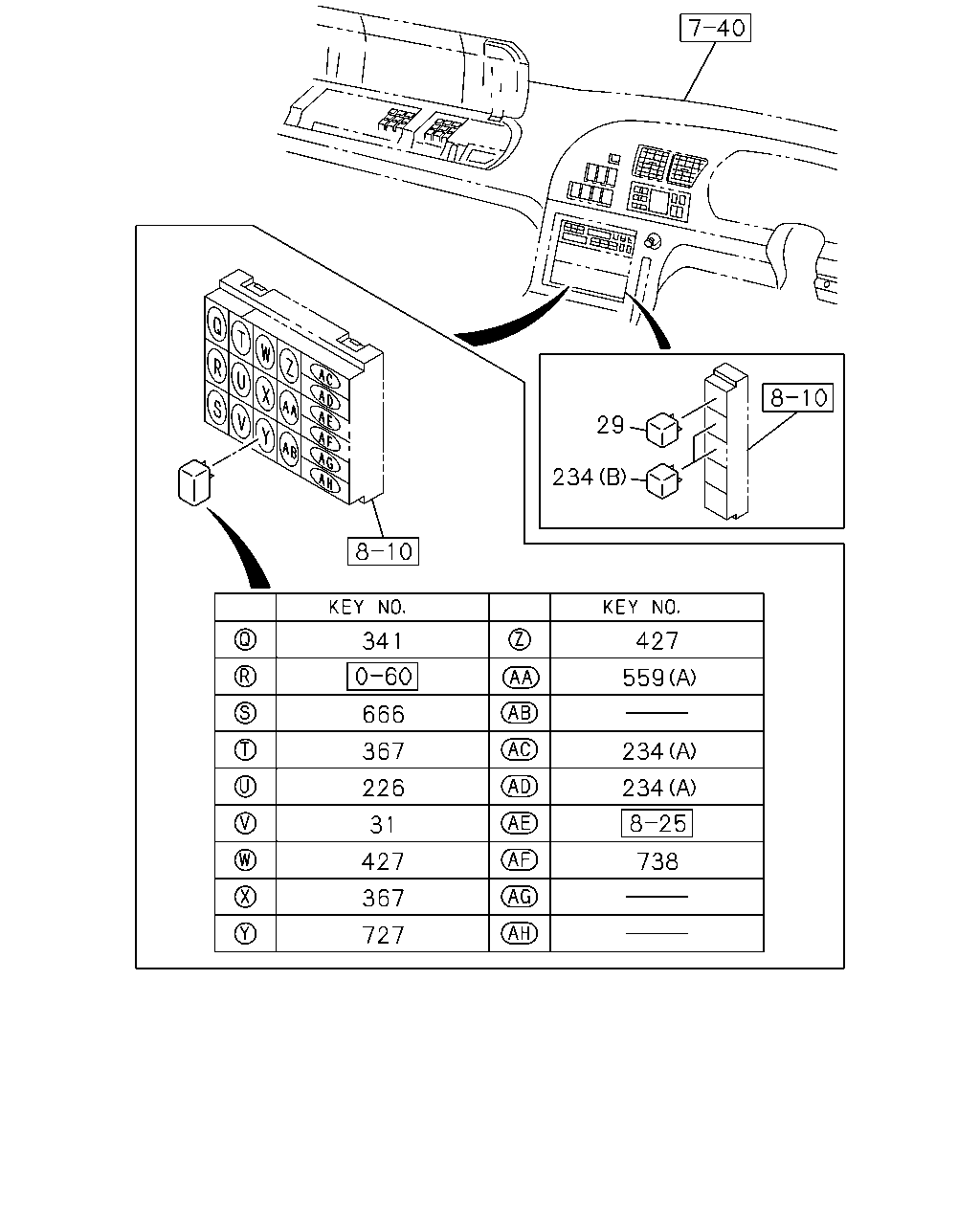

29 234 341 427 559 666 367 234 226 234 31 427 738 367 727

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-		●
226	RELAY; EXH BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
234	RELAY; AIR SUSPENSION (A) 24V 10A PANASONIC	8-97173-035-1	02	1	0710-	●	●
234	RELAY; AIR SUSPENSION (B) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-	●	●
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
367	RELAY; NEUTRAL MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0710-		●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 10A PANASONIC	8-97173-035-1	02	1	0710-1107	●	●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 10A PANASONIC	8-97173-035-1	02	1	1108-	●	●
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
559	RELAY; MAG VLV (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-		●
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●
559	RELAY; MAG VLV (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-		●
666	RELAY; STARTER MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
666	RELAY; STARTER 24V 10A PANASONIC	8-97173-035-1	01	1	0710-		●
727	RELAY; START CUT 24V 10A PANASONIC	8-97173-035-1	01	1	0710-1306	●	●
727	RELAY; START CUT 24V 10A PANASONIC	8-98167-173-0	01	1	1307-	●	●
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●

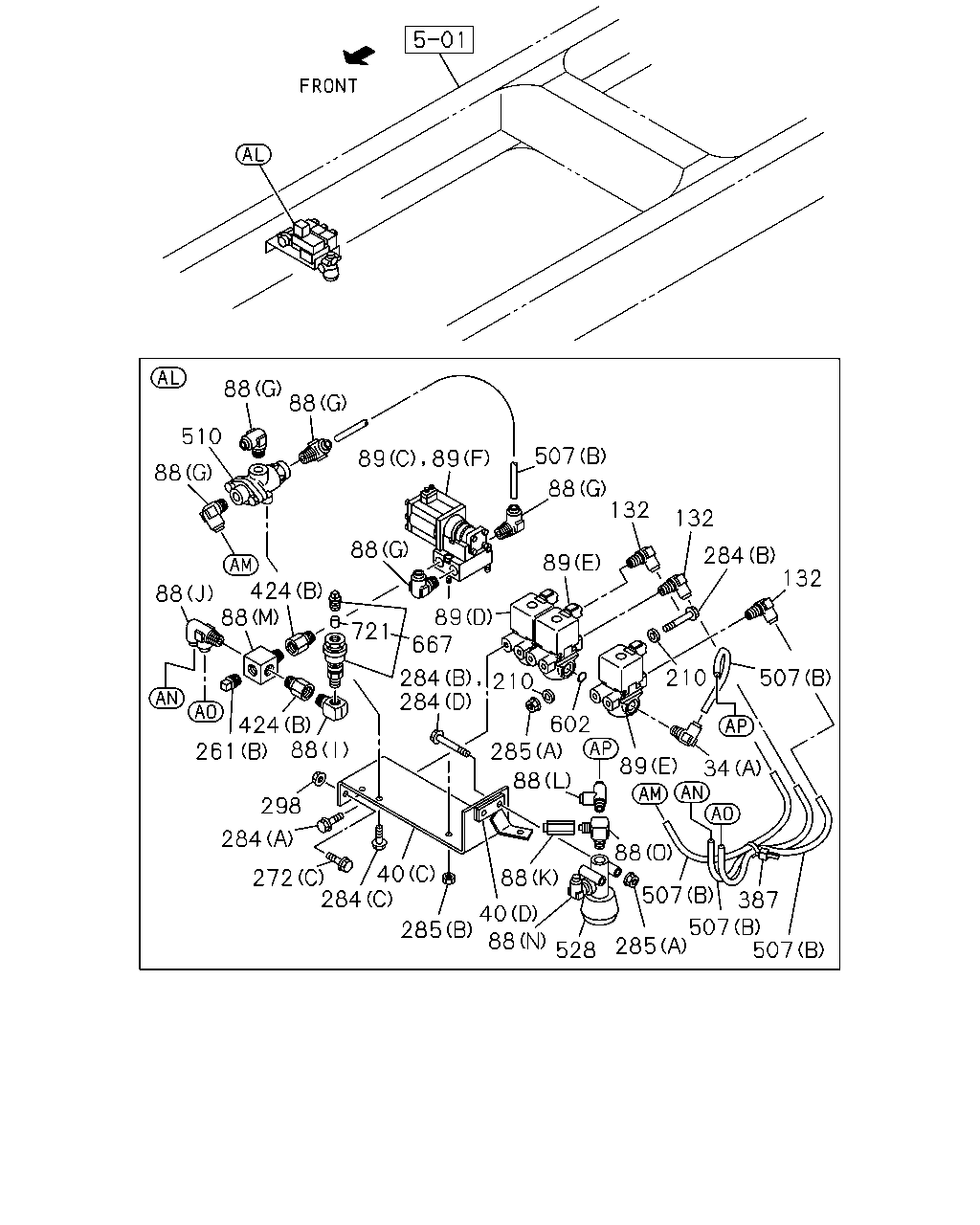

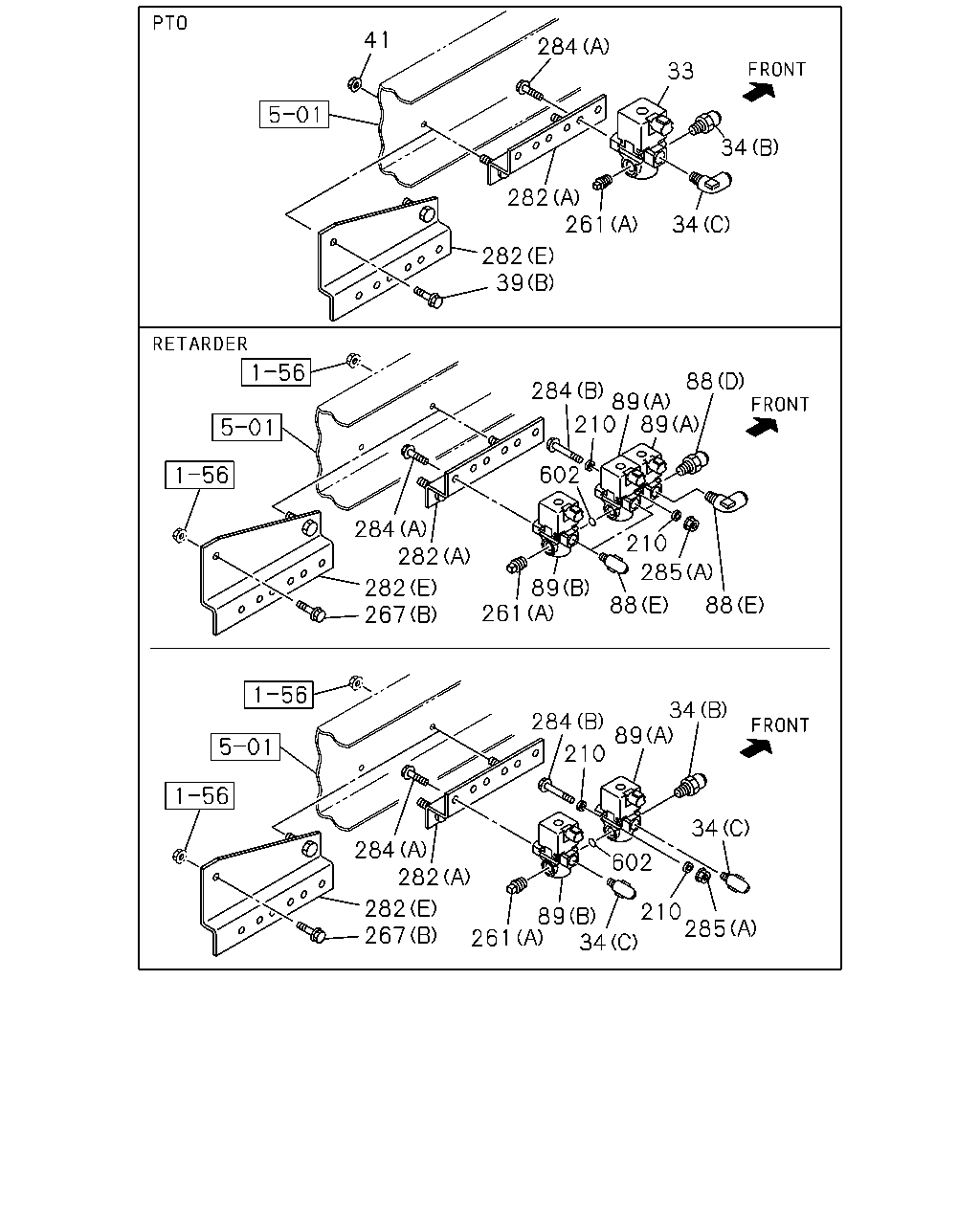

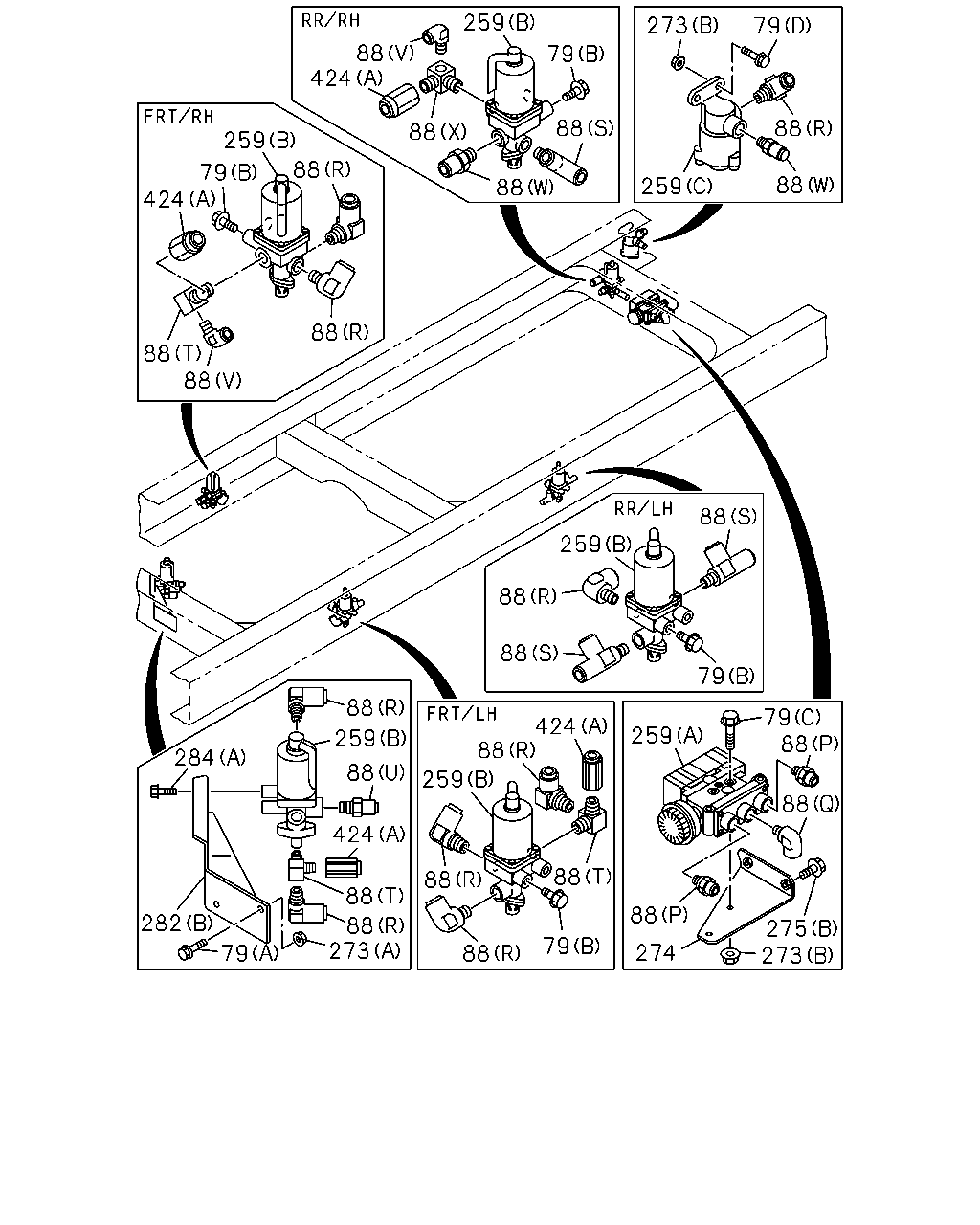

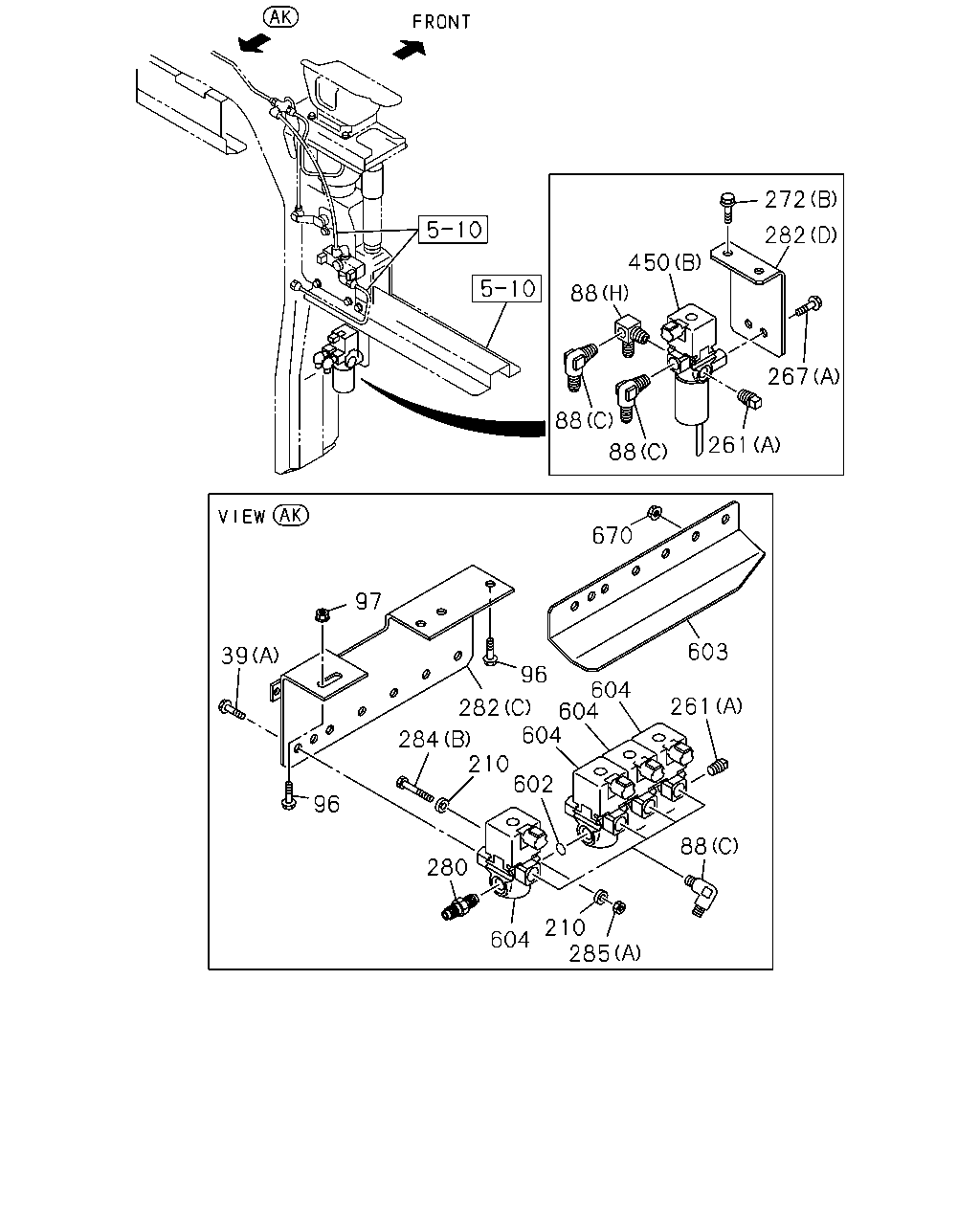

41 284 33 34 282 261 34 282 39 88 284 89 602 284 282 210 285 282 267 89 261 88 88 34 284 89 210 34 284 282 602 282 267 210 285 89 34 261 210 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2>	1-82563-871-2	01	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4500MM(45W) (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0812-	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0810	●	●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0810	●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0810		●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0811-1107	●	●
34	CONNECTOR; MAG VLV,INL PORT CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0811-1107	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0811-1107		●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
34	CONNECTOR; MAG VLV,INL PORT (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-0810	●	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 5100MM(51W) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0811-1107	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 6600MM(66W) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0811-1107		●
34	CONNECTOR; MAG VLV,INL PORT (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1108-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-0810	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-0810	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0811-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●	●
39	BOLT; BRKT,MAG VLV EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	02	1	1108-	●
39	BOLT; BRKT,MAG VLV WHEEL BASE 4500MM(45W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-1107	●	●
39	BOLT; BRKT,MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X20 FLANGE	0-28650-820-0	04	1	1108-	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	1108-		●
41	NUT; BRKT,MAG VLV WHEEL BASE 4500MM(45W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	01	1	0812-	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	0710-0810	●	●
41	NUT; BRKT,MAG VLV WHEEL BASE 5100MM(51W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	0811-1107	●
41	NUT; BRKT,MAG VLV WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	0811-1107		●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	1108-	●	●

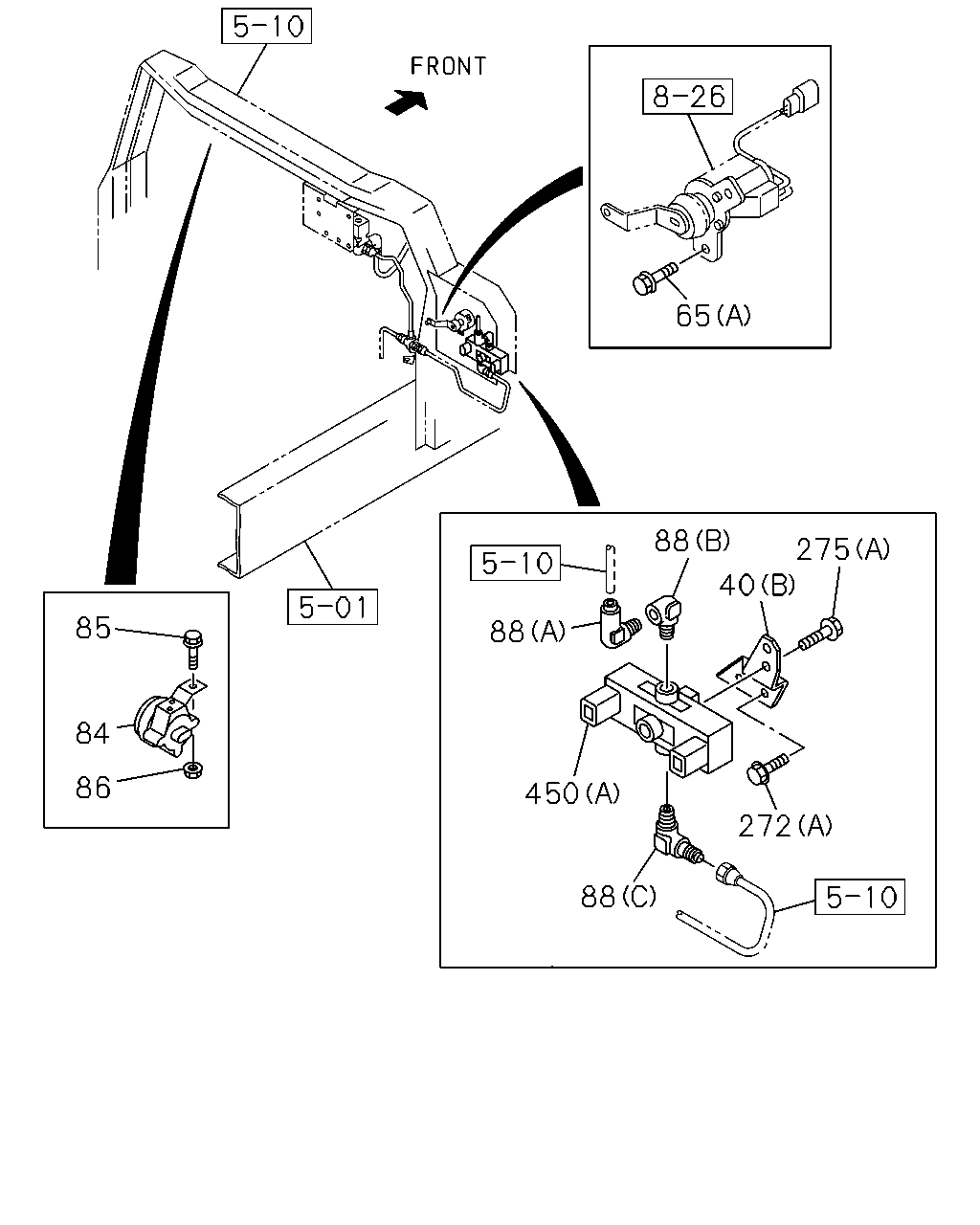

88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1105-1107	●	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1108-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1108-		●
88	CONNECTOR; MAG VLV WHEEL BASE 4500MM(45W) (Y) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	0812-	●
88	CONNECTOR; MAG VLV (T) M16 & PT1/4X2 3WAY	1-09656-668-0	03	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (T) M16 & PT1/4X2 3WAY	1-09656-668-0	03	1	1108-	●	●
88	CONNECTOR; MAG VLV (W) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (W) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	07	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	06	1	0809-1104	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1105-1107	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV EURO5 SPECIFICATION<NT5> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0710-0811	●	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0812-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0812-1107	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>, EURO5 SPECIFICATION<NT5> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-		●
88	CONNECTOR; MAG VLV (X) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (R) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (R) DIN12 & R1/4 ELBOW	1-09660-958-0	08	1	0710-	●	●
88	CONNECTOR; MAG VLV (U) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (U) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1108-	●	●
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (P) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0710-	●	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (S) DIN12X2 & R1/4 3WAY	1-09661-071-0	03	1	0710-	●	●
88	CONNECTOR; MAG VLV (Q) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0710-0810	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 5100MM(51W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0811-1107	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0811-1107		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (K) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (M) PT3/8 4WAY	1-09661-489-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	0710-	●	●
88	CONNECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-	●	●

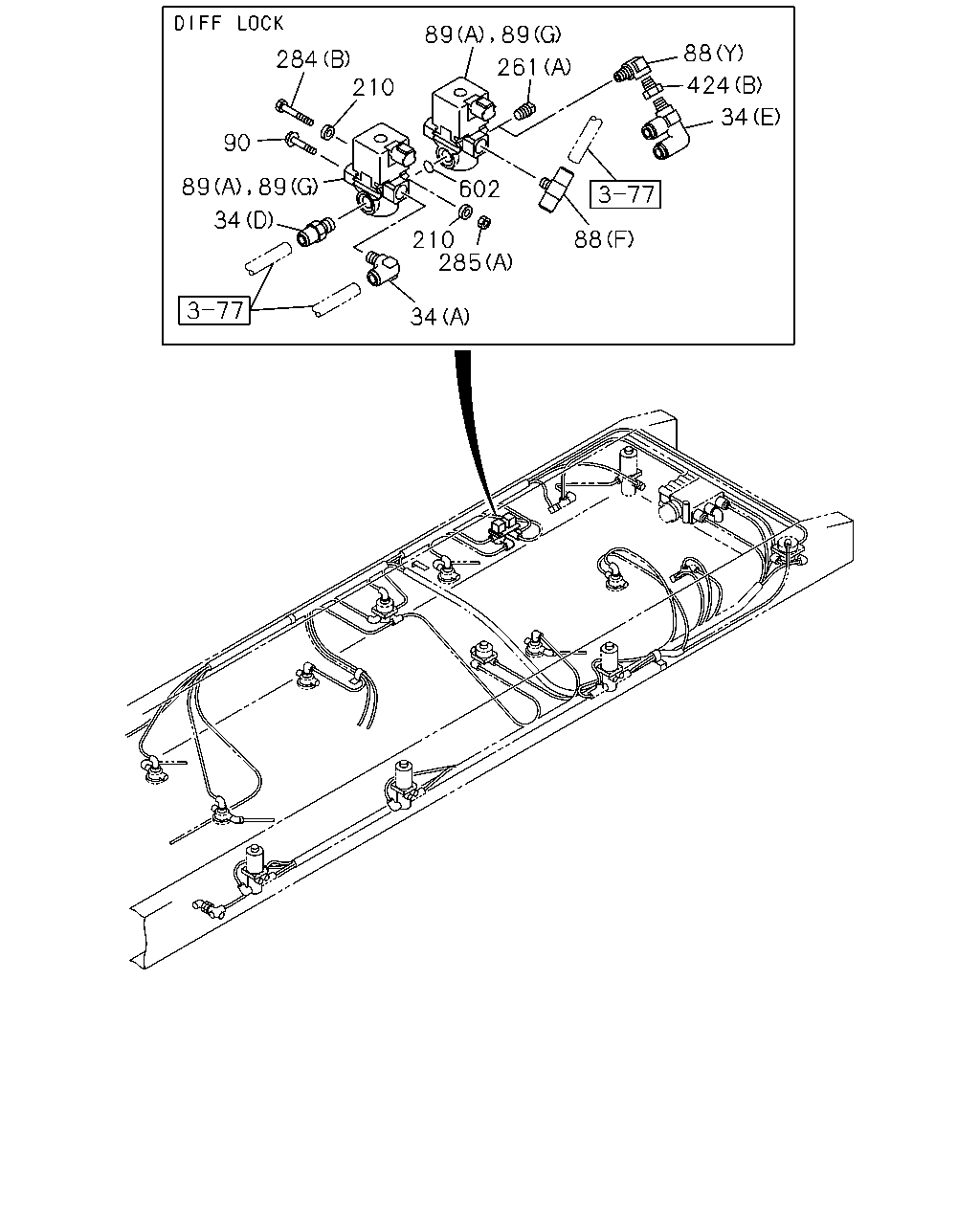

89	VALVE; MAG,DIFF LOCK (G)	8-97641-594-0	02	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) EURO5 SPECIFICATION<NT5> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (F)	1-82564-279-1	01	1	1108-	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	02	1	0710-1205	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	02	1	0710-1205	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	02	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-872-1	01	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-82563-871-2	01	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (D)	1-82564-094-2	01	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (E)	1-82564-095-1	02	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (C)	1-82564-407-1	01	1	0710-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-	●	●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-82569-266-0	02	1	0710-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0710-1107	●	●
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	04	1	1108-	●	●
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	1108-	●	●
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	04	1	0710-1107	●	●
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	0710-1107	●	●
210	WASHER; PL,BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-82569-266-0	06	1	1108-	●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	1108-		●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0710-1107	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	0710-1107	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	0710-1107	●	●
261	PLUG; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) PT1/4	9-99204-513-0	02	1	1108-	●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	02	1	1108-		●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	02	1	0710-1107	●	●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1108-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	1108-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	1108-	●	●
261	PLUG; MAG VLV EURO5 SPECIFICATION<NT5> (A) PT1/4	9-99204-513-0	01	1	1108-	●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) PT3/8	9-09204-517-0	01	1	0710-	●	●
267	BOLT; VLV TO BRKT WHEEL BASE 4500MM(45W) BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
267	BOLT; VLV TO BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-1107	●	●
267	BOLT; VLV TO BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X20 FLANGE	0-28650-820-0	02	1	1108-	●
267	BOLT; VLV TO BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1108-		●
282	BRACKET; MAG VLV EURO5 SPECIFICATION<NT5> (C)	1-82569-277-2	01	1	1108-	●
282	BRACKET; MAG VLV WHEEL BASE 4500MM(45W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (E)	8-98133-789-0	01	1	0812-	●
282	BRACKET; MAG VLV WHEEL BASE 4500MM(45W) BRAKE SYSTEM RETARDER<RE2> (E)	8-98133-789-0	01	1	0812-	●
282	BRACKET; MAG VLV (B)	8-98097-899-0	01	1	0710-0804	●	●
282	BRACKET; MAG VLV (B)	8-98120-739-0	01	1	0805-	●	●
282	BRACKET; MAG VLV (C)	8-98076-313-0	01	1	0710-1107	●	●
282	BRACKET; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C)	8-98076-313-0	01	1	1108-	●
282	BRACKET; MAG VLV (C)	8-98076-313-0	01	1	1108-		●
282	BRACKET; MAG VLV (D)	8-98088-448-0	01	1	0710-1107	●	●
282	BRACKET; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D)	8-98088-448-0	01	1	1108-	●
282	BRACKET; MAG VLV (D)	8-98088-448-0	01	1	1108-		●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0710-0810	●	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0710-0810	●	●
282	BRACKET; MAG VLV WHEEL BASE 5100MM(51W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-	●
282	BRACKET; MAG VLV WHEEL BASE 5100MM(51W) BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-	●
282	BRACKET; MAG VLV WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-		●
282	BRACKET; MAG VLV WHEEL BASE 6600MM(66W) BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-0810	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0811-	●	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0811-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-1107	●	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	1108-	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (D) M6X60 FLANGE	0-28050-660-0	02	1	0710-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-0810	●	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-0810		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	0811-1107	●
284	BOLT; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M6X50 FLANGE	0-28050-650-0	03	1	1108-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	1108-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	0710-1107	●	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	04	1	1108-	●	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M5	0-91110-505-0	03	1	0710-	●	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	04	1	0710-1107	●	●
285	NUT; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M6 FLANGE	0-91180-106-0	03	1	1108-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	1108-		●
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M6 FLANGE	0-91180-106-0	02	1	0710-	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-	●	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=16.8	9-09565-117-0	01	1	0710-	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0710-1107	●	●
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	02	1	1108-	●	●
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	1108-	●	●
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	02	1	0710-1107	●	●
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	0710-1107	●	●
602	GASKET; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=16.8	9-09565-117-0	03	1	1108-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	1108-		●

88 88 510 507 88 88 132 132 88 284 132 89 89 667 88 424 88 721 210 210 507 284 284 602 285 89 34 424 88 298 284 88 272 40 284 88 507 387 507 507 40 285 88 285 528 89 89 261 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4500MM(45W) (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0812-	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0810	●	●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0810	●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0810		●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0811-1107	●	●
34	CONNECTOR; MAG VLV,INL PORT CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0811-1107	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0811-1107		●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
34	CONNECTOR; MAG VLV,INL PORT (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-0810	●	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 5100MM(51W) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0811-1107	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 6600MM(66W) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0811-1107		●
34	CONNECTOR; MAG VLV,INL PORT (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1108-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-0810	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-0810	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0811-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●	●

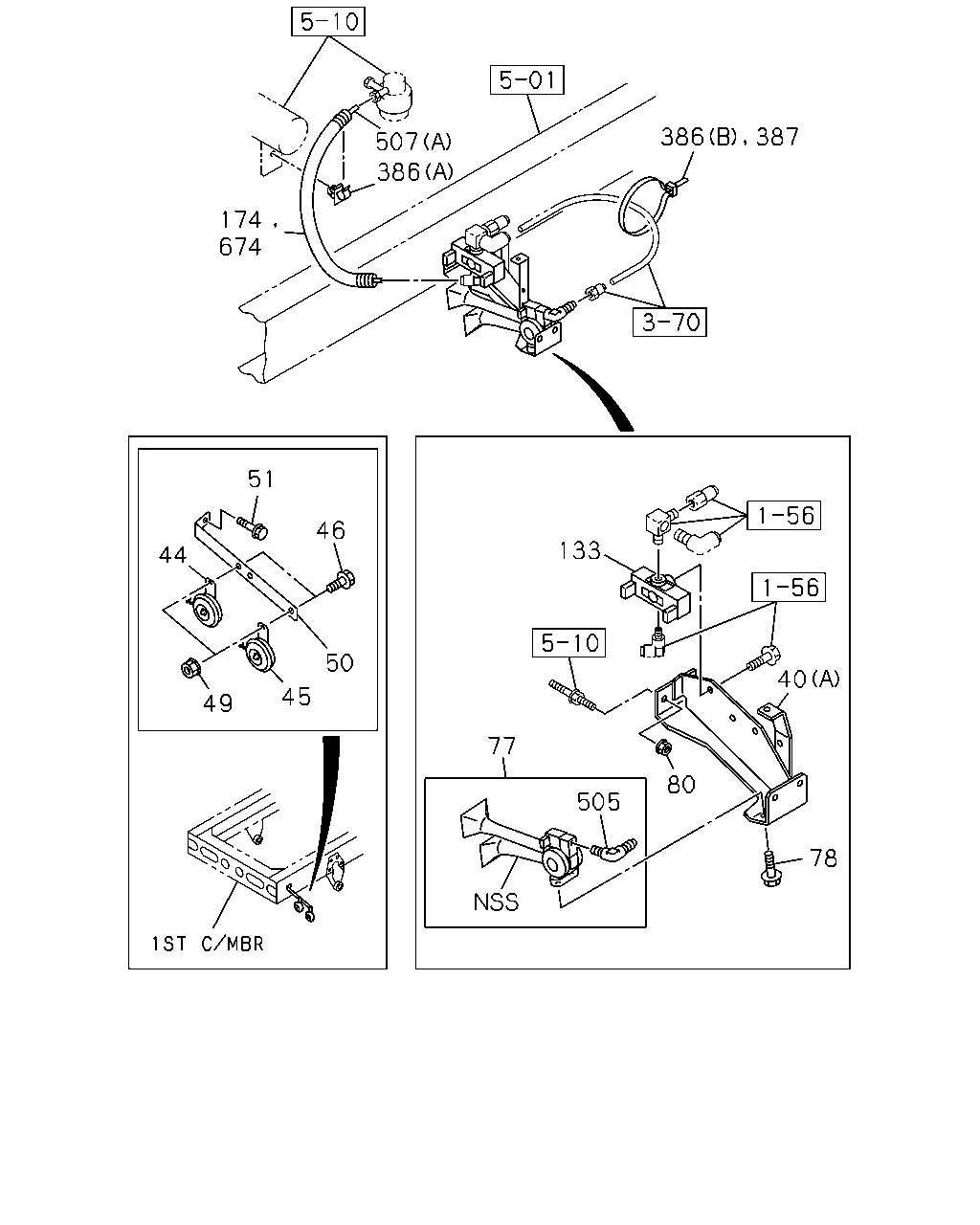

40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C)	8-98090-522-0	01	1	0710-	●
40	BRACKET; MAG VLV (A)	1-53457-199-0	01	1	0710-1006	●	●
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	1007-	●	●
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0710-	●	●
40	BRACKET; MAG VLV (C)	1-82569-425-0	01	1	0710-		●
40	BRACKET; MAG VLV (D)	1-82698-604-0	02	1	0710-		●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1105-1107	●	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1108-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1108-		●
88	CONNECTOR; MAG VLV WHEEL BASE 4500MM(45W) (Y) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	0812-	●
88	CONNECTOR; MAG VLV (T) M16 & PT1/4X2 3WAY	1-09656-668-0	03	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (T) M16 & PT1/4X2 3WAY	1-09656-668-0	03	1	1108-	●	●
88	CONNECTOR; MAG VLV (W) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (W) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	07	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	06	1	0809-1104	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1105-1107	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV EURO5 SPECIFICATION<NT5> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0710-0811	●	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0812-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0812-1107	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>, EURO5 SPECIFICATION<NT5> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-		●
88	CONNECTOR; MAG VLV (X) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (R) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (R) DIN12 & R1/4 ELBOW	1-09660-958-0	08	1	0710-	●	●
88	CONNECTOR; MAG VLV (U) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (U) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1108-	●	●
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (P) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0710-	●	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (S) DIN12X2 & R1/4 3WAY	1-09661-071-0	03	1	0710-	●	●
88	CONNECTOR; MAG VLV (Q) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0710-0810	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 5100MM(51W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0811-1107	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0811-1107		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (K) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (M) PT3/8 4WAY	1-09661-489-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	0710-	●	●
88	CONNECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK (G)	8-97641-594-0	02	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) EURO5 SPECIFICATION<NT5> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (F)	1-82564-279-1	01	1	1108-	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	02	1	0710-1205	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	02	1	0710-1205	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	02	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-872-1	01	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-82563-871-2	01	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (D)	1-82564-094-2	01	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (E)	1-82564-095-1	02	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (C)	1-82564-407-1	01	1	0710-	●	●
132	CONNECTOR; OUTLET,MAG VLV MJX12P M/T SMOOTHER-G(Y4S) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-	●	●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-82569-266-0	02	1	0710-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0710-1107	●	●
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	04	1	1108-	●	●
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	1108-	●	●
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	04	1	0710-1107	●	●
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	0710-1107	●	●
210	WASHER; PL,BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-82569-266-0	06	1	1108-	●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	1108-		●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0710-1107	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	0710-1107	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	0710-1107	●	●
261	PLUG; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) PT1/4	9-99204-513-0	02	1	1108-	●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	02	1	1108-		●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	02	1	0710-1107	●	●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1108-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	1108-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	1108-	●	●
261	PLUG; MAG VLV EURO5 SPECIFICATION<NT5> (A) PT1/4	9-99204-513-0	01	1	1108-	●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) PT3/8	9-09204-517-0	01	1	0710-	●	●
272	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-1107	●	●
272	BOLT; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M8X25 FLANGE	0-28650-825-0	02	1	1108-	●
272	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1108-		●
272	BOLT; MAG VLV (A) M10X20 FLANGE	0-28651-020-0	02	1	0710-1208	●	●
272	BOLT; MAG VLV (A) M10X25 FLANGE	0-28651-025-0	02	1	1209-	●	●
272	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-	●	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-0810	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0811-	●	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0811-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-1107	●	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	1108-	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (D) M6X60 FLANGE	0-28050-660-0	02	1	0710-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-0810	●	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-0810		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	0811-1107	●
284	BOLT; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M6X50 FLANGE	0-28050-650-0	03	1	1108-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	1108-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	0710-1107	●	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	04	1	1108-	●	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M5	0-91110-505-0	03	1	0710-	●	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	04	1	0710-1107	●	●
285	NUT; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M6 FLANGE	0-91180-106-0	03	1	1108-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	1108-		●
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M6 FLANGE	0-91180-106-0	02	1	0710-	●	●
298	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
387	CLIP; BAND L=350	1-09707-183-0	01	1	0710-0810	●	●
387	CLIP; BAND MJX12P M/T SMOOTHER-G(Y4S) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) L=350	1-09707-183-0	01	1	0710-0810	●
387	CLIP; BAND MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	01	1	0710-0810		●
387	CLIP; BAND L=350	1-09707-183-0	01	1	0811-	●	●
387	CLIP; BAND MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	01	1	0811-	●	●
424	ADAPTER WHEEL BASE 4500MM(45W) (B) PT3/8	1-09664-210-0	01	1	0812-	●
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0710-1107	●	●
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1108-	●	●
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0710-1107	●	●
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	1108-	●	●
424	ADAPTER MJX12P M/T SMOOTHER-G(Y4S) (B) PT3/8	1-09664-210-0	02	1	0710-	●	●
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0710-	●	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0710-	●	●
510	VALVE; CHECK MJX12P M/T SMOOTHER-G(Y4S)	1-48410-531-1	01	1	0710-	●	●
528	VALVE; PRESSURE REDUCING MJX12P M/T SMOOTHER-G(Y4S)	1-48410-744-0	01	1	0710-	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-	●	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=16.8	9-09565-117-0	01	1	0710-	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0710-1107	●	●
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	02	1	1108-	●	●
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	1108-	●	●
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	02	1	0710-1107	●	●
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	0710-1107	●	●
602	GASKET; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=16.8	9-09565-117-0	03	1	1108-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	1108-		●
667	LUBRICATION MJX12P M/T SMOOTHER-G(Y4S)	8-98063-001-0	01	1	0710-	●	●
721	ELEMENT; LUBRICATION MJX12P M/T SMOOTHER-G(Y4S)	1-33779-028-0	01	1	0710-	●	●

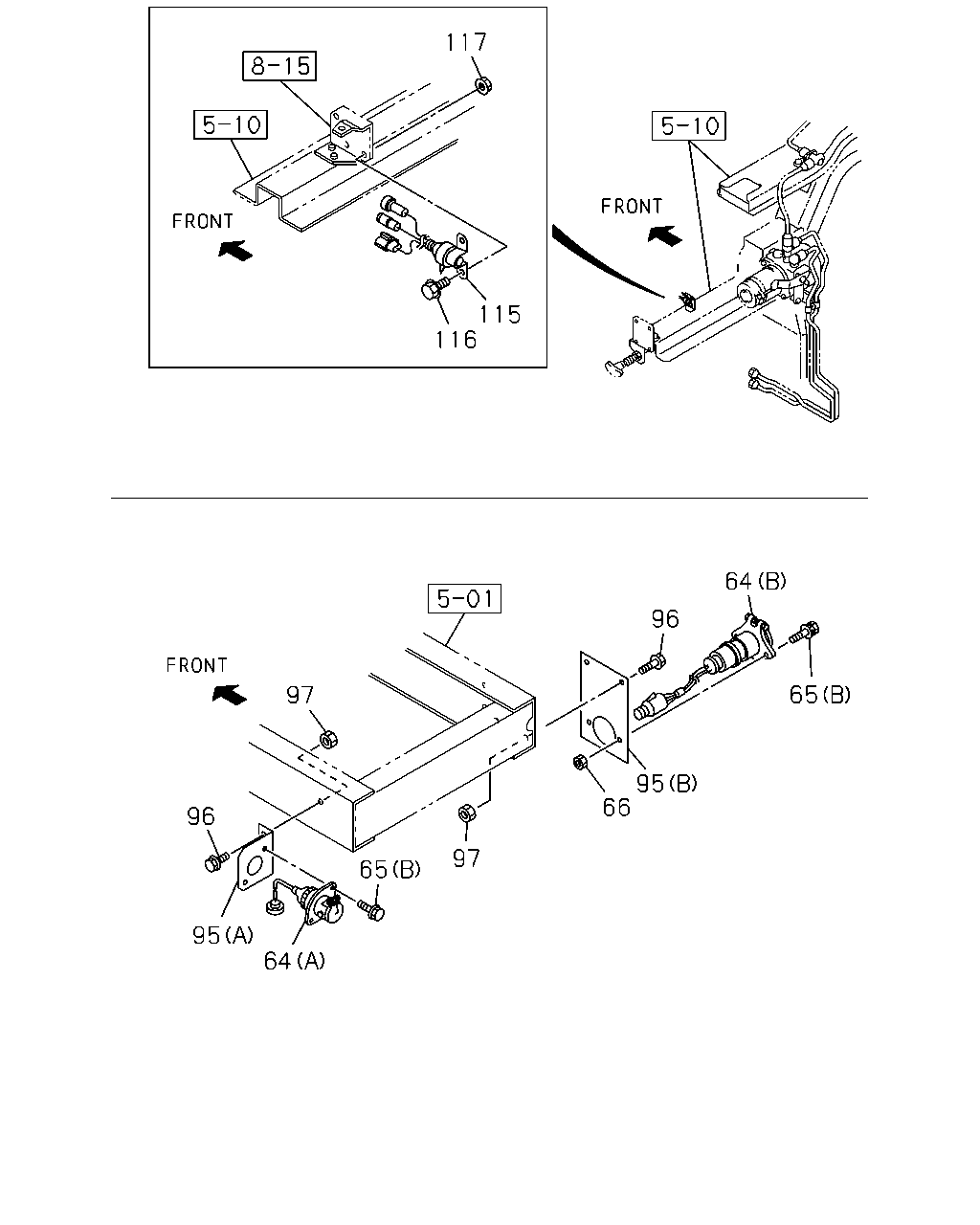

117 115 116 64 96 65 97 95 66 96 97 65 95 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	SOCKET; TRAILER WHEEL BASE 4500MM(45W) (B) 7P	1-82523-014-0	01	1	0812-1004	●
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	1005-	●	●
64	SOCKET; TRAILER WHEEL BASE 4500MM(45W) (A) L=940	1-82698-297-0	01	1	0812-1004	●
64	SOCKET; TRAILER (A) L=940	1-82698-297-0	01	1	1005-1008	●	●
64	SOCKET; TRAILER (A) L=940	8-98172-009-0	01	1	1009-	●	●
65	BOLT; SOCKET FIX WHEEL BASE 4500MM(45W) (B) M8X25 FLANGE	0-28650-825-0	04	1	0812-1004	●
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	1005-	●	●
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0710-	●	●
66	NUT; SOCKET FIX WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	02	1	0812-1004	●
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	1005-	●	●
95	BRACKET; SOCKET,TRAILER WHEEL BASE 4500MM(45W) (B)	1-82699-387-0	01	1	0812-1004	●
95	BRACKET; SOCKET,TRAILER (B)	1-82699-387-0	01	1	1005-	●	●
95	BRACKET; SOCKET,TRAILER WHEEL BASE 4500MM(45W) (A)	1-82699-979-0	01	1	0812-1004	●
95	BRACKET; SOCKET,TRAILER (A)	1-82699-979-0	01	1	1005-1008	●	●
95	BRACKET; SOCKET,TRAILER (A)	8-97985-137-0	01	1	1009-	●	●
96	BOLT; BRKT FIX EURO5 SPECIFICATION<NT5> M10X30 FLANGE	0-28651-030-0	01	1	1108-	●
96	BOLT; BRKT FIX WHEEL BASE 4500MM(45W) M8X25 FLANGE	0-28650-825-0	04	1	0812-1004	●
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	04	1	1005-	●	●
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	0710-1107	●	●
96	BOLT; BRKT FIX JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X25 FLANGE	0-28650-825-0	03	1	1108-	●
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	1108-		●
96	BOLT; BRKT FIX EURO5 SPECIFICATION<NT5> M8X25 FLANGE	0-28650-825-0	01	1	1108-	●
97	NUT; BRKT FIX EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	01	1	1108-	●
97	NUT; BRKT FIX WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	04	1	0812-1004	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	1005-1107	●	●
97	NUT; BRKT FIX JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE	0-91180-108-0	03	1	1108-	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	03	1	1108-		●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	03	1	0710-1107	●	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	1108-	●	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0710-	●	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0710-	●	●

507 386 174 674 51 46 133 44 50 40 45 49 77 80 505 78 386 387

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C)	8-98090-522-0	01	1	0710-	●
40	BRACKET; MAG VLV (A)	1-53457-199-0	01	1	0710-1006	●	●
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	1007-	●	●
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0710-	●	●
40	BRACKET; MAG VLV (C)	1-82569-425-0	01	1	0710-		●
40	BRACKET; MAG VLV (D)	1-82698-604-0	02	1	0710-		●
44	HORN; HIGH NOTE	1-83410-061-1	01	1	0710-	●	●
45	HORN; LOW NOTE	1-83410-062-1	01	1	0710-	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
50	BRACKET; HORN	1-53457-196-0	01	1	0710-	●	●
51	BOLT; HORN TO BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
77	HORN ASM	1-83430-041-2	01	1	0710-	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	0710-	●	●
133	VALVE; MAG,AIR HORN	1-53458-378-2	01	1	0710-	●	●
174	COVER L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-	●	●
386	CLIP; HARNESS (B) L=350	1-09707-183-0	02	1	0710-	●	●
386	CLIP; HARNESS (A) ID=9.5	5-09709-020-0	01	1	0710-	●	●
387	CLIP; BAND L=350	1-09707-183-0	01	1	0710-0810	●	●
387	CLIP; BAND MJX12P M/T SMOOTHER-G(Y4S) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) L=350	1-09707-183-0	01	1	0710-0810	●
387	CLIP; BAND MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	01	1	0710-0810		●
387	CLIP; BAND L=350	1-09707-183-0	01	1	0811-	●	●
387	CLIP; BAND MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	01	1	0811-	●	●
505	JOINT; AIR HORN	1-83439-006-0	01	1	0710-	●	●
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0710-	●	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0710-	●	●
674	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-	●	●

34 210 282 88 602 34 424 88 261 89 89 210 284 90 89 89 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4500MM(45W) (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0812-	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0810	●	●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0810	●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0810		●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0811-1107	●	●
34	CONNECTOR; MAG VLV,INL PORT CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0811-1107	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0811-1107		●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
34	CONNECTOR; MAG VLV,INL PORT (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-0810	●	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 5100MM(51W) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0811-1107	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 6600MM(66W) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0811-1107		●
34	CONNECTOR; MAG VLV,INL PORT (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1108-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0710-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-0810	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-0810	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0811-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1105-1107	●	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1108-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1108-		●
88	CONNECTOR; MAG VLV WHEEL BASE 4500MM(45W) (Y) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	0812-	●
88	CONNECTOR; MAG VLV (T) M16 & PT1/4X2 3WAY	1-09656-668-0	03	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (T) M16 & PT1/4X2 3WAY	1-09656-668-0	03	1	1108-	●	●
88	CONNECTOR; MAG VLV (W) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (W) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	07	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	06	1	0809-1104	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1105-1107	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV EURO5 SPECIFICATION<NT5> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0710-0811	●	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0812-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0812-1107	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>, EURO5 SPECIFICATION<NT5> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-		●
88	CONNECTOR; MAG VLV (X) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (R) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (R) DIN12 & R1/4 ELBOW	1-09660-958-0	08	1	0710-	●	●
88	CONNECTOR; MAG VLV (U) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (U) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1108-	●	●
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (P) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0710-	●	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (S) DIN12X2 & R1/4 3WAY	1-09661-071-0	03	1	0710-	●	●
88	CONNECTOR; MAG VLV (Q) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0710-0810	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 5100MM(51W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0811-1107	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0811-1107		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (K) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (M) PT3/8 4WAY	1-09661-489-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	0710-	●	●
88	CONNECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK (G)	8-97641-594-0	02	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) EURO5 SPECIFICATION<NT5> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (F)	1-82564-279-1	01	1	1108-	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	02	1	0710-1205	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	02	1	0710-1205	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	02	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-872-1	01	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-82563-871-2	01	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (D)	1-82564-094-2	01	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (E)	1-82564-095-1	02	1	0710-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (C)	1-82564-407-1	01	1	0710-	●	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-	●	●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-82569-266-0	02	1	0710-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0710-1107	●	●
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	04	1	1108-	●	●
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	1108-	●	●
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	04	1	0710-1107	●	●
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	0710-1107	●	●
210	WASHER; PL,BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-82569-266-0	06	1	1108-	●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	1108-		●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0710-1107	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	0710-1107	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	0710-1107	●	●
261	PLUG; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) PT1/4	9-99204-513-0	02	1	1108-	●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	02	1	1108-		●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	02	1	0710-1107	●	●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1108-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	1108-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	1108-	●	●
261	PLUG; MAG VLV EURO5 SPECIFICATION<NT5> (A) PT1/4	9-99204-513-0	01	1	1108-	●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) PT3/8	9-09204-517-0	01	1	0710-	●	●
282	BRACKET; MAG VLV EURO5 SPECIFICATION<NT5> (C)	1-82569-277-2	01	1	1108-	●
282	BRACKET; MAG VLV WHEEL BASE 4500MM(45W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (E)	8-98133-789-0	01	1	0812-	●
282	BRACKET; MAG VLV WHEEL BASE 4500MM(45W) BRAKE SYSTEM RETARDER<RE2> (E)	8-98133-789-0	01	1	0812-	●
282	BRACKET; MAG VLV (B)	8-98097-899-0	01	1	0710-0804	●	●
282	BRACKET; MAG VLV (B)	8-98120-739-0	01	1	0805-	●	●
282	BRACKET; MAG VLV (C)	8-98076-313-0	01	1	0710-1107	●	●
282	BRACKET; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C)	8-98076-313-0	01	1	1108-	●
282	BRACKET; MAG VLV (C)	8-98076-313-0	01	1	1108-		●
282	BRACKET; MAG VLV (D)	8-98088-448-0	01	1	0710-1107	●	●
282	BRACKET; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D)	8-98088-448-0	01	1	1108-	●
282	BRACKET; MAG VLV (D)	8-98088-448-0	01	1	1108-		●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0710-0810	●	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0710-0810	●	●
282	BRACKET; MAG VLV WHEEL BASE 5100MM(51W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-	●
282	BRACKET; MAG VLV WHEEL BASE 5100MM(51W) BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-	●
282	BRACKET; MAG VLV WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-		●
282	BRACKET; MAG VLV WHEEL BASE 6600MM(66W) BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-0810	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0811-	●	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0811-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-1107	●	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	1108-	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (D) M6X60 FLANGE	0-28050-660-0	02	1	0710-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-0810	●	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-0810		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	0811-1107	●
284	BOLT; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M6X50 FLANGE	0-28050-650-0	03	1	1108-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	1108-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
424	ADAPTER WHEEL BASE 4500MM(45W) (B) PT3/8	1-09664-210-0	01	1	0812-	●
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0710-1107	●	●
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1108-	●	●
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0710-1107	●	●
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	1108-	●	●
424	ADAPTER MJX12P M/T SMOOTHER-G(Y4S) (B) PT3/8	1-09664-210-0	02	1	0710-	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-	●	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=16.8	9-09565-117-0	01	1	0710-	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0710-1107	●	●
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	02	1	1108-	●	●
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	1108-	●	●
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	02	1	0710-1107	●	●
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	0710-1107	●	●
602	GASKET; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=16.8	9-09565-117-0	03	1	1108-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	1108-		●

272 282 450 88 267 88 261 88 670 97 603 39 96 604 282 604 604 261 284 210 602 96 88 280 210 285 604

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	02	1	1108-	●
39	BOLT; BRKT,MAG VLV WHEEL BASE 4500MM(45W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-1107	●	●
39	BOLT; BRKT,MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X20 FLANGE	0-28650-820-0	04	1	1108-	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	1108-		●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1105-1107	●	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1108-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1108-		●
88	CONNECTOR; MAG VLV WHEEL BASE 4500MM(45W) (Y) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	0812-	●
88	CONNECTOR; MAG VLV (T) M16 & PT1/4X2 3WAY	1-09656-668-0	03	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (T) M16 & PT1/4X2 3WAY	1-09656-668-0	03	1	1108-	●	●
88	CONNECTOR; MAG VLV (W) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (W) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	07	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	06	1	0809-1104	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1105-1107	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV EURO5 SPECIFICATION<NT5> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0710-0811	●	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0812-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0812-1107	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>, EURO5 SPECIFICATION<NT5> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-		●
88	CONNECTOR; MAG VLV (X) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (R) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (R) DIN12 & R1/4 ELBOW	1-09660-958-0	08	1	0710-	●	●
88	CONNECTOR; MAG VLV (U) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (U) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1108-	●	●
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (P) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0710-	●	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (S) DIN12X2 & R1/4 3WAY	1-09661-071-0	03	1	0710-	●	●
88	CONNECTOR; MAG VLV (Q) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0710-0810	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 5100MM(51W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0811-1107	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0811-1107		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (K) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (M) PT3/8 4WAY	1-09661-489-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	0710-	●	●
88	CONNECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-	●	●
96	BOLT; BRKT FIX EURO5 SPECIFICATION<NT5> M10X30 FLANGE	0-28651-030-0	01	1	1108-	●
96	BOLT; BRKT FIX WHEEL BASE 4500MM(45W) M8X25 FLANGE	0-28650-825-0	04	1	0812-1004	●
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	04	1	1005-	●	●
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	0710-1107	●	●
96	BOLT; BRKT FIX JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X25 FLANGE	0-28650-825-0	03	1	1108-	●
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	1108-		●
96	BOLT; BRKT FIX EURO5 SPECIFICATION<NT5> M8X25 FLANGE	0-28650-825-0	01	1	1108-	●
97	NUT; BRKT FIX EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	01	1	1108-	●
97	NUT; BRKT FIX WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	04	1	0812-1004	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	1005-1107	●	●
97	NUT; BRKT FIX JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE	0-91180-108-0	03	1	1108-	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	03	1	1108-		●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	03	1	0710-1107	●	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	1108-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-	●	●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-82569-266-0	02	1	0710-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0710-1107	●	●
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	04	1	1108-	●	●
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	1108-	●	●
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	04	1	0710-1107	●	●
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	0710-1107	●	●
210	WASHER; PL,BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-82569-266-0	06	1	1108-	●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	1108-		●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	0710-1107	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	0710-1107	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	0710-1107	●	●
261	PLUG; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) PT1/4	9-99204-513-0	02	1	1108-	●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	02	1	1108-		●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	02	1	0710-1107	●	●
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1108-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	1108-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A) PT1/4	9-99204-513-0	01	1	1108-	●	●
261	PLUG; MAG VLV EURO5 SPECIFICATION<NT5> (A) PT1/4	9-99204-513-0	01	1	1108-	●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) PT3/8	9-09204-517-0	01	1	0710-	●	●
267	BOLT; VLV TO BRKT WHEEL BASE 4500MM(45W) BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
267	BOLT; VLV TO BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-1107	●	●
267	BOLT; VLV TO BRKT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M8X20 FLANGE	0-28650-820-0	02	1	1108-	●
267	BOLT; VLV TO BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1108-		●
272	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-1107	●	●
272	BOLT; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M8X25 FLANGE	0-28650-825-0	02	1	1108-	●
272	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1108-		●
272	BOLT; MAG VLV (A) M10X20 FLANGE	0-28651-020-0	02	1	0710-1208	●	●
272	BOLT; MAG VLV (A) M10X25 FLANGE	0-28651-025-0	02	1	1209-	●	●
272	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-	●	●
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-	●	●
282	BRACKET; MAG VLV EURO5 SPECIFICATION<NT5> (C)	1-82569-277-2	01	1	1108-	●
282	BRACKET; MAG VLV WHEEL BASE 4500MM(45W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (E)	8-98133-789-0	01	1	0812-	●
282	BRACKET; MAG VLV WHEEL BASE 4500MM(45W) BRAKE SYSTEM RETARDER<RE2> (E)	8-98133-789-0	01	1	0812-	●
282	BRACKET; MAG VLV (B)	8-98097-899-0	01	1	0710-0804	●	●
282	BRACKET; MAG VLV (B)	8-98120-739-0	01	1	0805-	●	●
282	BRACKET; MAG VLV (C)	8-98076-313-0	01	1	0710-1107	●	●
282	BRACKET; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C)	8-98076-313-0	01	1	1108-	●
282	BRACKET; MAG VLV (C)	8-98076-313-0	01	1	1108-		●
282	BRACKET; MAG VLV (D)	8-98088-448-0	01	1	0710-1107	●	●
282	BRACKET; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D)	8-98088-448-0	01	1	1108-	●
282	BRACKET; MAG VLV (D)	8-98088-448-0	01	1	1108-		●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0710-0810	●	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0710-0810	●	●
282	BRACKET; MAG VLV WHEEL BASE 5100MM(51W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-	●
282	BRACKET; MAG VLV WHEEL BASE 5100MM(51W) BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-	●
282	BRACKET; MAG VLV WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-		●
282	BRACKET; MAG VLV WHEEL BASE 6600MM(66W) BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-0810	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0811-	●	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0811-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-1107	●	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	1108-	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (D) M6X60 FLANGE	0-28050-660-0	02	1	0710-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-0810	●	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-0810		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	0811-1107	●
284	BOLT; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M6X50 FLANGE	0-28050-650-0	03	1	1108-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	1108-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	0710-1107	●	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	04	1	1108-	●	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M5	0-91110-505-0	03	1	0710-	●	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	04	1	0710-1107	●	●
285	NUT; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M6 FLANGE	0-91180-106-0	03	1	1108-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	1108-		●
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M6 FLANGE	0-91180-106-0	02	1	0710-	●	●
450	VALVE; MAG (A)	1-53458-378-2	01	1	0710-	●	●
450	VALVE; MAG (B)	8-97376-939-3	01	1	0710-0910	●	●
450	VALVE; MAG (B)	8-97633-075-0	01	1	0911-1107	●	●
450	VALVE; MAG JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B)	8-97633-075-0	01	1	1108-	●
450	VALVE; MAG (B)	8-97633-075-0	01	1	1108-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-	●	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=16.8	9-09565-117-0	01	1	0710-	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0710-1107	●	●
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	02	1	1108-	●	●
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	1108-	●	●
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	02	1	0710-1107	●	●
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	0710-1107	●	●
602	GASKET; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=16.8	9-09565-117-0	03	1	1108-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	1108-		●
603	PROTECTOR; MAG VLV	8-98076-312-1	01	1	0710-1107	●	●
603	PROTECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	8-98076-312-1	01	1	1108-	●
603	PROTECTOR; MAG VLV	8-98076-312-1	01	1	1108-		●
604	VALVE; MAG,ENG CONT EURO5 SPECIFICATION<NT5>	1-82563-871-2	01	1	1108-	●
604	VALVE; MAG,ENG CONT	1-82563-871-2	04	1	0710-1107	●	●
604	VALVE; MAG,ENG CONT JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-82563-871-2	04	1	1108-	●
604	VALVE; MAG,ENG CONT	1-82563-871-2	04	1	1108-		●
670	NUT; PROTECTOR M8 FLANGE	0-91180-108-0	01	1	0710-1107	●	●
670	NUT; PROTECTOR JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE	0-91180-108-0	01	1	1108-	●
670	NUT; PROTECTOR M8 FLANGE	0-91180-108-0	01	1	1108-		●

259 273 79 88 424 79 88 88 88 259 88 79 424 88 259 88 88 88 88 88 259 88 88 79 88 79 88 424 88 259 259 284 88 259 88 424 88 88 88 282 88 88 273 275 273 79 274 79 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
79	BOLT; MAG VLV (A) M10X35 FLANGE	0-28651-035-0	01	1	0710-0811	●	●
79	BOLT; MAG VLV (A) M10X35 FLANGE	0-28651-035-0	01	1	0710-0811	●	●
79	BOLT; MAG VLV (A) M10X35 FLANGE	0-28651-035-0	01	1	0812-	●	●
79	BOLT; MAG VLV WHEEL BASE 5100MM(51W) (A) M10X35 FLANGE	0-28651-035-0	01	1	0812-	●
79	BOLT; MAG VLV WHEEL BASE 4500MM(45W) EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P),BRAKE SYSTEM RETARDER<RE2> (A) M10X35 FLANGE	0-28651-035-0	01	1	0812-	●
79	BOLT; MAG VLV WHEEL BASE 6600MM(66W) (A) M10X35 FLANGE	0-28651-035-0	01	1	0812-		●
79	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	08	1	0710-	●	●
79	BOLT; MAG VLV (C) M8X70	0-10855-870-0	02	1	0710-	●	●
79	BOLT; MAG VLV (D) M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1105-1107	●	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1108-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1108-		●
88	CONNECTOR; MAG VLV WHEEL BASE 4500MM(45W) (Y) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	0812-	●
88	CONNECTOR; MAG VLV (T) M16 & PT1/4X2 3WAY	1-09656-668-0	03	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (T) M16 & PT1/4X2 3WAY	1-09656-668-0	03	1	1108-	●	●
88	CONNECTOR; MAG VLV (W) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (W) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	07	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	06	1	0809-1104	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1105-1107	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV EURO5 SPECIFICATION<NT5> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0710-0811	●	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0812-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0812-1107	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>, EURO5 SPECIFICATION<NT5> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-		●
88	CONNECTOR; MAG VLV (X) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (R) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (R) DIN12 & R1/4 ELBOW	1-09660-958-0	08	1	0710-	●	●
88	CONNECTOR; MAG VLV (U) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (U) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1108-	●	●
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (P) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0710-	●	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (S) DIN12X2 & R1/4 3WAY	1-09661-071-0	03	1	0710-	●	●
88	CONNECTOR; MAG VLV (Q) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0710-0810	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 5100MM(51W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0811-1107	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0811-1107		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (K) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (M) PT3/8 4WAY	1-09661-489-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	0710-	●	●
88	CONNECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-	●	●
259	VALVE; MAG,AIR SUSP CONT (C)	1-48410-722-0	01	1	0710-	●	●
259	VALVE; MAG,AIR SUSP CONT (B)	1-82563-703-0	02	1	0710-	●	●
259	VALVE; MAG,AIR SUSP CONT (B)	1-82563-703-0	03	1	0710-	●	●
259	VALVE; MAG,AIR SUSP CONT (A)	1-82563-713-0	01	1	0710-	●	●
273	NUT; MAG VLV (A) M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
273	NUT; MAG VLV (B) M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
274	BRACKET; MAG VLV AIR SUSP	1-82569-289-0	01	1	0710-	●	●
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0710-	●	●
275	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●
282	BRACKET; MAG VLV EURO5 SPECIFICATION<NT5> (C)	1-82569-277-2	01	1	1108-	●
282	BRACKET; MAG VLV WHEEL BASE 4500MM(45W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (E)	8-98133-789-0	01	1	0812-	●
282	BRACKET; MAG VLV WHEEL BASE 4500MM(45W) BRAKE SYSTEM RETARDER<RE2> (E)	8-98133-789-0	01	1	0812-	●
282	BRACKET; MAG VLV (B)	8-98097-899-0	01	1	0710-0804	●	●
282	BRACKET; MAG VLV (B)	8-98120-739-0	01	1	0805-	●	●
282	BRACKET; MAG VLV (C)	8-98076-313-0	01	1	0710-1107	●	●
282	BRACKET; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C)	8-98076-313-0	01	1	1108-	●
282	BRACKET; MAG VLV (C)	8-98076-313-0	01	1	1108-		●
282	BRACKET; MAG VLV (D)	8-98088-448-0	01	1	0710-1107	●	●
282	BRACKET; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D)	8-98088-448-0	01	1	1108-	●
282	BRACKET; MAG VLV (D)	8-98088-448-0	01	1	1108-		●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0710-0810	●	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0710-0810	●	●
282	BRACKET; MAG VLV WHEEL BASE 5100MM(51W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-	●
282	BRACKET; MAG VLV WHEEL BASE 5100MM(51W) BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-	●
282	BRACKET; MAG VLV WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-		●
282	BRACKET; MAG VLV WHEEL BASE 6600MM(66W) BRAKE SYSTEM RETARDER<RE2> (A)	1-82569-358-0	01	1	0811-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-0810	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0811-	●	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	0811-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-	●	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-1107	●	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	1108-	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
284	BOLT; MAG VLV (D) M6X60 FLANGE	0-28050-660-0	02	1	0710-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-0810	●	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	02	1	0710-0810		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	04	1	0811-1107	●
284	BOLT; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M6X50 FLANGE	0-28050-650-0	03	1	1108-	●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	1108-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-	●	●
424	ADAPTER WHEEL BASE 4500MM(45W) (B) PT3/8	1-09664-210-0	01	1	0812-	●
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0710-1107	●	●
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1108-	●	●
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0710-1107	●	●
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	1108-	●	●
424	ADAPTER MJX12P M/T SMOOTHER-G(Y4S) (B) PT3/8	1-09664-210-0	02	1	0710-	●	●

377 732 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0710-	●	●
377	NUT; RELAY MJX M/T<Y9N> SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0710-	●
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	0710-		●
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
732	RELAY; EDS MJX M/T<Y9N> SMOOTHER-G(C1W)	1-82550-337-1	01	1	0710-	●
732	RELAY; EDS	1-82550-337-1	01	1	0710-		●

65 88 275 40 85 88 84 86 450 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C)	8-98090-522-0	01	1	0710-	●
40	BRACKET; MAG VLV (A)	1-53457-199-0	01	1	0710-1006	●	●
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	1007-	●	●
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0710-	●	●
40	BRACKET; MAG VLV (C)	1-82569-425-0	01	1	0710-		●
40	BRACKET; MAG VLV (D)	1-82698-604-0	02	1	0710-		●
65	BOLT; SOCKET FIX WHEEL BASE 4500MM(45W) (B) M8X25 FLANGE	0-28650-825-0	04	1	0812-1004	●
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	1005-	●	●
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0710-	●	●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0710-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1105-1107	●	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1108-	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	1108-		●
88	CONNECTOR; MAG VLV WHEEL BASE 4500MM(45W) (Y) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	0812-	●
88	CONNECTOR; MAG VLV (T) M16 & PT1/4X2 3WAY	1-09656-668-0	03	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (T) M16 & PT1/4X2 3WAY	1-09656-668-0	03	1	1108-	●	●
88	CONNECTOR; MAG VLV (W) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (W) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	07	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	06	1	0809-1104	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1105-1107	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV EURO5 SPECIFICATION<NT5> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0710-0811	●	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0812-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0812-1107	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>, EURO5 SPECIFICATION<NT5> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1108-		●
88	CONNECTOR; MAG VLV (X) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (V) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV (R) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (R) DIN12 & R1/4 ELBOW	1-09660-958-0	08	1	0710-	●	●
88	CONNECTOR; MAG VLV (U) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0710-1107	●	●
88	CONNECTOR; MAG VLV (U) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1108-	●	●
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (P) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0710-	●	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (S) DIN12X2 & R1/4 3WAY	1-09661-071-0	03	1	0710-	●	●
88	CONNECTOR; MAG VLV (Q) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0710-0810	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 5100MM(51W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0811-1107	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0811-1107		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (O) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (K) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-0808	●	●
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-1107	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●	●
88	CONNECTOR; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-	●
88	CONNECTOR; MAG VLV (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1108-		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (M) PT3/8 4WAY	1-09661-489-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	0710-	●	●
88	CONNECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-	●	●
272	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-1107	●	●
272	BOLT; MAG VLV JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M8X25 FLANGE	0-28650-825-0	02	1	1108-	●
272	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1108-		●
272	BOLT; MAG VLV (A) M10X20 FLANGE	0-28651-020-0	02	1	0710-1208	●	●
272	BOLT; MAG VLV (A) M10X25 FLANGE	0-28651-025-0	02	1	1209-	●	●
272	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-	●	●
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0710-	●	●
275	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●
450	VALVE; MAG (A)	1-53458-378-2	01	1	0710-	●	●
450	VALVE; MAG (B)	8-97376-939-3	01	1	0710-0910	●	●
450	VALVE; MAG (B)	8-97633-075-0	01	1	0911-1107	●	●
450	VALVE; MAG JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B)	8-97633-075-0	01	1	1108-	●
450	VALVE; MAG (B)	8-97633-075-0	01	1	1108-		●

22 24 25 331 22 24 26 615 331 331 559 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-	●	●
331	RELAY; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-	●	●
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●
559	RELAY; MAG VLV (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-		●
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●
559	RELAY; MAG VLV (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-		●
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●

635 290 717 718 740 290 253 740 740 289 289 289 290 717 718 722 724 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
253	BOLT; BRKT MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) M8X25 FLANGE	0-28650-825-0	01	1	0812-1006	●
283	NUT; BRKT MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	01	1	0812-1006	●
289	BOLT MJX12P M/T SMOOTHER-G(Y4S) (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
289	BOLT MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) (B) M8X35 FLANGE	0-28650-835-0	02	1	0812-	●
290	NUT (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
290	NUT MJX12P M/T SMOOTHER-G(Y4S) (B) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
290	NUT MJX12P M/T SMOOTHER-G(Y4S) (B) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
635	SENSOR; PICK UP,INPUT SHAFT MJX12P M/T SMOOTHER-G(Y4S)	1-81510-736-1	01	1	0710-	●	●
717	FILTER; MAG VLV MJX12P M/T SMOOTHER-G(Y4S)	8-98092-703-0	01	1	0710-	●	●
718	CONNECTOR; FILTER MJX12P M/T SMOOTHER-G(Y4S) DIN8 & M16 ELBOW	1-09661-531-0	02	1	0710-	●	●
722	ELEMENT; AIR FILTER MJX12P M/T SMOOTHER-G(Y4S)	1-33779-040-0	01	1	0710-	●	●
724	GASKET; AIR FILTER MJX12P M/T SMOOTHER-G(Y4S)	5-09623-075-0	01	1	0710-	●	●
740	BRACKET; FILTER MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) (C)	1-47477-694-0	01	1	0812-1006	●
740	BRACKET; FILTER MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 4500MM(45W) (B)	8-98133-906-0	01	1	0812-	●
740	BRACKET; FILTER MJX12P M/T SMOOTHER-G(Y4S) (A)	8-98071-367-0	01	1	0710-0810	●	●
740	BRACKET; FILTER MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 5100MM(51W) (A)	8-98071-367-0	01	1	0811-1107	●
740	BRACKET; FILTER MJX12P M/T SMOOTHER-G(Y4S) WHEEL BASE 6600MM(66W) (A)	8-98071-367-0	01	1	0811-1107		●
740	BRACKET; FILTER MJX12P M/T SMOOTHER-G(Y4S) (A)	8-98071-367-0	01	1	1108-	●	●

247 42 247 1 180 623 531 318 752 440 200 317 180 290 312 661 731 438 523 235 734 8 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-062-1	01	1	0710-	●	●
8	RELAY; WIPER	1-83316-002-4	01	1	0710-	●	●
42	BRACKET; RELAY	1-82698-128-2	01	1	0710-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
200	BUZZER; WARNING,AIR SUSP	1-83460-040-0	01	1	0710-	●	●
235	TIMER; AIR SUSPENSION	1-82540-068-0	01	1	0710-	●	●
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	0710-	●	●
247	SCREW; BRKT M5X14	8-94279-325-0	03	1	0710-	●	●
290	NUT (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
290	NUT MJX12P M/T SMOOTHER-G(Y4S) (B) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
290	NUT MJX12P M/T SMOOTHER-G(Y4S) (B) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0710-	●	●
317	GROMMET; SCREW D=8.6X7.7 L=7.5	8-94279-078-0	01	1	0710-	●	●
318	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0710-	●	●
377	NUT; RELAY MJX M/T<Y9N> SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0710-	●
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	0710-		●
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
438	UNIT; SPD CONTROL	1-82550-309-0	01	1	0710-	●	●
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0710-	●	●
523	NUT; TIMER M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
531	RELAY; MAIN 24V	1-82550-308-1	01	1	0710-1005	●	●
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1006-	●	●
623	BOLT; MODULE M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0710-	●	●
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0710-	●	●
731	ALARM; INFORMATION MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-83460-051-1	01	1	0710-	●
731	ALARM; INFORMATION	1-83460-051-1	01	1	0710-		●
734	ALARM; MULTI	1-83460-106-0	01	1	0710-	●	●
752	BRACKET; MODULE	8-97611-710-0	01	1	0710-	●	●

782

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	782	REPAIR KIT; VALVE	1-85576-381-0	01	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
