◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#14891) — 66 parça

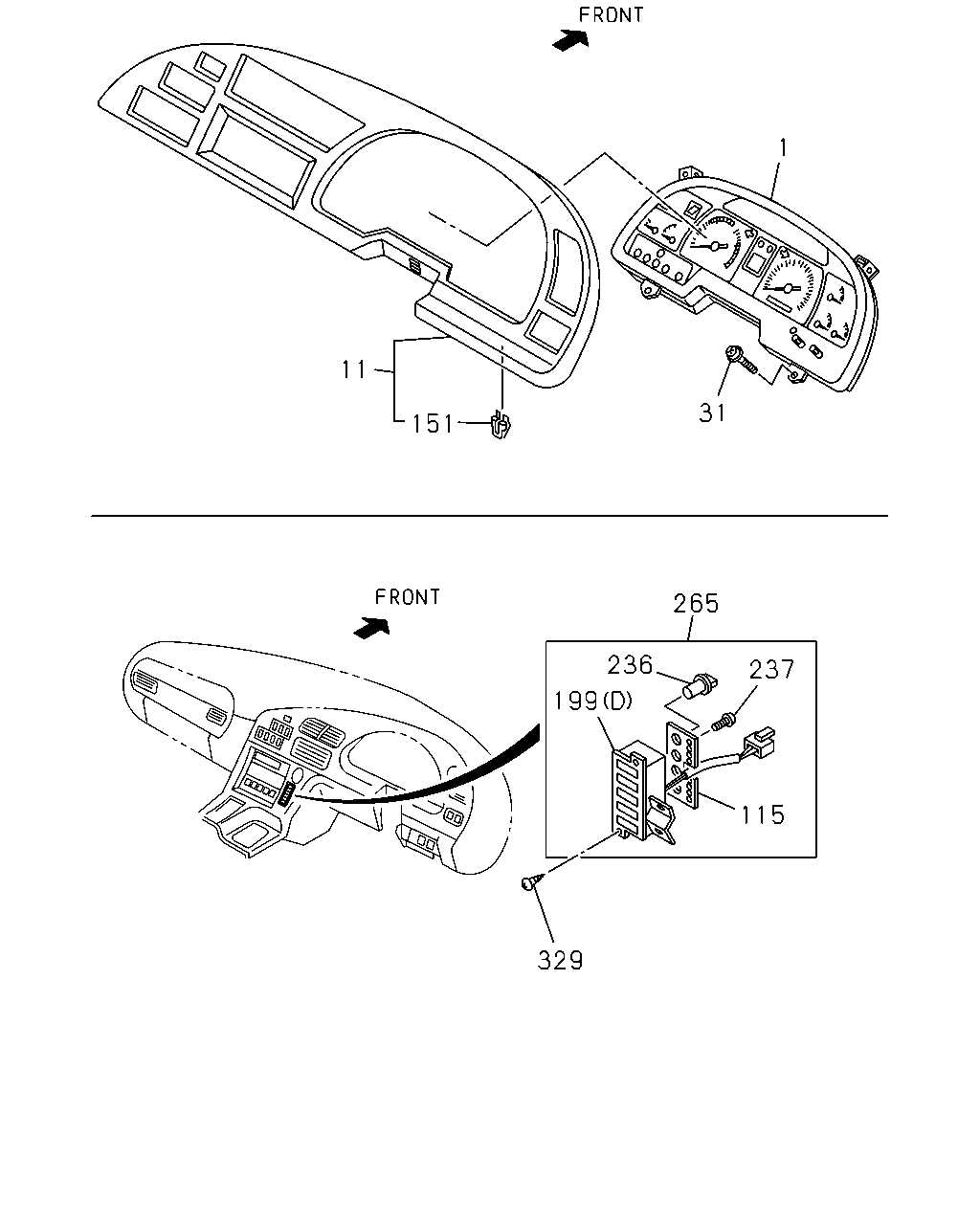

çizim 141870
1 11 31 151 265 236 237 199 115 329
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
6WG1 TC-N(71L) 		8-97640-383-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) SMOOTHER-G(C1W) 		1-83116-408-2 01 1 0710-0809 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) 		1-83116-408-2 01 1 0710-0809 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) SMOOTHER-G(C1W) 		8-98120-530-2 01 1 0810-1103 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) 		8-98120-530-2 01 1 0810-1103 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) SMOOTHER-G(C1W) 		8-97638-832-1 01 1 1104- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) 		8-97638-832-1 01 1 1104- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) 		1-83116-409-2 01 1 0710-0809 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) 		8-98120-531-2 01 1 0810-1103 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) 		8-97638-831-1 01 1 1104- ●
11 CLUSTER ASM; METER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-014-9 01 1 0710- ● ●
11 CLUSTER ASM; METER
EXC. METER PANEL GRAIN OF WOOD<NAY> 		1-72418-012-9 01 1 0710- ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0710- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-82259-006-0 01 1 0710-1104 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
6WG1 TC-C(72L) 		1-82259-006-0 01 1 1105- ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0710- ● ●
199 LENS; WARNING LAMP
6WG1 TC-N(71L) (D) 		8-98158-149-0 01 1 1108- ●
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0710-1104 ● ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (D) 		1-82255-312-0 01 1 1105- ● ●
199 LENS; WARNING LAMP
(C) 		1-83119-891-0 01 1 0710- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-928-1 01 1 0710- ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-944-0 01 1 0710-0809 ● ●
199 LENS; WARNING LAMP
(A) 		8-98125-273-1 01 1 0810- ● ●
236 BULB ASM; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 05 1 0710-1104 ● ●
236 BULB ASM; WARNING LAMP
6WG1 TC-C(72L) 24V 1.8W BROWN SOCKET 		1-82194-062-0 05 1 1105- ● ●
237 SCREW; CIRCUIT PRINT FIX,WARNING LAMP
M3 TAPPING 		1-83119-052-0 03 1 0710-1104 ● ●
237 SCREW; CIRCUIT PRINT FIX,WARNING LAMP
6WG1 TC-C(72L) M3 TAPPING 		1-83119-052-0 03 1 1105- ● ●
265 LAMP ASM; WARNING 1-82250-358-1 01 1 0710-1104 ● ●
265 LAMP ASM; WARNING
6WG1 TC-C(72L) 		1-82250-358-1 01 1 1105- ● ●
329 SCREW; WARNING LAMP
M5X14 		8-94279-325-0 02 1 0710-1104 ● ●
329 SCREW; WARNING LAMP
6WG1 TC-C(72L) M5X14 		8-94279-325-0 02 1 1105- ● ●

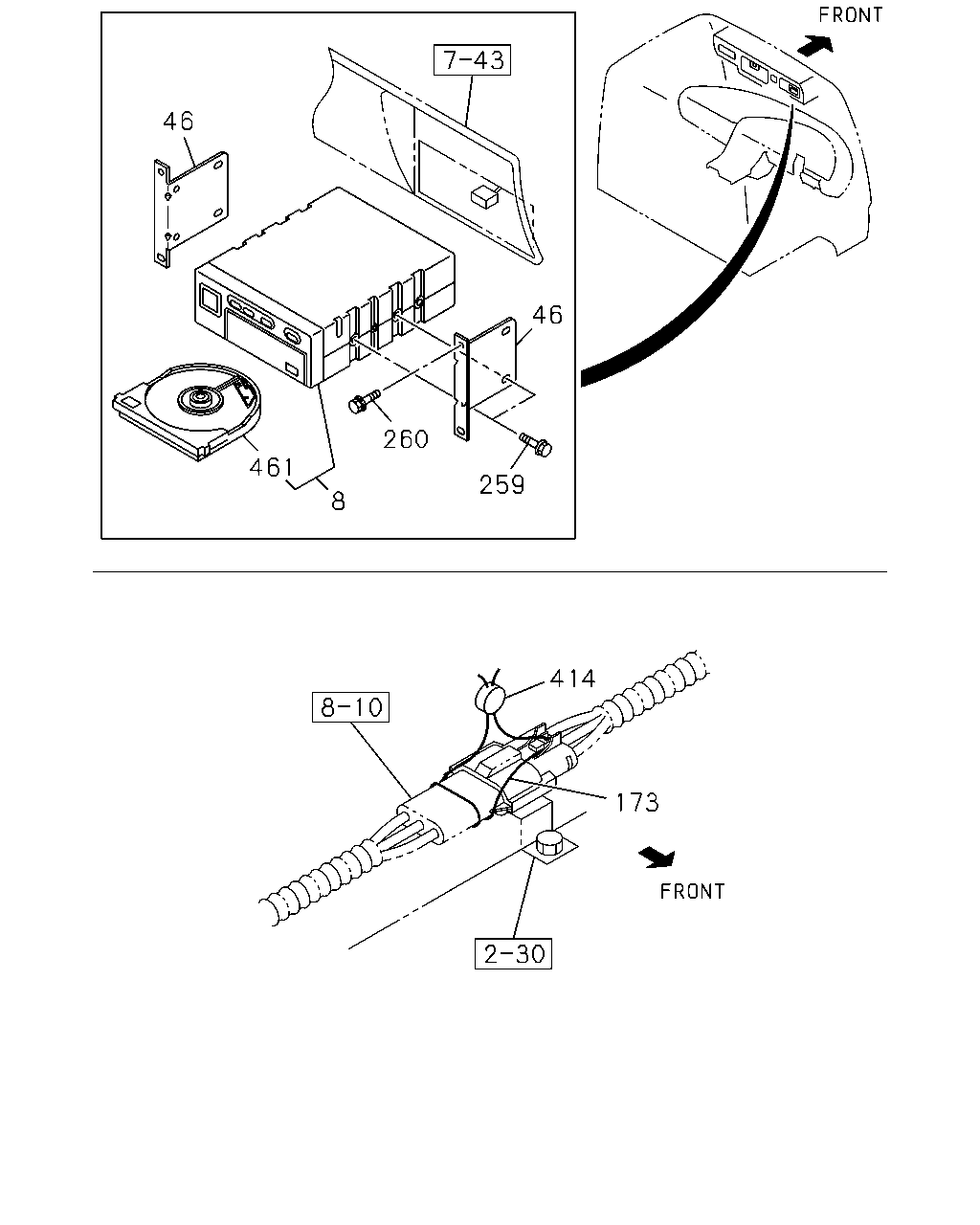

çizim 141884
46 46 260 461 259 8 414 173
BalonParca AdiParca NoAdetTipApplied Date A B
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-838-3 01 1 0710- ● ●
46 BRACKET; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 		1-73907-724-0 02 1 0710- ● ●
173 WIRE; LEAD
FULLER M/T<X9B> 		9-81325-446-0 01 1 0710- ●
173 WIRE; LEAD
MJX M/T<Y9N> 		1-80249-010-0 01 1 0710- ●
173 WIRE; LEAD 1-80249-010-0 01 1 0710- ●
259 SCREW; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> M5X8 W/LK WASHER 		0-36220-508-0 04 1 0710- ● ●
260 BOLT; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0710- ● ●
414 SEAL; LEAD 1-15739-008-0 01 1 0710- ● ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 		1-83129-433-0 01 1 0710- ● ●

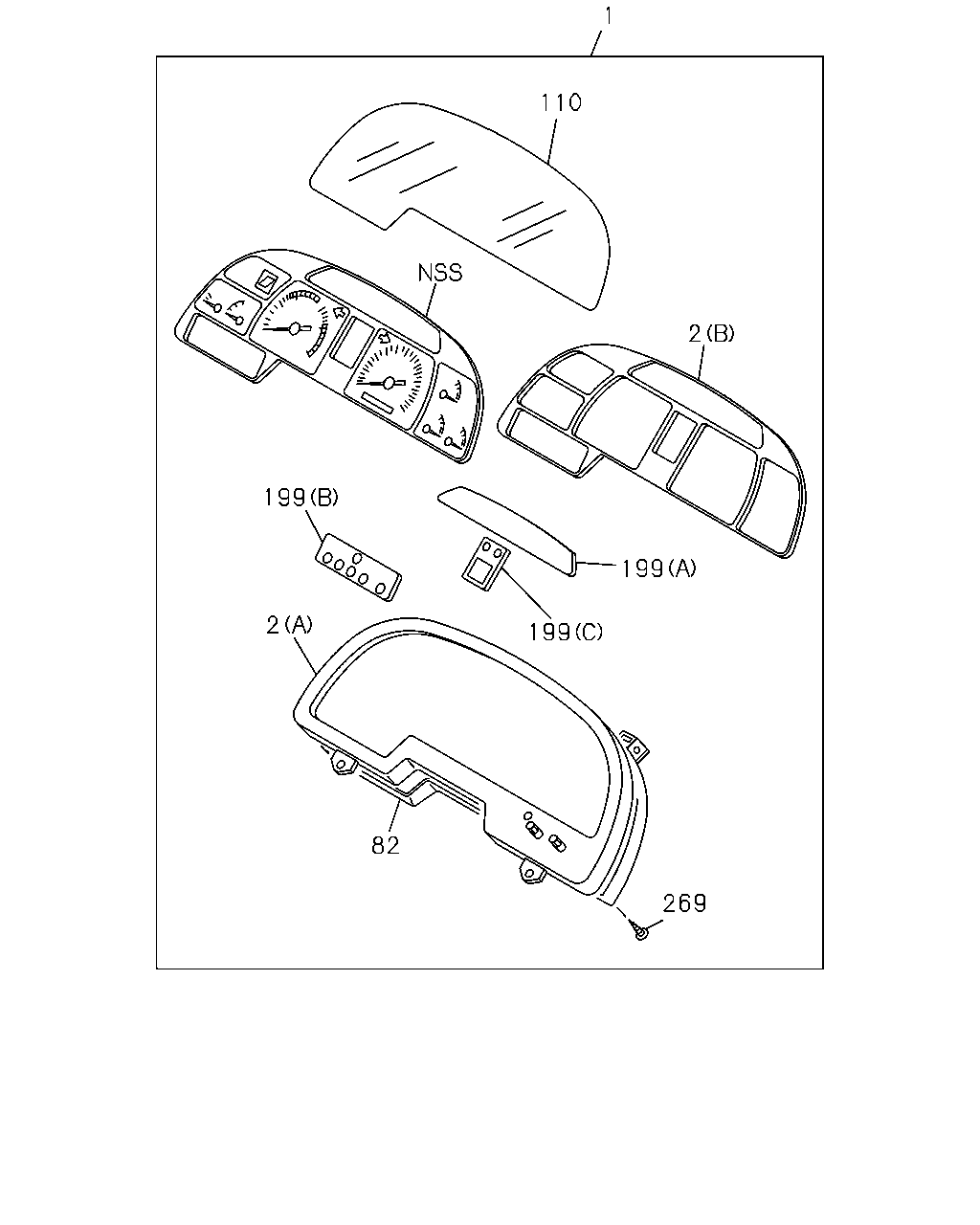

çizim 141894
1 110 2 199 199 2 199 82 269
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
6WG1 TC-N(71L) 		8-97640-383-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) SMOOTHER-G(C1W) 		1-83116-408-2 01 1 0710-0809 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) 		1-83116-408-2 01 1 0710-0809 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) SMOOTHER-G(C1W) 		8-98120-530-2 01 1 0810-1103 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) 		8-98120-530-2 01 1 0810-1103 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) SMOOTHER-G(C1W) 		8-97638-832-1 01 1 1104- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) 		8-97638-832-1 01 1 1104- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) 		1-83116-409-2 01 1 0710-0809 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) 		8-98120-531-2 01 1 0810-1103 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) 		8-97638-831-1 01 1 1104- ●
2 PANEL; CLUSTER
(B) 		1-83119-885-0 01 1 0710- ● ●
2 PANEL; CLUSTER
(A) 		1-83119-887-0 01 1 0710- ● ●
82 CASE ASM; CLUSTER METER 1-83119-892-0 01 1 0710- ● ●
110 GLASS; CLUSTER METER 1-83119-886-0 01 1 0710- ● ●
199 LENS; WARNING LAMP
6WG1 TC-N(71L) (D) 		8-98158-149-0 01 1 1108- ●
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0710-1104 ● ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (D) 		1-82255-312-0 01 1 1105- ● ●
199 LENS; WARNING LAMP
(C) 		1-83119-891-0 01 1 0710- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-928-1 01 1 0710- ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-944-0 01 1 0710-0809 ● ●
199 LENS; WARNING LAMP
(A) 		8-98125-273-1 01 1 0810- ● ●
269 SCREW; METER CLUSTER 1-83119-893-0 09 1 0710- ● ●
çizim 141897
414 173
BalonParca AdiParca NoAdetTipApplied Date A B
173 WIRE; LEAD
FULLER M/T<X9B> 		9-81325-446-0 01 1 0710- ●
173 WIRE; LEAD
MJX M/T<Y9N> 		1-80249-010-0 01 1 0710- ●
173 WIRE; LEAD 1-80249-010-0 01 1 0710- ●
414 SEAL; LEAD 1-15739-008-0 01 1 0710- ● ●
