◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#14890) — 26 parça

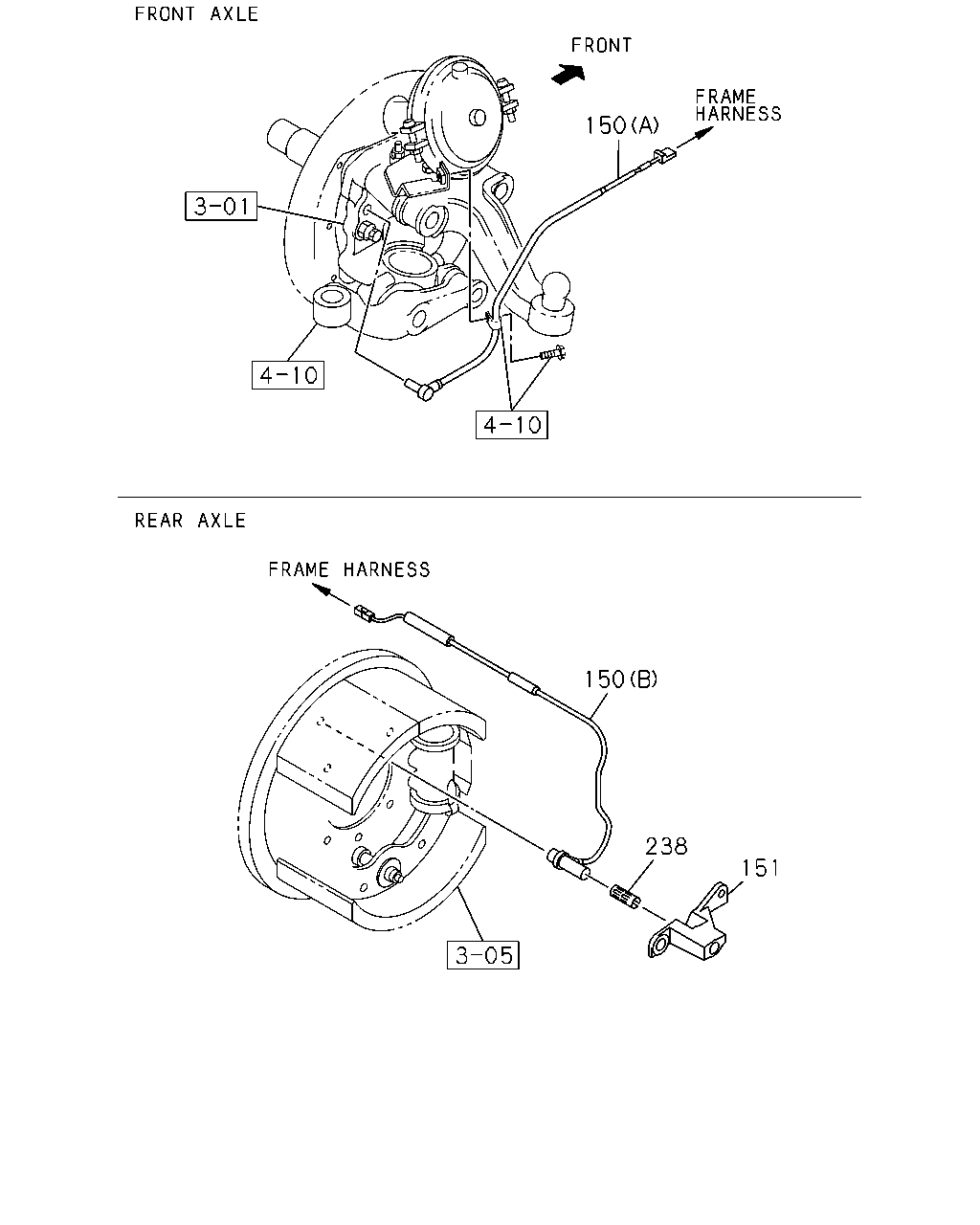

çizim 141874
150 150 238 151
BalonParca AdiParca NoAdetTipApplied Date A B
150 SENSOR; SPEED,ABS
(A) 		1-83227-037-1 02 1 0710- ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98076-288-1 01 1 0710- ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98076-289-1 01 1 0710- ● ●
151 BRACKET; SPD SENSOR 1-42319-210-0 01 1 0710-1306 ● ●
151 BRACKET; SPD SENSOR 1-42319-211-0 01 1 0710-1306 ● ●
238 BUSHING; BRKT 1-42319-213-0 02 1 0710- ● ●

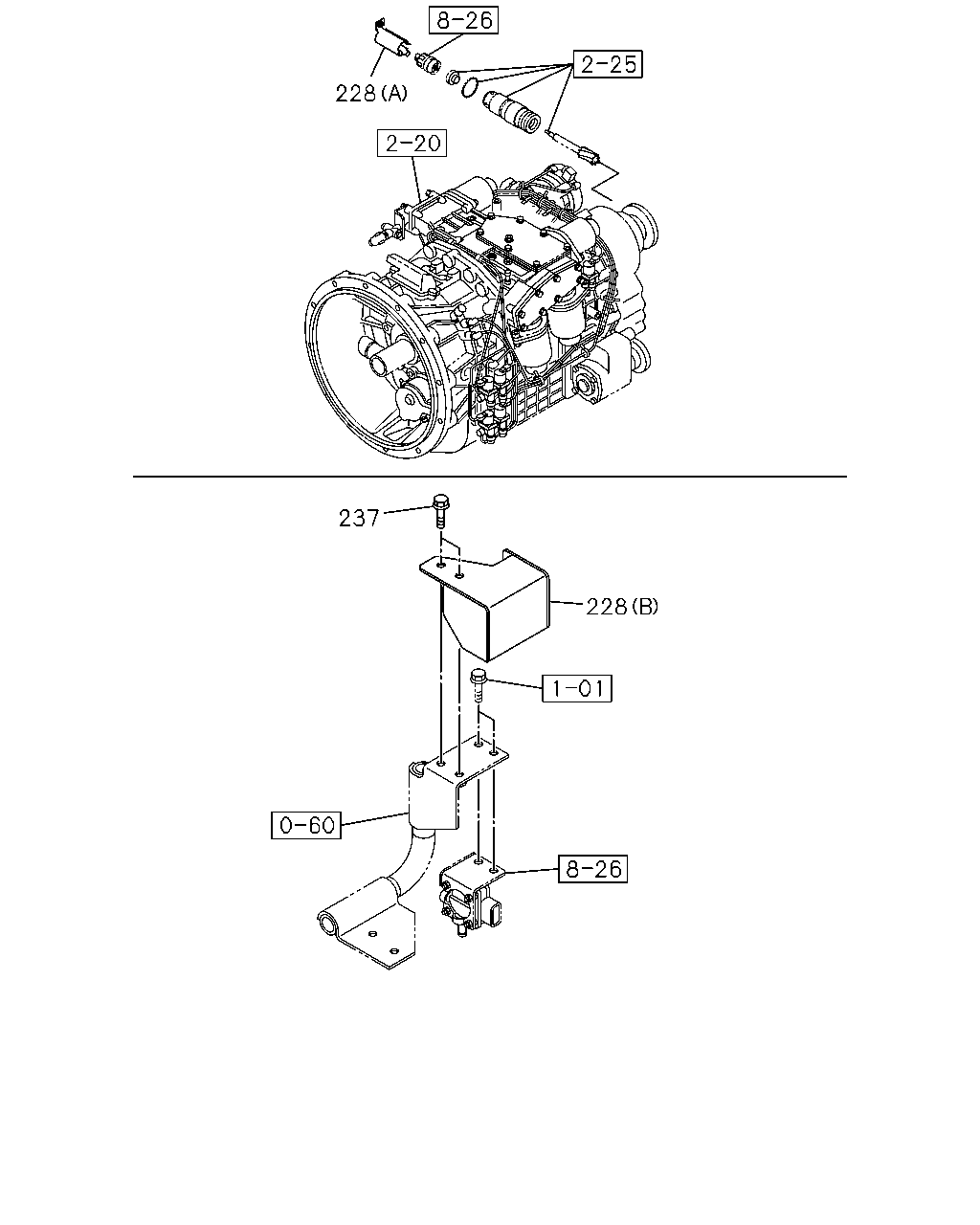

çizim 141901
228 237 228
BalonParca AdiParca NoAdetTipApplied Date A B
228 PROTECTOR; SENSOR
EXC. FULLER M/T<X9B> (A) 		8-97168-308-0 01 1 0710-0808 ●
228 PROTECTOR; SENSOR
(A) 		8-97168-308-0 01 1 0710-0808 ●
228 PROTECTOR; SENSOR
EXC. FULLER M/T<X9B> (A) 		8-98119-901-0 01 1 0809- ●
228 PROTECTOR; SENSOR
(A) 		8-98119-901-0 01 1 0809- ●
228 PROTECTOR; SENSOR
(B) 		8-97619-451-0 01 1 0710-1107 ● ●
228 PROTECTOR; SENSOR
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97619-451-0 01 1 1108- ●
228 PROTECTOR; SENSOR
(B) 		8-97619-451-0 01 1 1108- ●
237 BOLT; PROTECTOR
M8X20 FLANGE 		0-28050-820-0 02 1 0710-1107 ● ●
237 BOLT; PROTECTOR
CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE 		0-28050-820-0 02 1 1108- ●
237 BOLT; PROTECTOR
M8X20 FLANGE 		0-28050-820-0 02 1 1108- ●
çizim 141914
237 228
BalonParca AdiParca NoAdetTipApplied Date A B
228 PROTECTOR; SENSOR
EXC. FULLER M/T<X9B> (A) 		8-97168-308-0 01 1 0710-0808 ●
228 PROTECTOR; SENSOR
(A) 		8-97168-308-0 01 1 0710-0808 ●
228 PROTECTOR; SENSOR
EXC. FULLER M/T<X9B> (A) 		8-98119-901-0 01 1 0809- ●
228 PROTECTOR; SENSOR
(A) 		8-98119-901-0 01 1 0809- ●
228 PROTECTOR; SENSOR
(B) 		8-97619-451-0 01 1 0710-1107 ● ●
228 PROTECTOR; SENSOR
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97619-451-0 01 1 1108- ●
228 PROTECTOR; SENSOR
(B) 		8-97619-451-0 01 1 1108- ●
237 BOLT; PROTECTOR
M8X20 FLANGE 		0-28050-820-0 02 1 0710-1107 ● ●
237 BOLT; PROTECTOR
CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE 		0-28050-820-0 02 1 1108- ●
237 BOLT; PROTECTOR
M8X20 FLANGE 		0-28050-820-0 02 1 1108- ●
