Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10633 - FVZ-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-78 - FLOOR HOLE PLUG
▶

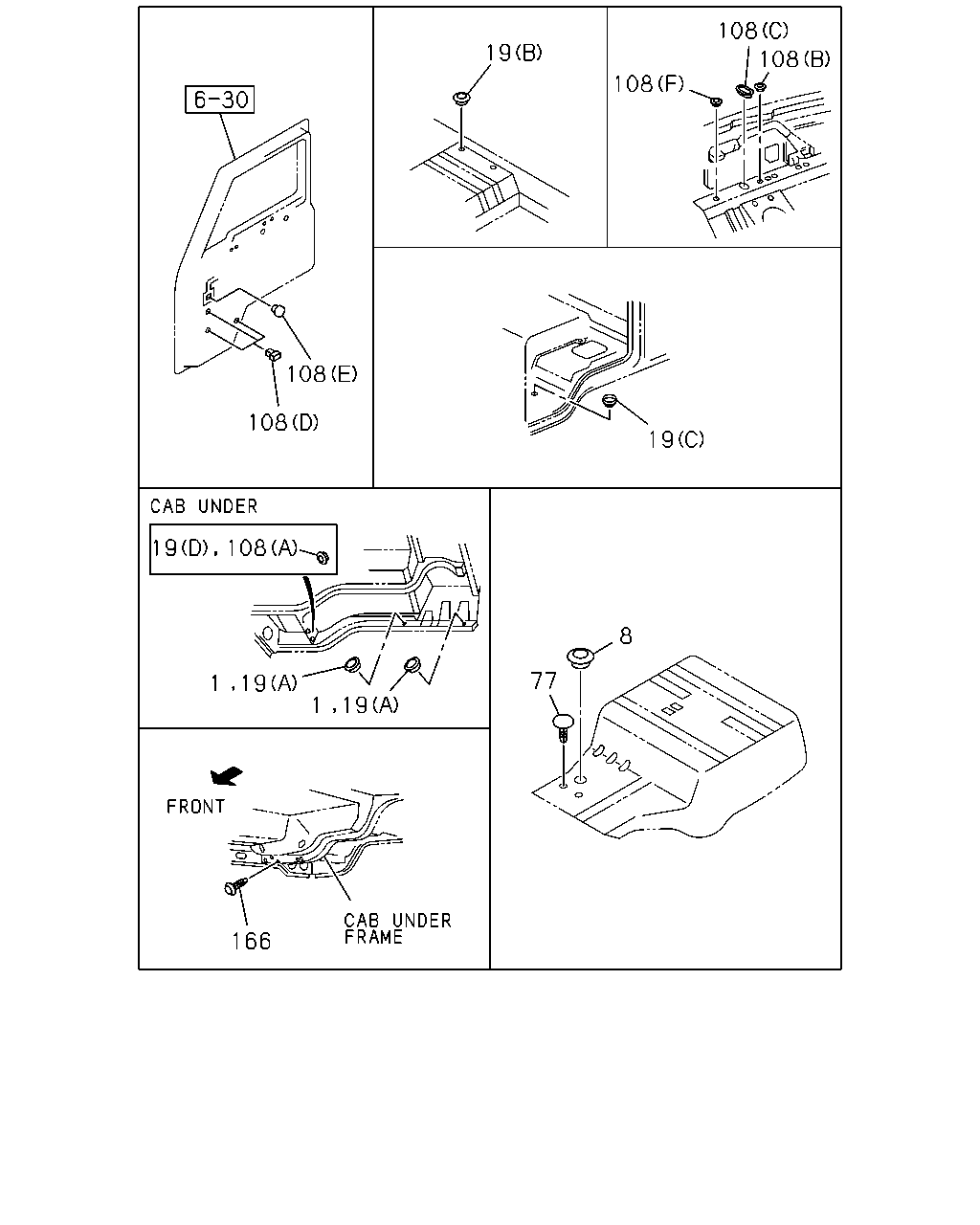

6-78 — FLOOR HOLE PLUG
(#1489) — 19 parça
108
19
108
108
108
108
19
19
108
8
77
19
1
19
1
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GROMMET
OD=35
1-09983-066-1
02
1
9203-
8
GROMMET; CABLE,A/T
1-09983-016-0
01
1
9203-
19
GROMMET; FLOOR FRT
(A) OD=35
1-09983-066-1
02
1
9203-
19
GROMMET; FLOOR FRT
(C) OD=23.5
1-09983-101-0
04
1
9203-
19
GROMMET; FLOOR FRT
(D) OD=32 T=5
5-09983-018-0
02
1
9203-
19
GROMMET; FLOOR FRT
(D) OD=20
5-09983-020-0
04
1
9203-
19
GROMMET; FLOOR FRT
(B) OD=22
9-61168-535-0
01
1
9203-
77
PLUG; STAND,A/T
D4.7X11
1-76378-154-0
02
1
9203-
108
GROMMET; HOLE PLUG
(C) OD=40X19 T=6
1-09983-012-2
01
1
9203-
108
GROMMET; HOLE PLUG
(E) ID=20 OD=40
1-09983-077-0
01
1
9203-9205
108
GROMMET; HOLE PLUG
(E) ID=20 OD=40
1-09983-077-0
02
1
9206-
108
GROMMET; HOLE PLUG
(A) OD=20
5-09983-020-0
04
1
9203-
108
GROMMET; HOLE PLUG
(D) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
03
1
9203-
108
GROMMET; HOLE PLUG
(B) OD=28
9-09575-497-0
02
1
9205-
108
GROMMET; HOLE PLUG
AUTO ENG SHUTOFF<KB6> (F) OD=36
1-09983-092-0
01
1
9203-9207
108
GROMMET; HOLE PLUG
(F) OD=36
1-09983-092-0
01
1
9208-
108
GROMMET; HOLE PLUG
EXC. TACHOMETER<UD7> (B) OD=28
9-09575-497-0
01
1
9203-9204
166
PLUG; UNDER FRAME
D4.7X11
1-76378-154-0
04
1
9203-
166
PLUG; UNDER FRAME
OD=15 L=14.5
1-76378-157-0
01
1
9203-
