Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#14888) — 283 parça

6 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 6WG1 TC-N(71L) (B)	8-97631-086-1	01	1	1108-	●
6	HARNESS; FRAME 6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98191-591-1	01	1	1108-	●
6	HARNESS; FRAME WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98135-341-1	01	1	0812-1104	●
6	HARNESS; FRAME 6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98135-341-2	01	1	1105-	●
6	HARNESS; FRAME WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98135-340-2	01	1	0812-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-695-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-390-2	01	1	1005-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-674-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-389-2	01	1	1005-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-697-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-392-2	01	1	1005-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-675-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-391-2	01	1	1005-	●
6	HARNESS; FRAME (B)	8-97619-680-3	01	1	0710-0806	●	●
6	HARNESS; FRAME (B)	8-98123-156-0	01	1	0807-1104	●	●
6	HARNESS; FRAME 6WG1 TC-C(72L) (B)	8-98123-156-0	01	1	1105-	●	●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-699-3	01	1	0710-1004		●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-388-2	01	1	1005-		●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-676-3	01	1	0710-1004		●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-387-2	01	1	1005-		●

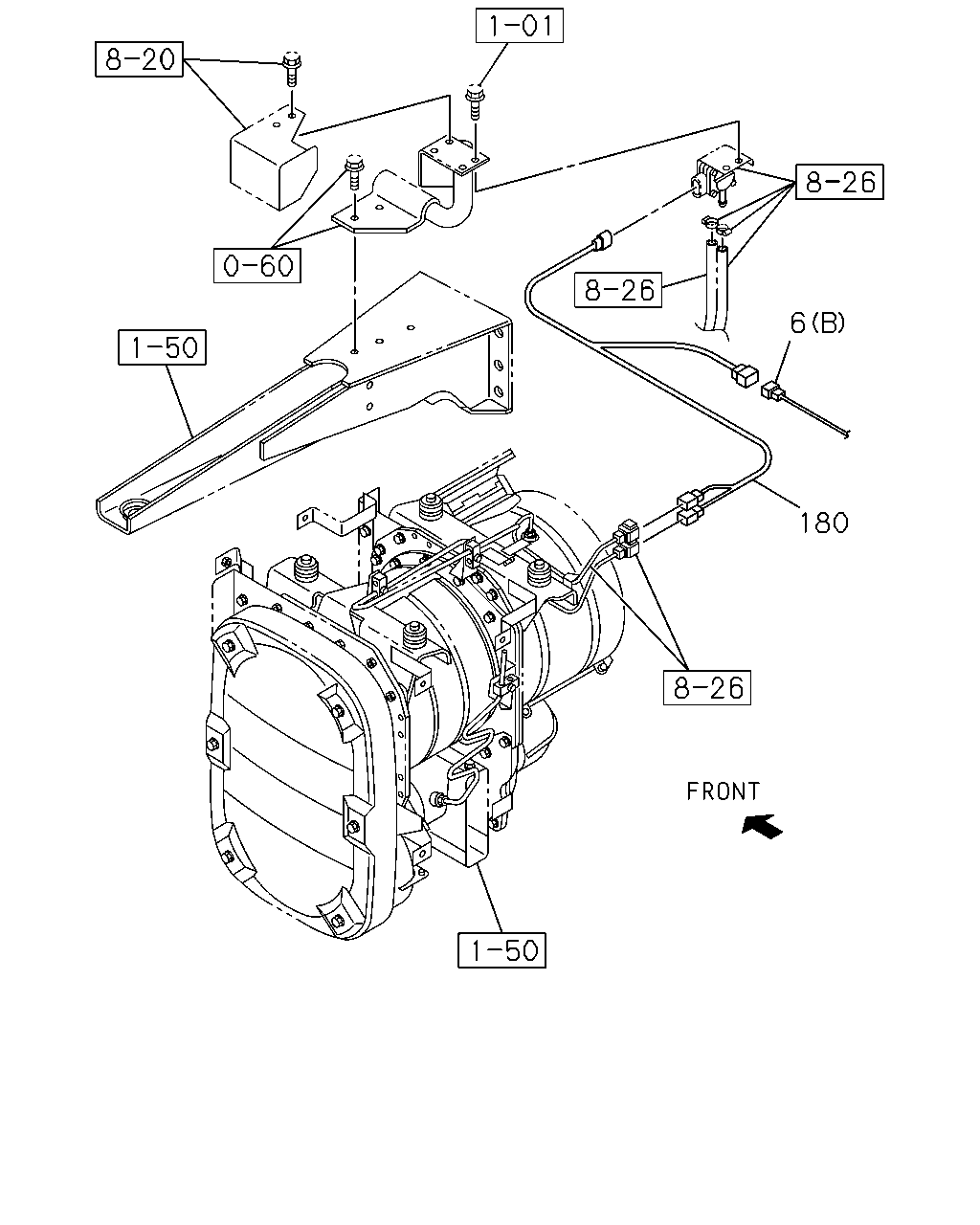

180	HARNESS; CABLE	8-97621-948-0	01	1	0710-1107	●	●
180	HARNESS; CABLE CATALYSIS CONTROL WITH DPD<8JM>	8-97621-948-0	01	1	1108-	●
180	HARNESS; CABLE	8-97621-948-0	01	1	1108-		●

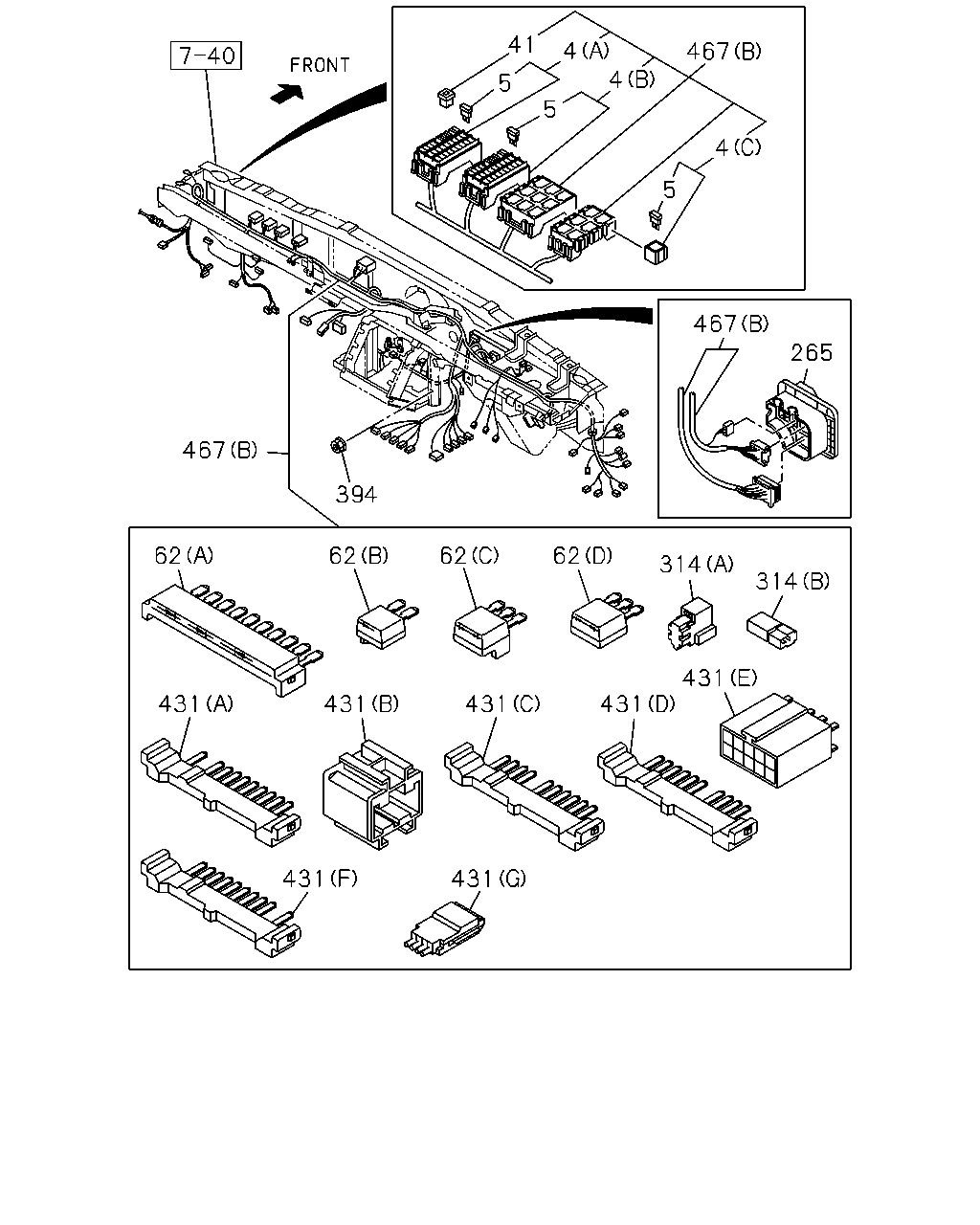

41 4 4 467 5 5 4 5 467 265 467 394 62 62 62 62 314 314 431 431 431 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS 6WG1 TC-N(71L) (A) 7.5AX21 10AX4 15AX2	1-82510-563-0	01	1	1108-	●
4	BOX ASM; FUSE,HARNESS (A) 7.5AX22 10AX4	1-82510-455-0	01	1	0710-1107	●	●
4	BOX ASM; FUSE,HARNESS 6WG1 TC-C(72L) (A) 7.5AX22 10AX4	1-82510-455-0	01	1	1108-	●
4	BOX ASM; FUSE,HARNESS (A) 7.5AX22 10AX4	1-82510-455-0	01	1	1108-		●
4	BOX ASM; FUSE,HARNESS (B) 15AX25 25AX2	1-82510-602-0	01	1	0710-0907	●	●
4	BOX ASM; FUSE,HARNESS (B) 15AX24 25AX2	1-82510-601-0	01	1	0908-	●	●
4	BOX ASM; FUSE,HARNESS (C) 15AX3	1-82510-638-0	01	1	0710-	●	●
5	FUSE; FACIA HARNESS 6WG1 TC-N(71L) 15A BLUE	5-82516-003-0	28	1	1108-	●
5	FUSE; FACIA HARNESS 6WG1 TC-N(71L) 7.5A BROWN	8-94159-007-0	21	1	1108-	●
5	FUSE; FACIA HARNESS 10A RED	5-82516-002-0	04	1	0710-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	28	1	0710-0907	●	●
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	27	1	0908-1107	●	●
5	FUSE; FACIA HARNESS 6WG1 TC-C(72L) 15A BLUE	5-82516-003-0	27	1	1108-	●
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	27	1	1108-		●
5	FUSE; FACIA HARNESS 25A CLEAR	5-82516-005-0	02	1	0710-	●	●
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	22	1	0710-1107	●	●
5	FUSE; FACIA HARNESS 6WG1 TC-C(72L) 7.5A BROWN	8-94159-007-0	22	1	1108-	●
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	22	1	1108-		●
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	0710-	●	●
62	DIODE; HARNESS 6WG1 TC-N(71L) (B) BLACK 2P-1.5A	8-94422-639-1	10	1	1108-	●
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	03	1	0710-	●	●
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	03	1	0710-	●	●
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	09	1	0710-0711	●	●
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	12	1	0712-0907	●	●
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	09	1	0908-1107	●	●
62	DIODE; HARNESS 6WG1 TC-C(72L) (B) BLACK 2P-1.5A	8-94422-639-1	09	1	1108-	●
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	09	1	1108-		●
62	DIODE; HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	02	1	0710-	●	●
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	0710-	●	●
314	RESISTOR; HARNESS (B) RESISTANCE NO.5 2K OHM	1-81515-025-0	01	1	0710-	●	●
314	RESISTOR; HARNESS (A) BLUE	1-82691-204-0	02	1	0710-	●	●
394	NUT; RELAY BOX TO BODY M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (B) 6P	1-82691-206-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	03	1	0710-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	13	1	0710-	●	●
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	03	1	0710-	●	●
431	CONNECTOR; JOINT (A) 10P BROWN	1-82699-601-0	08	1	0710-	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (G) 4P	8-97376-776-0	17	1	0710-	●	●

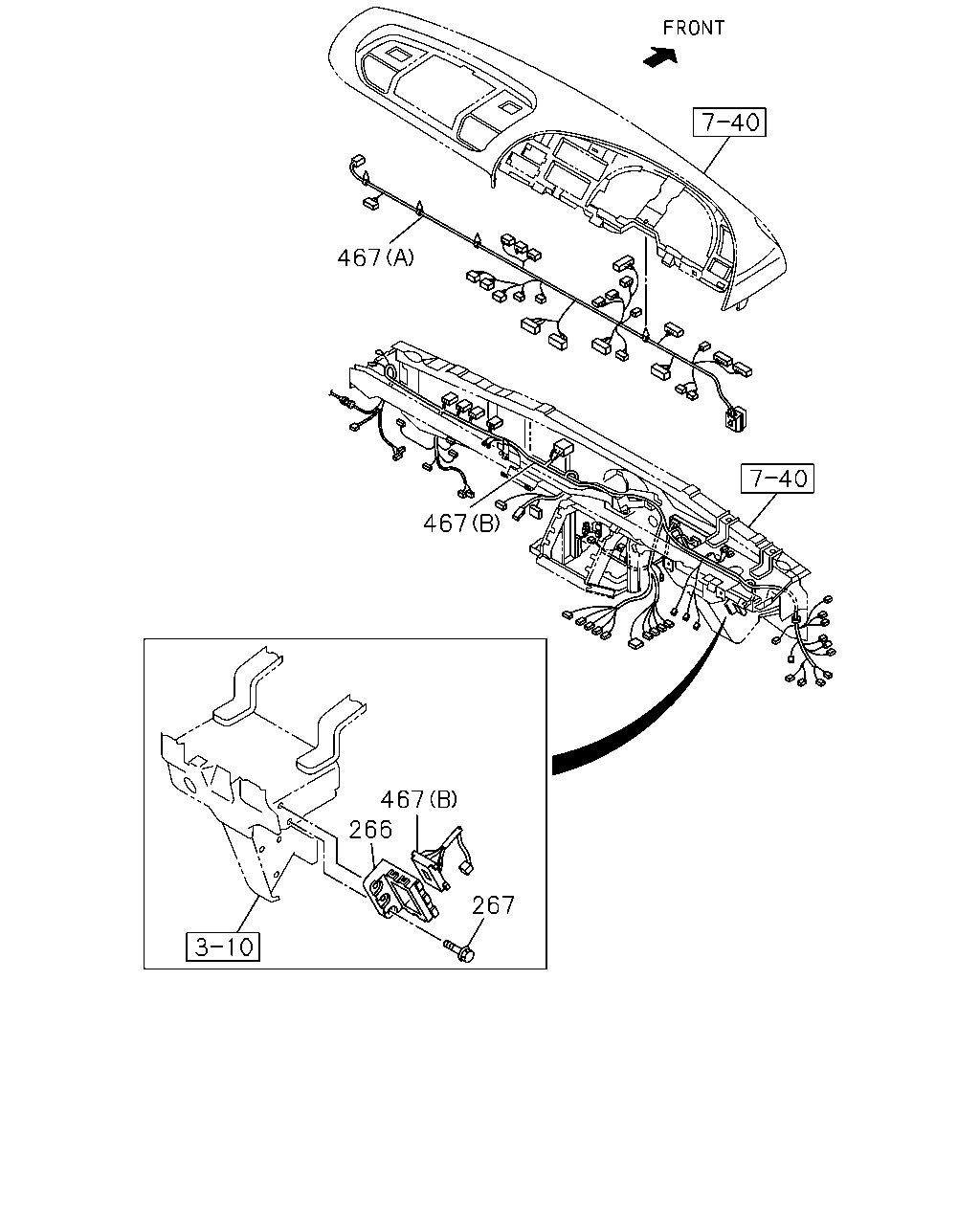

467	HARNESS; FACIA 6WG1 TC-N(71L) (B)	8-97634-950-0	01	1	1108-	●
467	HARNESS; FACIA 6WG1 TC-N(71L) (A)	8-97640-464-0	01	1	1108-	●
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	8-97619-662-5	01	1	0710-0907	●
467	HARNESS; FACIA (B)	8-97619-662-5	01	1	0710-0907		●
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	8-97634-125-0	01	1	0908-1104	●
467	HARNESS; FACIA (B)	8-97634-125-0	01	1	0908-1104		●
467	HARNESS; FACIA 6WG1 TC-C(72L) SMOOTHER-G(C1W) (B)	8-97634-125-0	01	1	1105-	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (B)	8-97634-125-0	01	1	1105-		●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	8-97619-661-5	01	1	0710-0907	●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	8-97634-124-0	01	1	0908-1104	●
467	HARNESS; FACIA 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B)	8-97634-124-0	01	1	1105-	●
467	HARNESS; FACIA (A)	8-97618-829-2	01	1	0710-1104	●	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (A)	8-97618-829-2	01	1	1105-	●	●

264 262 265 6 276 419 280 419 6 419 450 450 419 450 419 2 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

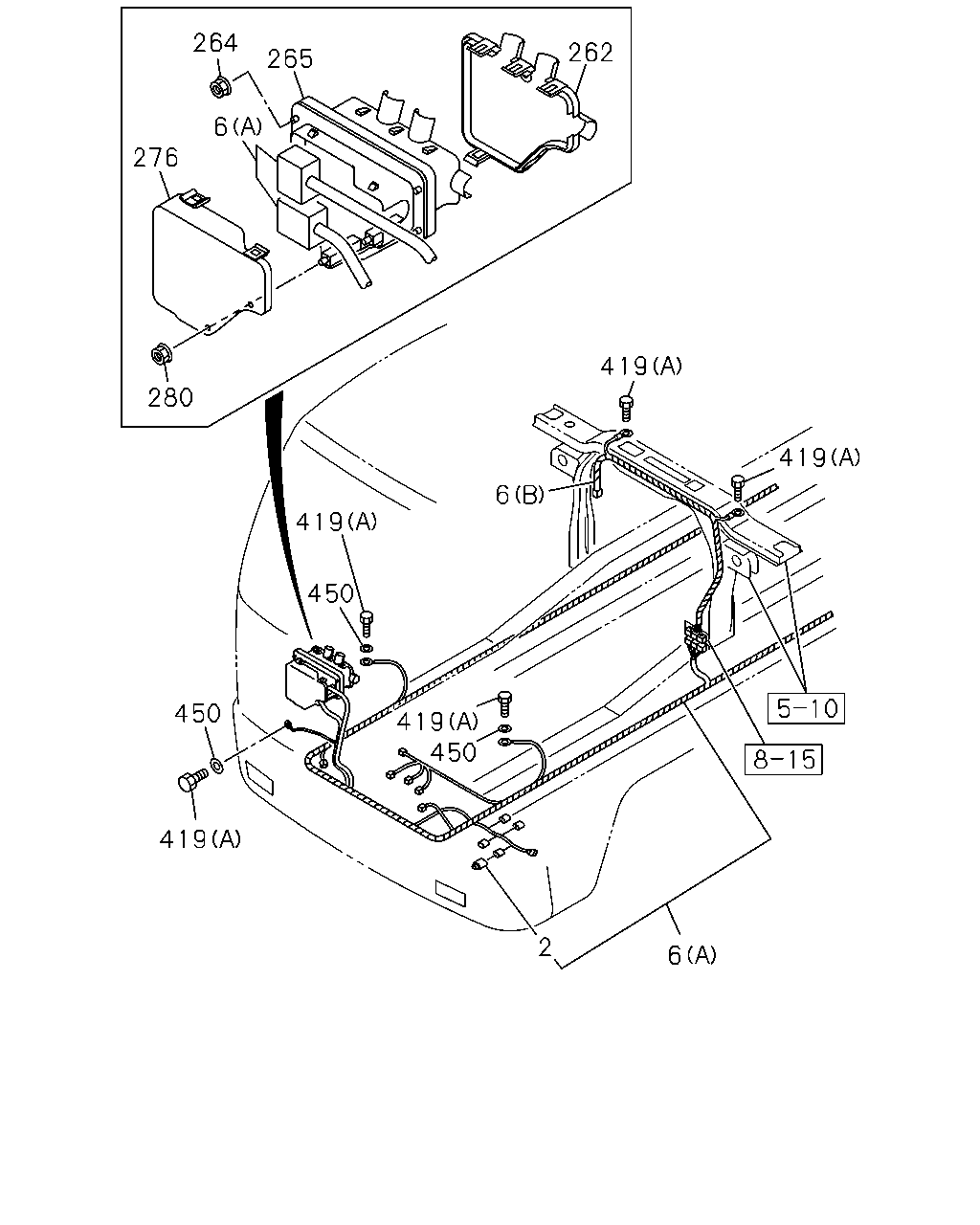

2	DIODE; CABLE HARNESS GRAY 2P-1.3A	1-81514-015-0	01	1	0710-	●	●
6	HARNESS; FRAME 6WG1 TC-N(71L) (B)	8-97631-086-1	01	1	1108-	●
6	HARNESS; FRAME 6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98191-591-1	01	1	1108-	●
6	HARNESS; FRAME WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98135-341-1	01	1	0812-1104	●
6	HARNESS; FRAME 6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98135-341-2	01	1	1105-	●
6	HARNESS; FRAME WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98135-340-2	01	1	0812-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-695-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-390-2	01	1	1005-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-674-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-389-2	01	1	1005-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-697-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-392-2	01	1	1005-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-675-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-391-2	01	1	1005-	●
6	HARNESS; FRAME (B)	8-97619-680-3	01	1	0710-0806	●	●
6	HARNESS; FRAME (B)	8-98123-156-0	01	1	0807-1104	●	●
6	HARNESS; FRAME 6WG1 TC-C(72L) (B)	8-98123-156-0	01	1	1105-	●	●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-699-3	01	1	0710-1004		●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-388-2	01	1	1005-		●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-676-3	01	1	0710-1004		●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-387-2	01	1	1005-		●
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-582-1	01	1	0710-	●	●
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0710-	●	●
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	0710-	●	●
276	COVER; BOX,FRAME HARNESS	1-82699-585-2	01	1	0710-	●	●
280	NUT; BOX ASM FIX M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0710-	●	●
419	BOLT; CAB EARTH (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0710-1201	●	●
419	BOLT; CAB EARTH (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1202-	●	●
419	BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0710-0809	●	●
419	BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0810-1201	●	●
419	BOLT; CAB EARTH (A) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1202-	●	●
419	BOLT; CAB EARTH (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0710-0809	●	●
419	BOLT; CAB EARTH (A) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	0810-1201	●	●
419	BOLT; CAB EARTH (A) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-	●	●
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	04	1	0710-	●	●

199 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

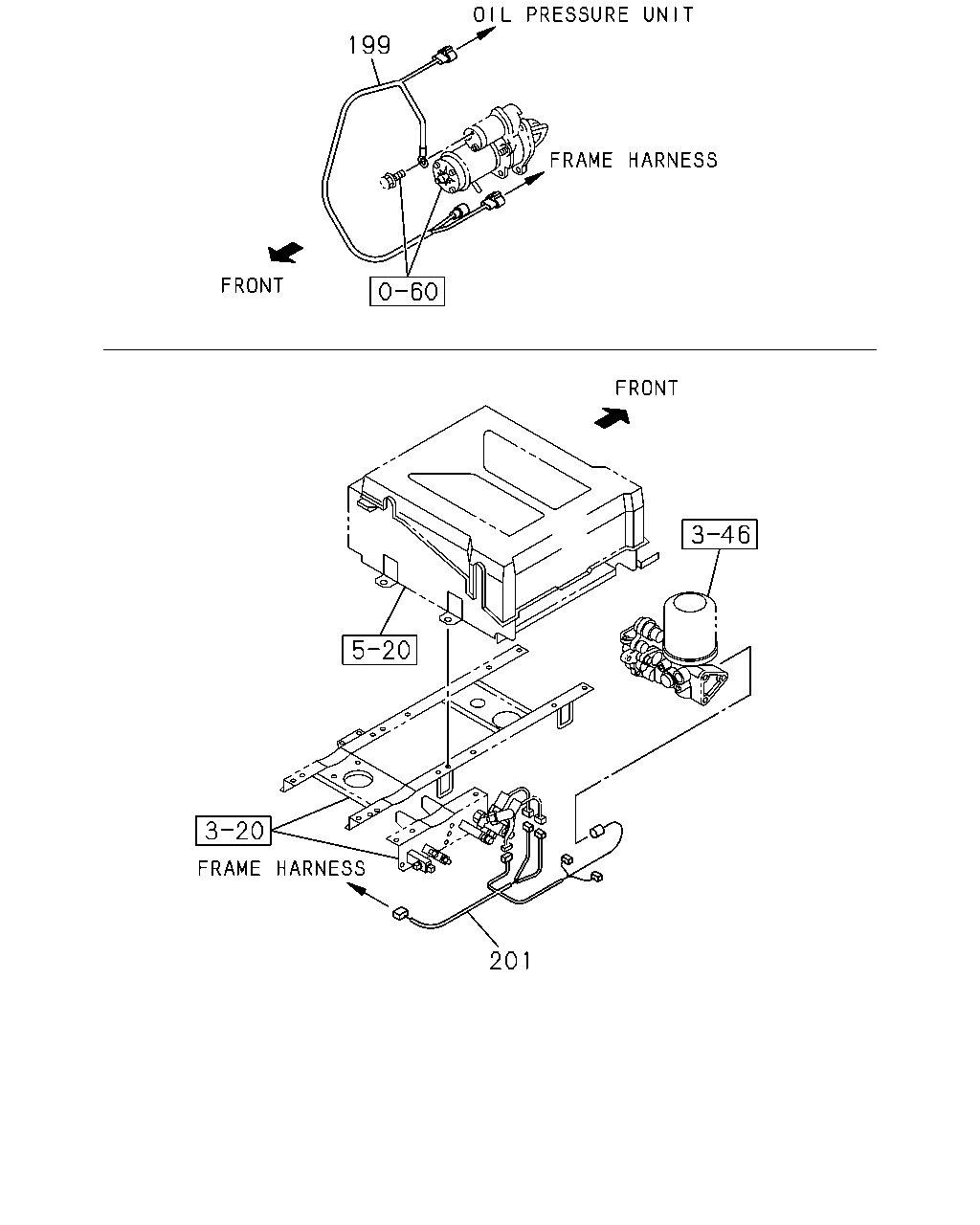

199	HARNESS; STARTER	8-97607-313-0	01	1	0710-	●	●
201	HARNESS; AIR TANK 6WG1 TC-N(71L)	8-98191-592-0	01	1	1108-	●
201	HARNESS; AIR TANK	8-98085-154-0	01	1	0710-1104	●	●
201	HARNESS; AIR TANK 6WG1 TC-C(72L)	8-98085-154-0	01	1	1105-	●	●

255 92 533 13 668 290 534 450 419 247 672 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

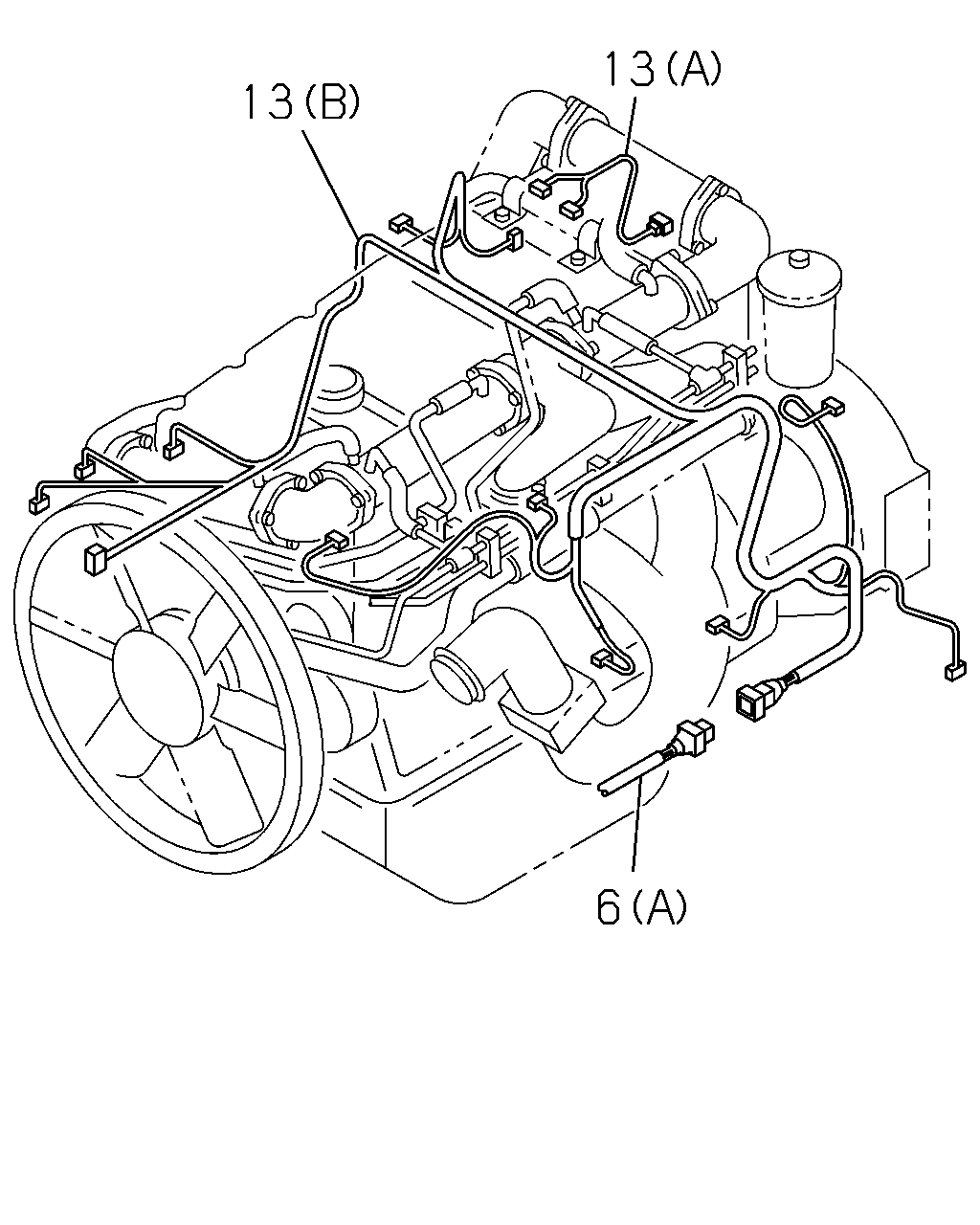

13	HARNESS; ENG (B)	8-97611-418-5	01	1	0710-1107	●	●
13	HARNESS; ENG 6WG1 TC-C(72L) (B)	8-97611-418-5	01	1	1108-	●
13	HARNESS; ENG (B)	8-97611-418-5	01	1	1108-		●
13	HARNESS; ENG 6WG1 TC-N(71L) (B)	8-98152-248-0	01	1	1108-1204	●
13	HARNESS; ENG 6WG1 TC-N(71L) (B)	8-98210-224-0	01	1	1205-	●
13	HARNESS; ENG 6WG1 TC-N(71L) (A)	8-98126-840-2	01	1	1108-	●
13	HARNESS; ENG (A)	8-98076-007-0	01	1	0710-1107	●	●
13	HARNESS; ENG 6WG1 TC-C(72L) (A)	8-98076-007-0	01	1	1108-	●
13	HARNESS; ENG (A)	8-98076-007-0	01	1	1108-		●

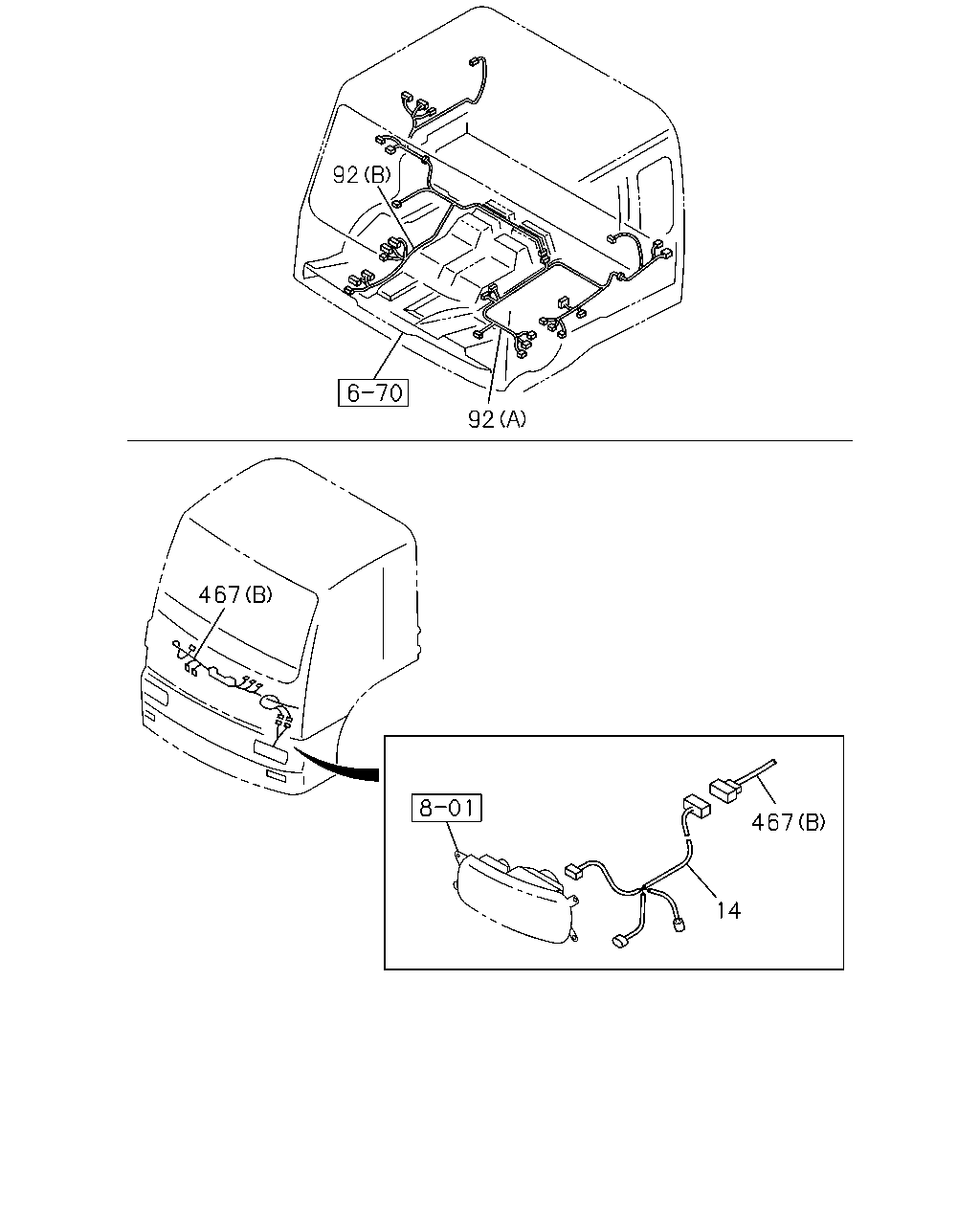

92	HARNESS; FLOOR 6WG1 TC-N(71L) (B)	8-98258-211-0	01	1	1402-	●
92	HARNESS; FLOOR 6WG1 TC-N(71L) (A)	8-97640-490-0	01	1	1108-1210	●
92	HARNESS; FLOOR 6WG1 TC-N(71L) (A)	8-98229-082-0	01	1	1211-	●
92	HARNESS; FLOOR SMOOTHER-G(C1W) (A)	8-97619-669-1	01	1	0710-1104	●
92	HARNESS; FLOOR (A)	8-97619-669-1	01	1	0710-1104		●
92	HARNESS; FLOOR 6WG1 TC-C(72L) SMOOTHER-G(C1W) (A)	8-97619-669-1	01	1	1105-1210	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) (A)	8-97619-669-1	01	1	1105-1210		●
92	HARNESS; FLOOR 6WG1 TC-C(72L) SMOOTHER-G(C1W) (A)	8-98229-074-0	01	1	1211-	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) (A)	8-98229-074-0	01	1	1211-		●
92	HARNESS; FLOOR SMOOTHER-G(C1W) (B)	8-97619-666-2	01	1	0710-1401	●
92	HARNESS; FLOOR (B)	8-97619-666-2	01	1	0710-1401		●
92	HARNESS; FLOOR 6WG1 TC-C(72L) SMOOTHER-G(C1W) (B)	8-97619-666-2	01	1	1402-	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) (B)	8-97619-666-2	01	1	1402-		●
92	HARNESS; FLOOR EXC. SMOOTHER-G(C1W) (B)	8-97619-665-2	01	1	0710-	●
92	HARNESS; FLOOR EXC. SMOOTHER-G(C1W) (A)	8-97619-667-1	01	1	0710-1104	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (A)	8-97619-667-1	01	1	1105-	●

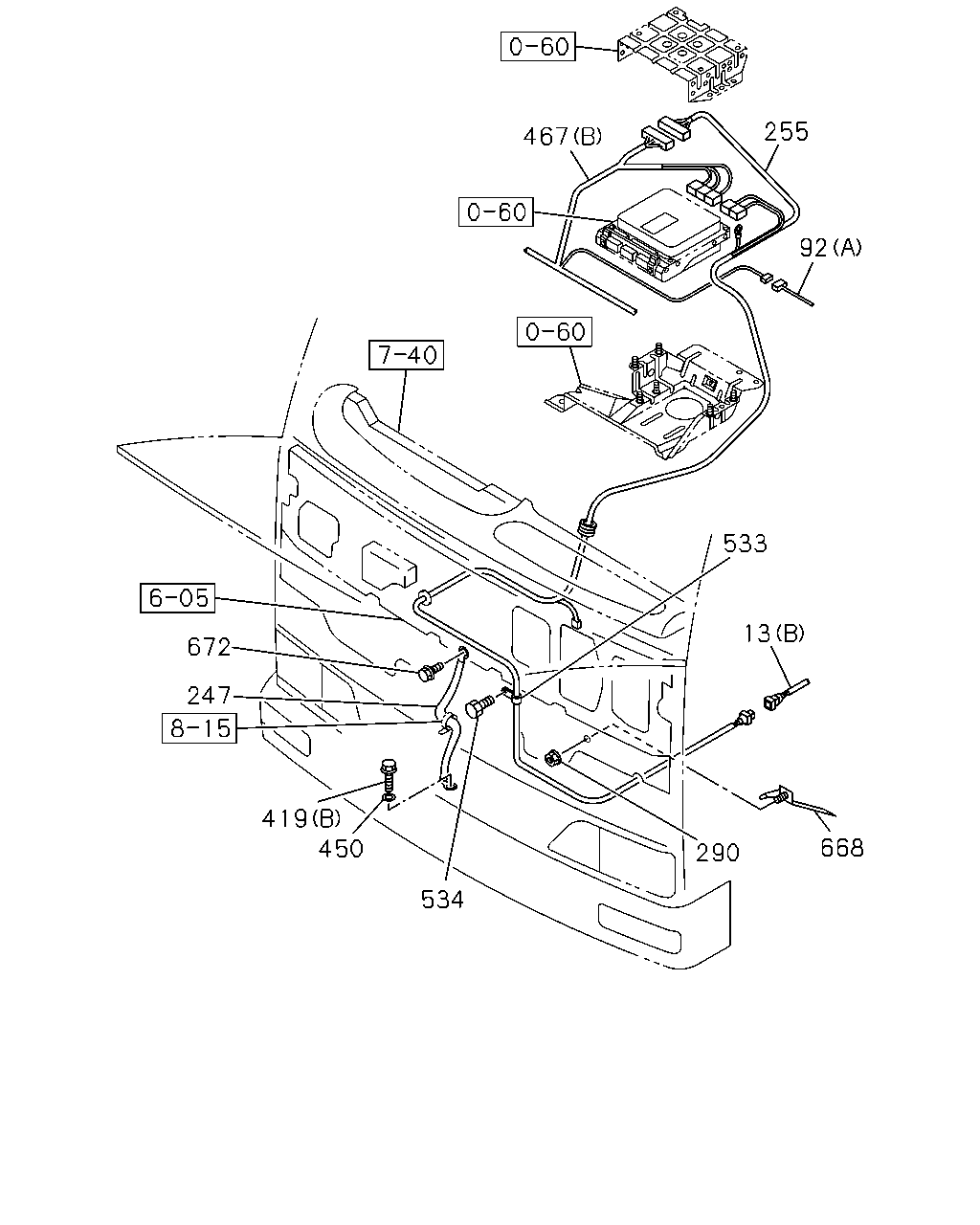

247	CABLE; BONDING,CAB L=570	1-82662-390-1	01	1	0710-	●	●
255	HARNESS; ELEC GOV 6WG1 TC-N(71L)	8-97631-059-0	01	1	1108-	●
255	HARNESS; ELEC GOV	8-97610-589-0	01	1	0710-1104	●	●
255	HARNESS; ELEC GOV 6WG1 TC-C(72L)	8-97610-589-0	01	1	1105-1210	●	●
255	HARNESS; ELEC GOV 6WG1 TC-C(72L)	8-98229-087-0	01	1	1211-	●	●
290	NUT; BRKT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
419	BOLT; CAB EARTH (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0710-1201	●	●
419	BOLT; CAB EARTH (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1202-	●	●
419	BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0710-0809	●	●
419	BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0810-1201	●	●
419	BOLT; CAB EARTH (A) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1202-	●	●
419	BOLT; CAB EARTH (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0710-0809	●	●
419	BOLT; CAB EARTH (A) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	0810-1201	●	●
419	BOLT; CAB EARTH (A) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-	●	●
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	04	1	0710-	●	●
467	HARNESS; FACIA 6WG1 TC-N(71L) (B)	8-97634-950-0	01	1	1108-	●
467	HARNESS; FACIA 6WG1 TC-N(71L) (A)	8-97640-464-0	01	1	1108-	●
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	8-97619-662-5	01	1	0710-0907	●
467	HARNESS; FACIA (B)	8-97619-662-5	01	1	0710-0907		●
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	8-97634-125-0	01	1	0908-1104	●
467	HARNESS; FACIA (B)	8-97634-125-0	01	1	0908-1104		●
467	HARNESS; FACIA 6WG1 TC-C(72L) SMOOTHER-G(C1W) (B)	8-97634-125-0	01	1	1105-	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (B)	8-97634-125-0	01	1	1105-		●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	8-97619-661-5	01	1	0710-0907	●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	8-97634-124-0	01	1	0908-1104	●
467	HARNESS; FACIA 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B)	8-97634-124-0	01	1	1105-	●
467	HARNESS; FACIA (A)	8-97618-829-2	01	1	0710-1104	●	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (A)	8-97618-829-2	01	1	1105-	●	●
533	CLIP SMOOTHER-G(C1W) ID=28 & 34 L=63	1-09701-310-0	01	1	0710-	●
533	CLIP ID=28 & 34 L=63	1-09701-310-0	01	1	0710-		●
533	CLIP EXC. SMOOTHER-G(C1W) ID=31 L=35	1-09700-329-1	01	1	0710-	●
534	BOLT M8X16 FLANGE	0-28050-816-0	01	1	0710-	●	●
668	BRACKET; HARNESS EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-82698-415-1	01	1	0710-	●	●
672	BOLT; BONDING M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0710-1309	●	●
672	BOLT; BONDING M8X14 W/PL WASHER	8-98164-837-0	01	1	1310-	●	●

6 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 6WG1 TC-N(71L) (B)	8-97631-086-1	01	1	1108-	●
6	HARNESS; FRAME 6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98191-591-1	01	1	1108-	●
6	HARNESS; FRAME WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98135-341-1	01	1	0812-1104	●
6	HARNESS; FRAME 6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98135-341-2	01	1	1105-	●
6	HARNESS; FRAME WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98135-340-2	01	1	0812-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-695-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-390-2	01	1	1005-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-674-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-389-2	01	1	1005-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-697-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-392-2	01	1	1005-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-675-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-391-2	01	1	1005-	●
6	HARNESS; FRAME (B)	8-97619-680-3	01	1	0710-0806	●	●
6	HARNESS; FRAME (B)	8-98123-156-0	01	1	0807-1104	●	●
6	HARNESS; FRAME 6WG1 TC-C(72L) (B)	8-98123-156-0	01	1	1105-	●	●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-699-3	01	1	0710-1004		●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-388-2	01	1	1005-		●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-676-3	01	1	0710-1004		●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-387-2	01	1	1005-		●
180	HARNESS; CABLE	8-97621-948-0	01	1	0710-1107	●	●
180	HARNESS; CABLE CATALYSIS CONTROL WITH DPD<8JM>	8-97621-948-0	01	1	1108-	●
180	HARNESS; CABLE	8-97621-948-0	01	1	1108-		●

6 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 6WG1 TC-N(71L) (B)	8-97631-086-1	01	1	1108-	●
6	HARNESS; FRAME 6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98191-591-1	01	1	1108-	●
6	HARNESS; FRAME WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98135-341-1	01	1	0812-1104	●
6	HARNESS; FRAME 6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98135-341-2	01	1	1105-	●
6	HARNESS; FRAME WHEEL BASE 4500MM(45W) SMOOTHER-G(C1W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98135-340-2	01	1	0812-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-695-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-390-2	01	1	1005-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-674-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) SMOOTHER-G(C1W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-389-2	01	1	1005-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-697-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-392-2	01	1	1005-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-675-2	01	1	0710-1004	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL LINK TYPE(B2A) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-391-2	01	1	1005-	●
6	HARNESS; FRAME (B)	8-97619-680-3	01	1	0710-0806	●	●
6	HARNESS; FRAME (B)	8-98123-156-0	01	1	0807-1104	●	●
6	HARNESS; FRAME 6WG1 TC-C(72L) (B)	8-98123-156-0	01	1	1105-	●	●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-699-3	01	1	0710-1004		●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-388-2	01	1	1005-		●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97619-676-3	01	1	0710-1004		●
6	HARNESS; FRAME WHEEL BASE 6600MM(66W) EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-97636-387-2	01	1	1005-		●
13	HARNESS; ENG (B)	8-97611-418-5	01	1	0710-1107	●	●
13	HARNESS; ENG 6WG1 TC-C(72L) (B)	8-97611-418-5	01	1	1108-	●
13	HARNESS; ENG (B)	8-97611-418-5	01	1	1108-		●
13	HARNESS; ENG 6WG1 TC-N(71L) (B)	8-98152-248-0	01	1	1108-1204	●
13	HARNESS; ENG 6WG1 TC-N(71L) (B)	8-98210-224-0	01	1	1205-	●
13	HARNESS; ENG 6WG1 TC-N(71L) (A)	8-98126-840-2	01	1	1108-	●
13	HARNESS; ENG (A)	8-98076-007-0	01	1	0710-1107	●	●
13	HARNESS; ENG 6WG1 TC-C(72L) (A)	8-98076-007-0	01	1	1108-	●
13	HARNESS; ENG (A)	8-98076-007-0	01	1	1108-		●

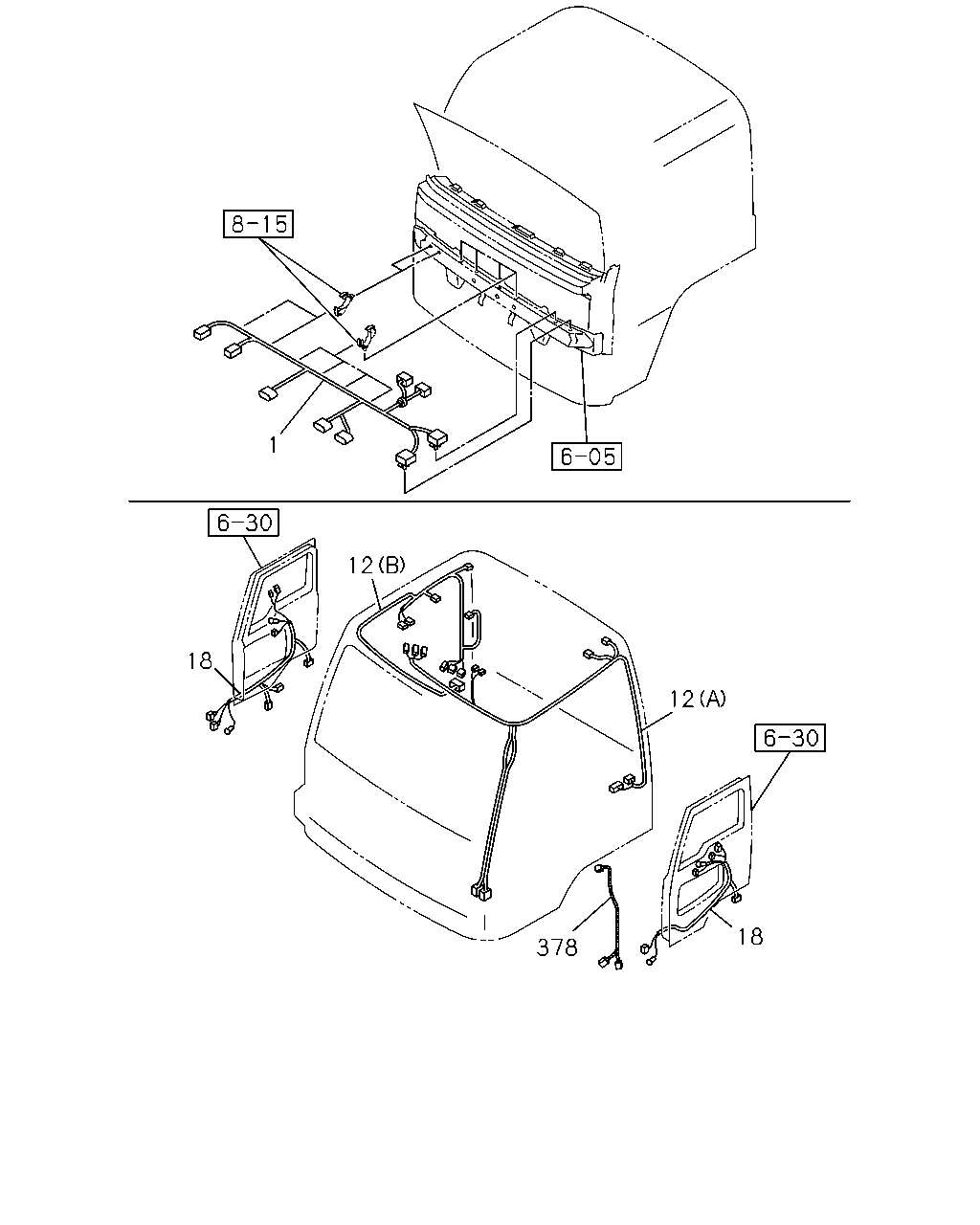

1 12 18 12 18 378

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB	8-97621-679-0	01	1	0710-	●	●
12	HARNESS; ROOF (A)	8-97611-861-1	01	1	0710-	●	●
12	HARNESS; ROOF (B)	8-97611-862-0	01	1	0710-	●	●
18	HARNESS; DOOR	8-97618-824-1	01	1	0710-	●	●
18	HARNESS; DOOR	8-97618-825-1	01	1	0710-	●	●
378	HARNESS; EXT,MIRROR	8-97621-787-0	02	1	0710-	●	●

92 92 467 467 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	HARNESS; HEADLAMP	1-82678-323-0	02	1	0710-	●	●
92	HARNESS; FLOOR 6WG1 TC-N(71L) (B)	8-98258-211-0	01	1	1402-	●
92	HARNESS; FLOOR 6WG1 TC-N(71L) (A)	8-97640-490-0	01	1	1108-1210	●
92	HARNESS; FLOOR 6WG1 TC-N(71L) (A)	8-98229-082-0	01	1	1211-	●
92	HARNESS; FLOOR SMOOTHER-G(C1W) (A)	8-97619-669-1	01	1	0710-1104	●
92	HARNESS; FLOOR (A)	8-97619-669-1	01	1	0710-1104		●
92	HARNESS; FLOOR 6WG1 TC-C(72L) SMOOTHER-G(C1W) (A)	8-97619-669-1	01	1	1105-1210	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) (A)	8-97619-669-1	01	1	1105-1210		●
92	HARNESS; FLOOR 6WG1 TC-C(72L) SMOOTHER-G(C1W) (A)	8-98229-074-0	01	1	1211-	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) (A)	8-98229-074-0	01	1	1211-		●
92	HARNESS; FLOOR SMOOTHER-G(C1W) (B)	8-97619-666-2	01	1	0710-1401	●
92	HARNESS; FLOOR (B)	8-97619-666-2	01	1	0710-1401		●
92	HARNESS; FLOOR 6WG1 TC-C(72L) SMOOTHER-G(C1W) (B)	8-97619-666-2	01	1	1402-	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) (B)	8-97619-666-2	01	1	1402-		●
92	HARNESS; FLOOR EXC. SMOOTHER-G(C1W) (B)	8-97619-665-2	01	1	0710-	●
92	HARNESS; FLOOR EXC. SMOOTHER-G(C1W) (A)	8-97619-667-1	01	1	0710-1104	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (A)	8-97619-667-1	01	1	1105-	●
467	HARNESS; FACIA 6WG1 TC-N(71L) (B)	8-97634-950-0	01	1	1108-	●
467	HARNESS; FACIA 6WG1 TC-N(71L) (A)	8-97640-464-0	01	1	1108-	●
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	8-97619-662-5	01	1	0710-0907	●
467	HARNESS; FACIA (B)	8-97619-662-5	01	1	0710-0907		●
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	8-97634-125-0	01	1	0908-1104	●
467	HARNESS; FACIA (B)	8-97634-125-0	01	1	0908-1104		●
467	HARNESS; FACIA 6WG1 TC-C(72L) SMOOTHER-G(C1W) (B)	8-97634-125-0	01	1	1105-	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (B)	8-97634-125-0	01	1	1105-		●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	8-97619-661-5	01	1	0710-0907	●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	8-97634-124-0	01	1	0908-1104	●
467	HARNESS; FACIA 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B)	8-97634-124-0	01	1	1105-	●
467	HARNESS; FACIA (A)	8-97618-829-2	01	1	0710-1104	●	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (A)	8-97618-829-2	01	1	1105-	●	●

467 467 467 266 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
266	BRACKET; CONN BOX	1-82699-580-0	01	1	0710-	●	●
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	0710-	●	●
467	HARNESS; FACIA 6WG1 TC-N(71L) (B)	8-97634-950-0	01	1	1108-	●
467	HARNESS; FACIA 6WG1 TC-N(71L) (A)	8-97640-464-0	01	1	1108-	●
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	8-97619-662-5	01	1	0710-0907	●
467	HARNESS; FACIA (B)	8-97619-662-5	01	1	0710-0907		●
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	8-97634-125-0	01	1	0908-1104	●
467	HARNESS; FACIA (B)	8-97634-125-0	01	1	0908-1104		●
467	HARNESS; FACIA 6WG1 TC-C(72L) SMOOTHER-G(C1W) (B)	8-97634-125-0	01	1	1105-	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (B)	8-97634-125-0	01	1	1105-		●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	8-97619-661-5	01	1	0710-0907	●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	8-97634-124-0	01	1	0908-1104	●
467	HARNESS; FACIA 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (B)	8-97634-124-0	01	1	1105-	●
467	HARNESS; FACIA (A)	8-97618-829-2	01	1	0710-1104	●	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (A)	8-97618-829-2	01	1	1105-	●	●

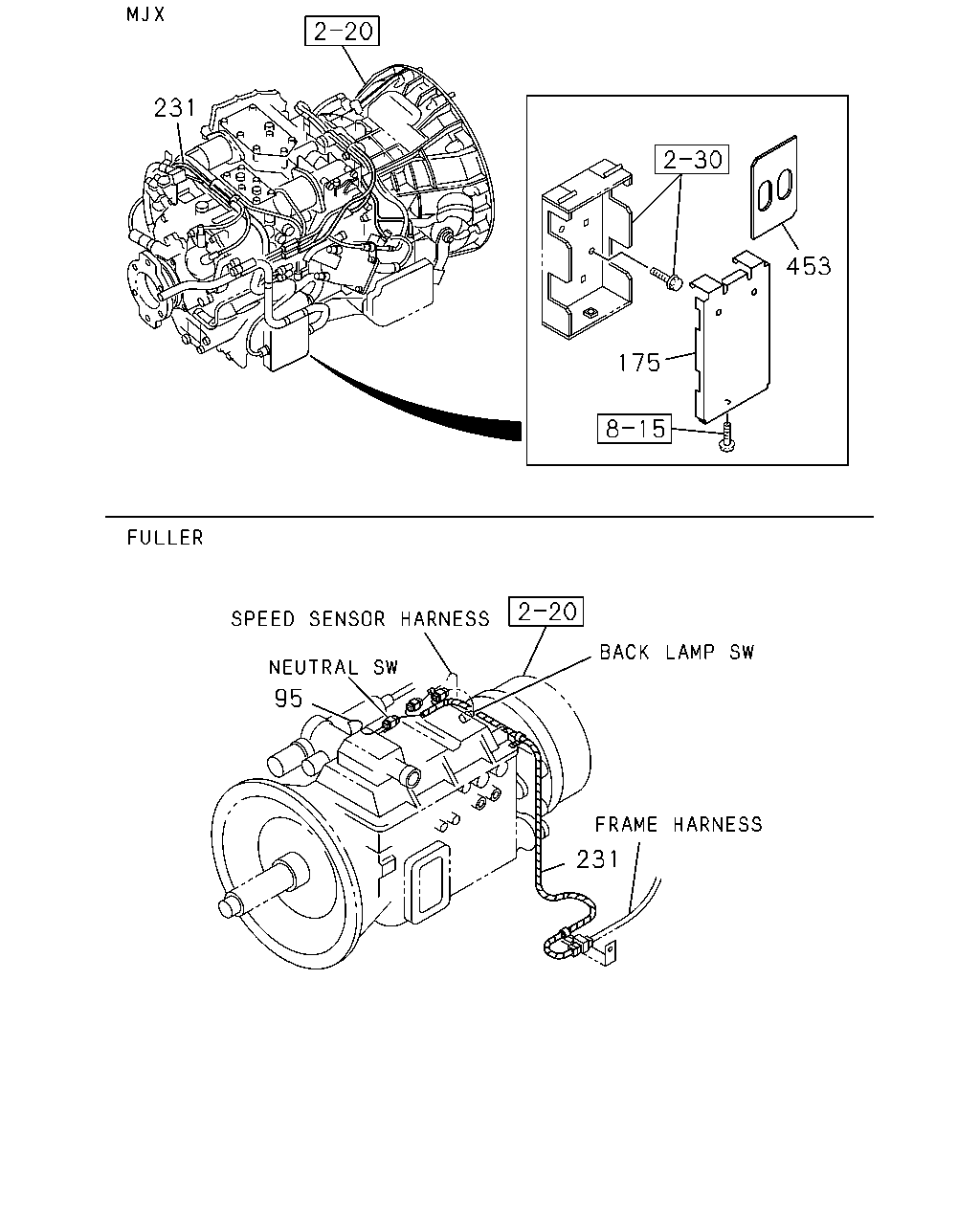

231 453 175 95 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	HARNESS; NEUTRAL SW TRANSMISSION-FULLER RTLO189 18(Y4W)	1-82639-626-0	01	1	0710-	●
175	BOX; CONNECTOR SMOOTHER-G(C1W)	1-82569-435-1	01	1	0710-	●	●
231	HARNESS; TRANS FULLER M/T<X9B>	8-97620-988-0	01	1	0710-	●
231	HARNESS; TRANS MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER<RE2>	8-97620-432-2	01	1	0710-	●	●
231	HARNESS; TRANS MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) EXC. BRAKE SYSTEM RETARDER<RE2>	8-97620-431-2	01	1	0710-	●	●
453	PROTECTOR; HARNESS MJX12P M/T SMOOTHER-G(Y4S)	8-98213-847-1	01	1	1207-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
