Isuzu WW
▶
TRUCKS
▶
CXY
▶
11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

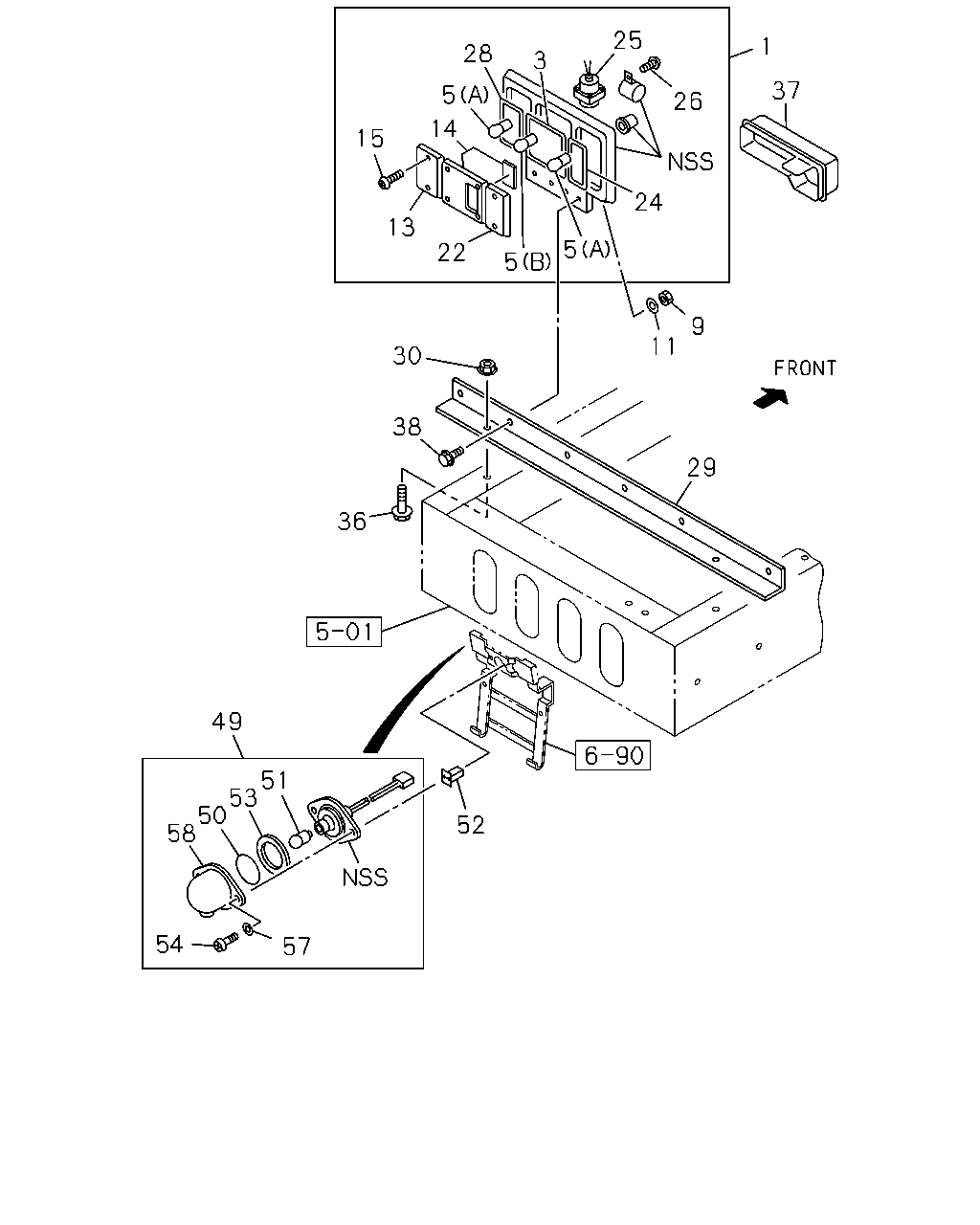

8-03 — LAMP; REAR AND REAR SIDE
(#14886) — 41 parça
Tümü
A - CXY5MC
B - CXY5MF
25
1
28
3
37
5
26
14
15
24
13
5
22
5
9
11
30
38
29
36
49
51
53
50
58
52
54
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LAMP ASM; RR COMB
8-97213-369-0
01
1
0710-0712
●
●
1
LAMP ASM; RR COMB
1-82230-208-0
01
1
0801-
●
●
1
LAMP ASM; RR COMB
8-97213-370-0
01
1
0710-0712
●
●
1
LAMP ASM; RR COMB
1-82230-209-0
01
1
0801-
●
●
3
GASKET; RR COMB LAMP
8-94257-505-0
01
1
0710-
●
●
3
GASKET; RR COMB LAMP
8-94257-505-0
01
1
0710-
●
●
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-036-0
02
1
0710-
●
●
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-036-0
02
1
0710-
●
●
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-038-0
01
1
0710-
●
●
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-038-0
01
1
0710-
●
●
9
NUT; LAMP,RR COMB
M6
0-91110-506-0
04
1
0710-
●
●
11
WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18
0-91610-706-0
04
1
0710-
●
●
13
LENS; TURN SIGNAL
8-94174-639-0
01
1
0710-
●
●
13
LENS; TURN SIGNAL
8-94174-638-0
01
1
0710-
●
●
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-625-0
01
1
0710-
●
●
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-624-0
01
1
0710-
●
●
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
08
1
0710-
●
●
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
08
1
0710-
●
●
22
LENS; BACKUP,RR COMB LAMP
8-94257-512-1
01
1
0710-
●
●
22
LENS; BACKUP,RR COMB LAMP
8-94257-512-1
01
1
0710-
●
●
24
GASKET; BACK,LAMP
8-94257-506-0
01
1
0710-
●
●
24
GASKET; BACK,LAMP
8-94257-506-0
01
1
0710-
●
●
25
HORN ASM; BACK
8-94257-518-0
01
1
0710-
●
●
26
SCREW; BACK HORN
M4X14 TAPPING
9-07076-414-0
01
1
0710-
●
●
26
SCREW; BACK HORN
M4X12 TAPPING
9-07076-412-0
02
1
0710-
●
●
28
GASKET; TURN,LAMP
8-94257-507-0
01
1
0710-
●
●
28
GASKET; TURN,LAMP
8-94257-507-0
01
1
0710-
●
●
29
BRACKET; LAMP,RR COMB
8-98091-824-0
01
1
0710-
●
●
30
NUT; BRKT,RR COMB
M10 FLANGE
0-91180-210-0
02
1
0710-
●
●
36
BOLT; BRKT,RR COMB
M10X40 FLANGE
0-28651-040-0
02
1
0710-
●
●
37
COVER; RR COMB LAMP
1-82239-008-0
01
1
0710-
●
●
37
COVER; RR COMB LAMP
1-82239-007-0
01
1
0710-
●
●
38
BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER
0-50640-630-0
04
1
0710-
●
●
49
LAMP; LICENSE PLATE
24V 10W
1-82120-024-1
01
1
0710-
●
●
50
LENS; LICENSE PLATE LAMP
1-82235-006-0
01
1
0710-
●
●
51
BULB; LICENSE PLATE LAMP
24V 10W
1-82194-037-0
01
1
0710-
●
●
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
8-94275-946-0
02
1
0710-
●
●
53
GASKET; LICENSE LAMP
1-82126-005-0
01
1
0710-
●
●
54
SCREW; LICENSE PLATE LAMP
M5X20
1-82129-007-0
02
1
0710-
●
●
57
WASHER; PL,LICENSE PLATE LAMP
1-82129-008-0
02
1
0710-
●
●
58
COVER; LICENSE PLATE LAMP
1-82129-005-0
01
1
0710-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
