3-55 — BRAKE PIPING; OIL,REAR
(#14883) — 38 parça
◀

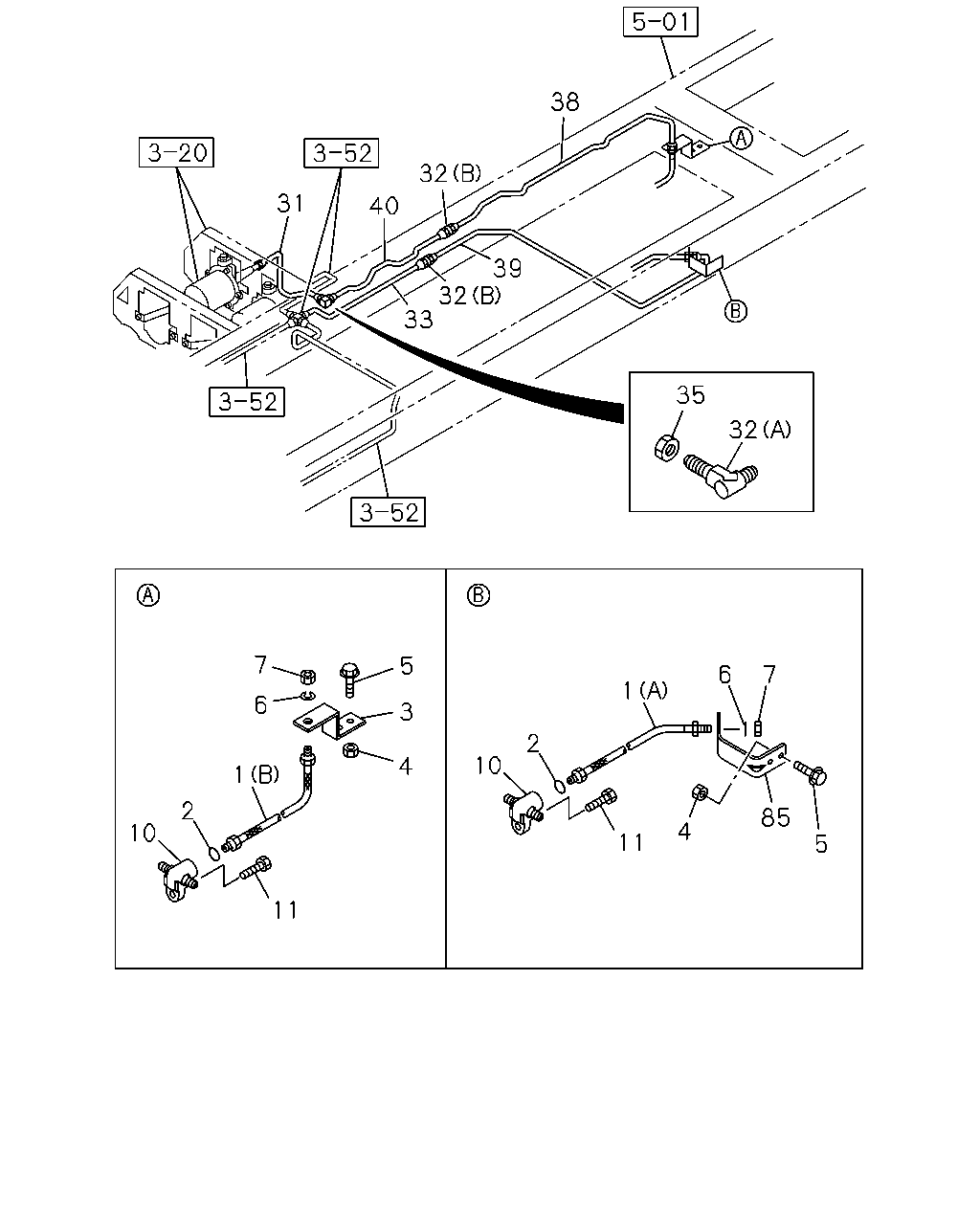

[355A] FRAME SIDE (26 parça)

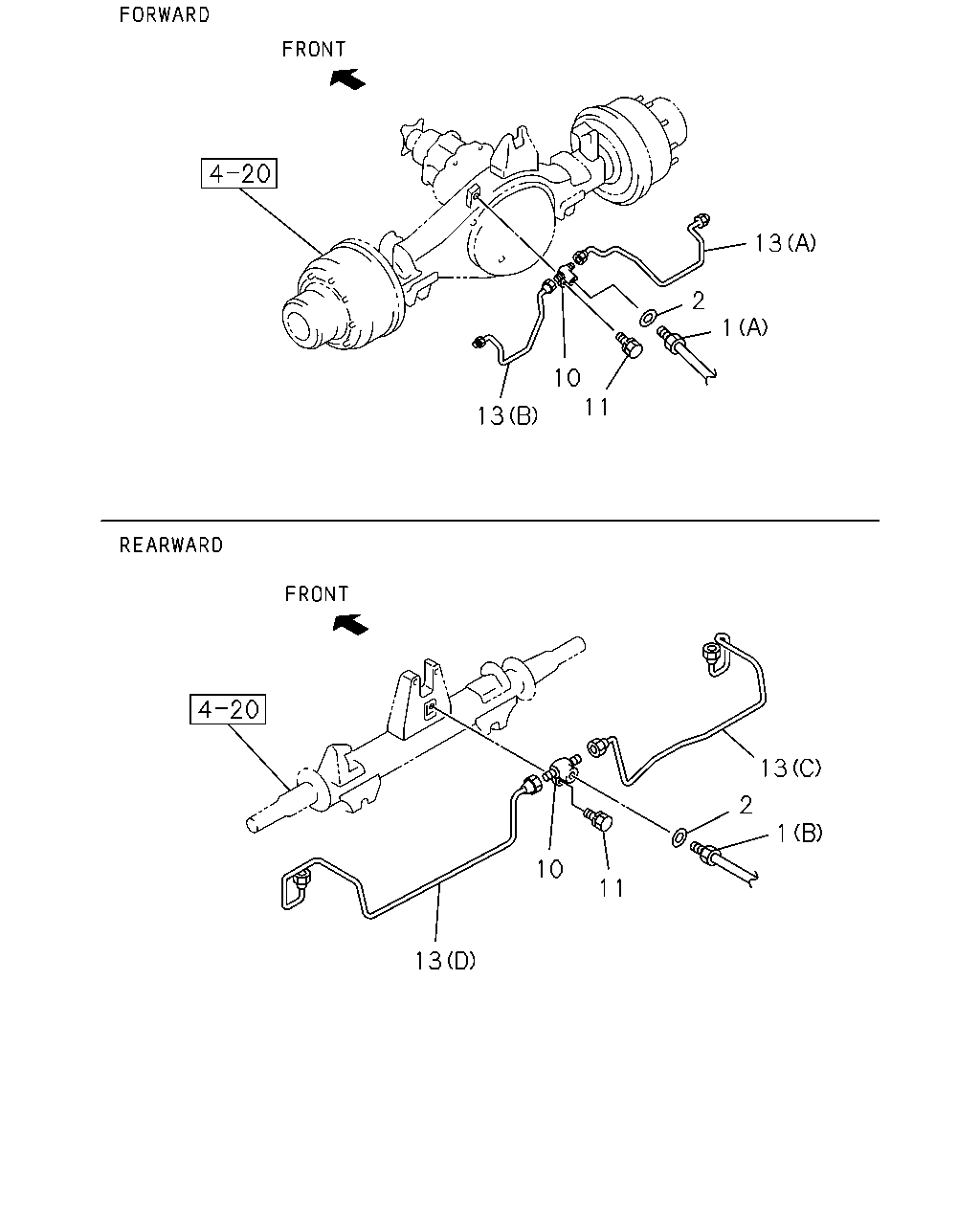

[355A] AXLE SIDE (12 parça)
▶
38
32
31
40
39
32
33
35
32
7
5
6
7
1
6
3
2
10
4
1
2
85
4
10
11
5
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
(A) L=450
1-09364-188-0
01
1
0711-
1
HOSE; FLEX,RR BRK
(B) L=675
1-09364-201-0
01
1
0711-
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
0711-
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
0711-
3
BRACKET; FLEX HOSE,RR BRK
1-47465-608-0
01
1
0711-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
0711-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
0711-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
04
1
0711-
6
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
01
1
0711-
6
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
01
1
0711-
7
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
0711-
7
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
0711-
10
NIPPLE; RR AXLE CASE
9-09903-668-3
01
1
0711-
10
NIPPLE; RR AXLE CASE
9-09903-668-3
01
1
0711-
11
BOLT; NIPPLE,RR AXLE CASE
M10X25 W/LK WASHER
0-50541-025-0
01
1
0711-
11
BOLT; NIPPLE,RR AXLE CASE
M10X25 W/LK WASHER
0-50541-025-0
01
1
0711-
31
PIPE; OIL,AIR MASTER TO UNION
L=574
1-49161-389-0
01
1
0711-
32
UNION; OIL PIPE
(B) M12 L=40
0-92113-006-0
01
1
0711-
32
UNION; OIL PIPE
(B) M12 L=40
0-92113-006-0
01
1
0711-
32
UNION; OIL PIPE
(A) M12 ELBOW
0-92125-206-0
01
1
0711-
33
PIPE; OIL,UNION TO UNION
L=1358 SERVICED BY L=1370
1-47426-354-0
01
1
0711-
35
NUT; UNION
M12
9-09840-280-0
01
1
0711-
38
PIPE; OIL,UNION TO FLEX HOSE
1-47428-943-0
01
1
0711-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=2314 SERVICED BY L=2350
1-47426-361-0
01
1
0711-
40
PIPE; BRK,UNION TO UNION
1-49166-686-0
01
1
0711-
85
BRACKET; FLEX HOSE,FWD RR
1-47475-357-2
01
1
0711-
13
2
1
10
11
13
13
2
1
10
11
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
(A) L=450
1-09364-188-0
01
1
0711-
1
HOSE; FLEX,RR BRK
(B) L=675
1-09364-201-0
01
1
0711-
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
0711-
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
0711-
10
NIPPLE; RR AXLE CASE
9-09903-668-3
01
1
0711-
10
NIPPLE; RR AXLE CASE
9-09903-668-3
01
1
0711-
11
BOLT; NIPPLE,RR AXLE CASE
M10X25 W/LK WASHER
0-50541-025-0
01
1
0711-
11
BOLT; NIPPLE,RR AXLE CASE
M10X25 W/LK WASHER
0-50541-025-0
01
1
0711-
13
PIPE; BRK,RR AXLE
(A) FORWARD
1-47427-895-0
01
1
0711-
13
PIPE; BRK,RR AXLE
(B) FORWARD
1-47427-896-0
01
1
0711-
13
PIPE; BRK,RR AXLE
(C) REARWARD
1-47429-813-0
01
1
0711-
13
PIPE; BRK,RR AXLE
(D) REARWARD
1-47429-814-0
01
1
0711-
