Isuzu WW
▶
PICKUP
▶
TFR
▶
51576 - TFR/TFS JIANGXI
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-51 - REAR DOOR GLASS AND REGULATOR
▶

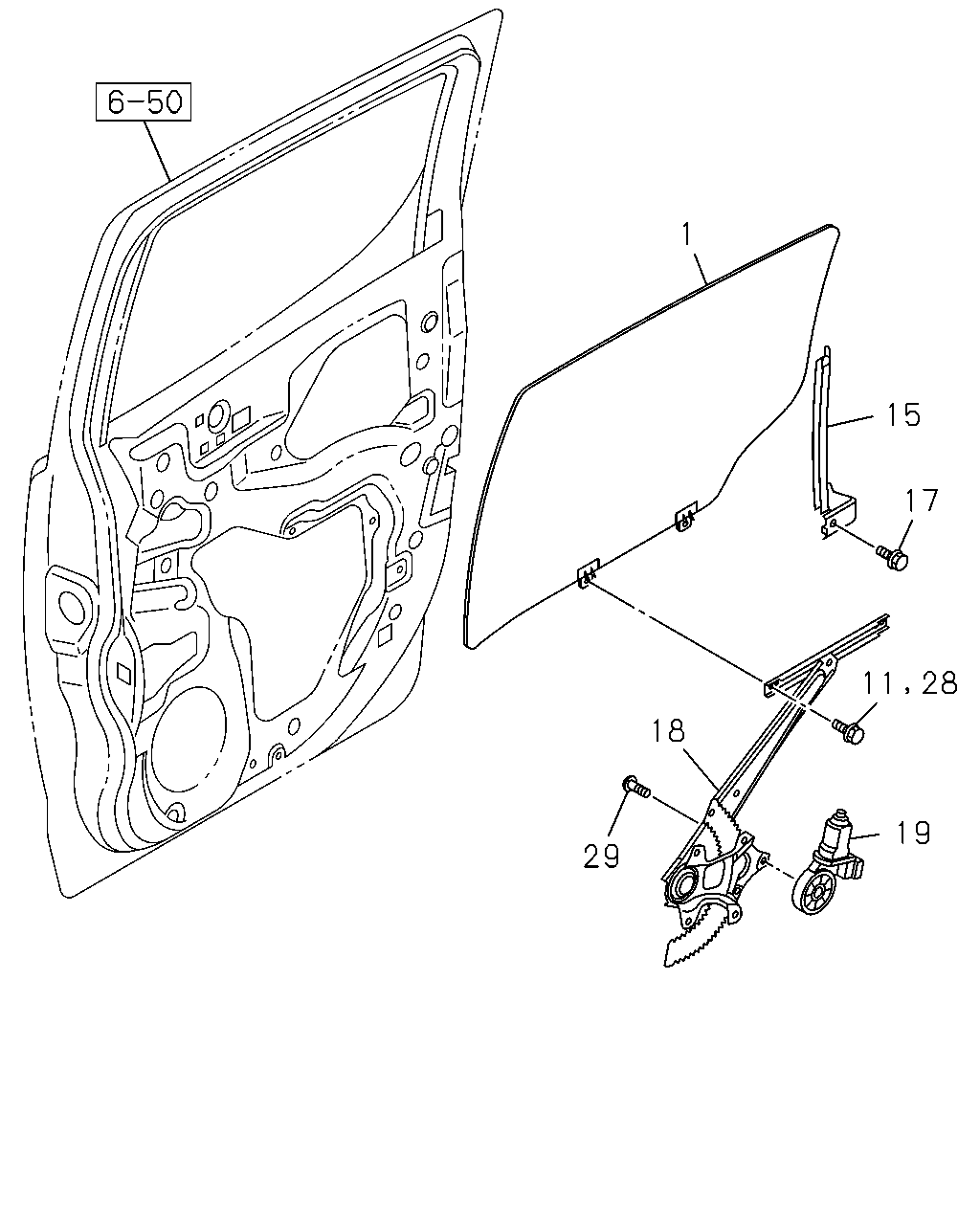

6-51 — REAR DOOR GLASS AND REGULATOR
(#148820) — 12 parça
Tümü
A - TFB6WF
B - TFS6WF
1
15
17
11
28
18
29
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GLASS; RR DOOR
8-98073-845-0
01
1
1410-
●
●
1
GLASS; RR DOOR
8-98073-846-0
01
1
1410-
●
●
11
BOLT; GLASS
M6X10 FLANGE
8-98188-381-0
04
1
1410-
●
●
15
RAIL; RR GUIDE,RR DOOR
8-98100-798-2
01
1
1410-
●
●
15
RAIL; RR GUIDE,RR DOOR
8-98100-799-2
01
1
1410-
●
●
17
BOLT; RR GUIDE RAIL
M6X8 FLANGE
8-98048-996-0
02
1
1410-
●
●
18
REGULATOR; WINDOW,RR DOOR
8-98167-089-0
01
1
1410-
●
●
18
REGULATOR; WINDOW,RR DOOR
8-98167-090-0
01
1
1410-
●
●
19
MOTOR; POWER WINDOW REG,RR DOOR
8-98167-091-1
01
1
1410-
●
●
19
MOTOR; POWER WINDOW REG,RR DOOR
8-98167-092-1
01
1
1410-
●
●
28
BOLT; WINDOW REG
M6X10 FLANGE
8-98188-381-0
06
1
1410-
●
●
29
SCREW; WINDOW REG
8-98195-236-0
06
1
1410-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
