◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#148818) — 31 parça

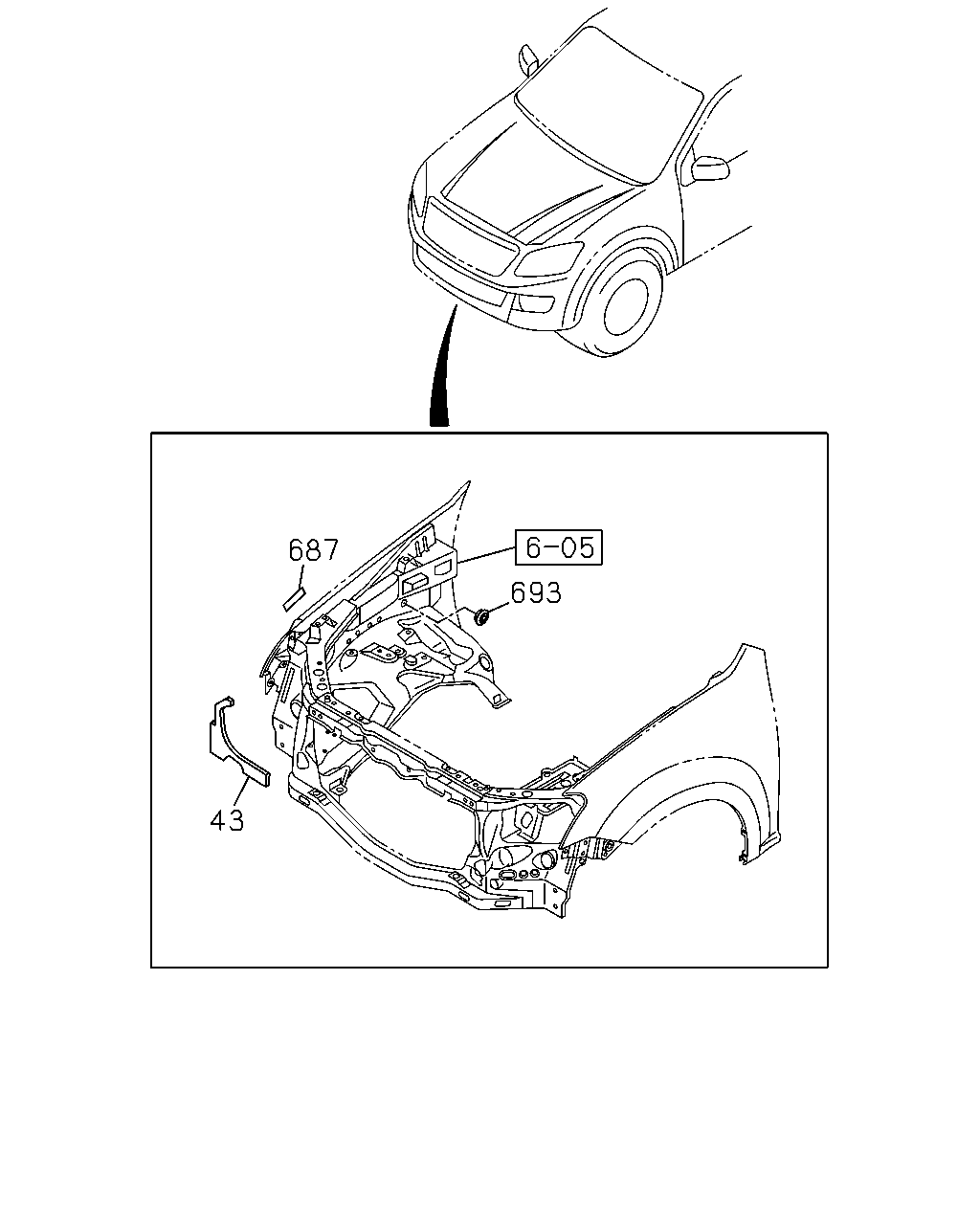

çizim 443751
687 693 43
BalonParca AdiParca NoAdetTipApplied Date A B
43 INSULATION; FENDER SIDE 8-98189-338-1 01 1 1410- ● ●
687 TAPE; PROTECT 8-98191-602-1 02 1 1410- ● ●
693 GROMMET; ACCESSORY HOLE 8-98191-606-0 01 1 1410- ● ●

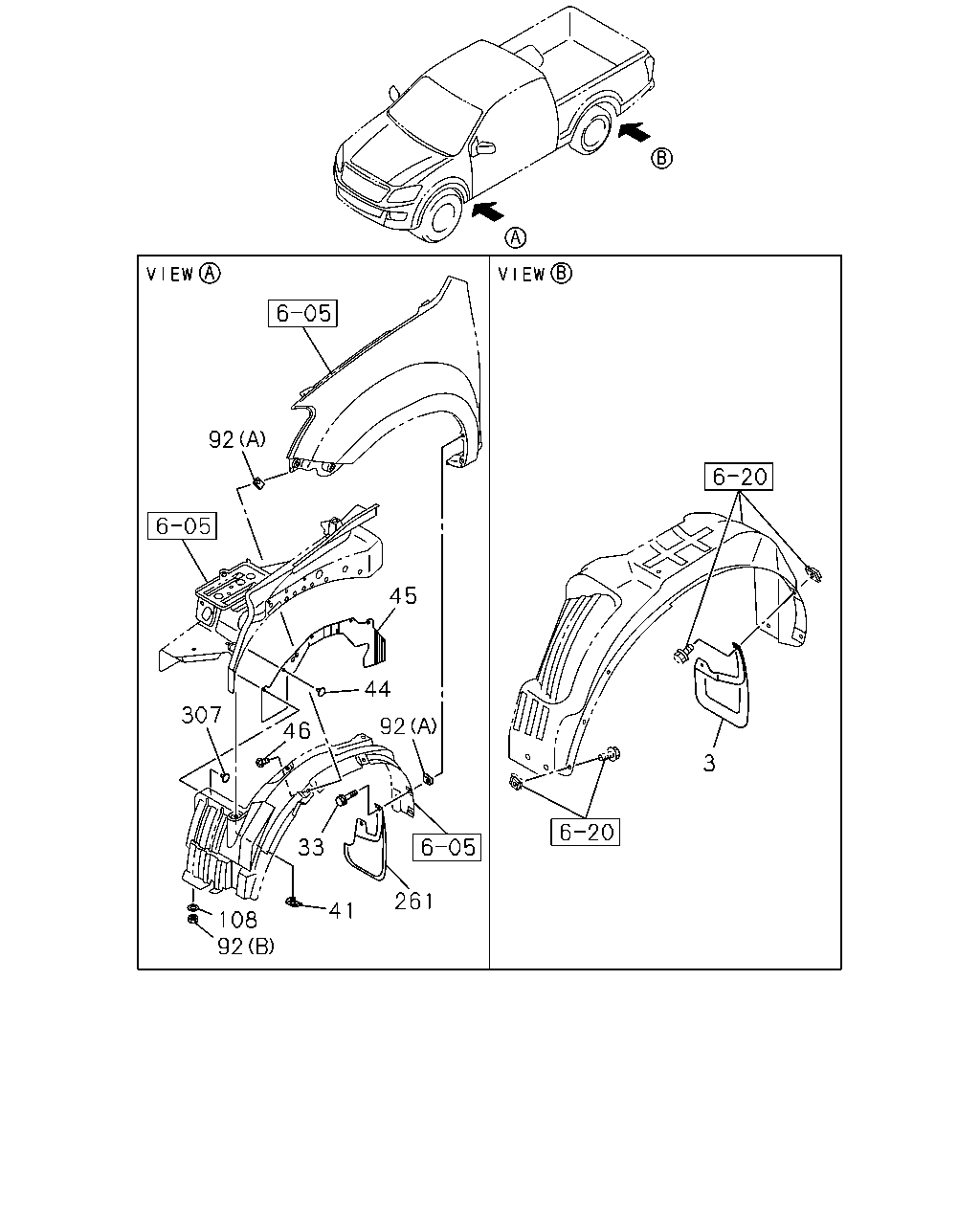

çizim 444409
92 307 46 92 44 45 33 108 92 41 261 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-276-1 01 1 1410- ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-276-1 01 1 1410- ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-279-1 01 1 1410- ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-279-1 01 1 1410- ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-330-2 01 1 1410- ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-331-2 01 1 1410- ●
33 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1410- ● ●
41 RIVET; INNER LINER
EXC. FORMED MUD FLAP FRT & RR<Q8H> 		8-94221-150-0 06 1 1410- ● ●
41 RIVET; INNER LINER 8-94221-150-0 10 1 1410- ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 CHI 		8-94215-211-0 10 1 1410- ● ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-98077-268-1 01 1 1410- ●
45 COVER; MUD,FENDER SKIRT 8-98077-268-1 01 1 1410- ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-98077-270-0 01 1 1410- ●
45 COVER; MUD,FENDER SKIRT 8-98077-270-0 01 1 1410- ●
45 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-267-1 01 1 1410- ●
45 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-269-0 01 1 1410- ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER 		8-98167-444-0 04 1 1410- ● ●
92 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> (A) 		8-97125-519-0 06 1 1410- ● ●
92 NUT; MUD COVER
(A) 		8-97125-519-0 04 1 1410- ● ●
92 NUT; MUD COVER
(B) M6 CAP NUT 		8-98049-850-0 02 1 1410- ● ●
108 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 		8-98049-851-0 02 1 1410- ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-272-0 01 1 1410- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-272-0 01 1 1410- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-274-0 01 1 1410- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-274-0 01 1 1410- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-229-0 01 1 1410- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-230-0 01 1 1410- ●
307 RETAINER 8-98050-462-0 02 1 1410- ● ●
