◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#148816) — 25 parça

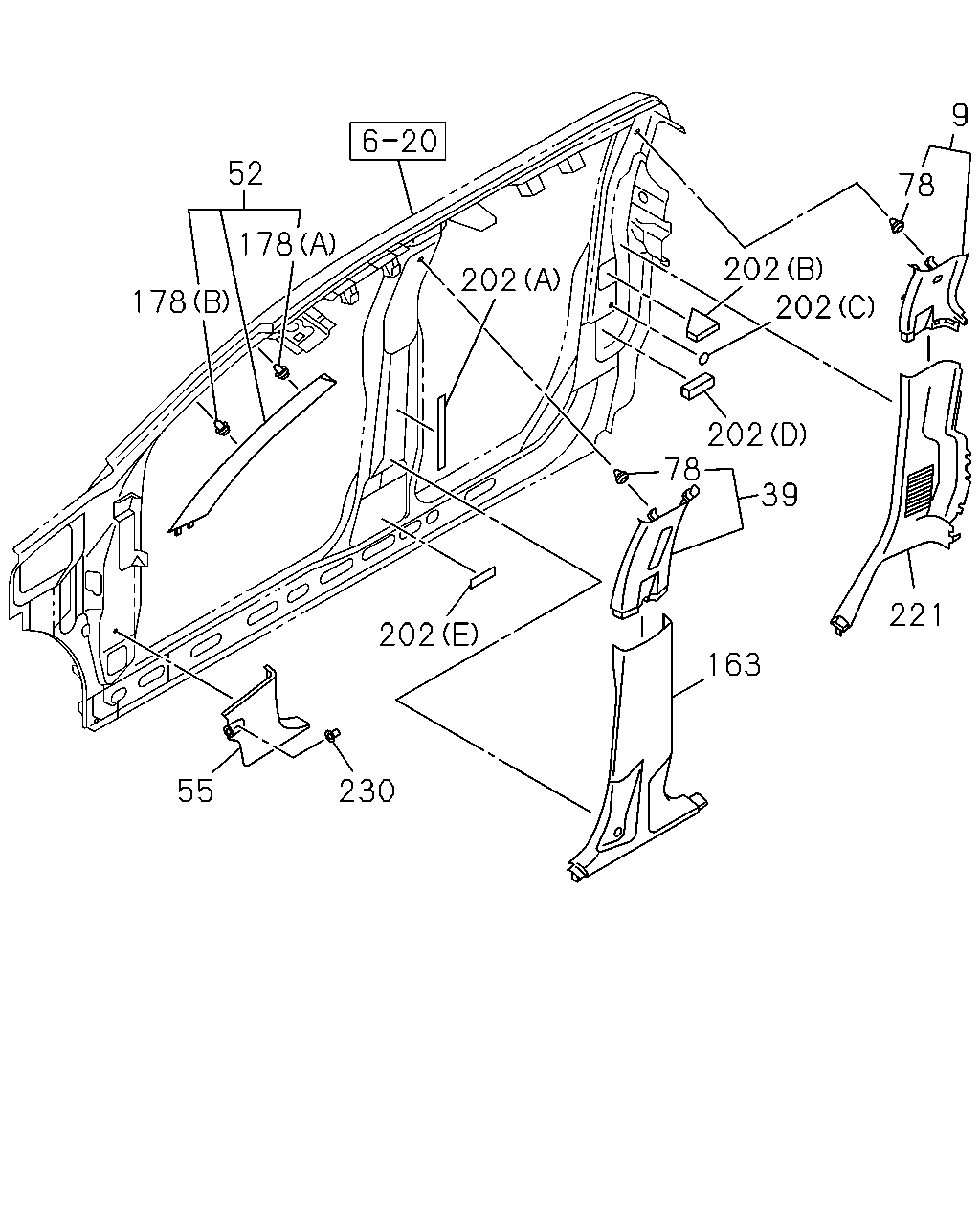

çizim 444392
221 39 202 78 163 202 202 78 9 202 202 230 55 178 178 52
BalonParca AdiParca NoAdetTipApplied Date A B
9 TRIM; SIDE PANEL,UPR
BLACK 		8-97416-969-0 01 1 1410- ● ●
9 TRIM; SIDE PANEL,UPR
BLACK 		8-97416-971-0 01 1 1410- ● ●
39 COVER; TRIM,CENTER PILLAR
GRAY 		8-97416-959-2 01 1 1410- ● ●
39 COVER; TRIM,CENTER PILLAR
GRAY 		8-97416-960-2 01 1 1410- ● ●
52 COVER; TRIM,FRT PILLAR
HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-679-2 01 1 1410- ●
52 COVER; TRIM,FRT PILLAR
GRAY 		8-97416-679-2 01 1 1410- ●
52 COVER; TRIM,FRT PILLAR
HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-680-2 01 1 1410- ●
52 COVER; TRIM,FRT PILLAR
GRAY 		8-97416-680-2 01 1 1410- ●
52 COVER; TRIM,FRT PILLAR
EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-677-2 01 1 1410- ●
52 COVER; TRIM,FRT PILLAR
EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-678-2 01 1 1410- ●
55 PAD; TRIM,DASH SIDE
BLACK 		8-97416-675-3 01 1 1410- ● ●
55 PAD; TRIM,DASH SIDE
BLACK 		8-97424-003-0 01 1 1410- ● ●
78 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 10 1 1410- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
BLACK 		8-97416-961-4 01 1 1410- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
BLACK 		8-97416-963-4 01 1 1410- ● ●
178 CLIP; TRIM COVER
(A) 		8-98166-326-0 02 1 1410- ● ●
178 CLIP; TRIM COVER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1410- ●
202 SEAL; CENTER PILLAR
(C) OD=25 BLACK CHI 		1-76798-019-0 02 1 1410- ● ●
202 SEAL; CENTER PILLAR
(E) 		8-97350-306-0 02 1 1410- ● ●
202 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 06 1 1410- ● ●
202 SEAL; CENTER PILLAR
(A) 		8-98179-381-3 02 1 1410- ● ●
202 SEAL; CENTER PILLAR
(B) 		8-98269-733-0 02 1 1410- ● ●
221 TRIM; SIDE PANEL,LOWER
BLACK 		8-97416-965-1 01 1 1410- ● ●
221 TRIM; SIDE PANEL,LOWER
BLACK 		8-97416-967-1 01 1 1410- ● ●
230 RETAINER; TRIM
BLACK 		8-97416-808-0 02 1 1410- ● ●
