6-35 — FRONT DOOR TRIM (#148815) — 21 parça

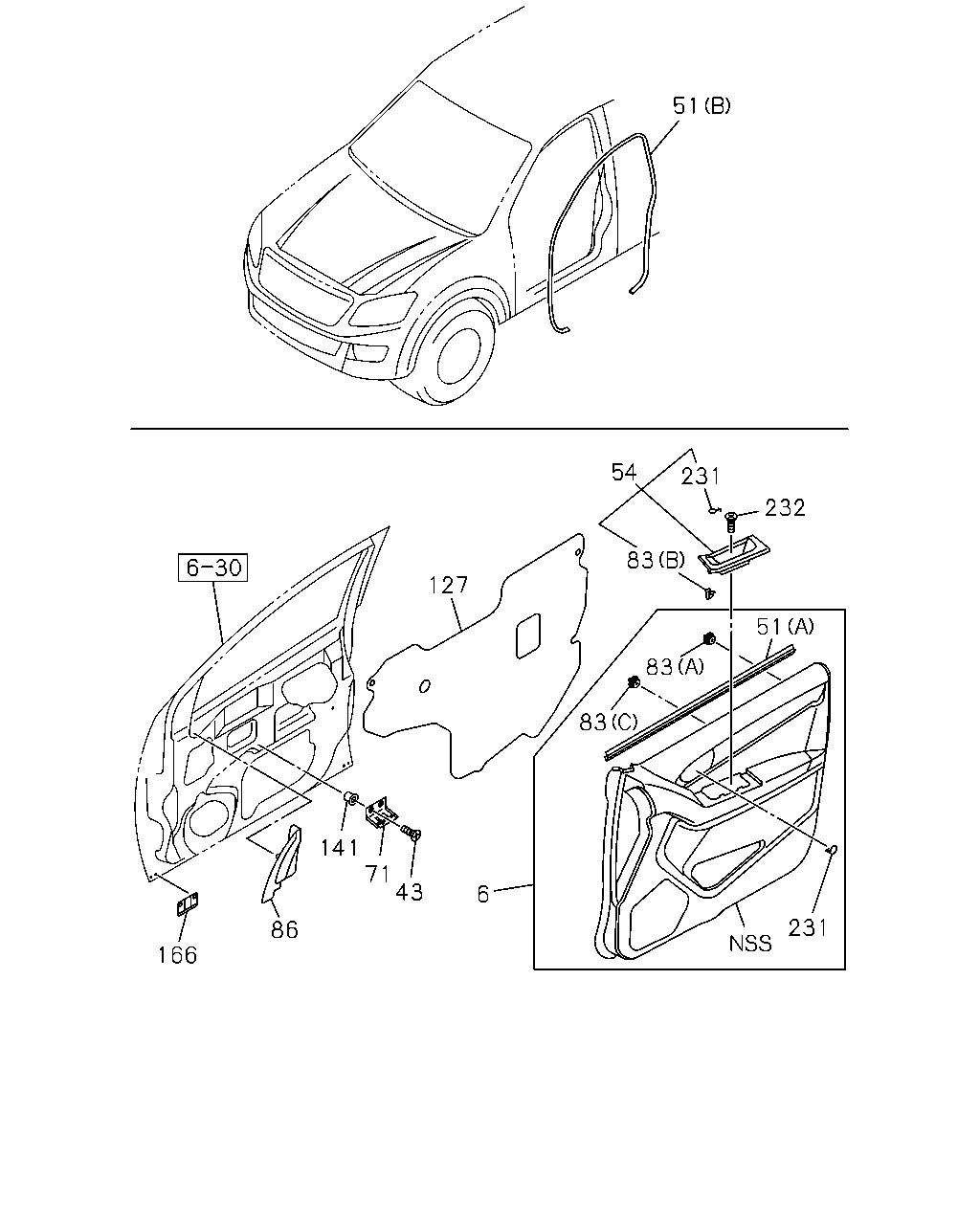

çizim 444211
51 54 231 83 232 51 83 83 231 127 141 71 43 86 166 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 TRIM; DOOR,UPR
BLACK 		8-97425-708-1 01 1 1410- ● ●
6 TRIM; DOOR,UPR
BLACK 		8-97425-712-1 01 1 1410- ● ●
43 SCREW; DOOR POCKET
M5X14 TAPPING 		8-98184-363-0 04 1 1410- ● ●
51 WEATHERSTRIP; FRONT DOOR
(A) 		8-98109-544-3 01 1 1410- ● ●
51 WEATHERSTRIP; FRONT DOOR
(A) 		8-98109-545-3 01 1 1410- ● ●
51 WEATHERSTRIP; FRONT DOOR
(B) 		8-98201-892-0 02 1 1410- ● ●
54 BOX; FRT DOOR
BLACK 		8-97416-750-1 01 1 1410- ● ●
54 BOX; FRT DOOR
BLACK 		8-97416-751-1 01 1 1410- ● ●
71 BRACKET; ARM REST 8-98102-215-2 02 1 1410- ● ●
83 CLIP; DOOR TRIM
(A) 		8-98160-729-0 16 1 1410- ● ●
83 CLIP; DOOR TRIM
(B) 		8-98164-677-0 02 1 1410- ● ●
83 CLIP; DOOR TRIM
(C) 		8-98166-326-0 02 1 1410- ● ●
86 COVER ASM; DOOR POCKET
BLACK 		8-97416-748-3 01 1 1410- ● ●
86 COVER ASM; DOOR POCKET
BLACK 		8-97416-749-3 01 1 1410- ● ●
127 SEAL; DOOR INNER 8-98192-454-1 01 1 1410- ● ●
127 SEAL; DOOR INNER 8-98192-455-1 01 1 1410- ● ●
141 GROMMET; SCREW,LWR COVER 8-94152-494-0 04 1 1410- ● ●
166 PLUG; HOLE 8-98197-448-0 04 1 1410- ● ●
231 COVER; HOLDER,BOLT
BLACK 		8-97416-610-0 02 1 1410- ● ●
231 COVER; HOLDER,BOLT
BLACK 		8-97416-610-0 02 1 1410- ● ●
232 BOLT; DOOR TRIM
M5X14 TAPPING 		8-98184-363-0 02 1 1410- ● ●
