◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#148814) — 40 parça
çizim 444130
12 79 51 36 11 12 175 176 175 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 LOCK; DOOR,FRT DOOR 8-98231-762-1 01 1 1410- ● ●
8 LOCK; DOOR,FRT DOOR 8-98231-764-1 01 1 1410- ● ●
11 ACTUATOR; DOOR LK,FRT 8-97349-993-0 01 1 1410-1502 ● ●
11 ACTUATOR; DOOR LK,FRT 8-98292-012-0 01 1 1503- ● ●
11 ACTUATOR; DOOR LK,FRT 8-97351-085-0 01 1 1410-1502 ● ●
11 ACTUATOR; DOOR LK,FRT 8-98292-011-0 01 1 1503- ● ●
12 SCREW; DOOR LK
(B) 		8-97349-997-0 04 1 1410- ● ●
12 SCREW; DOOR LK
(A) M6X14.5 		8-98004-342-0 06 1 1410- ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-98193-692-0 01 1 1410- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97349-985-0 01 1 1410- ● ●
79 BOLT; DOOR LK ACTUATOR
M6X8 FLANGE 		8-98048-996-0 02 1 1410- ● ●
175 CABLE ASM; LOCK CONTROL
(A) 		8-97349-988-0 01 1 1410-1502 ● ●
175 CABLE ASM; LOCK CONTROL
(A) 		8-98193-690-0 01 1 1503- ● ●
175 CABLE ASM; LOCK CONTROL
(A) 		8-98193-688-0 01 1 1410- ● ●
175 CABLE ASM; LOCK CONTROL
(B) 		8-98193-689-0 01 1 1410- ● ●
175 CABLE ASM; LOCK CONTROL
(B) 		8-98193-691-0 01 1 1410- ● ●
176 COVER; DOOR LOCK 8-97349-991-0 01 1 1410- ● ●
176 COVER; DOOR LOCK 8-97349-992-0 01 1 1410- ● ●

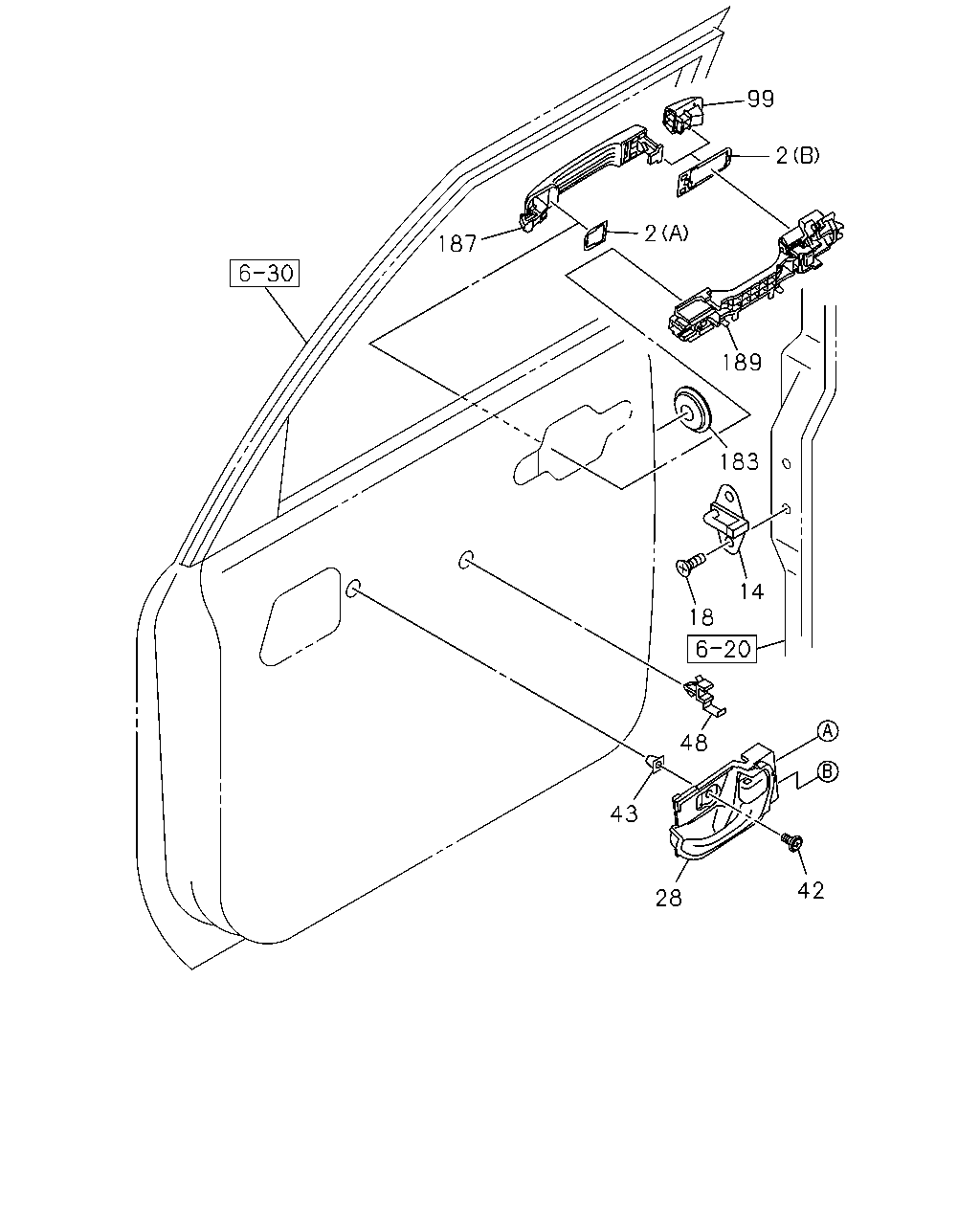

çizim 444209
99 2 2 187 183 189 14 18 48 43 28 42
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET; OUTSIDE HANDLE,DOOR
(A) 		8-98176-466-0 02 1 1410- ● ●
2 GASKET; OUTSIDE HANDLE,DOOR
(B) 		8-98176-467-2 02 1 1410- ● ●
14 STRIKER; FRT DOOR 8-98012-203-0 02 1 1410- ● ●
18 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 1410- ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK 		8-97416-730-3 01 1 1410- ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK 		8-97416-732-3 01 1 1410- ● ●
42 SCREW; TAPPING,INSIDE LEVER
M5X14 TAPPING 		8-98184-363-0 02 1 1410- ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR 8-94152-494-0 02 1 1410- ● ●
48 ANTIRATTLER; DOOR LINK 8-97251-932-0 02 1 1410- ● ●
99 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR BODY COLOR<D75> KD-PAINT LESS SUPPLY<7TV> 		8-98201-400-0 01 1 1410- ● ●
99 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR BODY COLOR<D75> KD-PAINT LESS SUPPLY<7TV> 		8-98201-401-0 01 1 1410- ● ●
99 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PAINT LESS SUPPLY<7TV> WHITE 		8-97422-450-1 01 1 1410- ● ●
99 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PAINT LESS SUPPLY<7TV> WHITE 		8-97422-463-1 01 1 1410- ● ●
99 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR CHROME<E20> PLATED 		8-98176-462-1 01 1 1410- ● ●
99 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR CHROME<E20> PLATED 		8-98176-465-1 01 1 1410- ● ●
183 GROMMET
OD=26 		8-94141-484-0 02 1 1410-1506 ● ●
183 GROMMET
OD=26 		8-94141-484-0 02 1 1507- ● ●
187 GRIP; FRT DOOR
HANDLE O/S DOOR BODY COLOR<D75> KD-PAINT LESS SUPPLY<7TV> 		8-98201-399-0 02 1 1410- ● ●
187 GRIP; FRT DOOR
HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PAINT LESS SUPPLY<7TV> WHITE 		8-97422-436-0 02 1 1410- ● ●
187 GRIP; FRT DOOR
HANDLE O/S DOOR CHROME<E20> PLATED 		8-98176-458-0 02 1 1410- ● ●
189 BRACKET; GRIP,DOOR 8-98176-469-4 01 1 1410- ● ●
189 BRACKET; GRIP,DOOR 8-98176-471-4 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
