6-20 — SIDE PANEL AND STEP (#148811) — 85 parça

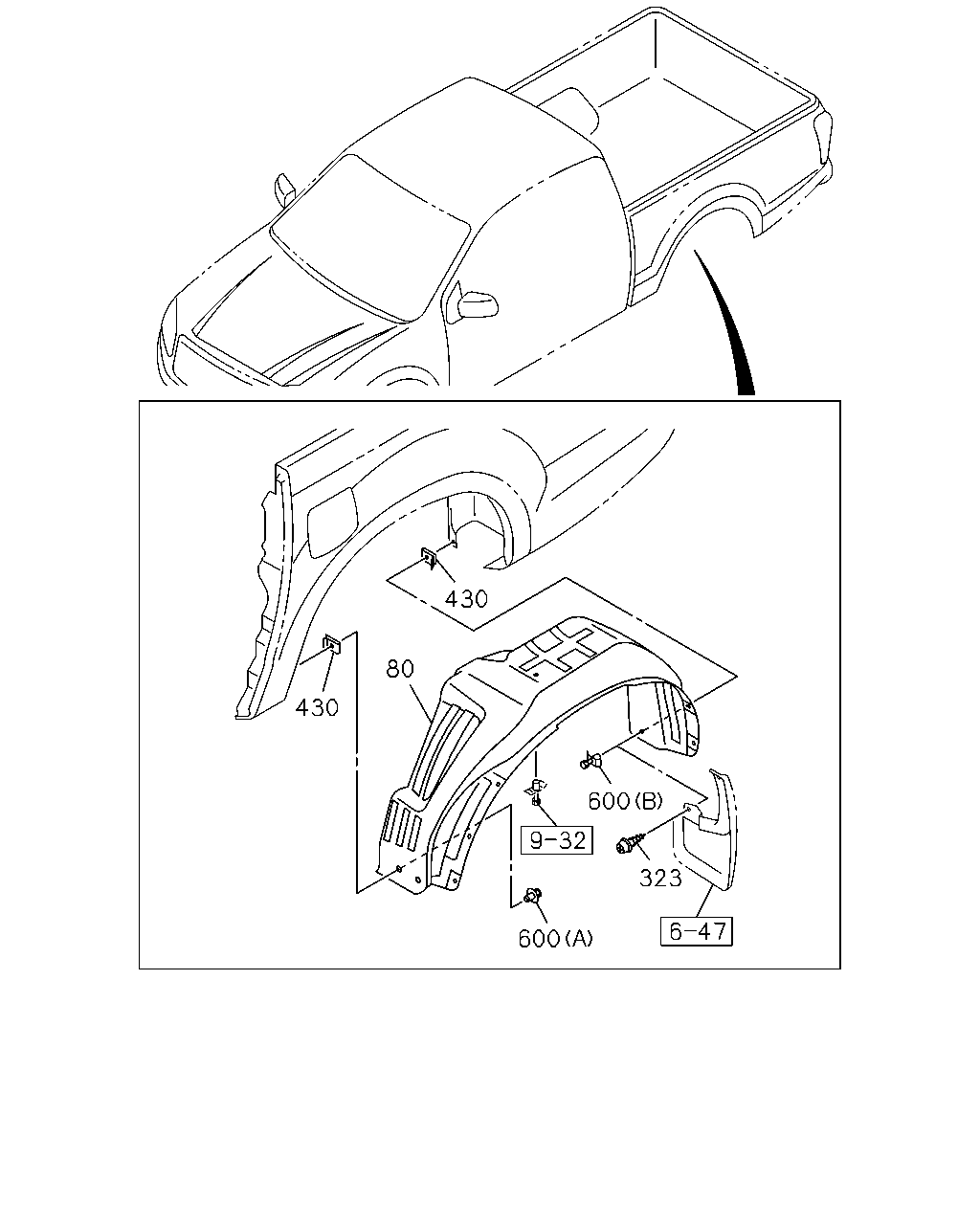

çizim 443848
323 600 600 80 430 430
BalonParca AdiParca NoAdetTipApplied Date A B
80 PANEL; WHEEL HOUSE,INNER
HIGH RIDE SUSPENSION(7YC) 		8-98101-945-5 01 1 1410- ●
80 PANEL; WHEEL HOUSE,INNER 8-98101-945-5 01 1 1410- ●
80 PANEL; WHEEL HOUSE,INNER
HIGH RIDE SUSPENSION(7YC) 		8-98101-946-5 01 1 1410- ●
80 PANEL; WHEEL HOUSE,INNER 8-98101-946-5 01 1 1410- ●
80 PANEL; WHEEL HOUSE,INNER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-943-4 01 1 1410- ●
80 PANEL; WHEEL HOUSE,INNER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-944-4 01 1 1410- ●
323 SCREW; SET
FORMED MUD FLAP FRT & RR<Q8H> M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1410- ● ●
323 SCREW; SET
HIGH RIDE SUSPENSION(7YC) M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1410- ●
323 SCREW; SET
M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1410- ●
430 NUT; PANEL
FORMED MUD FLAP FRT & RR<Q8H> 		8-97125-519-0 06 1 1410- ● ●
430 NUT; PANEL
HIGH RIDE SUSPENSION(7YC) 		8-97125-519-0 02 1 1410- ●
430 NUT; PANEL 8-97125-519-0 02 1 1410- ●
600 RIVET; EXTENSION
(A) 		8-98186-355-0 04 1 1410- ● ●
600 RIVET; EXTENSION
EXC. FORMED MUD FLAP FRT & RR<Q8H> (B) 		8-94221-150-0 06 1 1410- ● ●
600 RIVET; EXTENSION
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-94221-150-0 02 1 1410- ●

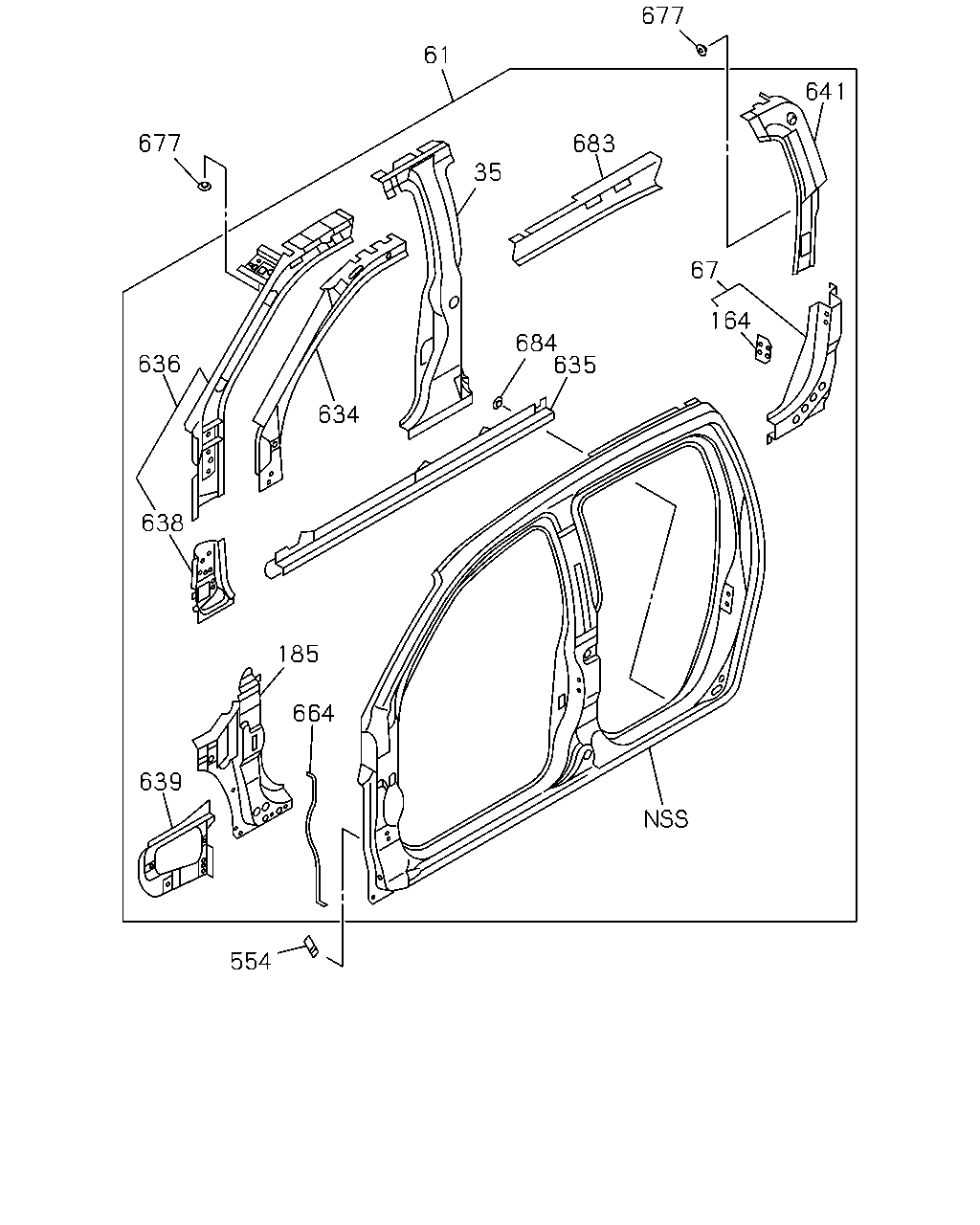

çizim 444115
677 641 683 35 67 164 635 684 634 636 638 185 664 639 554 677 61
BalonParca AdiParca NoAdetTipApplied Date A B
35 PANEL; CENTER PILLAR,INNER 8-98104-766-7 01 1 1410- ● ●
35 PANEL; CENTER PILLAR,INNER 8-98104-767-8 01 1 1410- ● ●
61 PANEL; SIDE OUTER 8-98160-827-6 01 1 1410- ● ●
61 PANEL; SIDE OUTER 8-98160-834-6 01 1 1410- ● ●
67 PANEL; INNER,RR PILLAR LWR 8-98104-786-6 01 1 1410- ● ●
67 PANEL; INNER,RR PILLAR LWR 8-98104-787-6 01 1 1410- ● ●
164 PLATE; SIDE PNL OUTER 8-93297-532-1 01 1 1410- ● ●
164 PLATE; SIDE PNL OUTER 8-93297-532-1 01 1 1410- ● ●
185 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1410- ● ●
185 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1410- ● ●
554 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1410-1506 ● ●
634 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1410- ● ●
634 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1410- ● ●
635 REINFORCEMENT; ROCKER 8-98161-050-2 01 1 1410- ● ●
635 REINFORCEMENT; ROCKER 8-98161-051-2 01 1 1410- ● ●
636 PANEL; FRONT PILLAR INNER 8-98161-088-7 01 1 1410- ● ●
636 PANEL; FRONT PILLAR INNER 8-98161-091-7 01 1 1410- ● ●
638 PANEL; DASH SIDE INNER 8-98137-490-4 01 1 1410- ● ●
638 PANEL; DASH SIDE INNER 8-98137-491-4 01 1 1410- ● ●
639 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1410- ● ●
639 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1410- ● ●
641 PANEL; BACK BODY PILLER 8-98121-123-6 01 1 1410- ● ●
641 PANEL; BACK BODY PILLER 8-98121-124-6 01 1 1410- ● ●
664 SEAL; TAPE 8-98193-408-2 01 1 1410- ● ●
664 SEAL; TAPE 8-98193-408-2 01 1 1410- ● ●
677 RIVET; PANEL 8-98057-864-0 16 1 1410- ● ●
683 PANEL; HEADER 8-98161-123-2 01 1 1410- ● ●
683 PANEL; HEADER 8-98161-127-2 01 1 1410- ● ●
684 FASTENER 8-98057-864-0 10 1 1410- ● ●
684 FASTENER 8-98057-864-0 10 1 1410- ● ●

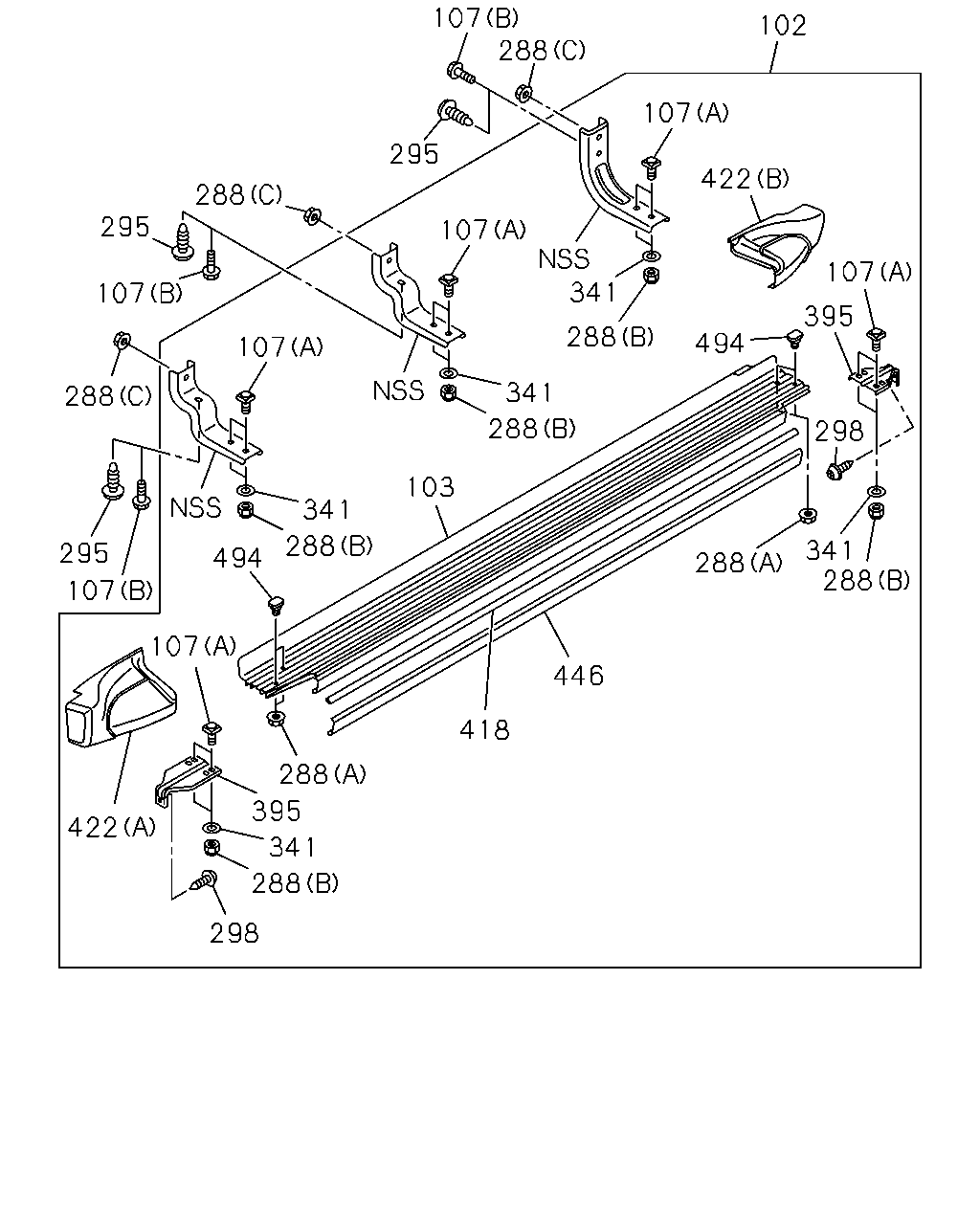

çizim 444148
102 107 422 107 395 298 494 341 288 288 288 341 288 341 288 107 295 107 288 295 107 107 288 295 107 494 341 103 288 446 418 288 395 341 288 298 422 107
BalonParca AdiParca NoAdetTipApplied Date A B
102 STEP; BODY SIDE
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) SILVER 		8-98101-321-5 01 1 1410- ●
102 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-321-5 01 1 1410- ●
102 STEP; BODY SIDE
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) SILVER 		8-98101-322-5 01 1 1410- ●
102 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-322-5 01 1 1410- ●
103 PLATE; STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) 		8-98292-968-0 01 1 1410- ●
103 PLATE; STEP
SIDE STEP<6TC> 		8-98292-968-0 01 1 1410- ●
103 PLATE; STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) 		8-98292-969-0 01 1 1410- ●
103 PLATE; STEP
SIDE STEP<6TC> 		8-98292-969-0 01 1 1410- ●
107 BOLT; SIDE STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) (A) 		8-98251-460-0 20 1 1410- ●
107 BOLT; SIDE STEP
SIDE STEP<6TC> (A) 		8-98251-460-0 20 1 1410- ●
107 BOLT; SIDE STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) (B) M8X25 FLANGE 		8-98048-998-0 06 1 1410- ●
107 BOLT; SIDE STEP
SIDE STEP<6TC> (B) M8X25 FLANGE 		8-98048-998-0 06 1 1410- ●
288 NUT; STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) (A) M6 FLANGE 		0-91180-106-0 08 1 1410- ●
288 NUT; STEP
SIDE STEP<6TC> (A) M6 FLANGE 		0-91180-106-0 08 1 1410- ●
288 NUT; STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) (B) M8 FLANGE 		0-91180-108-0 20 1 1410- ●
288 NUT; STEP
SIDE STEP<6TC> (B) M8 FLANGE 		0-91180-108-0 20 1 1410- ●
288 NUT; STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) (C) M8 FLANGE CHI 		0-91180-208-0 06 1 1410- ●
288 NUT; STEP
SIDE STEP<6TC> (C) M8 FLANGE CHI 		0-91180-208-0 06 1 1410- ●
295 CLIP; BODY SIDE STEP
EXC. SIDE STEP<6TC> OD=18 CHI 		8-94269-290-0 06 1 1410- ● ●
295 CLIP; BODY SIDE STEP
SIDE STEP<6TC> EXC. HIGH RIDE SUSPENSION(7YC) OD=18 CHI 		8-94269-290-0 06 1 1410- ●
298 SCREW; SIDE STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) M5X16 		8-98073-081-0 04 1 1410- ●
298 SCREW; SIDE STEP
SIDE STEP<6TC> M5X16 		8-98073-081-0 04 1 1410- ●
341 WASHER; PL,STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) ID=8.4 OD=18 CHI 		0-91614-608-0 20 1 1410- ●
341 WASHER; PL,STEP
SIDE STEP<6TC> ID=8.4 OD=18 CHI 		0-91614-608-0 20 1 1410- ●
395 BRACKET; SIDE STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) 		8-98292-978-0 04 1 1410- ●
395 BRACKET; SIDE STEP
SIDE STEP<6TC> 		8-98292-978-0 04 1 1410- ●
418 RUBBER; STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) 		8-98293-008-0 02 1 1410- ●
418 RUBBER; STEP
SIDE STEP<6TC> 		8-98293-008-0 02 1 1410- ●
422 COVER; SIDE STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) (A) FRONT SILVER 		8-97466-036-1 01 1 1410- ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (A) FRONT SILVER 		8-97466-036-1 01 1 1410- ●
422 COVER; SIDE STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) (A) FRONT SILVER 		8-97466-042-1 01 1 1410- ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (A) FRONT SILVER 		8-97466-042-1 01 1 1410- ●
422 COVER; SIDE STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) (B) REAR SILVER 		8-97466-046-1 01 1 1410- ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (B) REAR SILVER 		8-97466-046-1 01 1 1410- ●
422 COVER; SIDE STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) (B) REAR SILVER 		8-97466-050-1 01 1 1410- ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (B) REAR SILVER 		8-97466-050-1 01 1 1410- ●
446 FINISHER; STEP
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) SILVER 		8-97466-048-0 02 1 1410- ●
446 FINISHER; STEP
SIDE STEP<6TC> SILVER 		8-97466-048-0 02 1 1410- ●
494 STUD; BRKT
SIDE STEP<6TC> HIGH RIDE SUSPENSION(7YC) 		8-98056-035-0 08 1 1410- ●
494 STUD; BRKT
SIDE STEP<6TC> 		8-98056-035-0 08 1 1410- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
