6-10 — ENGINE HOOD AND LOCK (#148809) — 26 parça

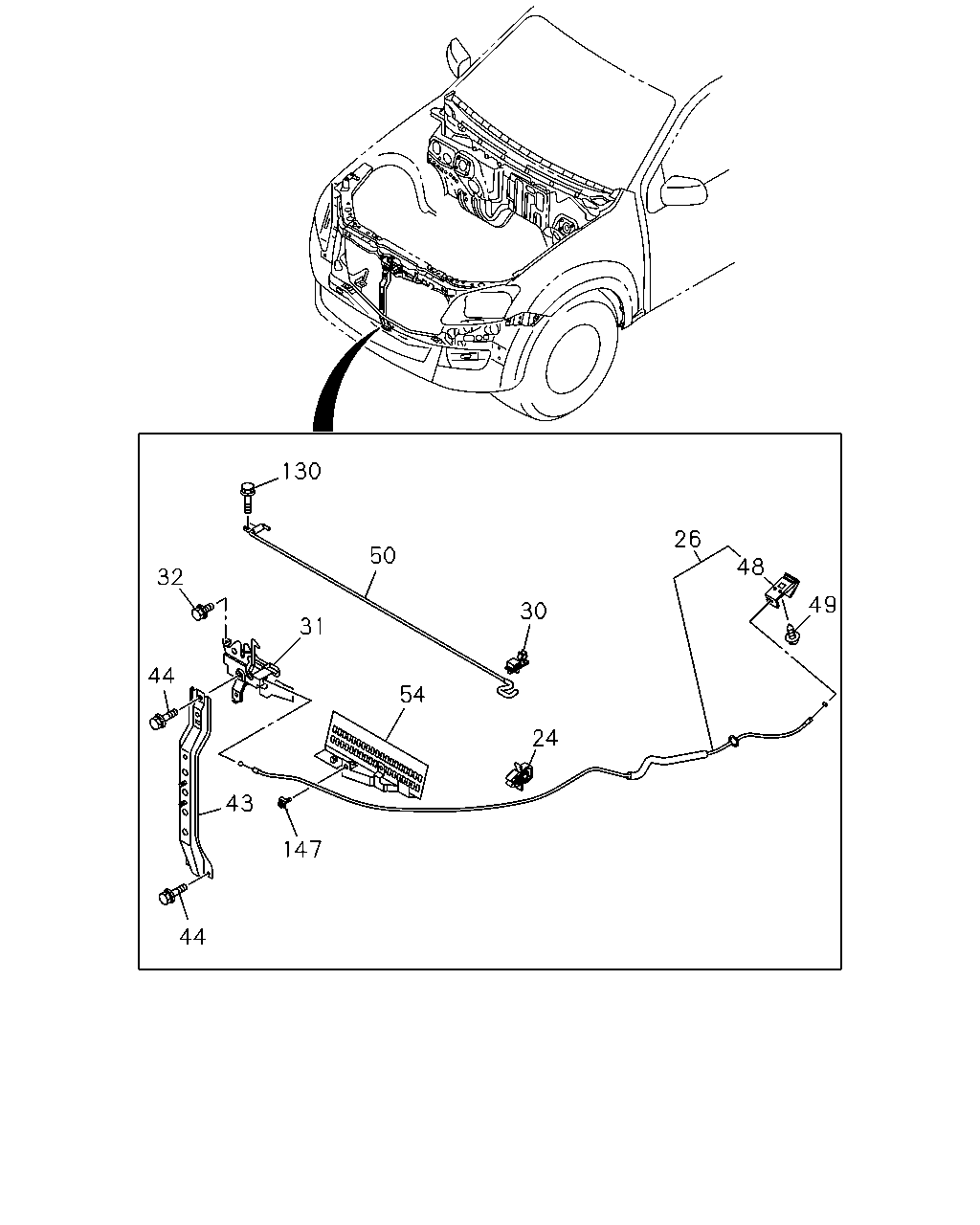

147 44 43 54 24 49 48 26 30 50 130 31 32 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; CONT CABLE	8-97182-405-0	04	1	1410-	●	●
26	CABLE; ENG HOOD CONT	8-98071-760-1	01	1	1410-	●	●
30	CLIP; SUPPORT ROD,HOOD	8-97301-356-0	01	1	1410-	●	●
31	LOCK; ENG HOOD	8-98074-563-4	01	1	1410-	●	●
32	BOLT; HOOD LK M6X20 W/PL WASHER	8-97370-668-0	02	1	1410-	●	●
43	STAY; ENG HOOD,FRT END	8-98165-341-0	01	1	1410-	●	●
44	BOLT; STAY,HOOD M6X20 W/PL WASHER	8-97370-668-0	04	1	1410-	●	●
48	LEVER; ENG HOOD	8-98204-979-0	01	1	1410-	●	●
49	SCREW; LEVER,ENG HOOD OPENER M5X16 TAPPING	8-98167-449-0	02	1	1410-	●	●
50	ROD; SUPPORT,ENG HOOD	8-98101-948-1	01	1	1410-	●	●
54	PROTECTOR; ENG HOOD CABLE	8-98160-812-2	01	1	1410-	●	●
130	BOLT; SUPPORT ROD,HOOD M6X25 FLANGE	0-28650-625-0	01	1	1410-	●	●
147	CLIP; COVER	8-94221-150-0	02	1	1410-	●	●

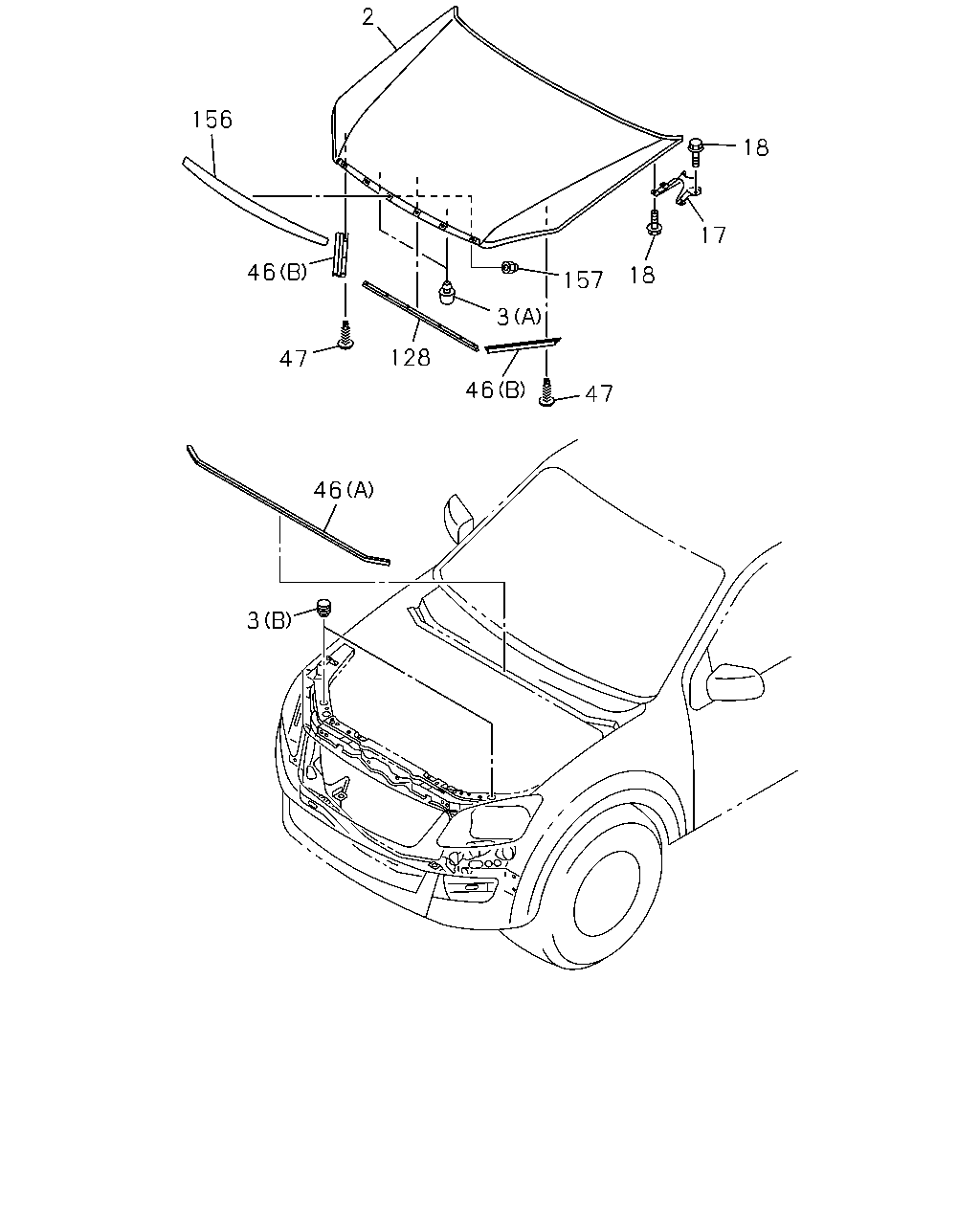

18 17 18 157 3 46 47 128 47 46 156 2 3 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	PANEL; ENG HOOD	8-98193-818-0	01	1	1410-	●	●
3	BUFFER; ENG HOOD,FRT (A)	8-97948-266-0	02	1	1410-	●	●
3	BUFFER; ENG HOOD,FRT (B)	8-98195-454-0	02	1	1410-	●	●
17	HINGE; ENG HOOD	8-98104-099-2	01	1	1410-	●	●
17	HINGE; ENG HOOD	8-98104-100-2	01	1	1410-	●	●
18	BOLT; HINGE M8X16	8-98056-122-0	08	1	1410-	●	●
46	SEAL; ENG HOOD (A)	8-98065-805-1	01	1	1410-	●	●
46	SEAL; ENG HOOD (B)	8-98160-815-1	01	1	1410-	●	●
46	SEAL; ENG HOOD (B)	8-98165-802-1	01	1	1410-	●	●
47	CLIP; HOOD SEAL OD=12 L=14.8 CHI	8-94279-921-0	06	1	1410-	●	●
128	SEAL; PLATFORM	8-98102-230-0	01	1	1410-	●	●
156	MOLDING; HOOD PLATED	8-98269-566-0	01	1	1410-	●	●
157	NUT; MOLDING M6 CAP NUT	8-98049-850-0	06	1	1410-	●	●
