6-03 — RADIATOR GRILLE (#148806) — 17 parça

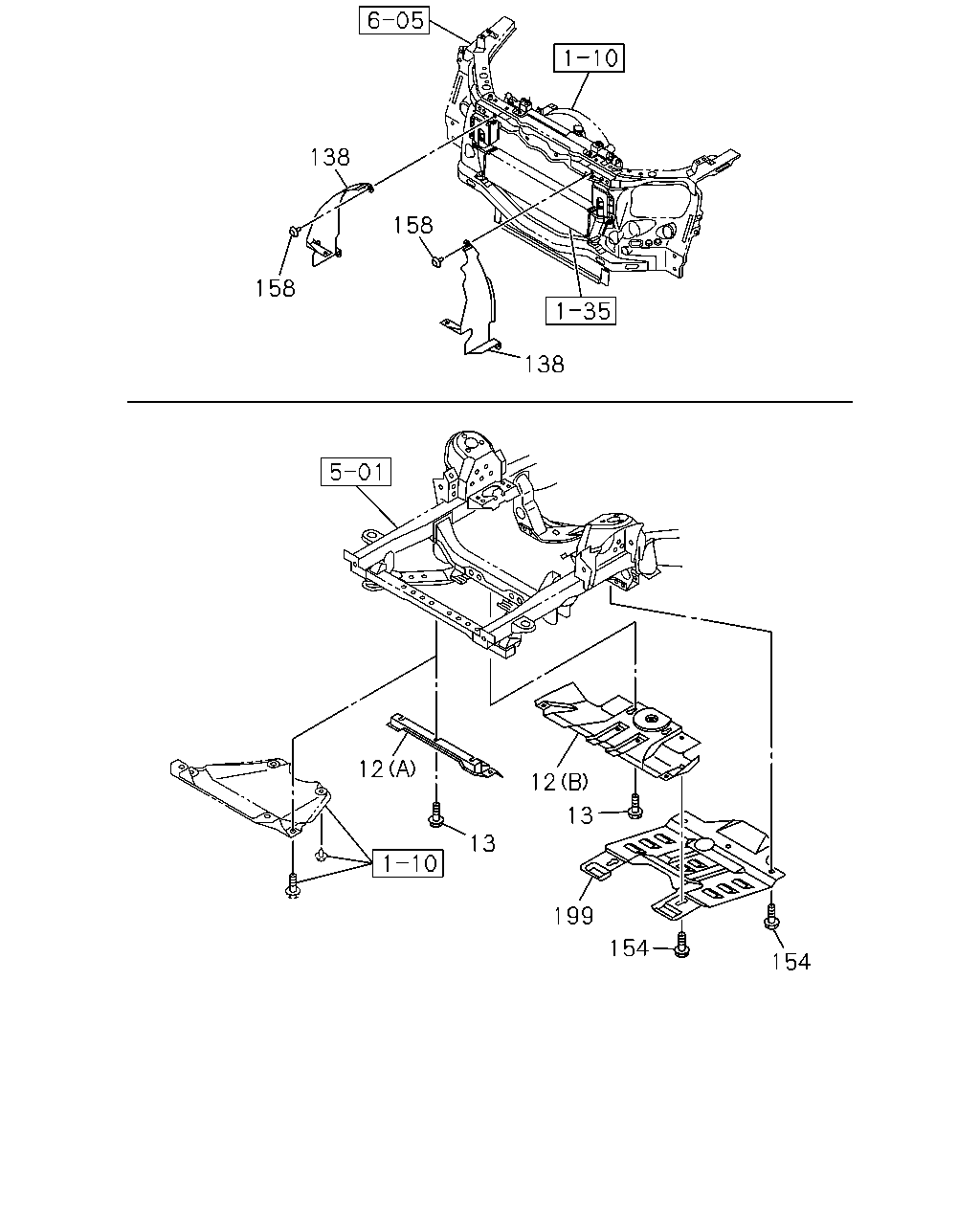

çizim 443392
138 158 138 158 12 13 12 13 199 154 154
BalonParca AdiParca NoAdetTipApplied Date A B
12 PLATE; SKID,RAD
(A) 		8-98102-129-1 01 1 1410- ●
12 PLATE; SKID,RAD
(B) 		8-98229-406-0 01 1 1410- ●
13 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1410- ●
138 GUIDE; AIR 8-98137-586-1 01 1 1410- ● ●
138 GUIDE; AIR 8-98137-587-1 01 1 1410- ● ●
154 BOLT; COVER
M12X25 FLANGE 		8-98230-015-0 04 1 1410- ●
158 CLIP; PROTECTOR
OD=22 L=10.7 CHI 		8-94215-211-0 06 1 1410- ● ●
199 PLATE; OIL PAN 8-98229-404-0 01 1 1410- ●

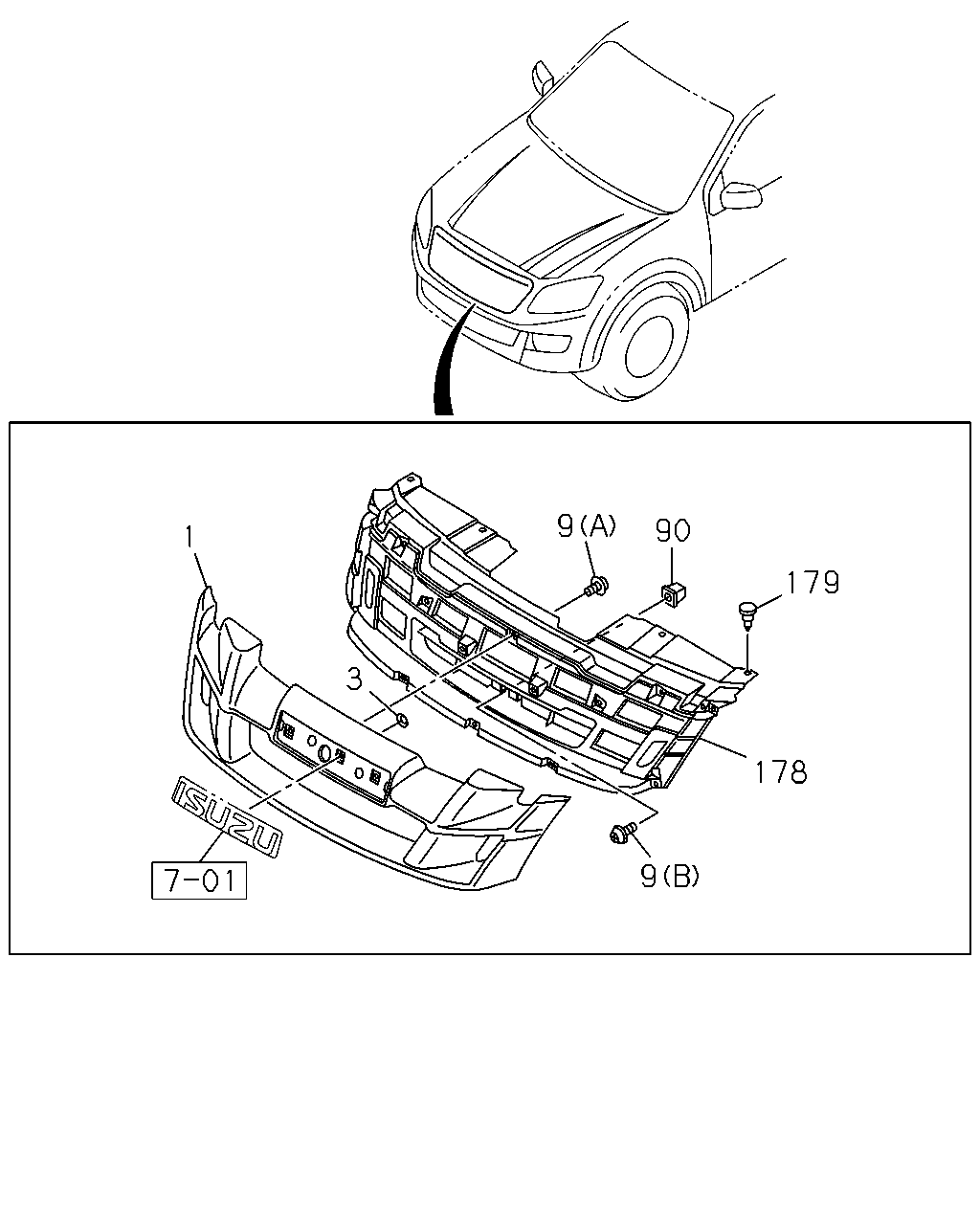

çizim 443662
9 1 3 90 179 178 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> KD-PAINT LESS SUPPLY<7TV> 		8-98193-867-0 01 1 1410- ● ●
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> EXC. KD-PAINT LESS SUPPLY<7TV> PLEASE PAINT TO MATCH BODY COLOR 		8-98196-514-1 01 1 1410- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98193-869-0 01 1 1410- ● ●
3 CLIP; GRILLE 8-98211-687-0 03 1 1410- ● ●
9 SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 12 1 1410- ● ●
9 SCREW; RAD GRILLE
(B) M5X16 		8-98167-352-0 01 1 1410- ● ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 CHI 		8-94291-927-0 01 1 1410- ● ●
178 GRILLE; INNER,RAD 8-98193-871-0 01 1 1410- ● ●
179 RETAINER; GRILLE,RAD 8-97301-188-0 04 1 1410- ● ●
