◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#148805) — 53 parça

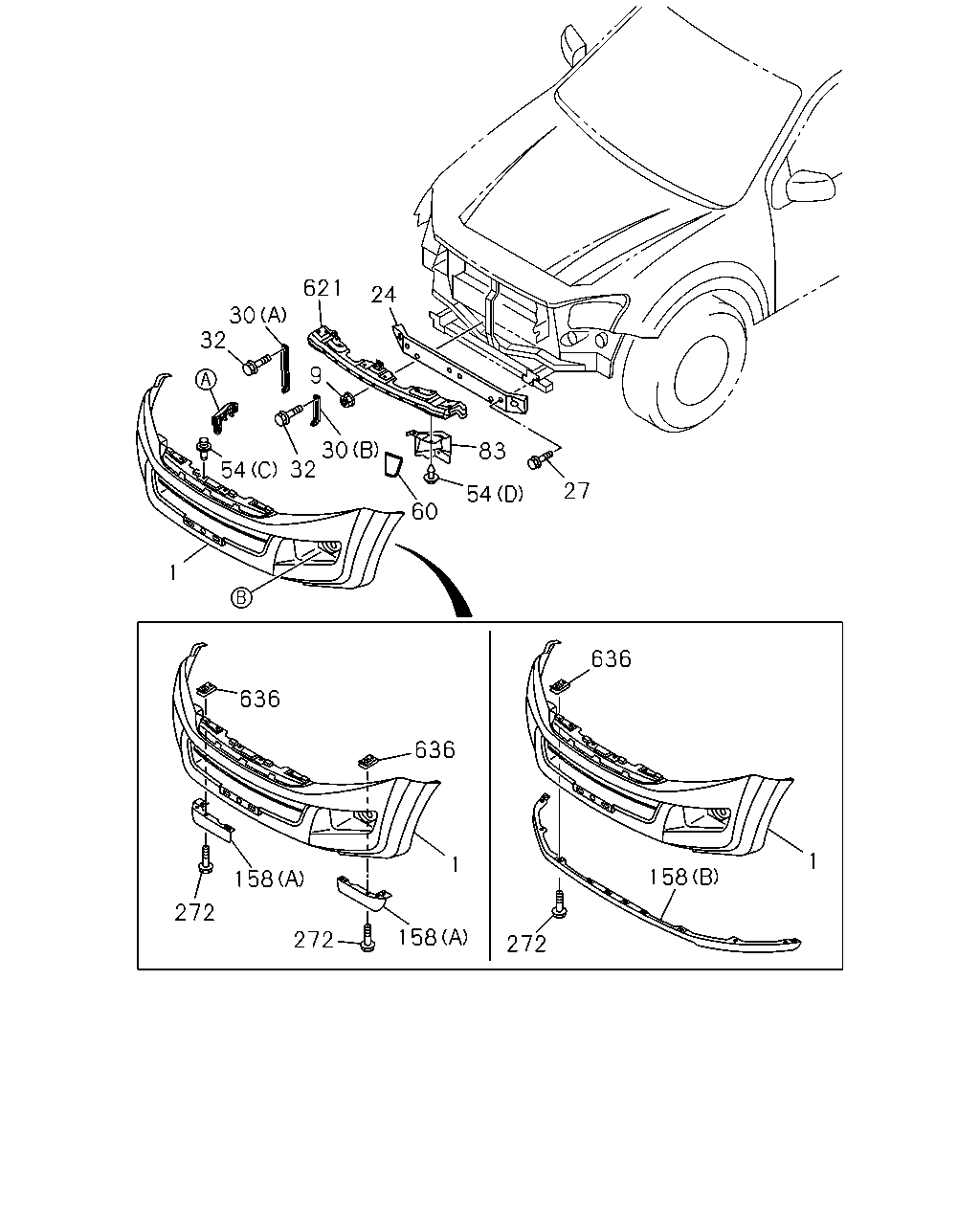

çizim 443455
621 30 24 32 32 9 30 54 83 60 27 54 636 1 636 1 158 272 272 158 272 158 636 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. KD-PAINT LESS SUPPLY<7TV> PRIMER 		8-98196-573-2 01 1 1410- ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) EXC. KD-PAINT LESS SUPPLY<7TV> PRIMER 		8-98196-573-2 01 1 1410- ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) EXC. KD-PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-570-2 01 1 1410- ●
1 BUMPER ASM; FRT
KD-PAINT LESS SUPPLY<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-447-2 01 1 1410- ●
1 BUMPER ASM; FRT
HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4),KD-PAINT LESS SUPPLY<7TV> 		8-98193-447-2 01 1 1410- ●
1 BUMPER ASM; FRT
KD-PAINT LESS SUPPLY<7TV> 		8-98193-447-2 01 1 1410- ●
1 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4),KD-PAINT LESS SUPPLY<7TV> 		8-98193-447-2 01 1 1410- ●
1 BUMPER ASM; FRT
KD-PAINT LESS SUPPLY<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1410- ●
1 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4),KD-PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1410- ●
9 NUT; REINF,FRT BUMPER
M6 FLANGE 		0-91180-106-0 06 1 1410- ● ●
24 BAR; FRT BUMPER 8-98165-112-1 01 1 1410- ● ●
27 BOLT; BUMPER TO BACK BAR
M10X25 FLANGE 		0-28661-025-0 04 1 1410- ● ●
30 BRACKET; FRT BUMPER
(A) 		8-98087-391-2 02 1 1410- ● ●
30 BRACKET; FRT BUMPER
(B) 		8-98087-392-0 02 1 1410- ● ●
32 BOLT; BRKT,BUMPER
M6X16 FLANGE 		0-28650-616-0 06 1 1410- ● ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-258-4 01 1 1410- ●
54 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1410- ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-259-4 01 1 1410- ●
54 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1410- ●
54 RETAINER; FRT BUMPER
(C) 		8-97301-188-0 10 1 1410- ● ●
54 RETAINER; FRT BUMPER
(D) 		8-98050-462-0 06 1 1410- ● ●
54 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-256-3 01 1 1410- ●
54 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-257-3 01 1 1410- ●
60 SPACER; FRT BUMPER 8-98140-340-1 01 1 1410- ● ●
83 GUIDE; AIR,FRT BUMPER 8-98139-694-0 01 1 1410- ● ●
83 GUIDE; AIR,FRT BUMPER 8-98139-695-0 01 1 1410- ● ●
158 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98101-950-0 01 1 1410- ●
158 EXTENSION; FRT BUMPER
(A) 		8-98101-950-0 01 1 1410- ●
158 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98101-951-0 01 1 1410- ●
158 EXTENSION; FRT BUMPER
(A) 		8-98101-951-0 01 1 1410- ●
158 EXTENSION; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-823-1 01 1 1410- ●
272 BOLT; BUMPER TO EXT
HIGH RIDE SUSPENSION(7YC) M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1410- ●
272 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1410- ●
272 BOLT; BUMPER TO EXT
EXC. HIGH RIDE SUSPENSION(7YC) M6X15 TAPPING W/PL WASHER 		8-98164-799-0 10 1 1410- ●
621 SUPPORT; FRT BUMPER 8-98087-390-1 01 1 1410- ● ●
636 NUT; EXT,FRT BUMPER
HIGH RIDE SUSPENSION(7YC) 		8-98072-786-0 04 1 1410- ●
636 NUT; EXT,FRT BUMPER 8-98072-786-0 04 1 1410- ●
636 NUT; EXT,FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98072-786-0 10 1 1410- ●

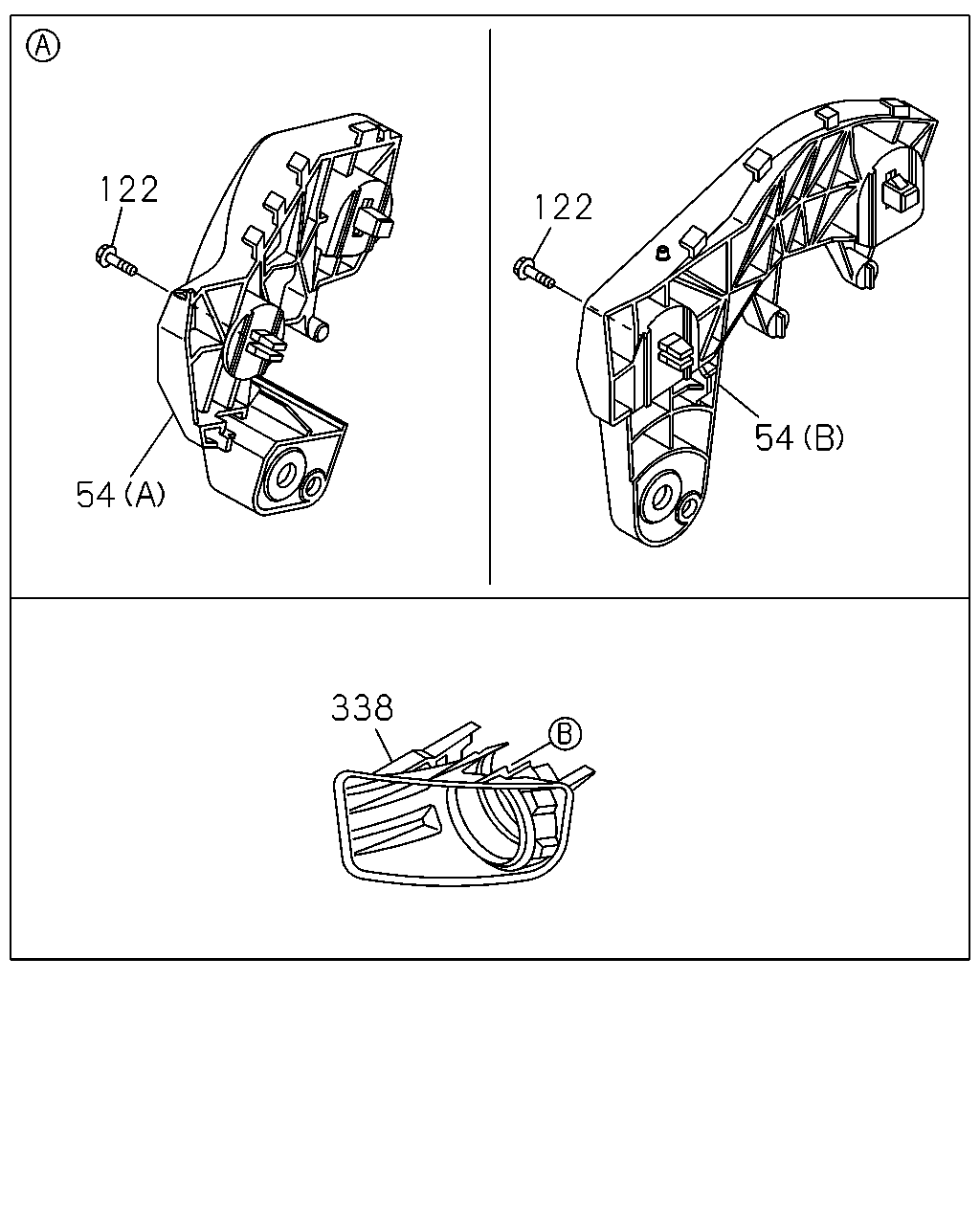

çizim 443468
122 54 122 54 338
BalonParca AdiParca NoAdetTipApplied Date A B
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-258-4 01 1 1410- ●
54 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1410- ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-259-4 01 1 1410- ●
54 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1410- ●
54 RETAINER; FRT BUMPER
(C) 		8-97301-188-0 10 1 1410- ● ●
54 RETAINER; FRT BUMPER
(D) 		8-98050-462-0 06 1 1410- ● ●
54 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-256-3 01 1 1410- ●
54 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-257-3 01 1 1410- ●
122 BOLT; RET,FRT BUMPER
M6X16 TAPPING W/PL WASHER 		0-74160-616-0 02 1 1410- ● ●
338 BEZEL; FOG LAMP 8-98099-824-1 01 1 1410-1506 ● ●
338 BEZEL; FOG LAMP
FOG LAMP<T96> 		8-98099-824-1 01 1 1507- ●
338 BEZEL; FOG LAMP 8-98099-824-1 01 1 1507- ●
338 BEZEL; FOG LAMP 8-98099-825-1 01 1 1410-1506 ● ●
338 BEZEL; FOG LAMP
FOG LAMP<T96> 		8-98099-825-1 01 1 1507- ●
338 BEZEL; FOG LAMP 8-98099-825-1 01 1 1507- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
