◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10633 - FVZ-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#1488) — 12 parça

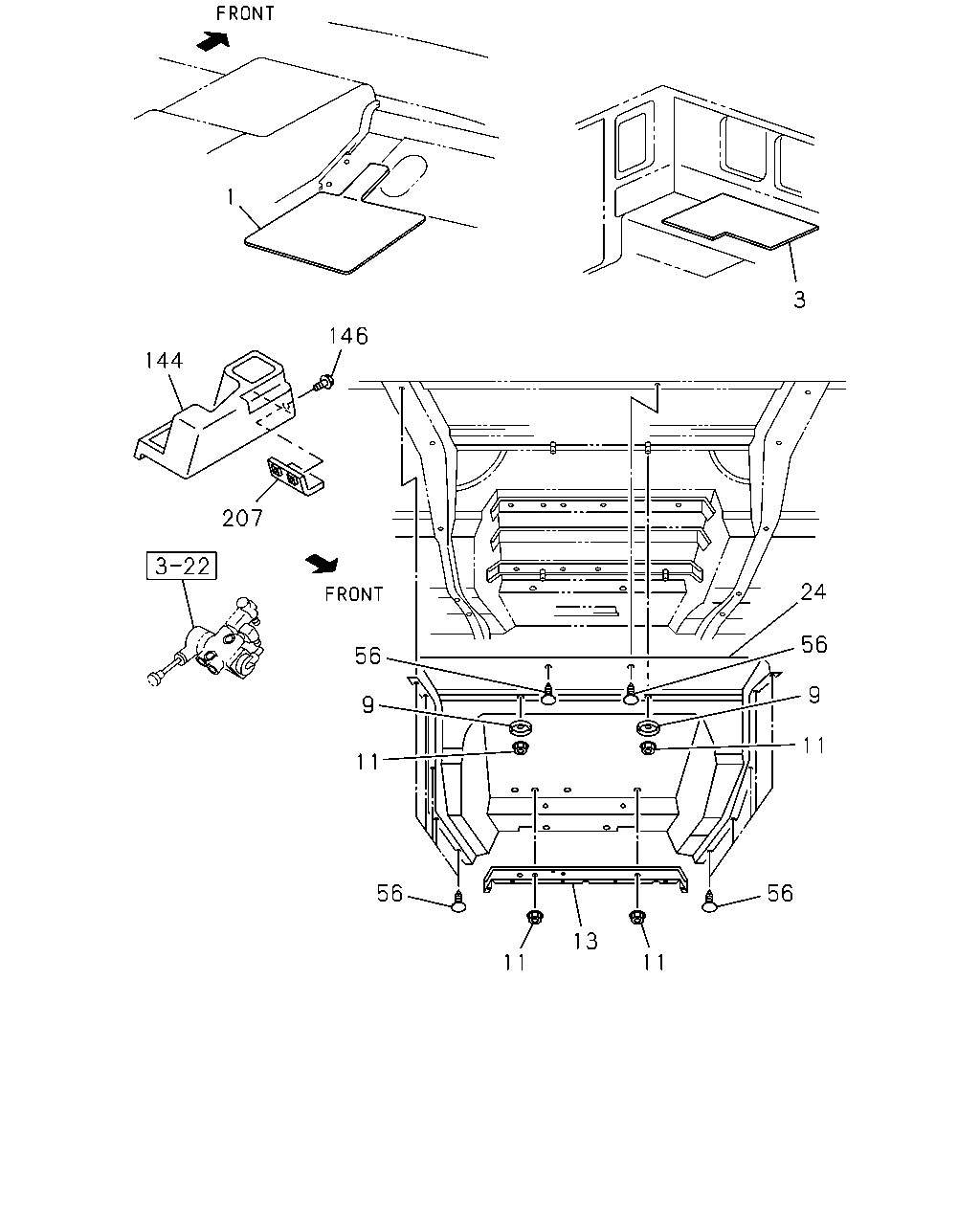

çizim 94904
1 3 146 144 207 24 56 56 9 9 11 11 56 56 13 11 11
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9203-
3 SHEET; MELTING,BED PAN
DELUXE CAB(W14) 900X1000 CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9203-
9 WASHER; HEAT INSULATOR 1-73377-052-1 02 1 9203-
11 NUT; HEAT INSULATOR
M6 FLANGE 		1-09984-141-0 04 1 9203-
13 PLATE; HEAT INSULATOR 1-71998-159-5 01 1 9203-
24 INSULATOR; HEAT,FRT
ANTI NOISE EQUIPMENT VAR E<SLK> 		1-71998-844-1 01 1 9203-9404
24 INSULATOR; HEAT,FRT
EXC. ANTI NOISE EQUIPMENT VAR E<SLK> 		1-71998-325-7 01 1 9203-9404
24 INSULATOR; HEAT,FRT 1-71998-325-7 01 1 9405-
56 CLIP; HEAT INSULATOR,ENG HOOD
D6X23 BLACK 		1-09987-114-0 12 1 9203-
144 COVER; HAND BRK VLV 1-73998-818-0 01 1 9203-
146 BOLT; COVER BRKT
M6X16 W/WASHER 		9-03900-616-0 06 1 9203-
207 BRACKET ASM; HAND BRAKE VALVE 1-73998-575-0 01 1 9203-
