◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#148799) — 137 parça
çizim 443333
497 497 497 497 485
BalonParca AdiParca NoAdetTipApplied Date A B
485 NUT; TRANS MTG MBR,FRAME
M10 FLANGE 		0-91180-210-0 04 1 1410- ● ●
497 BOLT; C/MBR
(C) M10X120 FLANGE 		0-28066-012-0 04 1 1410- ● ●
497 BOLT; C/MBR
HIGH RIDE SUSPENSION(7YC) (B) M10X35 FLANGE 		0-28661-035-0 06 1 1410- ●
497 BOLT; C/MBR
(B) M10X35 FLANGE 		0-28661-035-0 06 1 1410- ●
497 BOLT; C/MBR
(A) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1410- ●
497 BOLT; C/MBR
(D) M12X30 FLANGE 		0-28651-230-0 08 1 1410- ● ●
497 BOLT; C/MBR
EXC. HIGH RIDE SUSPENSION(7YC) (B) M10X35 FLANGE 		0-28661-035-0 04 1 1410- ●
çizim 443721
1 1 156 156 29 514 514 156 105 156 156 156 29 101 29 29 29 256 547 547 5 29 39 11 24 204 101 29 29 29 256 29 2 11 164 164 547 547 440
BalonParca AdiParca NoAdetTipApplied Date A B
1 FRAME ASM
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) 		8-98159-180-3 01 1 1410- ●
1 FRAME ASM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98159-177-4 01 1 1410- ●
1 FRAME ASM
A/T 5 SPEED-AISIN(MA1) 		8-98159-184-2 01 1 1410- ●
1 FRAME ASM
M/T MUA 5 SPEED 5H(MWQ) 		8-98159-185-2 01 1 1410- ●
2 MEMBER; CROSS,1ST 8-98106-701-1 01 1 1410- ● ●
5 MEMBER; CROSS,SUSPENSION
HIGH RIDE SUSPENSION(7YC) 		8-98173-915-1 01 1 1410- ●
5 MEMBER; CROSS,SUSPENSION
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-736-2 01 1 1410- ●
5 MEMBER; CROSS,SUSPENSION 8-98229-450-0 01 1 1410- ●
11 BRACKET; ENG MTG
HIGH RIDE SUSPENSION(7YC) 		8-98106-794-2 01 1 1410- ●
11 BRACKET; ENG MTG 8-98106-794-2 01 1 1410- ●
11 BRACKET; ENG MTG
HIGH RIDE SUSPENSION(7YC) 		8-98106-796-2 01 1 1410- ●
11 BRACKET; ENG MTG 8-98106-796-2 01 1 1410- ●
11 BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-793-2 01 1 1410- ●
11 BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-795-1 01 1 1410- ●
24 BRACKET; FRT SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-807-1 01 1 1410- ●
24 BRACKET; FRT SPR,FRT 8-98106-807-1 01 1 1410- ●
24 BRACKET; FRT SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-806-3 01 1 1410- ●
29 BRACKET; CAB MTG
(A) 		8-97942-341-3 02 1 1410- ● ●
29 BRACKET; CAB MTG
(B) 		8-98106-784-3 01 1 1410- ● ●
29 BRACKET; CAB MTG
(C) 		8-98106-791-3 01 1 1410- ● ●
29 BRACKET; CAB MTG
(E) 		8-98106-844-2 01 1 1410- ● ●
29 BRACKET; CAB MTG
(E) 		8-98106-845-2 01 1 1410- ● ●
29 BRACKET; CAB MTG
(D) 		8-98107-534-0 02 1 1410- ● ●
29 BRACKET; CAB MTG
(F) 		8-98173-497-0 02 1 1410- ● ●
39 BRACKET; FRT SPR,RR
HIGH RIDE SUSPENSION(7YC) 		8-98106-809-1 01 1 1410- ●
39 BRACKET; FRT SPR,RR 8-98106-809-1 01 1 1410- ●
39 BRACKET; FRT SPR,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-808-3 01 1 1410- ●
101 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-868-0 01 1 1410- ●
101 BRACKET; RR SPR,FRT 8-98106-868-0 01 1 1410- ●
101 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-869-0 01 1 1410- ●
101 BRACKET; RR SPR,FRT 8-98106-869-0 01 1 1410- ●
101 BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-866-0 01 1 1410- ●
101 BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-867-0 01 1 1410- ●
105 BRACKET; RR SPR,RR
HIGH RIDE SUSPENSION(7YC) 		8-98106-870-0 02 1 1410- ●
105 BRACKET; RR SPR,RR 8-98106-870-0 02 1 1410- ●
105 BRACKET; RR SPR,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97942-294-0 02 1 1410- ●
156 BRACKET; RR BODY MTG
(A) 		8-98213-874-0 03 1 1410- ● ●
156 BRACKET; RR BODY MTG
(B) 		8-98213-875-0 01 1 1410- ● ●
156 BRACKET; RR BODY MTG
(C) 		8-98214-084-0 02 1 1410- ● ●
164 PLATE; FRT 8-98106-814-0 01 1 1410- ● ●
164 PLATE; FRT 8-98106-815-0 01 1 1410- ● ●
204 MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED 5H(MWQ) 		8-98106-759-4 01 1 1410- ●
204 MEMBER; CROSS,TRANS MTG
A/T 5 SPEED-AISIN(MA1) 		8-98106-762-4 01 1 1410- ●
204 MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED 5H(MWQ) 		8-98106-761-4 01 1 1410- ●
256 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC) 		8-98106-801-6 01 1 1410- ●
256 BRACKET; S/ABS 8-98106-801-6 01 1 1410- ●
256 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC) 		8-98106-803-4 01 1 1410- ●
256 BRACKET; S/ABS 8-98106-803-4 01 1 1410- ●
256 BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-800-2 01 1 1410- ●
256 BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-802-1 01 1 1410- ●
440 BRACKET; HOSE
HIGH RIDE SUSPENSION(7YC) 		8-98106-873-1 01 1 1410- ●
440 BRACKET; HOSE 8-98106-873-1 01 1 1410- ●
440 BRACKET; HOSE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-872-1 01 1 1410- ●
514 PIN; S/ABS 8-97942-395-1 02 1 1410- ● ●
547 BRACE; C/MBR
(D) 		8-98173-909-3 01 1 1410- ●
547 BRACE; C/MBR
(B) 		8-98173-913-0 01 1 1410- ●
547 BRACE; C/MBR
(C) 		8-98173-914-0 01 1 1410- ●
547 BRACE; C/MBR
(A) 		8-98177-569-1 01 1 1410- ●
547 BRACE; C/MBR
(B) 		8-98173-911-0 01 1 1410- ●
547 BRACE; C/MBR
(C) 		8-98173-912-0 01 1 1410- ●
547 BRACE; C/MBR
(D) 		8-98229-465-0 01 1 1410- ●
547 BRACE; C/MBR
(A) 		8-98229-466-0 01 1 1410- ●

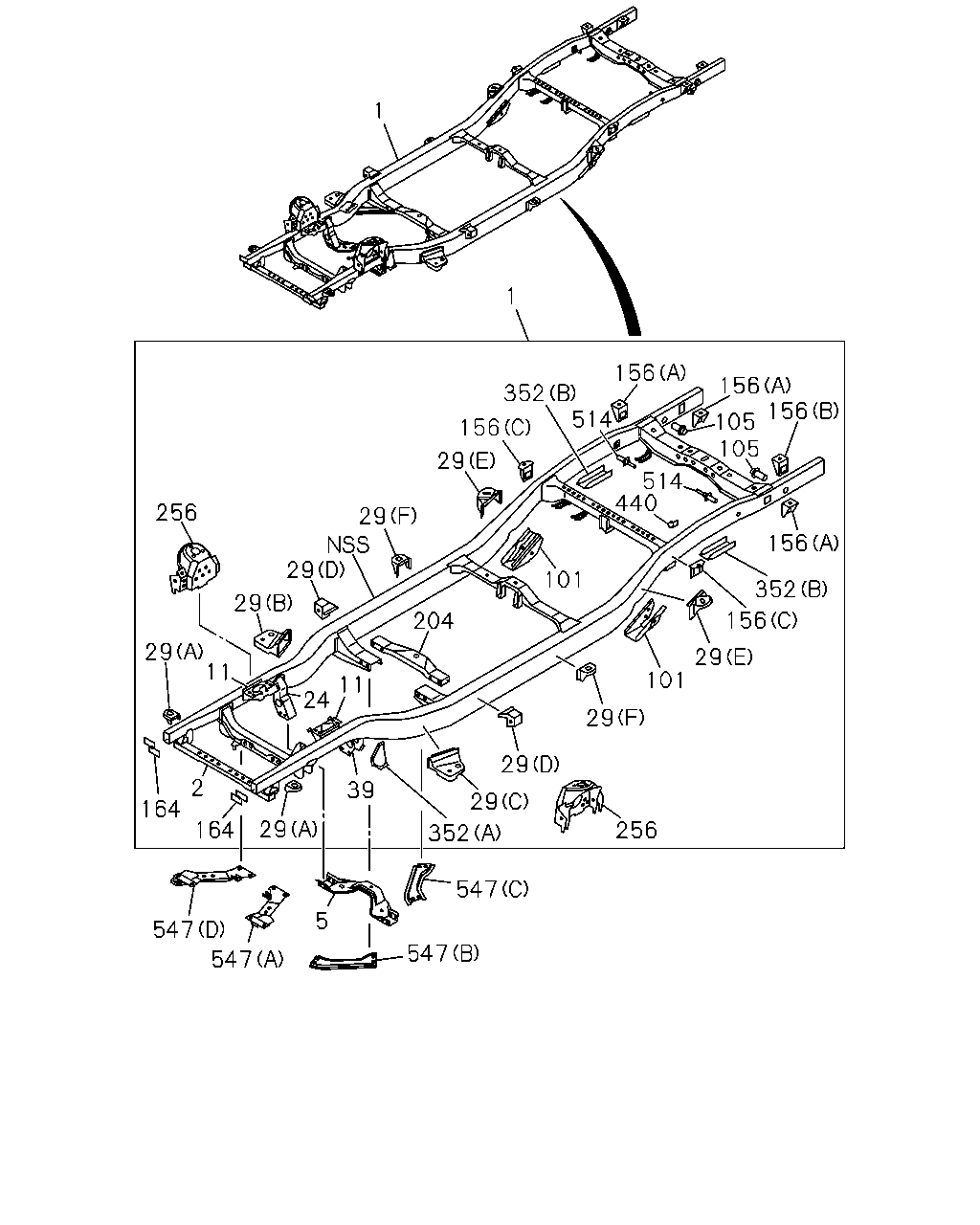

çizim 444013
156 156 156 514 105 105 156 352 156 29 101 29 256 29 29 352 547 547 5 547 547 29 164 164 2 11 29 256 29 29 29 1 1 352 156 29 514 440 101 204 11 24 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 FRAME ASM
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) 		8-98159-180-3 01 1 1410- ●
1 FRAME ASM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98159-177-4 01 1 1410- ●
1 FRAME ASM
A/T 5 SPEED-AISIN(MA1) 		8-98159-184-2 01 1 1410- ●
1 FRAME ASM
M/T MUA 5 SPEED 5H(MWQ) 		8-98159-185-2 01 1 1410- ●
2 MEMBER; CROSS,1ST 8-98106-701-1 01 1 1410- ● ●
5 MEMBER; CROSS,SUSPENSION
HIGH RIDE SUSPENSION(7YC) 		8-98173-915-1 01 1 1410- ●
5 MEMBER; CROSS,SUSPENSION
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-736-2 01 1 1410- ●
5 MEMBER; CROSS,SUSPENSION 8-98229-450-0 01 1 1410- ●
11 BRACKET; ENG MTG
HIGH RIDE SUSPENSION(7YC) 		8-98106-794-2 01 1 1410- ●
11 BRACKET; ENG MTG 8-98106-794-2 01 1 1410- ●
11 BRACKET; ENG MTG
HIGH RIDE SUSPENSION(7YC) 		8-98106-796-2 01 1 1410- ●
11 BRACKET; ENG MTG 8-98106-796-2 01 1 1410- ●
11 BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-793-2 01 1 1410- ●
11 BRACKET; ENG MTG
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-795-1 01 1 1410- ●
24 BRACKET; FRT SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-807-1 01 1 1410- ●
24 BRACKET; FRT SPR,FRT 8-98106-807-1 01 1 1410- ●
24 BRACKET; FRT SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-806-3 01 1 1410- ●
29 BRACKET; CAB MTG
(A) 		8-97942-341-3 02 1 1410- ● ●
29 BRACKET; CAB MTG
(B) 		8-98106-784-3 01 1 1410- ● ●
29 BRACKET; CAB MTG
(C) 		8-98106-791-3 01 1 1410- ● ●
29 BRACKET; CAB MTG
(E) 		8-98106-844-2 01 1 1410- ● ●
29 BRACKET; CAB MTG
(E) 		8-98106-845-2 01 1 1410- ● ●
29 BRACKET; CAB MTG
(D) 		8-98107-534-0 02 1 1410- ● ●
29 BRACKET; CAB MTG
(F) 		8-98173-497-0 02 1 1410- ● ●
39 BRACKET; FRT SPR,RR
HIGH RIDE SUSPENSION(7YC) 		8-98106-809-1 01 1 1410- ●
39 BRACKET; FRT SPR,RR 8-98106-809-1 01 1 1410- ●
39 BRACKET; FRT SPR,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-808-3 01 1 1410- ●
101 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-868-0 01 1 1410- ●
101 BRACKET; RR SPR,FRT 8-98106-868-0 01 1 1410- ●
101 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98106-869-0 01 1 1410- ●
101 BRACKET; RR SPR,FRT 8-98106-869-0 01 1 1410- ●
101 BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-866-0 01 1 1410- ●
101 BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-867-0 01 1 1410- ●
105 BRACKET; RR SPR,RR
HIGH RIDE SUSPENSION(7YC) 		8-98106-870-0 02 1 1410- ●
105 BRACKET; RR SPR,RR 8-98106-870-0 02 1 1410- ●
105 BRACKET; RR SPR,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97942-294-0 02 1 1410- ●
156 BRACKET; RR BODY MTG
(A) 		8-98213-874-0 03 1 1410- ● ●
156 BRACKET; RR BODY MTG
(B) 		8-98213-875-0 01 1 1410- ● ●
156 BRACKET; RR BODY MTG
(C) 		8-98214-084-0 02 1 1410- ● ●
164 PLATE; FRT 8-98106-814-0 01 1 1410- ● ●
164 PLATE; FRT 8-98106-815-0 01 1 1410- ● ●
204 MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED 5H(MWQ) 		8-98106-759-4 01 1 1410- ●
204 MEMBER; CROSS,TRANS MTG
A/T 5 SPEED-AISIN(MA1) 		8-98106-762-4 01 1 1410- ●
204 MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED 5H(MWQ) 		8-98106-761-4 01 1 1410- ●
256 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC) 		8-98106-801-6 01 1 1410- ●
256 BRACKET; S/ABS 8-98106-801-6 01 1 1410- ●
256 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC) 		8-98106-803-4 01 1 1410- ●
256 BRACKET; S/ABS 8-98106-803-4 01 1 1410- ●
256 BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-800-2 01 1 1410- ●
256 BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-802-1 01 1 1410- ●
352 BRACKET; BUMPER RUBBER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98106-835-3 01 1 1410- ●
352 BRACKET; BUMPER RUBBER
(A) 		8-98106-835-3 01 1 1410- ●
352 BRACKET; BUMPER RUBBER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98106-836-3 01 1 1410- ●
352 BRACKET; BUMPER RUBBER
(A) 		8-98106-836-3 01 1 1410- ●
352 BRACKET; BUMPER RUBBER
HIGH RIDE SUSPENSION(7YC) (B) 		8-98106-871-1 02 1 1410- ●
352 BRACKET; BUMPER RUBBER
(B) 		8-98106-871-1 02 1 1410- ●
440 BRACKET; HOSE
HIGH RIDE SUSPENSION(7YC) 		8-98106-873-1 01 1 1410- ●
440 BRACKET; HOSE 8-98106-873-1 01 1 1410- ●
440 BRACKET; HOSE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98106-872-1 01 1 1410- ●
514 PIN; S/ABS 8-97942-395-1 02 1 1410- ● ●
547 BRACE; C/MBR
(D) 		8-98173-909-3 01 1 1410- ●
547 BRACE; C/MBR
(B) 		8-98173-913-0 01 1 1410- ●
547 BRACE; C/MBR
(C) 		8-98173-914-0 01 1 1410- ●
547 BRACE; C/MBR
(A) 		8-98177-569-1 01 1 1410- ●
547 BRACE; C/MBR
(B) 		8-98173-911-0 01 1 1410- ●
547 BRACE; C/MBR
(C) 		8-98173-912-0 01 1 1410- ●
547 BRACE; C/MBR
(D) 		8-98229-465-0 01 1 1410- ●
547 BRACE; C/MBR
(A) 		8-98229-466-0 01 1 1410- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
