4-60 — REAR SUSPENSION (#148795) — 70 parça

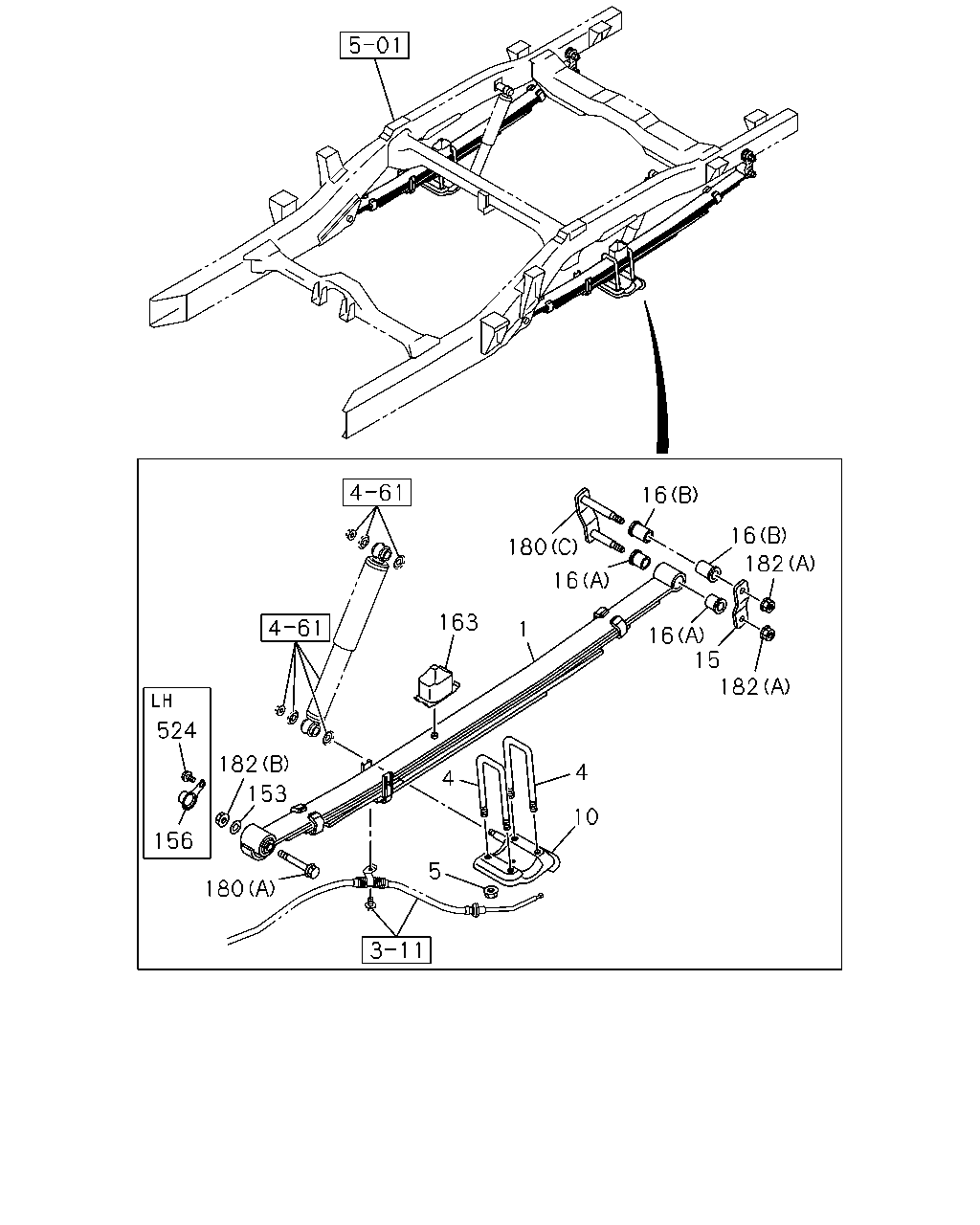

182 15 16 182 16 16 16 180 1 4 10 4 5 163 182 153 180 156 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98282-594-1	02	1	1410-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) 5-LEAF	8-98282-594-1	02	1	1410-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1) 5-LEAF	8-98282-593-1	02	1	1410-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98201-543-3	02	1	1410-	●
4	U-BOLT; RR SPR HIGH RIDE SUSPENSION(7YC) L=170	8-97946-550-0	04	1	1410-	●
4	U-BOLT; RR SPR L=170	8-97946-550-0	04	1	1410-		●
4	U-BOLT; RR SPR EXC. HIGH RIDE SUSPENSION(7YC) L=175	8-97947-045-0	04	1	1410-	●
5	NUT; U-BOLT,RR SPR M14 FLANGE	8-97245-635-0	08	1	1410-	●	●
10	CLAMP; LWR,RR SPR HIGH RIDE SUSPENSION(7YC)	8-98165-850-1	01	1	1410-	●
10	CLAMP; LWR,RR SPR	8-98165-850-1	01	1	1410-		●
10	CLAMP; LWR,RR SPR HIGH RIDE SUSPENSION(7YC)	8-98165-851-1	01	1	1410-	●
10	CLAMP; LWR,RR SPR	8-98165-851-1	01	1	1410-		●
10	CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-070-0	01	1	1410-	●
10	CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-083-0	01	1	1410-	●
15	SHACKLE; RR SPR HIGH RIDE SUSPENSION(7YC)	8-97946-551-1	02	1	1410-	●
15	SHACKLE; RR SPR	8-97946-551-1	02	1	1410-		●
15	SHACKLE; RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-815-0	02	1	1410-	●
16	BUSHING; SHACKLE,RR SPR HIGH RIDE SUSPENSION(7YC) (A)	8-97357-492-0	04	1	1410-	●
16	BUSHING; SHACKLE,RR SPR (A)	8-97357-492-0	04	1	1410-		●
16	BUSHING; SHACKLE,RR SPR HIGH RIDE SUSPENSION(7YC) (B)	8-97946-545-0	04	1	1410-	●
16	BUSHING; SHACKLE,RR SPR (B)	8-97946-545-0	04	1	1410-		●
16	BUSHING; SHACKLE,RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97357-492-0	08	1	1410-	●
153	WASHER; PL,SPRING PIN ID=14.5 OD=30	8-98005-921-0	02	1	1410-	●	●
156	PROTECTOR; LEAF SPRING,RR SUSP	8-97947-363-0	01	1	1410-	●	●
163	RUBBER; HELPER,RR SPR HIGH RIDE SUSPENSION(7YC)	8-97946-549-3	02	1	1410-	●
163	RUBBER; HELPER,RR SPR	8-97946-549-3	02	1	1410-		●
163	RUBBER; HELPER,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-803-1	02	1	1410-	●
180	PIN; RR SPR HIGH RIDE SUSPENSION(7YC) (C)	8-97946-547-1	02	1	1410-	●
180	PIN; RR SPR (C)	8-97946-547-1	02	1	1410-		●
180	PIN; RR SPR (A)	8-97947-078-0	02	1	1410-	●	●
180	PIN; RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98005-814-0	02	1	1410-	●
182	NUT; PIN,RR SPR (A) M14 FLANGE	0-91180-114-0	04	1	1410-	●	●
182	NUT; PIN,RR SPR (B) M14 FLANGE	8-97245-651-0	02	1	1410-	●	●
524	BOLT; RR SPR M8X20 FLANGE	0-28650-820-0	01	1	1410-	●	●

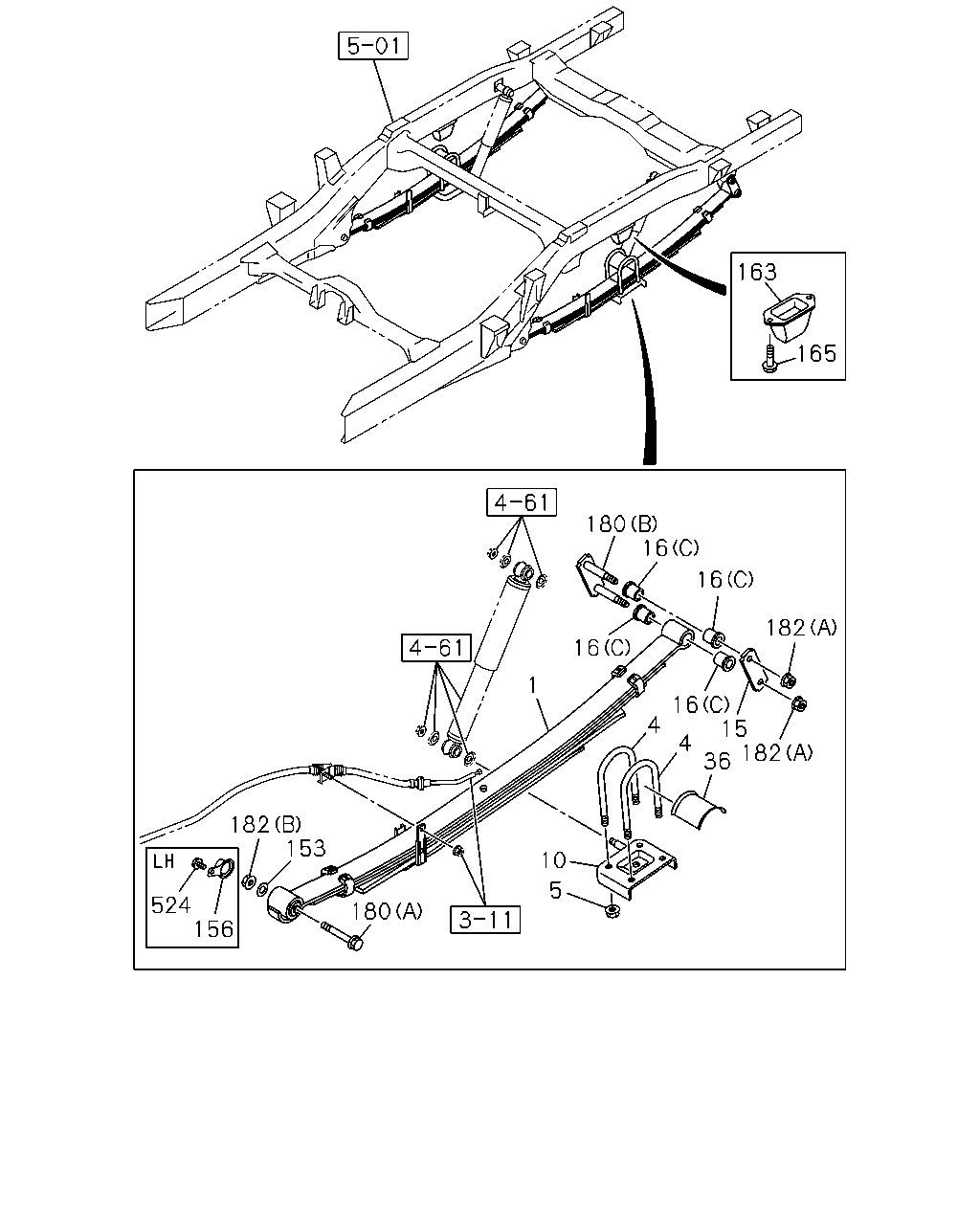

163 165 182 16 16 16 16 15 182 36 4 4 1 10 5 180 153 182 524 156 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98282-594-1	02	1	1410-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) 5-LEAF	8-98282-594-1	02	1	1410-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1) 5-LEAF	8-98282-593-1	02	1	1410-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) 5-LEAF	8-98201-543-3	02	1	1410-	●
4	U-BOLT; RR SPR HIGH RIDE SUSPENSION(7YC) L=170	8-97946-550-0	04	1	1410-	●
4	U-BOLT; RR SPR L=170	8-97946-550-0	04	1	1410-		●
4	U-BOLT; RR SPR EXC. HIGH RIDE SUSPENSION(7YC) L=175	8-97947-045-0	04	1	1410-	●
5	NUT; U-BOLT,RR SPR M14 FLANGE	8-97245-635-0	08	1	1410-	●	●
10	CLAMP; LWR,RR SPR HIGH RIDE SUSPENSION(7YC)	8-98165-850-1	01	1	1410-	●
10	CLAMP; LWR,RR SPR	8-98165-850-1	01	1	1410-		●
10	CLAMP; LWR,RR SPR HIGH RIDE SUSPENSION(7YC)	8-98165-851-1	01	1	1410-	●
10	CLAMP; LWR,RR SPR	8-98165-851-1	01	1	1410-		●
10	CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-070-0	01	1	1410-	●
10	CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-083-0	01	1	1410-	●
15	SHACKLE; RR SPR HIGH RIDE SUSPENSION(7YC)	8-97946-551-1	02	1	1410-	●
15	SHACKLE; RR SPR	8-97946-551-1	02	1	1410-		●
15	SHACKLE; RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-815-0	02	1	1410-	●
16	BUSHING; SHACKLE,RR SPR HIGH RIDE SUSPENSION(7YC) (A)	8-97357-492-0	04	1	1410-	●
16	BUSHING; SHACKLE,RR SPR (A)	8-97357-492-0	04	1	1410-		●
16	BUSHING; SHACKLE,RR SPR HIGH RIDE SUSPENSION(7YC) (B)	8-97946-545-0	04	1	1410-	●
16	BUSHING; SHACKLE,RR SPR (B)	8-97946-545-0	04	1	1410-		●
16	BUSHING; SHACKLE,RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97357-492-0	08	1	1410-	●
36	SEAT; HELPER RUBBER,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-878-0	02	1	1410-	●
153	WASHER; PL,SPRING PIN ID=14.5 OD=30	8-98005-921-0	02	1	1410-	●	●
156	PROTECTOR; LEAF SPRING,RR SUSP	8-97947-363-0	01	1	1410-	●	●
163	RUBBER; HELPER,RR SPR HIGH RIDE SUSPENSION(7YC)	8-97946-549-3	02	1	1410-	●
163	RUBBER; HELPER,RR SPR	8-97946-549-3	02	1	1410-		●
163	RUBBER; HELPER,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-803-1	02	1	1410-	●
165	BOLT; HELPER RUBBER EXC. HIGH RIDE SUSPENSION(7YC) M10X30 FLANGE	0-28661-030-0	04	1	1410-	●
180	PIN; RR SPR HIGH RIDE SUSPENSION(7YC) (C)	8-97946-547-1	02	1	1410-	●
180	PIN; RR SPR (C)	8-97946-547-1	02	1	1410-		●
180	PIN; RR SPR (A)	8-97947-078-0	02	1	1410-	●	●
180	PIN; RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98005-814-0	02	1	1410-	●
182	NUT; PIN,RR SPR (A) M14 FLANGE	0-91180-114-0	04	1	1410-	●	●
182	NUT; PIN,RR SPR (B) M14 FLANGE	8-97245-651-0	02	1	1410-	●	●
524	BOLT; RR SPR M8X20 FLANGE	0-28650-820-0	01	1	1410-	●	●
