4-50 — FRONT SUSPENSION (#148794) — 157 parça

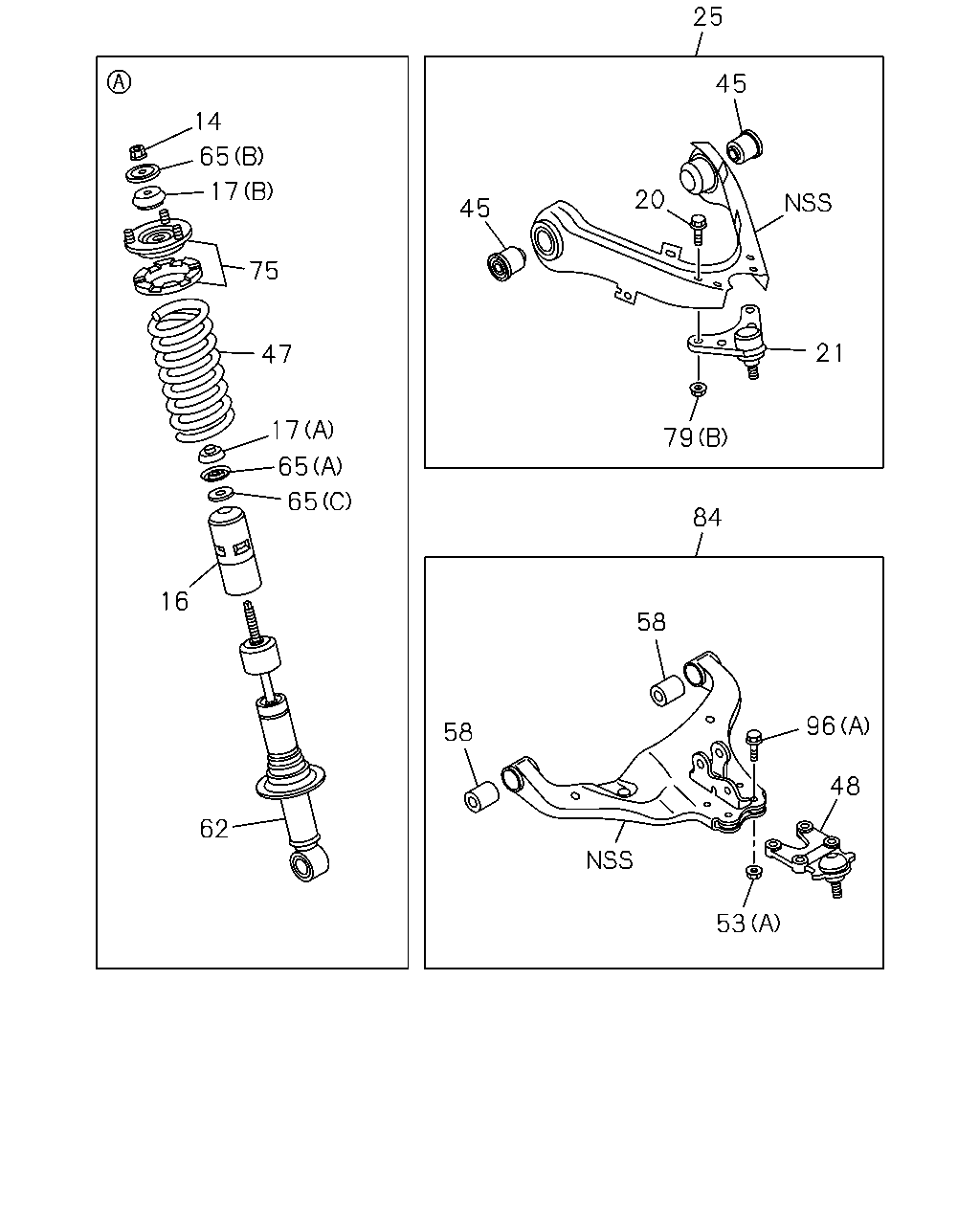

çizim 443384
14 17 75 65 62 16 65 65 17 47 84 79 21 20 45 25 45 96 48 58 58 53
BalonParca AdiParca NoAdetTipApplied Date A B
14 NUT; S/ABS,UPR
M12 FLANGE 		8-97236-304-0 02 1 1410- ● ●
16 COVER; DUST,FRT S/ABS
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) 		8-97947-100-0 02 1 1410- ●
16 COVER; DUST,FRT S/ABS 8-97947-100-0 02 1 1410- ●
16 COVER; DUST,FRT S/ABS
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-566-0 02 1 1410- ●
17 BUSHING; RUBBER,S/ABS
(A) 		8-97236-303-0 02 1 1410- ● ●
17 BUSHING; RUBBER,S/ABS
(B) 		8-97264-184-0 02 1 1410- ● ●
20 BOLT; UPR LINK END TO UPR LINK
M8X25 FLANGE 		0-28060-825-0 08 1 1410- ● ●
21 JOINT ASM; BALL,UPR CONT ARM 8-98005-827-0 02 1 1410- ● ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-841-2 01 1 1410- ●
25 ARM; UPR CONT 8-97945-841-2 01 1 1410- ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-842-2 01 1 1410- ●
25 ARM; UPR CONT 8-97945-842-2 01 1 1410- ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98212-475-0 01 1 1410- ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98212-476-0 01 1 1410- ●
45 BUSHING; UPR LINK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97947-419-0 04 1 1410- ●
45 BUSHING; UPR LINK,FRT 8-97947-419-0 04 1 1410- ●
45 BUSHING; UPR LINK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97364-173-0 04 1 1410- ●
47 SPRING; COIL,FRT SUSP
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) 		8-97947-118-2 02 1 1410- ●
47 SPRING; COIL,FRT SUSP
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-184-1 02 1 1410- ●
47 SPRING; COIL,FRT SUSP
A/T 5 SPEED-AISIN(MA1) 		8-97947-207-3 02 1 1410- ●
47 SPRING; COIL,FRT SUSP
M/T MUA 5 SPEED 5H(MWQ) 		8-97947-206-2 02 1 1410- ●
48 JOINT ASM; BALL,LWR CONT ARM 8-98005-875-0 02 1 1410- ● ●
53 NUT; LWR LINK
(B) M18 		0-91110-518-0 02 1 1410- ● ●
53 NUT; LWR LINK
(A) M12 FLANGE CHI 		0-91180-212-0 08 1 1410- ● ●
58 BUSHING; LWR LINK
HIGH RIDE SUSPENSION(7YC) 		8-97947-087-1 04 1 1410- ●
58 BUSHING; LWR LINK 8-97947-087-1 04 1 1410- ●
58 BUSHING; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97364-174-0 04 1 1410- ●
62 ABSORBER ASM; SHOCK,FRT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) 		8-97947-098-3 02 1 1410- ●
62 ABSORBER ASM; SHOCK,FRT
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-094-3 02 1 1410- ●
62 ABSORBER ASM; SHOCK,FRT 8-97947-097-3 02 1 1410- ●
65 WASHER; S/ABS
(C) 		8-97944-892-0 02 1 1410- ● ●
65 WASHER; S/ABS
(B) 		8-98005-971-0 02 1 1410- ● ●
65 WASHER; S/ABS
(A) 		8-98005-972-0 02 1 1410- ● ●
75 BRACKET; FRT S/ABS 8-98177-899-1 02 1 1410- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 		0-91110-514-0 02 1 1410- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE CHI 		0-91180-208-0 08 1 1410- ● ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-843-1 01 1 1410- ●
84 ARM; LWR CONT 8-97945-843-1 01 1 1410- ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-844-1 01 1 1410- ●
84 ARM; LWR CONT 8-97945-844-1 01 1 1410- ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-164-0 01 1 1410- ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-165-0 01 1 1410- ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE 		8-97245-639-0 08 1 1410- ● ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE 		8-98186-404-0 04 1 1410- ● ●

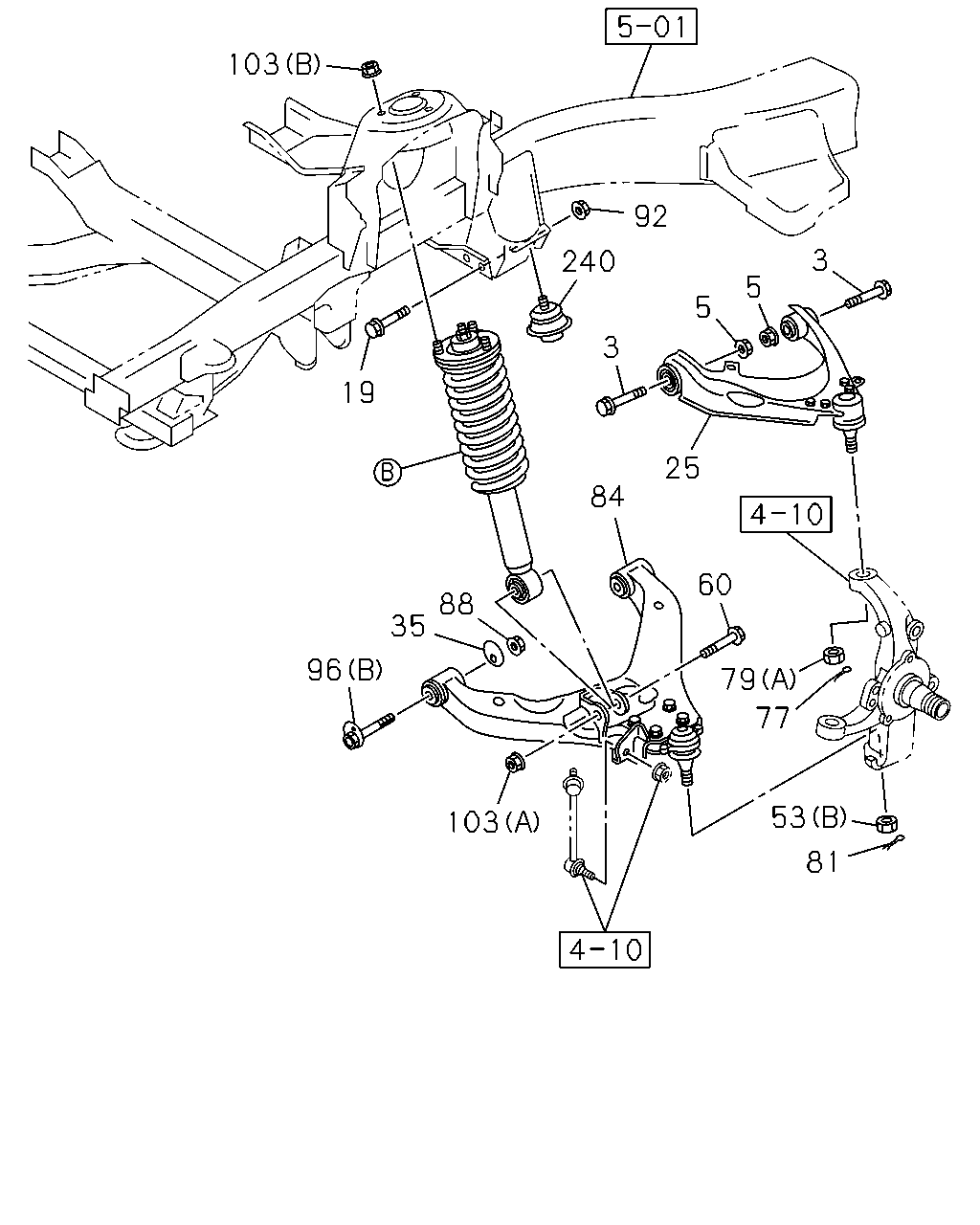

çizim 443430
92 5 5 3 3 25 60 79 77 53 81 103 96 88 19 35 84 103 240
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; UPR LINK TO FRAME
M14X74 		8-97947-455-0 04 1 1410- ● ●
5 NUT; UPR LINK TO FRAME
M14 FLANGE 		8-97245-635-0 04 1 1410- ● ●
19 BOLT; FRT SUSP TO C/MBR
HIGH RIDE SUSPENSION(7YC) M10X100 		0-28061-000-0 04 1 1410- ●
19 BOLT; FRT SUSP TO C/MBR
M10X100 		0-28061-000-0 04 1 1410- ●
19 BOLT; FRT SUSP TO C/MBR
EXC. HIGH RIDE SUSPENSION(7YC) M10X80 FLANGE 		0-28061-080-0 04 1 1410- ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-841-2 01 1 1410- ●
25 ARM; UPR CONT 8-97945-841-2 01 1 1410- ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-842-2 01 1 1410- ●
25 ARM; UPR CONT 8-97945-842-2 01 1 1410- ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98212-475-0 01 1 1410- ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98212-476-0 01 1 1410- ●
35 PLATE; BUSHING SUPPORT 8-97214-814-0 04 1 1410- ● ●
53 NUT; LWR LINK
(B) M18 		0-91110-518-0 02 1 1410- ● ●
53 NUT; LWR LINK
(A) M12 FLANGE CHI 		0-91180-212-0 08 1 1410- ● ●
60 BOLT; S/ABS TO LWR LINK
M14X74 		8-97947-455-0 02 1 1410- ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		0-81123-028-0 02 1 1410- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 		0-91110-514-0 02 1 1410- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE CHI 		0-91180-208-0 08 1 1410- ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 		0-81123-028-0 02 1 1410- ● ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-843-1 01 1 1410- ●
84 ARM; LWR CONT 8-97945-843-1 01 1 1410- ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-844-1 01 1 1410- ●
84 ARM; LWR CONT 8-97945-844-1 01 1 1410- ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-164-0 01 1 1410- ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-165-0 01 1 1410- ●
88 NUT; LWR LINK
M16 FLANGE 		8-97245-631-0 04 1 1410- ● ●
92 NUT; FRT SUSP
M10 FLANGE 		0-91180-210-0 04 1 1410- ● ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE 		8-97245-639-0 08 1 1410- ● ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE 		8-98186-404-0 04 1 1410- ● ●
103 NUT; S/ABS TO LWR LINK
(A) M14 FLANGE 		8-97245-635-0 02 1 1410- ● ●
103 NUT; S/ABS TO LWR LINK
(B) M10 FLANGE 		8-97245-637-0 06 1 1410- ● ●
240 BUMPER; LWR CONT ARM
HIGH RIDE SUSPENSION(7YC) 		8-97946-180-0 02 1 1410- ●
240 BUMPER; LWR CONT ARM 8-97946-180-0 02 1 1410- ●
240 BUMPER; LWR CONT ARM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97215-052-0 02 1 1410- ●

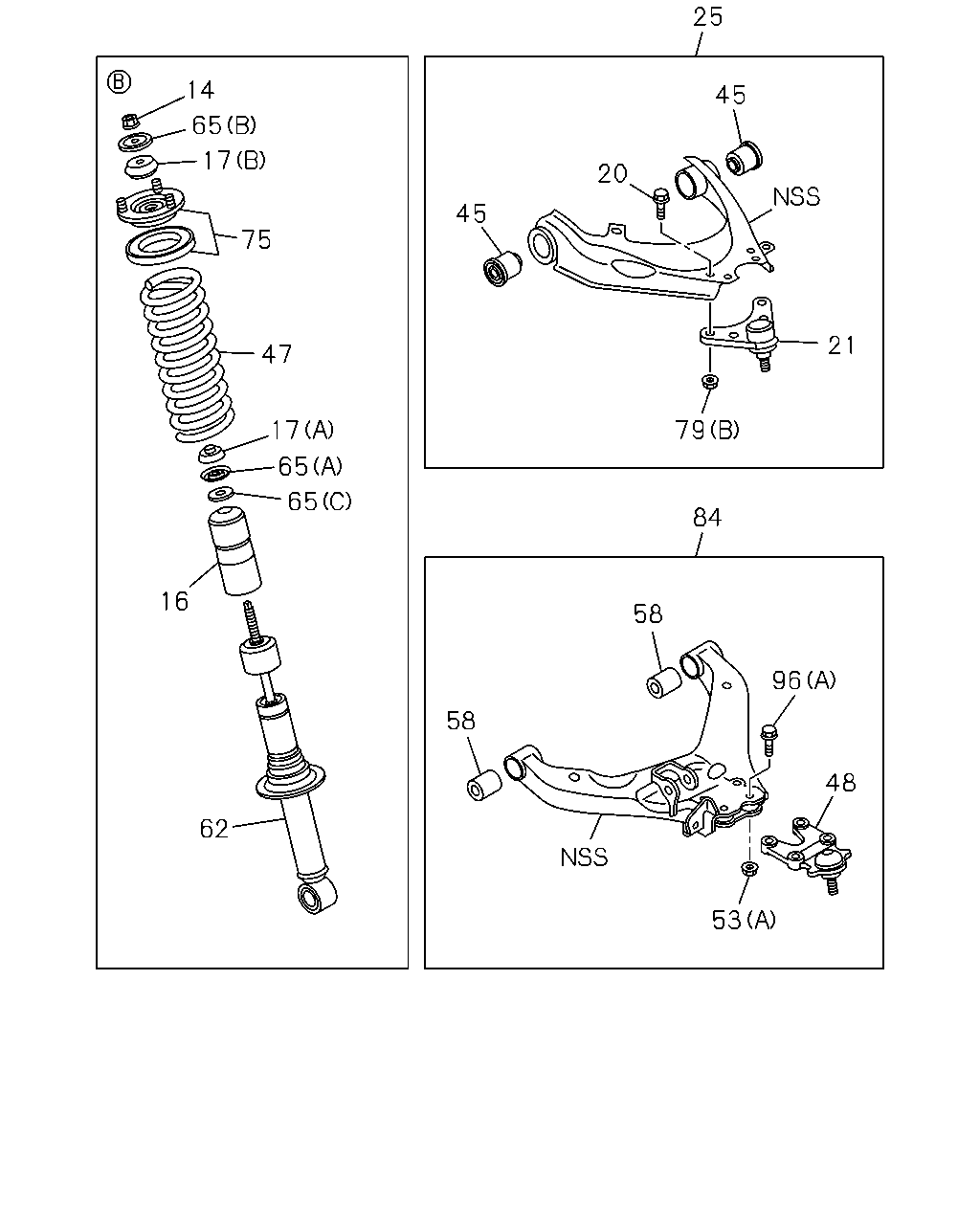

çizim 443479
62 16 65 65 17 47 75 17 65 14 45 20 45 25 21 79 84 96 48 58 58 53
BalonParca AdiParca NoAdetTipApplied Date A B
14 NUT; S/ABS,UPR
M12 FLANGE 		8-97236-304-0 02 1 1410- ● ●
16 COVER; DUST,FRT S/ABS
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) 		8-97947-100-0 02 1 1410- ●
16 COVER; DUST,FRT S/ABS 8-97947-100-0 02 1 1410- ●
16 COVER; DUST,FRT S/ABS
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-566-0 02 1 1410- ●
17 BUSHING; RUBBER,S/ABS
(A) 		8-97236-303-0 02 1 1410- ● ●
17 BUSHING; RUBBER,S/ABS
(B) 		8-97264-184-0 02 1 1410- ● ●
20 BOLT; UPR LINK END TO UPR LINK
M8X25 FLANGE 		0-28060-825-0 08 1 1410- ● ●
21 JOINT ASM; BALL,UPR CONT ARM 8-98005-827-0 02 1 1410- ● ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-841-2 01 1 1410- ●
25 ARM; UPR CONT 8-97945-841-2 01 1 1410- ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-842-2 01 1 1410- ●
25 ARM; UPR CONT 8-97945-842-2 01 1 1410- ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98212-475-0 01 1 1410- ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98212-476-0 01 1 1410- ●
45 BUSHING; UPR LINK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97947-419-0 04 1 1410- ●
45 BUSHING; UPR LINK,FRT 8-97947-419-0 04 1 1410- ●
45 BUSHING; UPR LINK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97364-173-0 04 1 1410- ●
47 SPRING; COIL,FRT SUSP
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) 		8-97947-118-2 02 1 1410- ●
47 SPRING; COIL,FRT SUSP
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-184-1 02 1 1410- ●
47 SPRING; COIL,FRT SUSP
A/T 5 SPEED-AISIN(MA1) 		8-97947-207-3 02 1 1410- ●
47 SPRING; COIL,FRT SUSP
M/T MUA 5 SPEED 5H(MWQ) 		8-97947-206-2 02 1 1410- ●
48 JOINT ASM; BALL,LWR CONT ARM 8-98005-875-0 02 1 1410- ● ●
53 NUT; LWR LINK
(B) M18 		0-91110-518-0 02 1 1410- ● ●
53 NUT; LWR LINK
(A) M12 FLANGE CHI 		0-91180-212-0 08 1 1410- ● ●
58 BUSHING; LWR LINK
HIGH RIDE SUSPENSION(7YC) 		8-97947-087-1 04 1 1410- ●
58 BUSHING; LWR LINK 8-97947-087-1 04 1 1410- ●
58 BUSHING; LWR LINK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97364-174-0 04 1 1410- ●
62 ABSORBER ASM; SHOCK,FRT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) 		8-97947-098-3 02 1 1410- ●
62 ABSORBER ASM; SHOCK,FRT
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-094-3 02 1 1410- ●
62 ABSORBER ASM; SHOCK,FRT 8-97947-097-3 02 1 1410- ●
65 WASHER; S/ABS
(C) 		8-97944-892-0 02 1 1410- ● ●
65 WASHER; S/ABS
(B) 		8-98005-971-0 02 1 1410- ● ●
65 WASHER; S/ABS
(A) 		8-98005-972-0 02 1 1410- ● ●
75 BRACKET; FRT S/ABS 8-98177-899-1 02 1 1410- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 		0-91110-514-0 02 1 1410- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE CHI 		0-91180-208-0 08 1 1410- ● ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-843-1 01 1 1410- ●
84 ARM; LWR CONT 8-97945-843-1 01 1 1410- ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-844-1 01 1 1410- ●
84 ARM; LWR CONT 8-97945-844-1 01 1 1410- ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-164-0 01 1 1410- ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-165-0 01 1 1410- ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE 		8-97245-639-0 08 1 1410- ● ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE 		8-98186-404-0 04 1 1410- ● ●

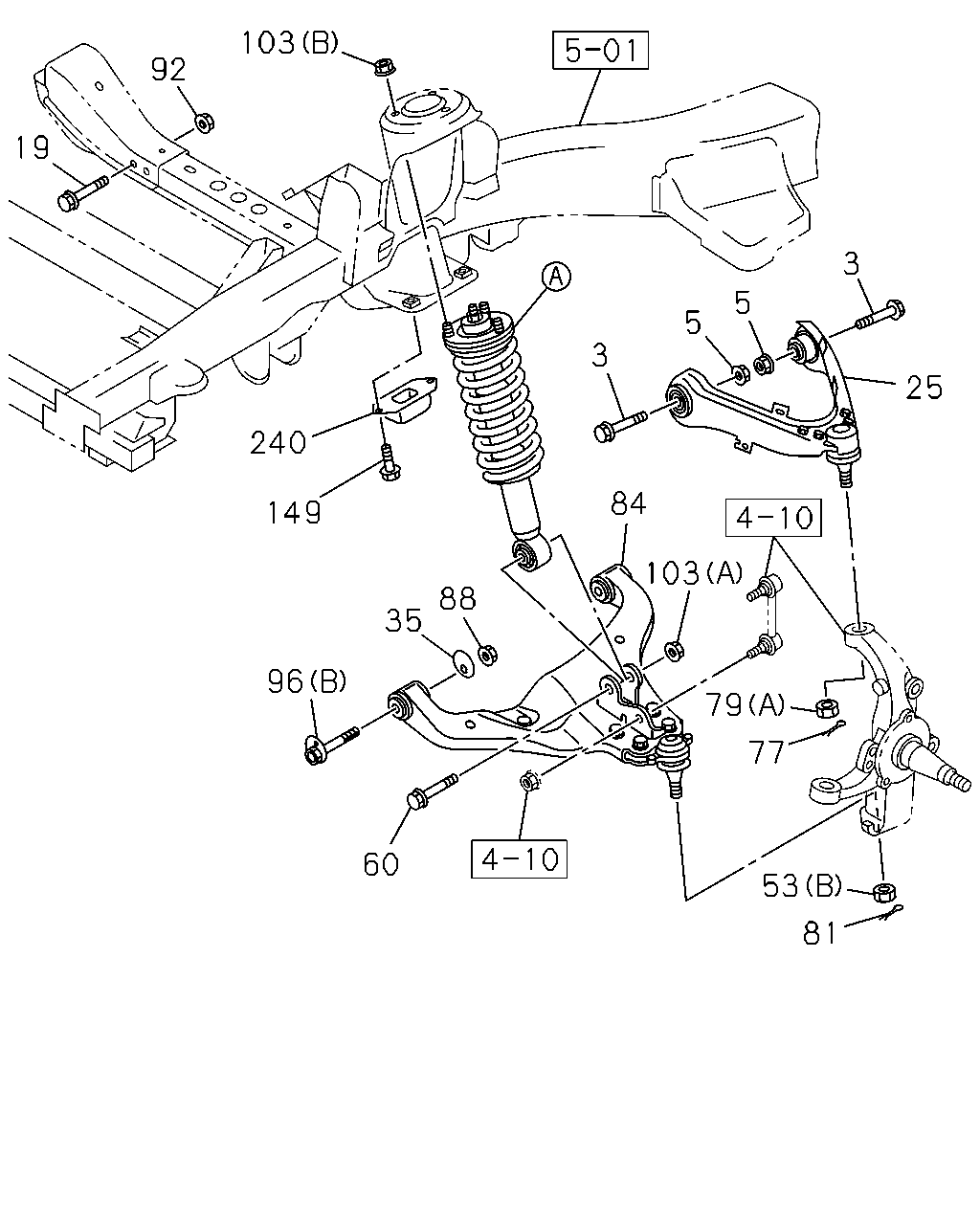

çizim 443565
5 5 3 3 25 84 103 79 77 53 81 88 35 96 60 149 240 103 92 19
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; UPR LINK TO FRAME
M14X74 		8-97947-455-0 04 1 1410- ● ●
5 NUT; UPR LINK TO FRAME
M14 FLANGE 		8-97245-635-0 04 1 1410- ● ●
19 BOLT; FRT SUSP TO C/MBR
HIGH RIDE SUSPENSION(7YC) M10X100 		0-28061-000-0 04 1 1410- ●
19 BOLT; FRT SUSP TO C/MBR
M10X100 		0-28061-000-0 04 1 1410- ●
19 BOLT; FRT SUSP TO C/MBR
EXC. HIGH RIDE SUSPENSION(7YC) M10X80 FLANGE 		0-28061-080-0 04 1 1410- ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-841-2 01 1 1410- ●
25 ARM; UPR CONT 8-97945-841-2 01 1 1410- ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-842-2 01 1 1410- ●
25 ARM; UPR CONT 8-97945-842-2 01 1 1410- ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98212-475-0 01 1 1410- ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98212-476-0 01 1 1410- ●
35 PLATE; BUSHING SUPPORT 8-97214-814-0 04 1 1410- ● ●
53 NUT; LWR LINK
(B) M18 		0-91110-518-0 02 1 1410- ● ●
53 NUT; LWR LINK
(A) M12 FLANGE CHI 		0-91180-212-0 08 1 1410- ● ●
60 BOLT; S/ABS TO LWR LINK
M14X74 		8-97947-455-0 02 1 1410- ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		0-81123-028-0 02 1 1410- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 		0-91110-514-0 02 1 1410- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE CHI 		0-91180-208-0 08 1 1410- ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 		0-81123-028-0 02 1 1410- ● ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-843-1 01 1 1410- ●
84 ARM; LWR CONT 8-97945-843-1 01 1 1410- ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION(7YC) 		8-97945-844-1 01 1 1410- ●
84 ARM; LWR CONT 8-97945-844-1 01 1 1410- ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-164-0 01 1 1410- ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-165-0 01 1 1410- ●
88 NUT; LWR LINK
M16 FLANGE 		8-97245-631-0 04 1 1410- ● ●
92 NUT; FRT SUSP
M10 FLANGE 		0-91180-210-0 04 1 1410- ● ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE 		8-97245-639-0 08 1 1410- ● ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE 		8-98186-404-0 04 1 1410- ● ●
103 NUT; S/ABS TO LWR LINK
(A) M14 FLANGE 		8-97245-635-0 02 1 1410- ● ●
103 NUT; S/ABS TO LWR LINK
(B) M10 FLANGE 		8-97245-637-0 06 1 1410- ● ●
149 BOLT; ARM TO LWR CONT ARM
EXC. HIGH RIDE SUSPENSION(7YC) M10X25 FLANGE 		0-28651-025-0 04 1 1410- ●
240 BUMPER; LWR CONT ARM
HIGH RIDE SUSPENSION(7YC) 		8-97946-180-0 02 1 1410- ●
240 BUMPER; LWR CONT ARM 8-97946-180-0 02 1 1410- ●
240 BUMPER; LWR CONT ARM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97215-052-0 02 1 1410- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
