4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#148790) — 45 parça

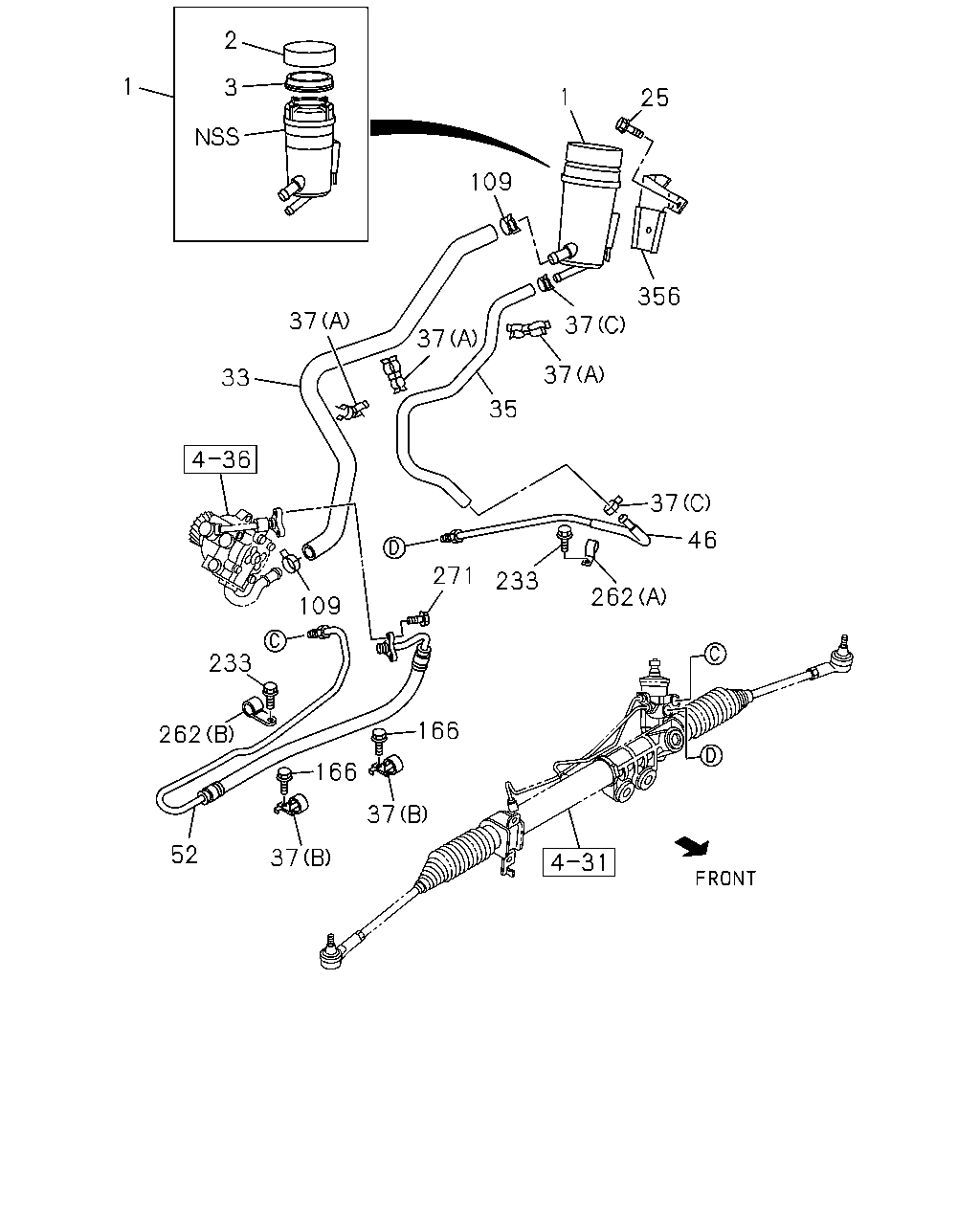

1 2 3 1 109 25 37 33 37 37 356 37 35 233 109 271 233 37 262 46 262 52 37 166 37 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97234-350-0	01	1	1410-	●	●
2	CAP; OIL TANK,P/S	8-97349-476-0	01	1	1410-	●	●
3	GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1410-	●	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE	0-28650-616-0	02	1	1410-	●	●
33	HOSE; RUBBER,POWER STRG	8-97946-138-2	01	1	1410-	●	●
35	HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1410-	●	●
37	CLIP; HOSE,P/S (A) ID=17.5 & 21	8-97177-580-0	03	1	1410-	●	●
37	CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1410-	●	●
37	CLIP; HOSE,P/S (B) ID=21.5 L=21	8-98211-907-0	02	1	1410-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK HIGH RIDE SUSPENSION(7YC)	8-98231-298-1	01	1	1410-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-98231-298-1	01	1	1410-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HIGH RIDE SUSPENSION(7YC)	8-98187-282-1	01	1	1410-	●
52	HOSE; FLEX,P/S CONT VLV HIGH RIDE SUSPENSION(7YC)	8-97946-146-0	01	1	1410-	●
52	HOSE; FLEX,P/S CONT VLV	8-97946-146-0	01	1	1410-		●
52	HOSE; FLEX,P/S CONT VLV EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-144-0	01	1	1410-	●
109	CLIP; RUBBER HOSE ID=20.8	8-97944-127-0	02	1	1410-	●	●
166	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	02	1	1410-	●	●
233	BOLT; PIPE CLIP,P/S M6X16 FLANGE	0-28650-616-0	02	1	1410-	●	●
262	CLIP; P/S PIPE (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1410-	●	●
262	CLIP; P/S PIPE (B) ID=11 L=20	0-95235-032-0	01	1	1410-	●	●
271	BOLT; P/S OIL PIPE FIX M6X16 FLANGE	0-28650-616-0	02	1	1410-	●	●
356	BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1410-	●	●

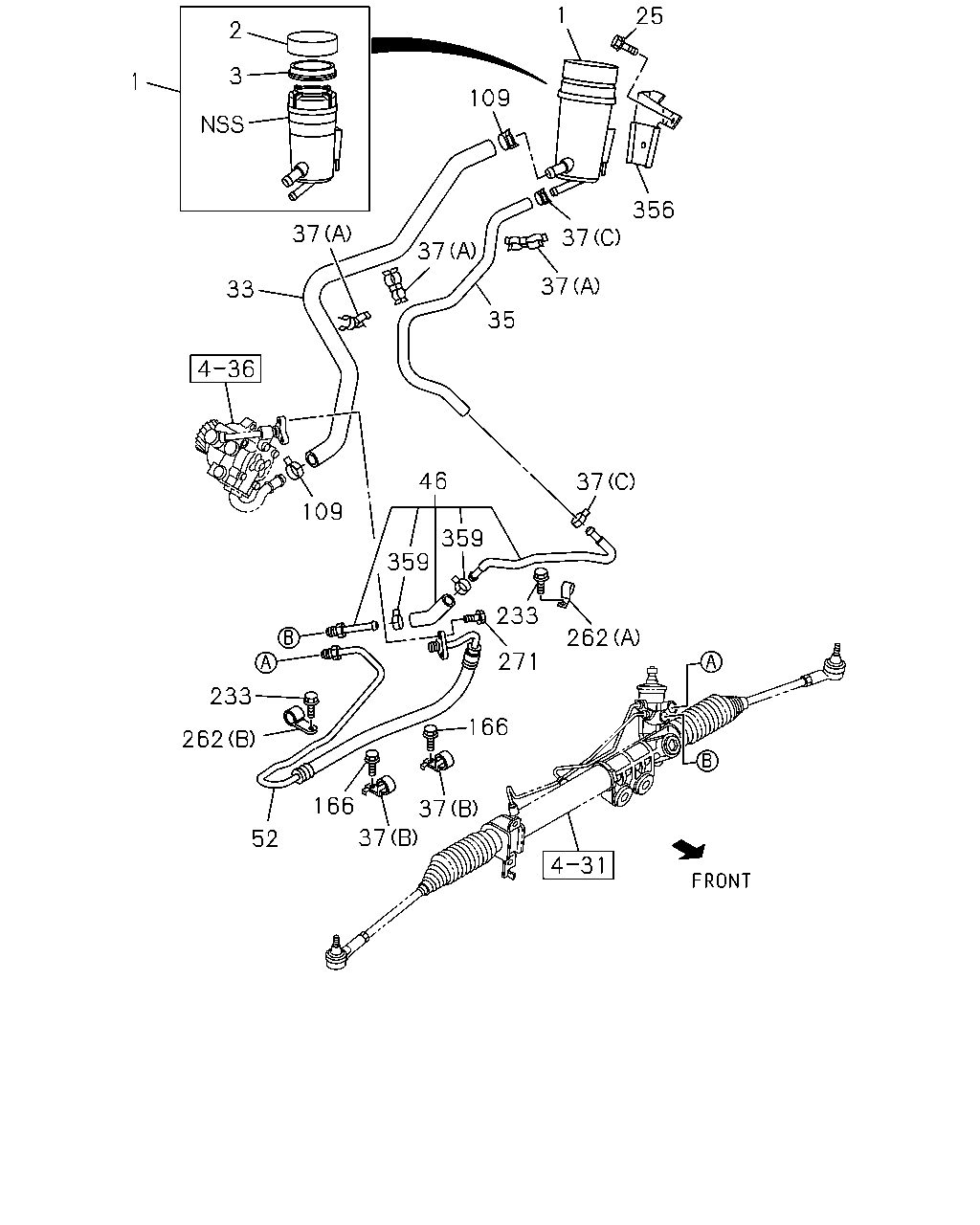

1 2 3 1 25 109 37 37 37 37 35 356 33 109 46 37 359 359 233 233 262 271 262 52 166 166 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97234-350-0	01	1	1410-	●	●
2	CAP; OIL TANK,P/S	8-97349-476-0	01	1	1410-	●	●
3	GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1410-	●	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE	0-28650-616-0	02	1	1410-	●	●
33	HOSE; RUBBER,POWER STRG	8-97946-138-2	01	1	1410-	●	●
35	HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1410-	●	●
37	CLIP; HOSE,P/S (A) ID=17.5 & 21	8-97177-580-0	03	1	1410-	●	●
37	CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1410-	●	●
37	CLIP; HOSE,P/S (B) ID=21.5 L=21	8-98211-907-0	02	1	1410-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK HIGH RIDE SUSPENSION(7YC)	8-98231-298-1	01	1	1410-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-98231-298-1	01	1	1410-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HIGH RIDE SUSPENSION(7YC)	8-98187-282-1	01	1	1410-	●
52	HOSE; FLEX,P/S CONT VLV HIGH RIDE SUSPENSION(7YC)	8-97946-146-0	01	1	1410-	●
52	HOSE; FLEX,P/S CONT VLV	8-97946-146-0	01	1	1410-		●
52	HOSE; FLEX,P/S CONT VLV EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-144-0	01	1	1410-	●
109	CLIP; RUBBER HOSE ID=20.8	8-97944-127-0	02	1	1410-	●	●
166	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	02	1	1410-	●	●
233	BOLT; PIPE CLIP,P/S M6X16 FLANGE	0-28650-616-0	02	1	1410-	●	●
262	CLIP; P/S PIPE (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1410-	●	●
262	CLIP; P/S PIPE (B) ID=11 L=20	0-95235-032-0	01	1	1410-	●	●
271	BOLT; P/S OIL PIPE FIX M6X16 FLANGE	0-28650-616-0	02	1	1410-	●	●
356	BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1410-	●	●
359	CLAMP; HOSE EXC. HIGH RIDE SUSPENSION(7YC) ID=16	8-98030-682-0	02	1	1410-	●
