4-30 — STEERING WHEEL AND COWL (#148787) — 17 parça

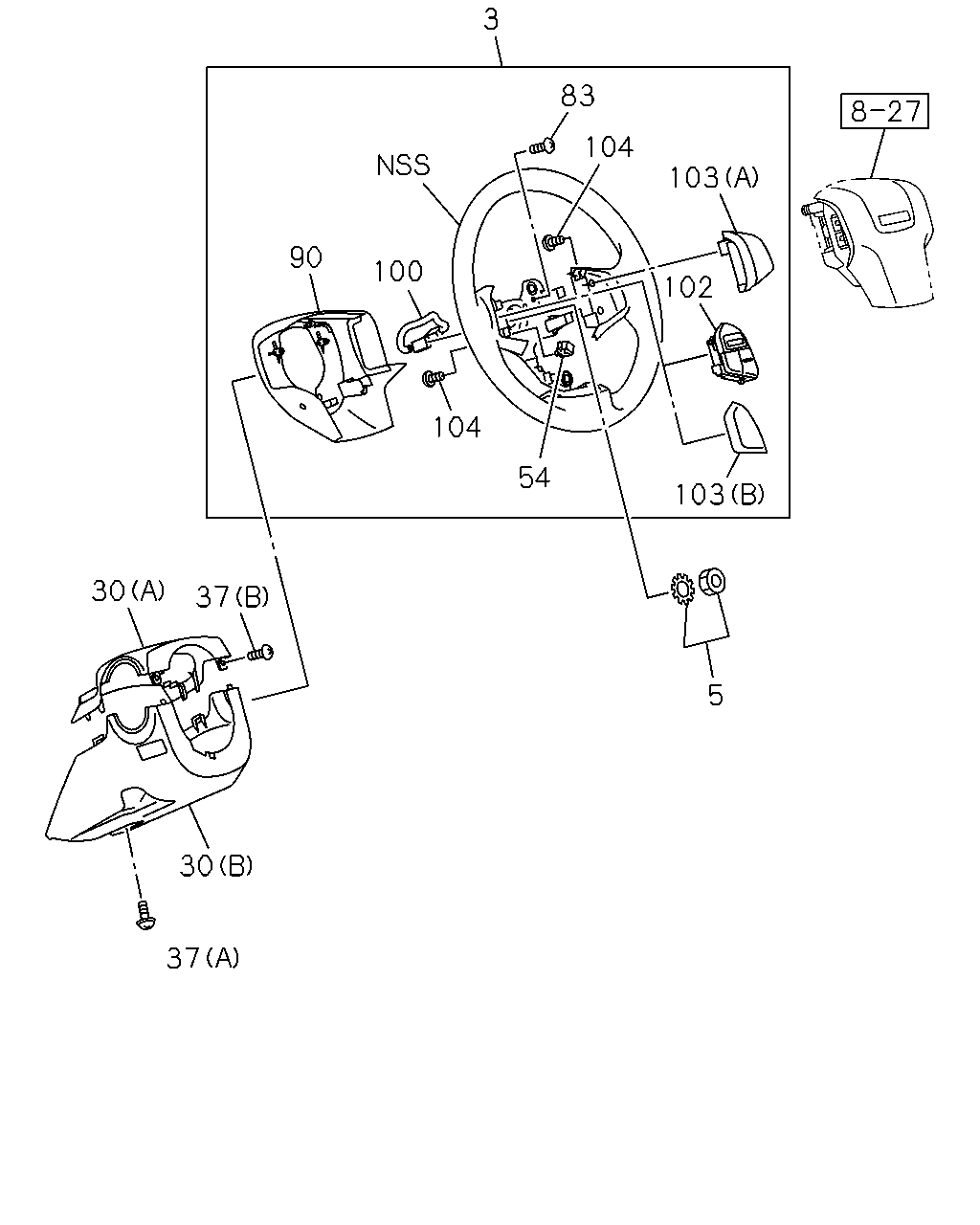

çizim 443404
5 37 30 37 30 90 100 104 54 3 83 104 103 102 103
BalonParca AdiParca NoAdetTipApplied Date A B
3 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> BLACK 		8-97416-802-3 01 1 1410- ● ●
3 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> BLACK 		8-97416-796-3 01 1 1410- ● ●
3 WHEEL; STRG
EXC. STEERING WHEEL LEATHER<NP5>,STEERING WHEEL RADIO CONTROLS<8NE> BLACK 		8-97416-797-3 01 1 1410- ● ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 1410- ● ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> (B) BLACK 		8-97417-527-6 01 1 1410- ● ●
30 COWL; STEERING
(A) BLACK 		8-97416-863-4 01 1 1410- ● ●
30 COWL; STEERING
EXC. IMMOBILIZER SYSTEM<7KC> (B) BLACK 		8-97417-528-6 01 1 1410- ● ●
37 SCREW; STRG COWL UPR
(A) M4X12 W/PL WASHER 		0-36210-412-0 01 1 1410- ● ●
37 SCREW; STRG COWL UPR
(B) M5X16 TAPPING 		8-98167-449-0 02 1 1410- ● ●
54 CLIP; HARNESS 8-98165-703-0 01 1 1410- ● ●
83 SCREW; LWR COVER TO WHEEL
M4X10 TAPPING 		0-71240-410-0 02 1 1410- ● ●
90 COVER ASM; STRG WHEEL,LWR
BLACK 		8-97416-856-1 01 1 1410- ● ●
100 HARNESS; STRG WHEEL
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> 		8-98108-695-0 01 1 1410- ● ●
102 SWITCH ASM; AUDIO CONT,STRG WHEEL
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> 		8-98108-690-0 01 1 1410- ● ●
103 BEZEL; COVER,SWITCH HOLE
STEERING WHEEL LEATHER<NP5> (A) SILVER 		8-97416-857-1 01 1 1410- ● ●
103 BEZEL; COVER,SWITCH HOLE
STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> (B) SILVER 		8-97416-858-1 01 1 1410- ● ●
104 SCREW; SWITCH AND BEZEL
STEERING WHEEL LEATHER<NP5> M4X10 TAPPING 		0-71240-410-0 04 1 1410- ● ●
