4-11 — FRONT HUB AND DRUM OR ROTOR (#148782) — 151 parça

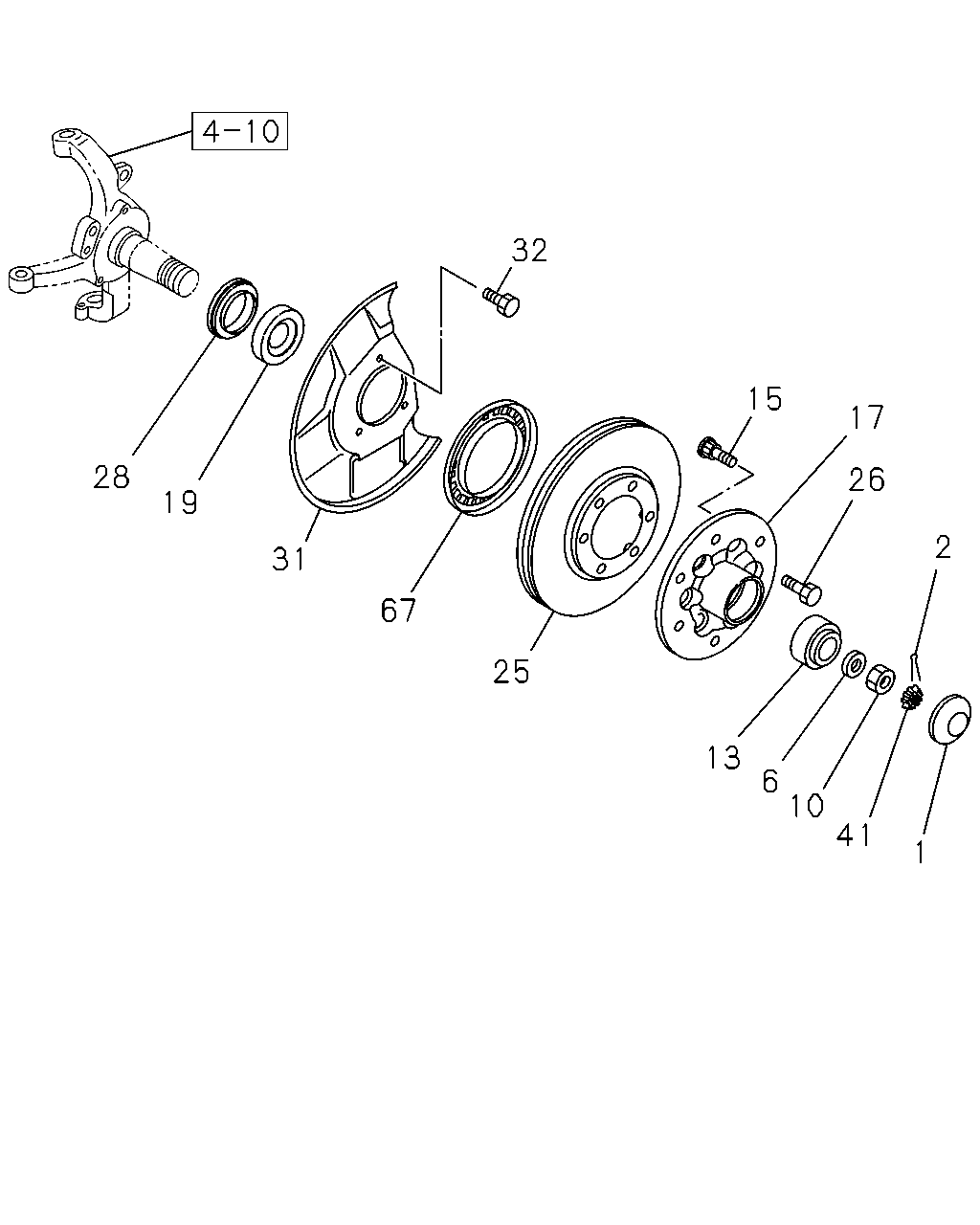

32 15 17 26 2 1 41 10 6 13 25 67 31 19 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-97944-565-0	02	1	1410-1506	●
1	CAP; HUB,FRT AXLE	8-97944-565-0	02	1	1410-1506		●
1	CAP; HUB,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97944-565-0	02	1	1507-	●
1	CAP; HUB,FRT AXLE	8-97944-565-0	02	1	1507-		●
1	CAP; HUB,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-055-0	02	1	1410-1506	●
1	CAP; HUB,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-055-0	02	1	1507-	●
2	PIN; SPLIT,HUB TO AXLE SHAFT EXC. HIGH RIDE SUSPENSION(7YC) OD=3.7 L=30	0-81124-030-0	02	1	1410-1506	●
2	PIN; SPLIT,HUB TO AXLE SHAFT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) OD=3.7 L=30	0-81124-030-0	02	1	1507-	●
6	WASHER; LK,FRT HUB HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65	8-94442-398-0	02	1	1410-1506	●
6	WASHER; LK,FRT HUB T=1.8 OD=65	8-94442-398-0	02	1	1410-1506		●
6	WASHER; LK,FRT HUB 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65	8-94442-398-0	02	1	1507-	●
6	WASHER; LK,FRT HUB T=1.8 OD=65	8-94442-398-0	02	1	1507-		●
6	WASHER; LK,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35	8-97382-661-0	02	1	1410-1506	●
6	WASHER; LK,FRT HUB 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35	8-97382-661-0	02	1	1507-	●
10	NUT; FRT HUB BRG EXC. HIGH RIDE SUSPENSION(7YC) M18	8-94243-927-1	02	1	1410-1506	●
10	NUT; FRT HUB BRG 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) M18	8-94243-927-1	02	1	1507-	●
13	BEARING; HUB OUTER,FRT AXLE HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94227-041-0	02	1	1410-1506	●
13	BEARING; HUB OUTER,FRT AXLE NSK CHI	8-94227-041-0	02	1	1410-1506		●
13	BEARING; HUB OUTER,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94227-041-0	02	1	1507-	●
13	BEARING; HUB OUTER,FRT AXLE NSK CHI	8-94227-041-0	02	1	1507-		●
13	BEARING; HUB OUTER,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94242-913-0	02	1	1410-1506	●
13	BEARING; HUB OUTER,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94242-913-0	02	1	1507-	●
15	PIN; WHEEL,FRT AXLE M12X37.5	8-97944-564-1	12	1	1410-	●	●
17	HUB; FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-98054-665-0	02	1	1410-1506	●
17	HUB; FRT AXLE	8-98054-665-0	02	1	1410-1506		●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98054-665-0	02	1	1507-	●
17	HUB; FRT AXLE	8-98054-665-0	02	1	1507-		●
17	HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-417-1	02	1	1410-1506	●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-417-1	02	1	1507-1511	●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) CHI	8-98054-664-0	02	1	1512-	●
19	BEARING; HUB INNER,FRT AXLE HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94258-819-0	02	1	1410-1506	●
19	BEARING; HUB INNER,FRT AXLE NSK CHI	8-94258-819-0	02	1	1410-1506		●
19	BEARING; HUB INNER,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94258-819-0	02	1	1507-	●
19	BEARING; HUB INNER,FRT AXLE NSK CHI	8-94258-819-0	02	1	1507-		●
19	BEARING; HUB INNER,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94242-683-0	02	1	1410-1506	●
19	BEARING; HUB INNER,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94242-683-0	02	1	1507-	●
25	ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98124-663-4	02	1	1410-1506	●
25	ROTOR; DISC BRK,FRT	8-98124-663-4	02	1	1410-1506		●
25	ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98124-663-4	02	1	1507-	●
25	ROTOR; DISC BRK,FRT	8-98124-663-4	02	1	1507-		●
25	ROTOR; DISC BRK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97360-677-2	02	1	1410-1506	●
25	ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97360-677-2	02	1	1507-	●
26	BOLT; BRK,DISC TO HUB M12X31.5 FLANGE	8-98006-065-0	12	1	1410-	●	●
28	SEAL; OIL,FRT HUB HIGH RIDE SUSPENSION(7YC)	8-98036-594-0	02	1	1410-1506	●
28	SEAL; OIL,FRT HUB	8-98036-594-0	02	1	1410-1506		●
28	SEAL; OIL,FRT HUB 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98036-594-0	02	1	1507-	●
28	SEAL; OIL,FRT HUB	8-98036-594-0	02	1	1507-		●
28	SEAL; OIL,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC)	8-98036-593-0	02	1	1410-1506	●
28	SEAL; OIL,FRT HUB 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98036-593-0	02	1	1507-	●
31	COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC)	8-98062-190-0	01	1	1410-1506	●
31	COVER; DUST,FRT BRAKE	8-98062-190-0	01	1	1410-1506		●
31	COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98062-190-0	01	1	1507-	●
31	COVER; DUST,FRT BRAKE	8-98062-190-0	01	1	1507-		●
31	COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC)	8-98062-191-0	01	1	1410-1506	●
31	COVER; DUST,FRT BRAKE	8-98062-191-0	01	1	1410-1506		●
31	COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98062-191-0	01	1	1507-	●
31	COVER; DUST,FRT BRAKE	8-98062-191-0	01	1	1507-		●
31	COVER; DUST,FRT BRAKE EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-148-0	01	1	1410-1506	●
31	COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-148-0	01	1	1507-	●
31	COVER; DUST,FRT BRAKE EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-149-0	01	1	1410-1506	●
31	COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-149-0	01	1	1507-	●
32	BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER	8-98006-352-0	06	1	1410-	●	●
41	RETAINER; NUT,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC)	8-94243-928-1	02	1	1410-1506	●
41	RETAINER; NUT,FRT HUB 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-94243-928-1	02	1	1507-	●
67	ROTOR; SENSOR HIGH RIDE SUSPENSION(7YC)	8-97238-280-0	02	1	1410-1506	●
67	ROTOR; SENSOR	8-97238-280-0	02	1	1410-1506		●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97238-280-0	02	1	1507-	●
67	ROTOR; SENSOR	8-97238-280-0	02	1	1507-		●
67	ROTOR; SENSOR EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-278-0	02	1	1410-1506	●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-278-0	02	1	1507-	●

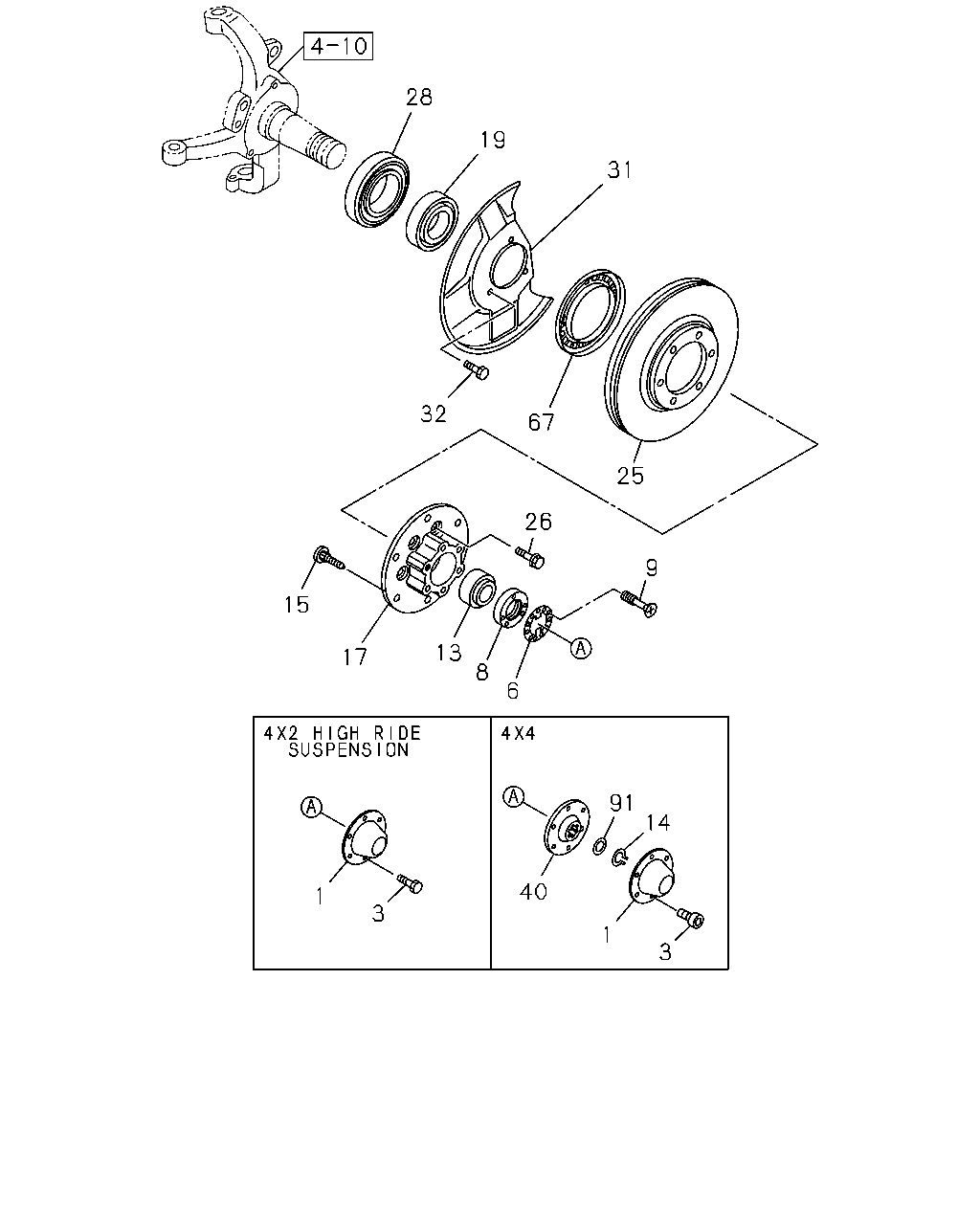

28 19 31 32 67 25 26 9 6 8 13 17 15 1 3 40 91 14 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-97944-565-0	02	1	1410-1506	●
1	CAP; HUB,FRT AXLE	8-97944-565-0	02	1	1410-1506		●
1	CAP; HUB,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97944-565-0	02	1	1507-	●
1	CAP; HUB,FRT AXLE	8-97944-565-0	02	1	1507-		●
1	CAP; HUB,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-055-0	02	1	1410-1506	●
1	CAP; HUB,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98006-055-0	02	1	1507-	●
3	BOLT; HUB CAP,FRT WHEEL HIGH RIDE SUSPENSION(7YC) M10X20 CHI	0-20951-020-0	12	1	1410-1506	●
3	BOLT; HUB CAP,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M10X20 CHI	0-20951-020-0	12	1	1507-	●
3	BOLT; HUB CAP,FRT WHEEL M10X33	8-98117-920-0	12	1	1410-		●
6	WASHER; LK,FRT HUB HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65	8-94442-398-0	02	1	1410-1506	●
6	WASHER; LK,FRT HUB T=1.8 OD=65	8-94442-398-0	02	1	1410-1506		●
6	WASHER; LK,FRT HUB 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65	8-94442-398-0	02	1	1507-	●
6	WASHER; LK,FRT HUB T=1.8 OD=65	8-94442-398-0	02	1	1507-		●
6	WASHER; LK,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35	8-97382-661-0	02	1	1410-1506	●
6	WASHER; LK,FRT HUB 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35	8-97382-661-0	02	1	1507-	●
8	NUT; ADJ,FRT HUB HIGH RIDE SUSPENSION(7YC) ID=40 OD=65 T=8	8-94442-399-1	02	1	1410-1506	●
8	NUT; ADJ,FRT HUB ID=40 OD=65 T=8	8-94442-399-1	02	1	1410-1506		●
8	NUT; ADJ,FRT HUB 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) ID=40 OD=65 T=8	8-94442-399-1	02	1	1507-	●
8	NUT; ADJ,FRT HUB ID=40 OD=65 T=8	8-94442-399-1	02	1	1507-		●
9	SCREW; ADJ,NUT HIGH RIDE SUSPENSION(7YC) M4X8 CK-HEAD	8-98008-301-0	06	1	1410-1506	●
9	SCREW; ADJ,NUT M4X8 CK-HEAD	8-98008-301-0	06	1	1410-1506		●
9	SCREW; ADJ,NUT 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) M4X8 CK-HEAD	8-98008-301-0	06	1	1507-	●
9	SCREW; ADJ,NUT M4X8 CK-HEAD	8-98008-301-0	06	1	1507-		●
13	BEARING; HUB OUTER,FRT AXLE HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94227-041-0	02	1	1410-1506	●
13	BEARING; HUB OUTER,FRT AXLE NSK CHI	8-94227-041-0	02	1	1410-1506		●
13	BEARING; HUB OUTER,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94227-041-0	02	1	1507-	●
13	BEARING; HUB OUTER,FRT AXLE NSK CHI	8-94227-041-0	02	1	1507-		●
13	BEARING; HUB OUTER,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94242-913-0	02	1	1410-1506	●
13	BEARING; HUB OUTER,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94242-913-0	02	1	1507-	●
14	RING; SPR,FRT WHEEL ID=25.9	9-09180-028-0	02	1	1410-		●
15	PIN; WHEEL,FRT AXLE M12X37.5	8-97944-564-1	12	1	1410-	●	●
17	HUB; FRT AXLE HIGH RIDE SUSPENSION(7YC)	8-98054-665-0	02	1	1410-1506	●
17	HUB; FRT AXLE	8-98054-665-0	02	1	1410-1506		●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98054-665-0	02	1	1507-	●
17	HUB; FRT AXLE	8-98054-665-0	02	1	1507-		●
17	HUB; FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-417-1	02	1	1410-1506	●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-417-1	02	1	1507-1511	●
17	HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) CHI	8-98054-664-0	02	1	1512-	●
19	BEARING; HUB INNER,FRT AXLE HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94258-819-0	02	1	1410-1506	●
19	BEARING; HUB INNER,FRT AXLE NSK CHI	8-94258-819-0	02	1	1410-1506		●
19	BEARING; HUB INNER,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94258-819-0	02	1	1507-	●
19	BEARING; HUB INNER,FRT AXLE NSK CHI	8-94258-819-0	02	1	1507-		●
19	BEARING; HUB INNER,FRT AXLE EXC. HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94242-683-0	02	1	1410-1506	●
19	BEARING; HUB INNER,FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) NSK CHI	8-94242-683-0	02	1	1507-	●
25	ROTOR; DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-98124-663-4	02	1	1410-1506	●
25	ROTOR; DISC BRK,FRT	8-98124-663-4	02	1	1410-1506		●
25	ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98124-663-4	02	1	1507-	●
25	ROTOR; DISC BRK,FRT	8-98124-663-4	02	1	1507-		●
25	ROTOR; DISC BRK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97360-677-2	02	1	1410-1506	●
25	ROTOR; DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97360-677-2	02	1	1507-	●
26	BOLT; BRK,DISC TO HUB M12X31.5 FLANGE	8-98006-065-0	12	1	1410-	●	●
28	SEAL; OIL,FRT HUB HIGH RIDE SUSPENSION(7YC)	8-98036-594-0	02	1	1410-1506	●
28	SEAL; OIL,FRT HUB	8-98036-594-0	02	1	1410-1506		●
28	SEAL; OIL,FRT HUB 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98036-594-0	02	1	1507-	●
28	SEAL; OIL,FRT HUB	8-98036-594-0	02	1	1507-		●
28	SEAL; OIL,FRT HUB EXC. HIGH RIDE SUSPENSION(7YC)	8-98036-593-0	02	1	1410-1506	●
28	SEAL; OIL,FRT HUB 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98036-593-0	02	1	1507-	●
31	COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC)	8-98062-190-0	01	1	1410-1506	●
31	COVER; DUST,FRT BRAKE	8-98062-190-0	01	1	1410-1506		●
31	COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98062-190-0	01	1	1507-	●
31	COVER; DUST,FRT BRAKE	8-98062-190-0	01	1	1507-		●
31	COVER; DUST,FRT BRAKE HIGH RIDE SUSPENSION(7YC)	8-98062-191-0	01	1	1410-1506	●
31	COVER; DUST,FRT BRAKE	8-98062-191-0	01	1	1410-1506		●
31	COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98062-191-0	01	1	1507-	●
31	COVER; DUST,FRT BRAKE	8-98062-191-0	01	1	1507-		●
31	COVER; DUST,FRT BRAKE EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-148-0	01	1	1410-1506	●
31	COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-148-0	01	1	1507-	●
31	COVER; DUST,FRT BRAKE EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-149-0	01	1	1410-1506	●
31	COVER; DUST,FRT BRAKE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98008-149-0	01	1	1507-	●
32	BOLT; DUST COVER TO KNUCKLE M8X10 W/LK WASHER	8-98006-352-0	06	1	1410-	●	●
40	FLANGE; FRT WHEEL HUB	8-98197-869-0	02	1	1410-		●
67	ROTOR; SENSOR HIGH RIDE SUSPENSION(7YC)	8-97238-280-0	02	1	1410-1506	●
67	ROTOR; SENSOR	8-97238-280-0	02	1	1410-1506		●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-97238-280-0	02	1	1507-	●
67	ROTOR; SENSOR	8-97238-280-0	02	1	1507-		●
67	ROTOR; SENSOR EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-278-0	02	1	1410-1506	●
67	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97238-278-0	02	1	1507-	●
91	SPACER; HUB BRG T=0.20	8-94178-929-0	AR	1	1410-		●
91	SPACER; HUB BRG T=0.30	8-94178-930-0	AR	1	1410-		●
91	SPACER; HUB BRG T=0.50	8-94178-931-0	AR	1	1410-		●
91	SPACER; HUB BRG T=1.00	8-94178-932-0	AR	1	1410-		●
