4-01 — PROPELLER SHAFT (#148780) — 91 parça

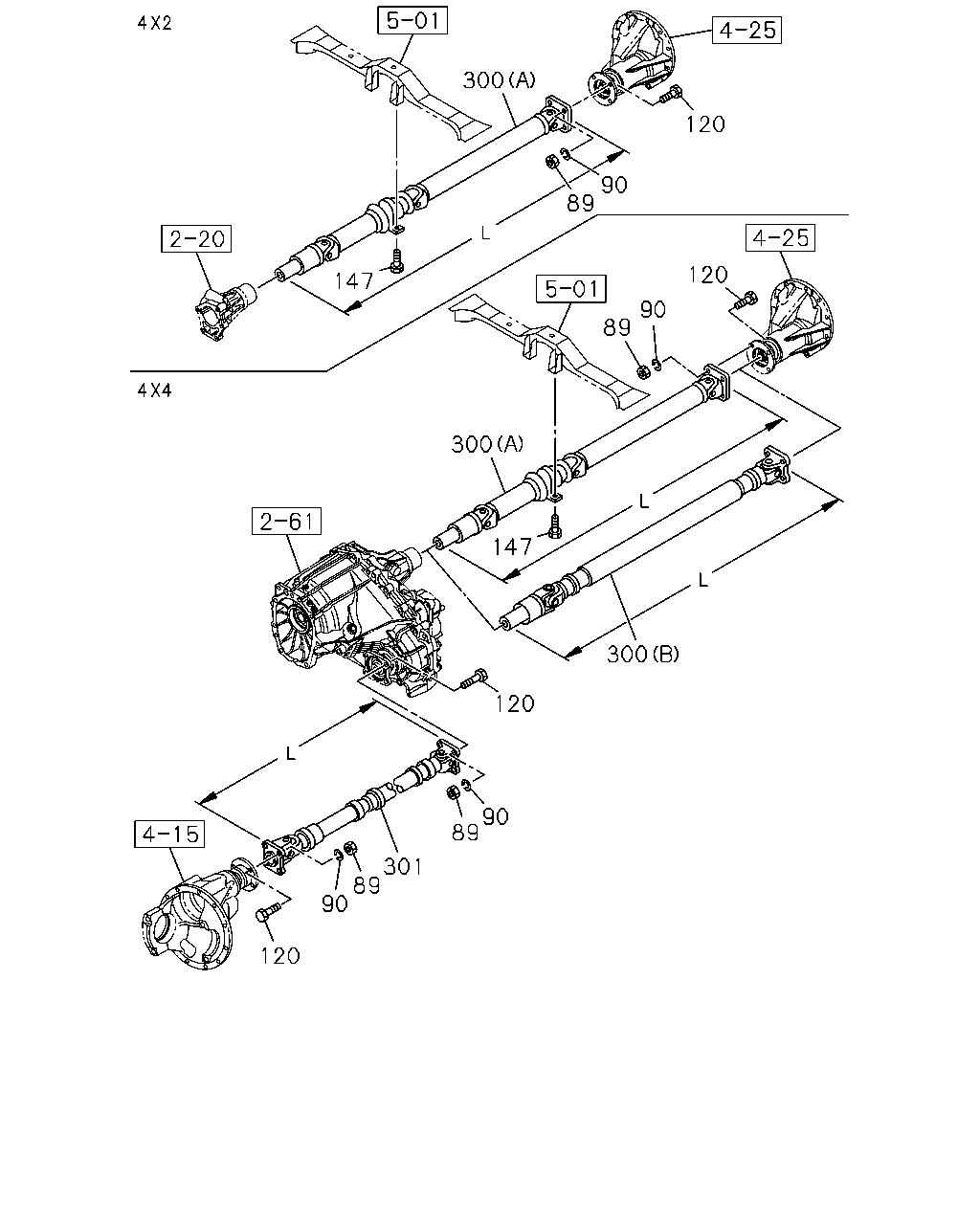

çizim 443445
120 89 301 89 90 90 120 300 147 300 89 90 120 89 90 120 300 147
BalonParca AdiParca NoAdetTipApplied Date A B
89 NUT; YOKE TO RR AXLE
M10 FLANGE 		8-97246-900-0 04 1 1410- ● ●
89 NUT; YOKE TO RR AXLE
M10 FLANGE 		8-97246-900-0 08 1 1410- ●
90 WASHER; LK,YOKE TO RR AXLE
ID=10.1 		8-97246-901-0 04 1 1410- ● ●
90 WASHER; LK,YOKE TO RR AXLE
ID=10.1 		8-97246-901-0 08 1 1410- ●
120 BOLT; YOKE TO RR AXLE
M10X29 		8-97246-859-0 04 1 1410- ● ●
120 BOLT; YOKE TO RR AXLE
M10X29 		8-97246-859-0 08 1 1410- ●
147 BOLT; CENTER BRG MTG
M/T MUA 5 SPEED 5H(MWQ) M12X25 FLANGE 		0-28661-225-0 02 1 1410- ● ●
300 SHAFT ASM; PROP,RR
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A) L=1840 		8-97948-743-0 01 1 1410- ●
300 SHAFT ASM; PROP,RR
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1838.5 		8-97948-744-0 01 1 1410- ●
300 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) (B) L=1384 		8-97948-764-0 01 1 1410- ●
300 SHAFT ASM; PROP,RR
M/T MUA 5 SPEED 5H(MWQ) (A) L=1510 		8-97948-757-0 01 1 1410- ●
301 SHAFT ASM; PROP,FRT
A/T 5 SPEED-AISIN(MA1) L=789 		8-97948-762-0 01 1 1410- ●
301 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED 5H(MWQ) L=671 		8-97948-758-0 01 1 1410- ●
çizim 443526
301 220 9 8 17 9 8 106 103 17
BalonParca AdiParca NoAdetTipApplied Date A B
8 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97948-771-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-97948-771-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97948-770-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		8-97948-772-0 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C) FRONT,CENTER 		8-97947-642-0 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C) REAR 		8-97947-643-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97947-642-0 03 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
A/T 5 SPEED-AISIN(MA1) (A) 		8-97947-645-0 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97947-645-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-97947-582-0 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-97947-582-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT 		0-90301-406-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) M6 STRAIGHT 		0-90301-406-0 03 1 1410- ●
103 BOOT; PROP SHAFT
(A) 		8-97940-114-0 01 1 1410- ● ●
103 BOOT; PROP SHAFT
(B) 		8-97943-053-0 01 1 1410- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1410- ●
220 YOKE; SPLINED 8-97945-105-0 01 1 1410- ●
301 SHAFT ASM; PROP,FRT
A/T 5 SPEED-AISIN(MA1) L=789 		8-97948-762-0 01 1 1410- ●
301 SHAFT ASM; PROP,FRT
M/T MUA 5 SPEED 5H(MWQ) L=671 		8-97948-758-0 01 1 1410- ●

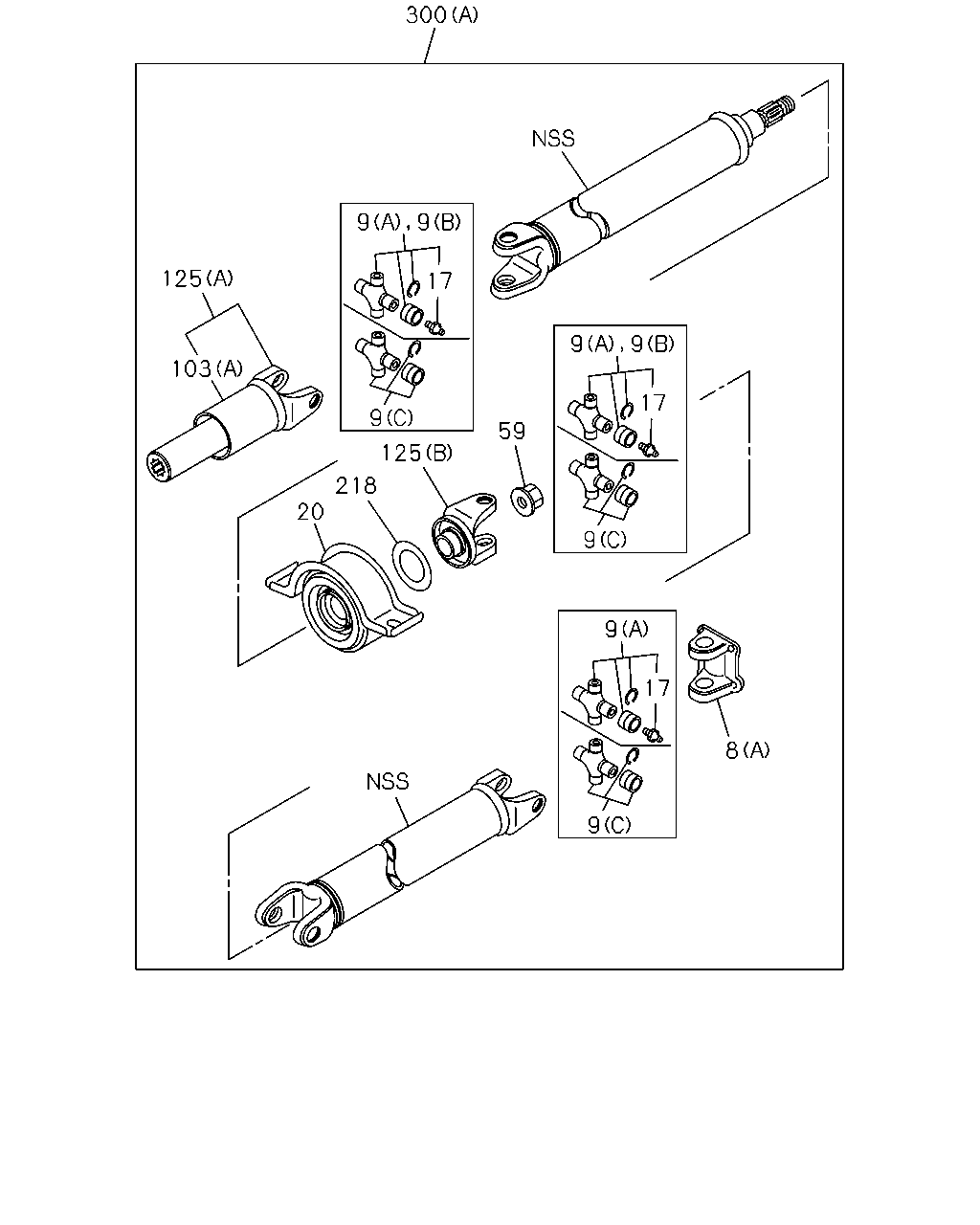

çizim 443557
300 9 9 17 9 125 103 20 218 125 59 9 9 9 17 9 8 9 17
BalonParca AdiParca NoAdetTipApplied Date A B
8 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97948-771-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-97948-771-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97948-770-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		8-97948-772-0 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C) FRONT,CENTER 		8-97947-642-0 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C) REAR 		8-97947-643-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97947-642-0 03 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
A/T 5 SPEED-AISIN(MA1) (A) 		8-97947-645-0 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97947-645-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-97947-582-0 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-97947-582-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT 		0-90301-406-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) M6 STRAIGHT 		0-90301-406-0 03 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) NSK 		8-97947-659-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) NSK 		8-97947-659-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) NTN 		8-97947-660-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) NTN 		8-97947-660-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-97947-655-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) NTN 		8-97947-656-0 01 1 1410- ●
59 NUT; RET TO SUPPORT
M/T MUA 5 SPEED 5H(MWQ) 		8-97947-557-0 01 1 1410- ● ●
103 BOOT; PROP SHAFT
(A) 		8-97940-114-0 01 1 1410- ● ●
103 BOOT; PROP SHAFT
(B) 		8-97943-053-0 01 1 1410- ●
125 YOKE ASM; SPLINED,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B) 		8-97948-769-0 01 1 1410- ●
125 YOKE ASM; SPLINED,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-97948-769-0 01 1 1410- ●
125 YOKE ASM; SPLINED,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97947-629-0 01 1 1410- ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97947-663-0 01 1 1410- ●
125 YOKE ASM; SPLINED,PROP SHAFT
A/T 5 SPEED-AISIN(MA1) (A) 		8-97947-630-0 01 1 1410- ●
218 WASHER; PL,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) ID=30 H=40 L=35 		8-97192-641-0 01 1 1410- ● ●
300 SHAFT ASM; PROP,RR
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A) L=1840 		8-97948-743-0 01 1 1410- ●
300 SHAFT ASM; PROP,RR
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1838.5 		8-97948-744-0 01 1 1410- ●
300 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) (B) L=1384 		8-97948-764-0 01 1 1410- ●
300 SHAFT ASM; PROP,RR
M/T MUA 5 SPEED 5H(MWQ) (A) L=1510 		8-97948-757-0 01 1 1410- ●
çizim 443582
300 9 17 9 8 125 103 17
BalonParca AdiParca NoAdetTipApplied Date A B
8 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97948-771-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-97948-771-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97948-770-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		8-97948-772-0 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C) FRONT,CENTER 		8-97947-642-0 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C) REAR 		8-97947-643-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97947-642-0 03 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
A/T 5 SPEED-AISIN(MA1) (A) 		8-97947-645-0 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97947-645-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-97947-582-0 02 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-97947-582-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT 		0-90301-406-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 02 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) M6 STRAIGHT 		0-90301-406-0 03 1 1410- ●
103 BOOT; PROP SHAFT
(A) 		8-97940-114-0 01 1 1410- ● ●
103 BOOT; PROP SHAFT
(B) 		8-97943-053-0 01 1 1410- ●
125 YOKE ASM; SPLINED,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B) 		8-97948-769-0 01 1 1410- ●
125 YOKE ASM; SPLINED,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-97948-769-0 01 1 1410- ●
125 YOKE ASM; SPLINED,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97947-629-0 01 1 1410- ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97947-663-0 01 1 1410- ●
125 YOKE ASM; SPLINED,PROP SHAFT
A/T 5 SPEED-AISIN(MA1) (A) 		8-97947-630-0 01 1 1410- ●
300 SHAFT ASM; PROP,RR
M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A) L=1840 		8-97948-743-0 01 1 1410- ●
300 SHAFT ASM; PROP,RR
M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1838.5 		8-97948-744-0 01 1 1410- ●
300 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) (B) L=1384 		8-97948-764-0 01 1 1410- ●
300 SHAFT ASM; PROP,RR
M/T MUA 5 SPEED 5H(MWQ) (A) L=1510 		8-97948-757-0 01 1 1410- ●
