3-58 — FIXING PARTS; OIL PIPING (#148778) — 65 parça

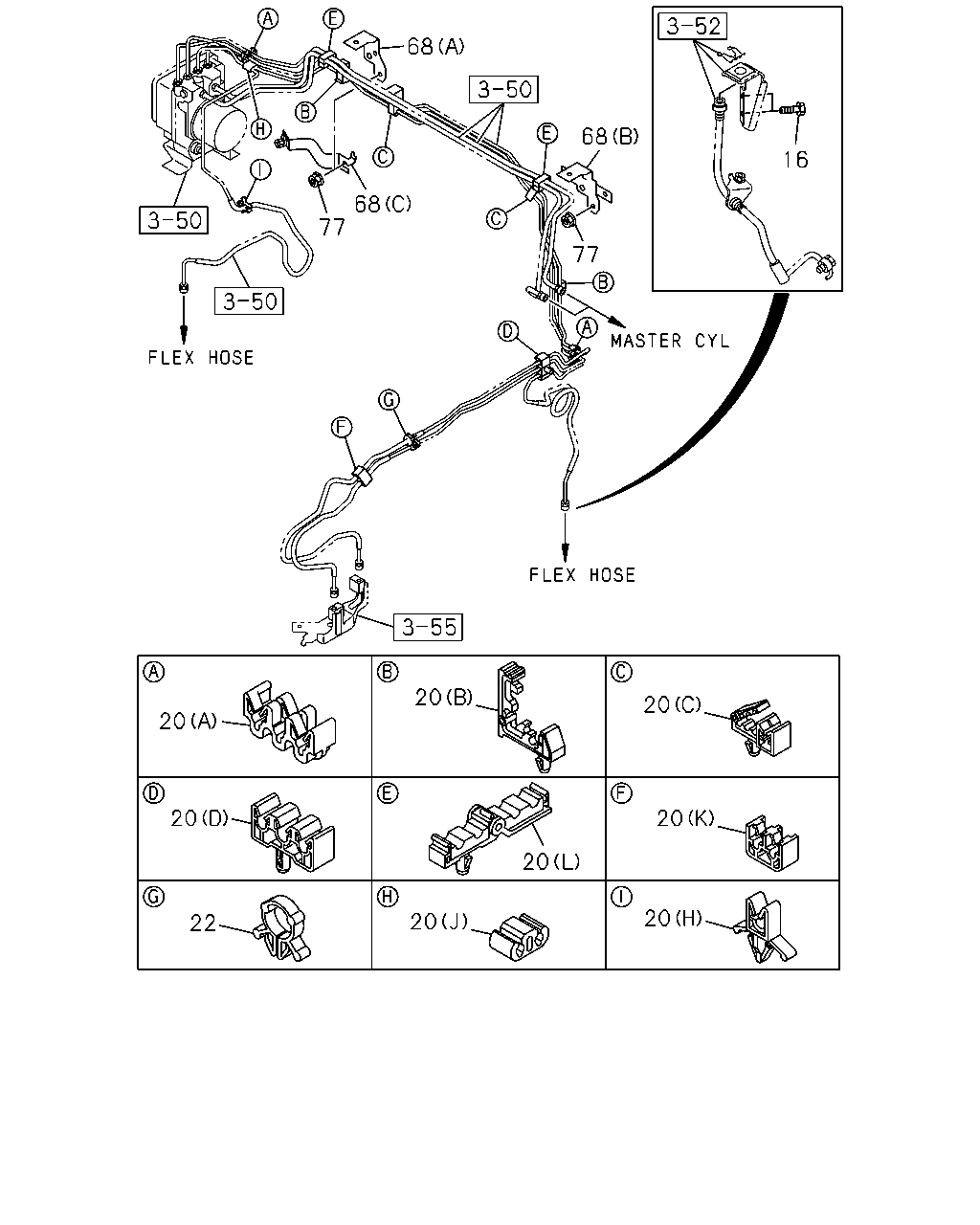

68 68 68 77 77 16 20 20 22 20 20 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BOLT; BRKT TO FRAME HIGH RIDE SUSPENSION(7YC) M8X20 FLANGE	0-28650-820-0	04	1	1410-	●
16	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	04	1	1410-		●
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) (E) ID=4.76X3	8-97216-721-1	03	1	1410-	●
20	CLIP; BRK PIPE (E) ID=4.76X3	8-97216-721-1	03	1	1410-		●
20	CLIP; BRK PIPE (J) ID=4.8X2	8-94389-060-0	01	1	1410-	●	●
20	CLIP; BRK PIPE (A) ID=4.8X3	8-94487-369-0	02	1	1410-	●	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1410-	●	●
20	CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	04	1	1410-	●	●
20	CLIP; BRK PIPE (B) ID=4.76X3	8-98113-388-0	02	1	1410-	●	●
20	CLIP; BRK PIPE (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1410-	●	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	02	1	1410-	●	●
20	CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1410-	●	●
20	CLIP; BRK PIPE (H) ID=4.76	8-97300-443-0	01	1	1410-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (H) ID=4.76	8-97300-443-0	01	1	1410-		●
20	CLIP; BRK PIPE (L)	8-98113-392-0	02	1	1410-1506	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98113-392-0	02	1	1410-1506		●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (L)	8-98113-392-0	02	1	1507-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98113-392-0	02	1	1507-		●
20	CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) (E) ID=4.76X3	8-97216-721-1	02	1	1410-	●
20	CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (K) ID=6.8X2	8-97251-122-0	02	1	1410-		●
20	CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98113-393-0	02	1	1410-		●
22	CLIP; PIPE TO FRAME ID=9	5-09707-027-0	02	1	1410-	●	●
68	BRACKET; CLIP (A)	8-98099-790-0	01	1	1410-	●	●
68	BRACKET; CLIP (B)	8-98099-791-0	01	1	1410-	●	●
68	BRACKET; CLIP (C)	8-98187-830-0	01	1	1410-	●	●
77	NUT; BRKT,OIL PIPE M6 FLANGE	0-91180-106-0	02	1	1410-	●	●

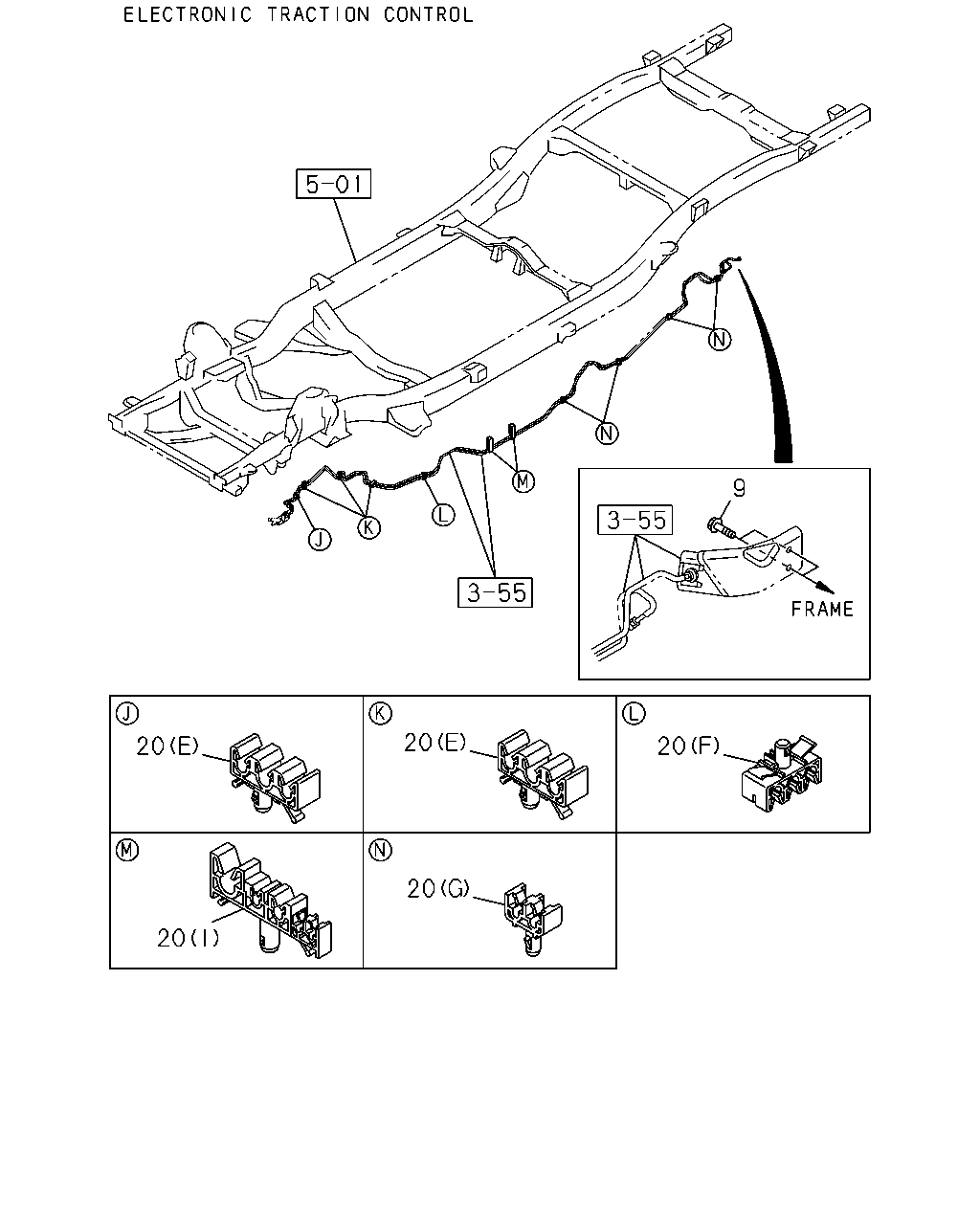

9 20 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	BOLT; BRKT ELECTRONIC TRACTION CONTROL<NW9> M8X25 FLANGE CHI	0-28650-825-0	02	1	1410-		●
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) (E) ID=4.76X3	8-97216-721-1	03	1	1410-	●
20	CLIP; BRK PIPE (E) ID=4.76X3	8-97216-721-1	03	1	1410-		●
20	CLIP; BRK PIPE (J) ID=4.8X2	8-94389-060-0	01	1	1410-	●	●
20	CLIP; BRK PIPE (A) ID=4.8X3	8-94487-369-0	02	1	1410-	●	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1410-	●	●
20	CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	04	1	1410-	●	●
20	CLIP; BRK PIPE (B) ID=4.76X3	8-98113-388-0	02	1	1410-	●	●
20	CLIP; BRK PIPE (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1410-	●	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	02	1	1410-	●	●
20	CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1410-	●	●
20	CLIP; BRK PIPE (H) ID=4.76	8-97300-443-0	01	1	1410-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (H) ID=4.76	8-97300-443-0	01	1	1410-		●
20	CLIP; BRK PIPE (L)	8-98113-392-0	02	1	1410-1506	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98113-392-0	02	1	1410-1506		●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (L)	8-98113-392-0	02	1	1507-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98113-392-0	02	1	1507-		●
20	CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) (E) ID=4.76X3	8-97216-721-1	02	1	1410-	●
20	CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (K) ID=6.8X2	8-97251-122-0	02	1	1410-		●
20	CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98113-393-0	02	1	1410-		●

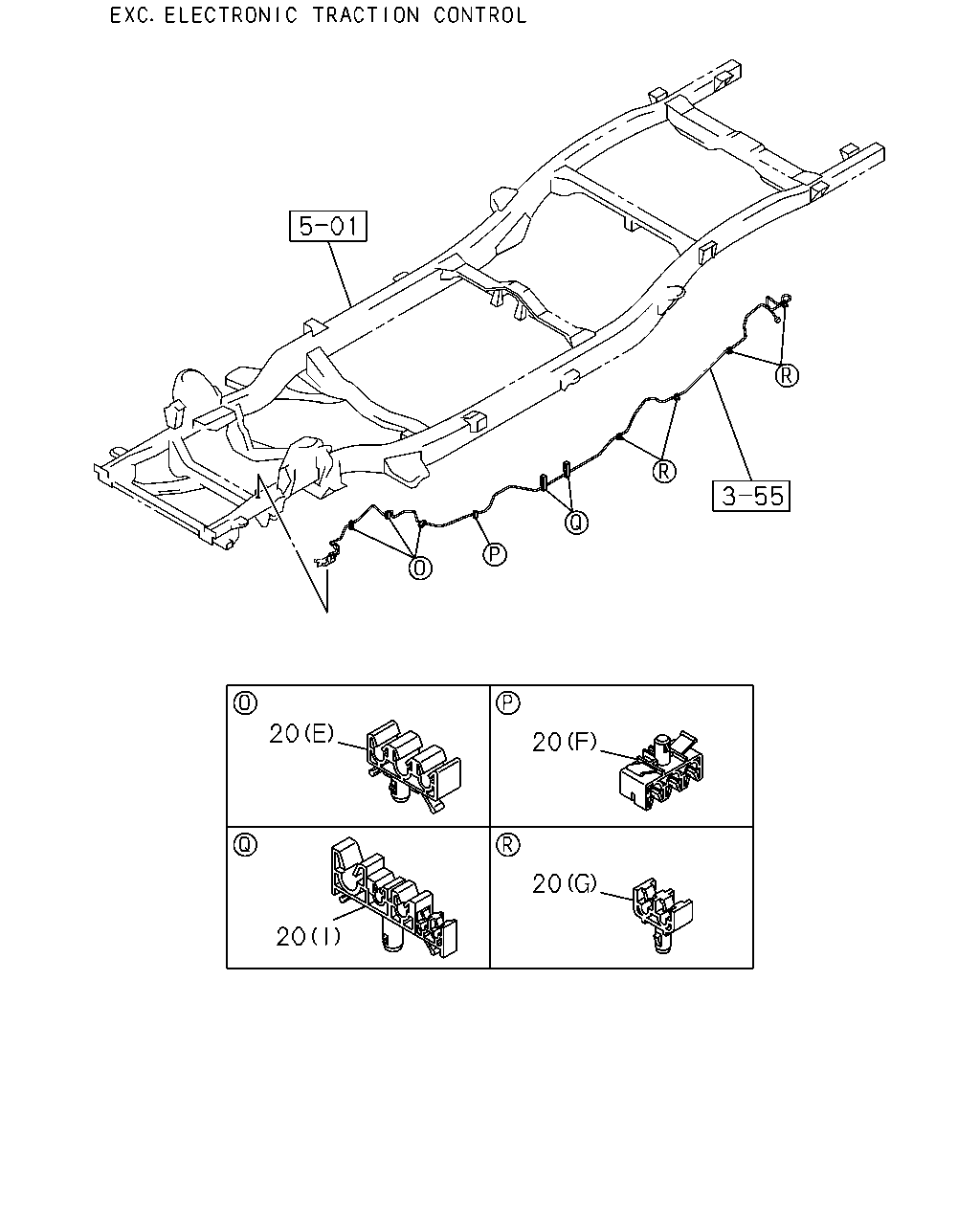

20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) (E) ID=4.76X3	8-97216-721-1	03	1	1410-	●
20	CLIP; BRK PIPE (E) ID=4.76X3	8-97216-721-1	03	1	1410-		●
20	CLIP; BRK PIPE (J) ID=4.8X2	8-94389-060-0	01	1	1410-	●	●
20	CLIP; BRK PIPE (A) ID=4.8X3	8-94487-369-0	02	1	1410-	●	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1410-	●	●
20	CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	04	1	1410-	●	●
20	CLIP; BRK PIPE (B) ID=4.76X3	8-98113-388-0	02	1	1410-	●	●
20	CLIP; BRK PIPE (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1410-	●	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	02	1	1410-	●	●
20	CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1410-	●	●
20	CLIP; BRK PIPE (H) ID=4.76	8-97300-443-0	01	1	1410-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (H) ID=4.76	8-97300-443-0	01	1	1410-		●
20	CLIP; BRK PIPE (L)	8-98113-392-0	02	1	1410-1506	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98113-392-0	02	1	1410-1506		●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (L)	8-98113-392-0	02	1	1507-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98113-392-0	02	1	1507-		●
20	CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) (E) ID=4.76X3	8-97216-721-1	02	1	1410-	●
20	CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (K) ID=6.8X2	8-97251-122-0	02	1	1410-		●
20	CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98113-393-0	02	1	1410-		●
