3-52 — BRAKE PIPING; OIL,FRONT
(#148776) — 15 parça
Tümü
A - TFB6WF
B - TFS6WF
◀

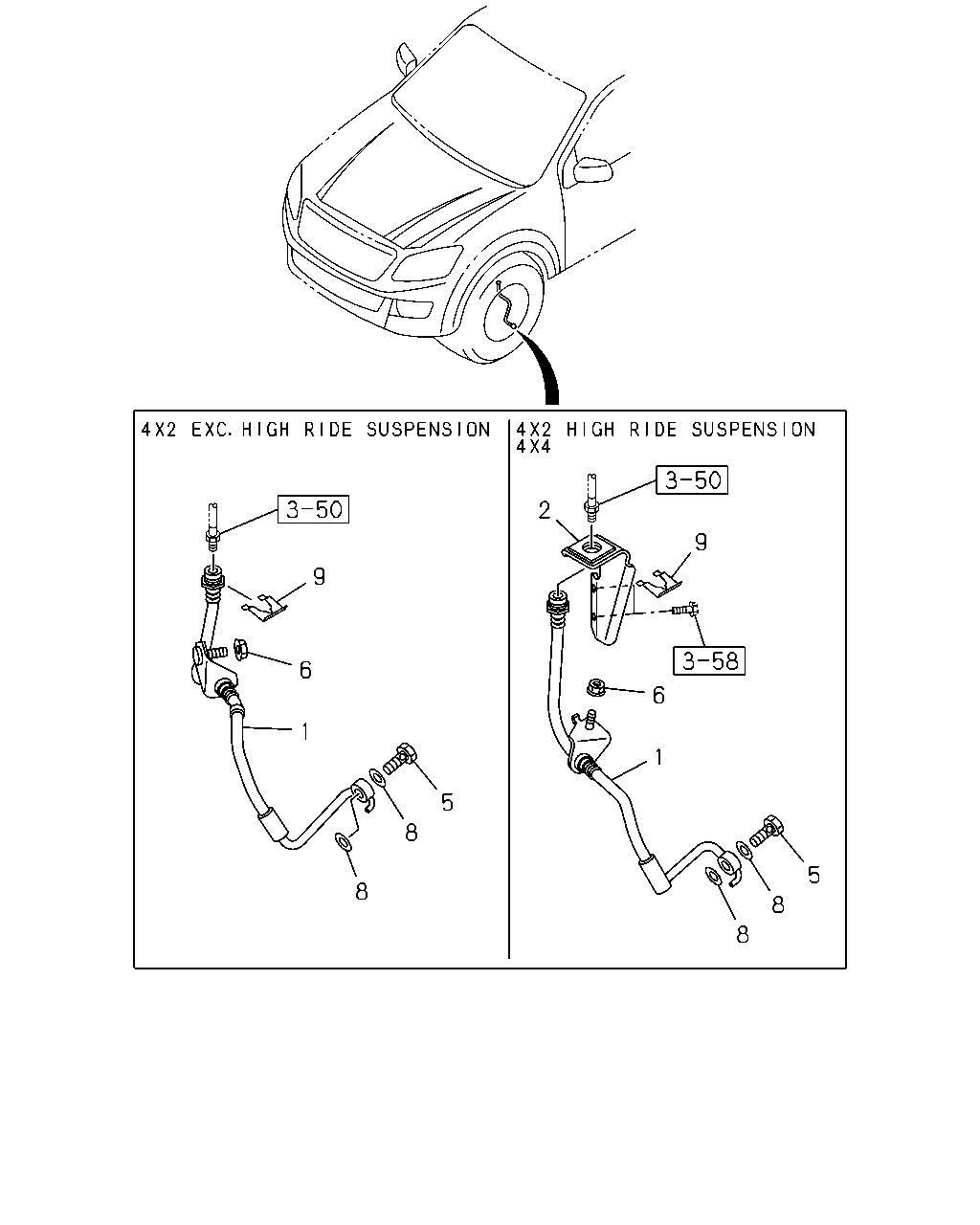

[352A] FLEX HOSE (14 parça)
[352A] BOLT;BRACKET FIXING (1 parça)
▶
9
6
1
5
8
8
2
9
6
1
8
8
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) L=391
8-98067-246-4
01
1
1410-
●
1
HOSE; FLEX,FRT BRK
L=391
8-98067-246-4
01
1
1410-
●
1
HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) L=391
8-98067-247-4
01
1
1410-
●
1
HOSE; FLEX,FRT BRK
L=391
8-98067-247-4
01
1
1410-
●
1
HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) L=413
8-98067-244-1
01
1
1410-
●
1
HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) L=413
8-98067-248-1
01
1
1410-
●
2
BRACKET; FLEX HOSE,FRT BRK
HIGH RIDE SUSPENSION(7YC)
8-97947-148-1
01
1
1410-
●
2
BRACKET; FLEX HOSE,FRT BRK
8-97947-148-1
01
1
1410-
●
2
BRACKET; FLEX HOSE,FRT BRK
HIGH RIDE SUSPENSION(7YC)
8-97947-149-1
01
1
1410-
●
2
BRACKET; FLEX HOSE,FRT BRK
8-97947-149-1
01
1
1410-
●
5
BOLT; EYE,FLEX HOSE,FRT BRK
M10X22
8-98014-005-0
02
1
1410-
●
●
6
NUT; FLEX HOSE,FRT BRK
M8 FLANGE
0-91180-108-0
02
1
1410-
●
●
8
GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0
9-09571-410-0
04
1
1410-
●
●
9
CLIP; FLEX HOSE,FRT BRK
8-97360-054-0
02
1
1410-
●
●
86
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

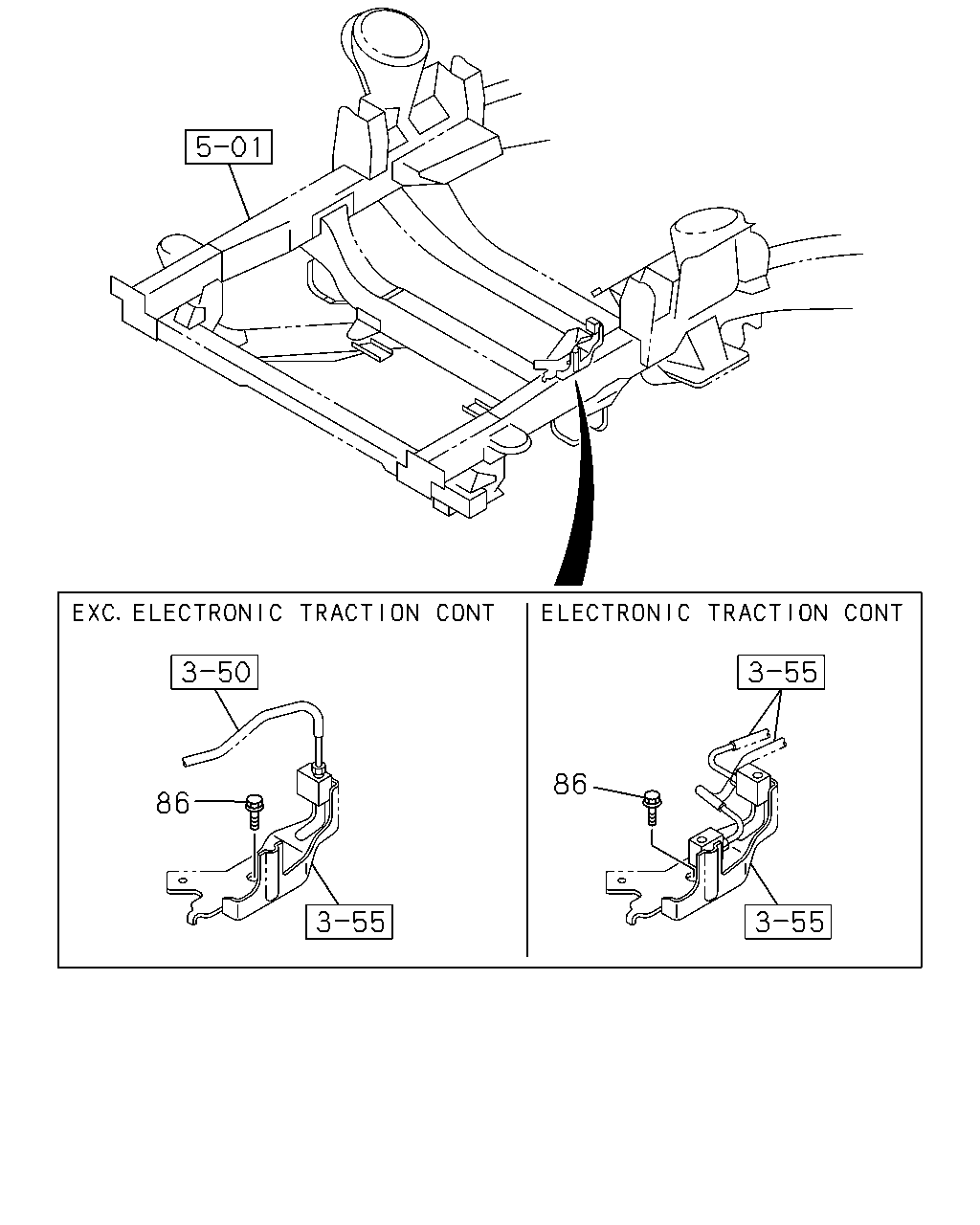

86
BOLT; BRK PIPE
M8X20 FLANGE
0-28650-820-0
01
1
1410-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
