3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#148775) — 88 parça

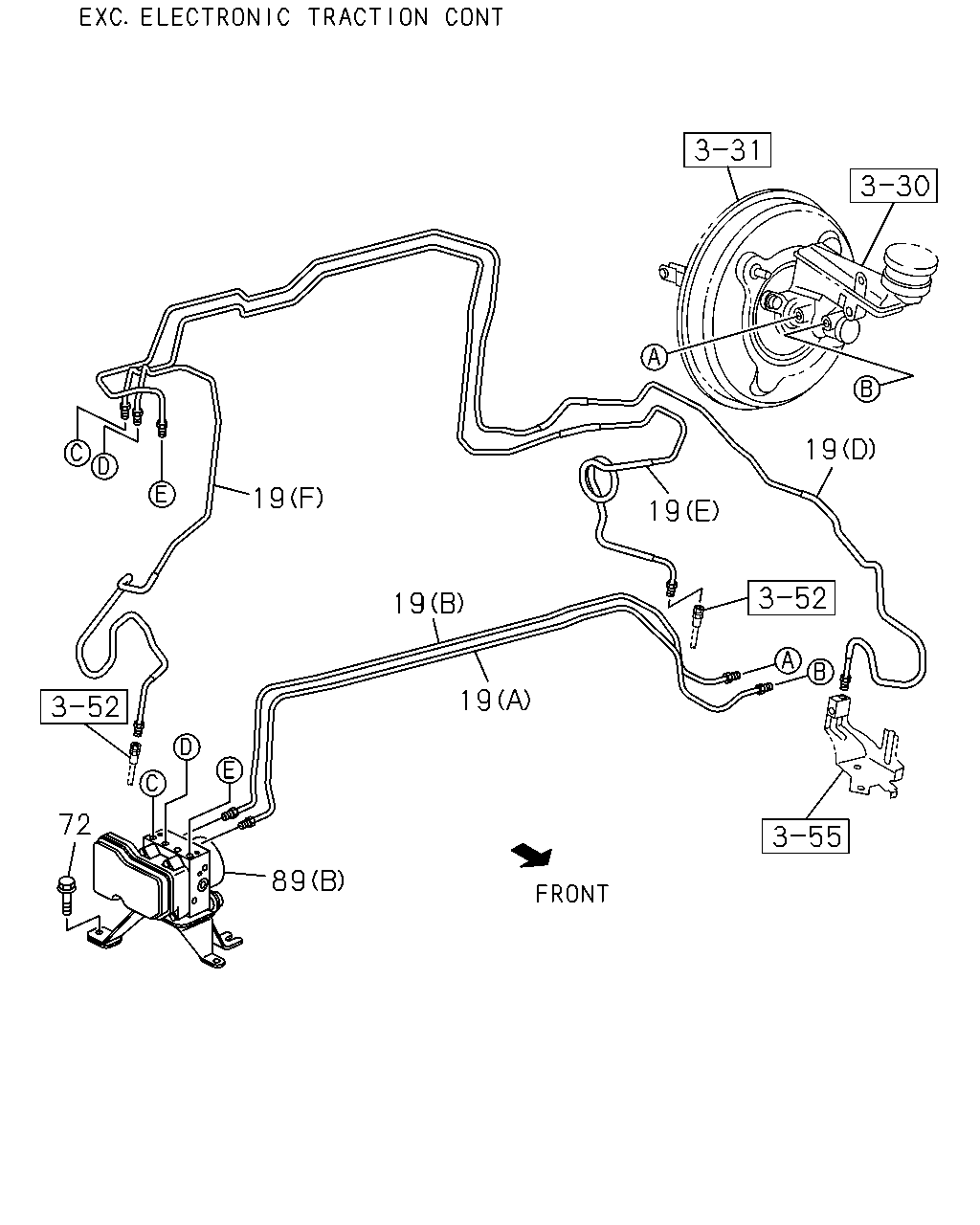

19 19 19 89 72 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (E)	8-98159-941-1	01	1	1410-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98159-941-1	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (F)	8-98202-432-0	01	1	1410-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98202-432-0	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION (D)	8-98099-751-0	01	1	1410-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98099-751-0	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION (B)	8-98099-756-1	01	1	1410-1506	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-756-1	01	1	1410-1506		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98099-756-1	01	1	1507-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-756-1	01	1	1507-		●
19	PIPE; BRK,M/CYL TO UNION (A)	8-98099-757-1	01	1	1410-1506	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-757-1	01	1	1410-1506		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98099-757-1	01	1	1507-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-757-1	01	1	1507-		●
19	PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98118-384-2	01	1	1410-	●
19	PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98159-943-1	01	1	1410-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-746-2	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-747-2	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-749-1	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (C)	8-98099-752-3	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98203-949-0	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98203-951-0	01	1	1410-		●
72	BOLT; BRKT TO BODY M6X16 FLANGE	0-28650-616-0	03	1	1410-	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98232-481-0	01	1	1410-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK HIGH RIDE SUSPENSION(7YC) (B)	8-98232-467-0	01	1	1410-1506	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-98232-467-0	01	1	1507-1508	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-98285-166-0	01	1	1509-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98232-468-0	01	1	1410-1506	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98232-468-0	01	1	1507-1508	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98285-167-0	01	1	1509-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98232-469-0	01	1	1410-1508		●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98285-168-0	01	1	1509-		●

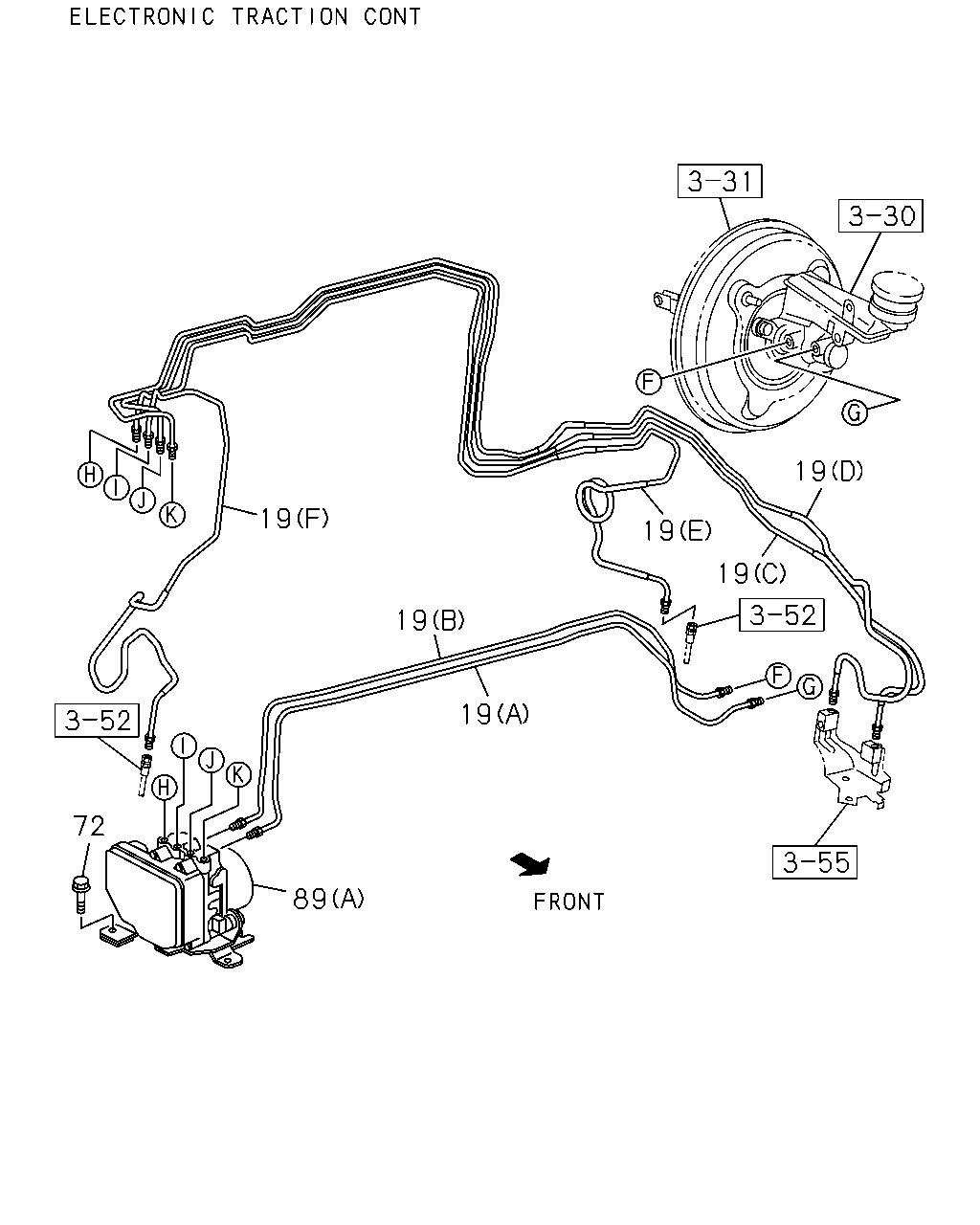

19 19 19 89 72 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (E)	8-98159-941-1	01	1	1410-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98159-941-1	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (F)	8-98202-432-0	01	1	1410-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98202-432-0	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION (D)	8-98099-751-0	01	1	1410-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98099-751-0	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION (B)	8-98099-756-1	01	1	1410-1506	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-756-1	01	1	1410-1506		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98099-756-1	01	1	1507-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-756-1	01	1	1507-		●
19	PIPE; BRK,M/CYL TO UNION (A)	8-98099-757-1	01	1	1410-1506	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-757-1	01	1	1410-1506		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98099-757-1	01	1	1507-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-757-1	01	1	1507-		●
19	PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98118-384-2	01	1	1410-	●
19	PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98159-943-1	01	1	1410-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-746-2	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-747-2	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-749-1	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (C)	8-98099-752-3	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98203-949-0	01	1	1410-		●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98203-951-0	01	1	1410-		●
72	BOLT; BRKT TO BODY M6X16 FLANGE	0-28650-616-0	03	1	1410-	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98232-481-0	01	1	1410-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK HIGH RIDE SUSPENSION(7YC) (B)	8-98232-467-0	01	1	1410-1506	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-98232-467-0	01	1	1507-1508	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-98285-166-0	01	1	1509-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98232-468-0	01	1	1410-1506	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98232-468-0	01	1	1507-1508	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98285-167-0	01	1	1509-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98232-469-0	01	1	1410-1508		●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98285-168-0	01	1	1509-		●

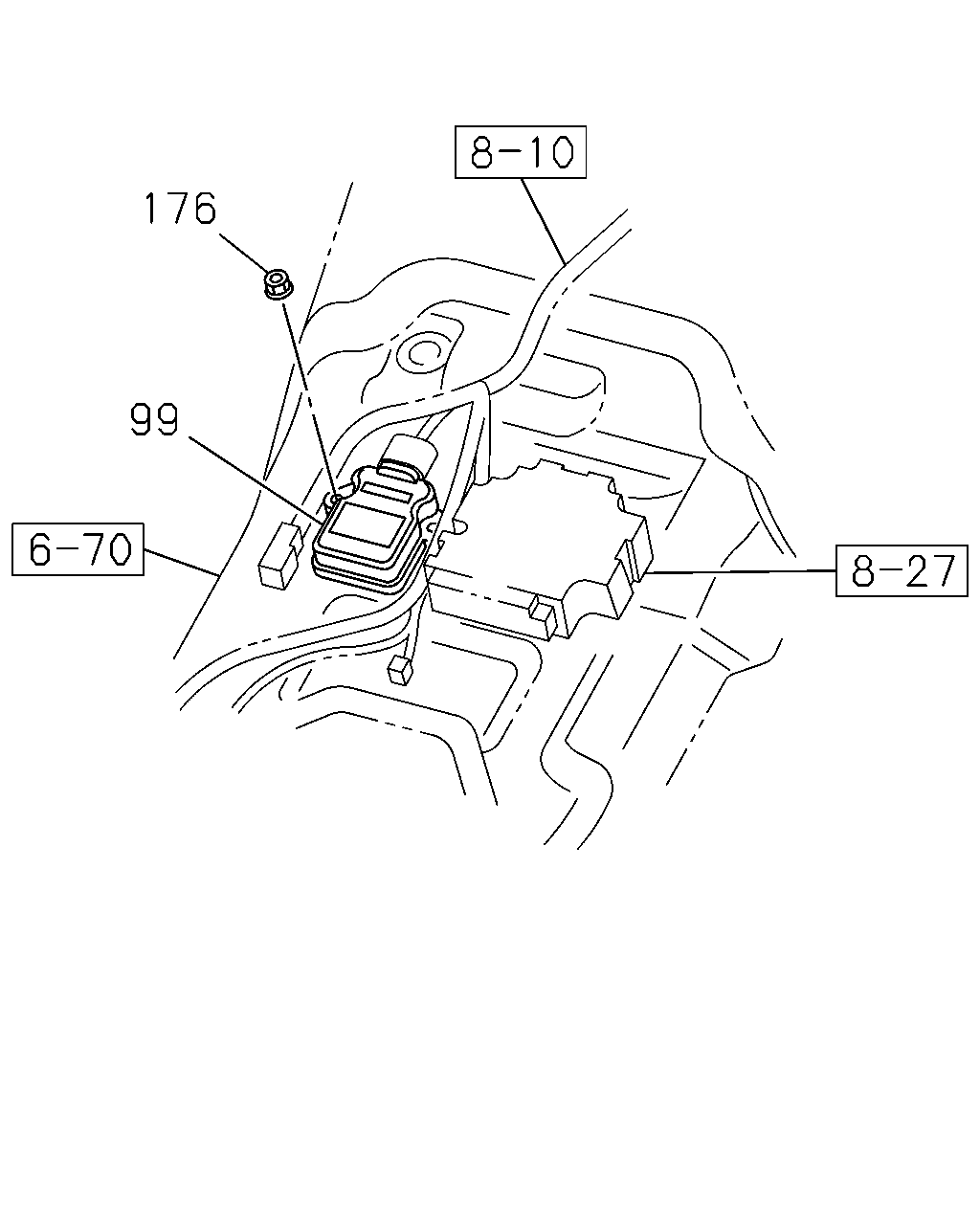

176 99

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	99	SENSOR; DECELERATION ELECTRONIC TRACTION CONTROL<NW9>	8-98052-116-1	01	1	1410-		●
	176	NUT; SENSOR ELECTRONIC TRACTION CONTROL<NW9> M6 FLANGE	0-91180-106-0	02	1	1410-		●

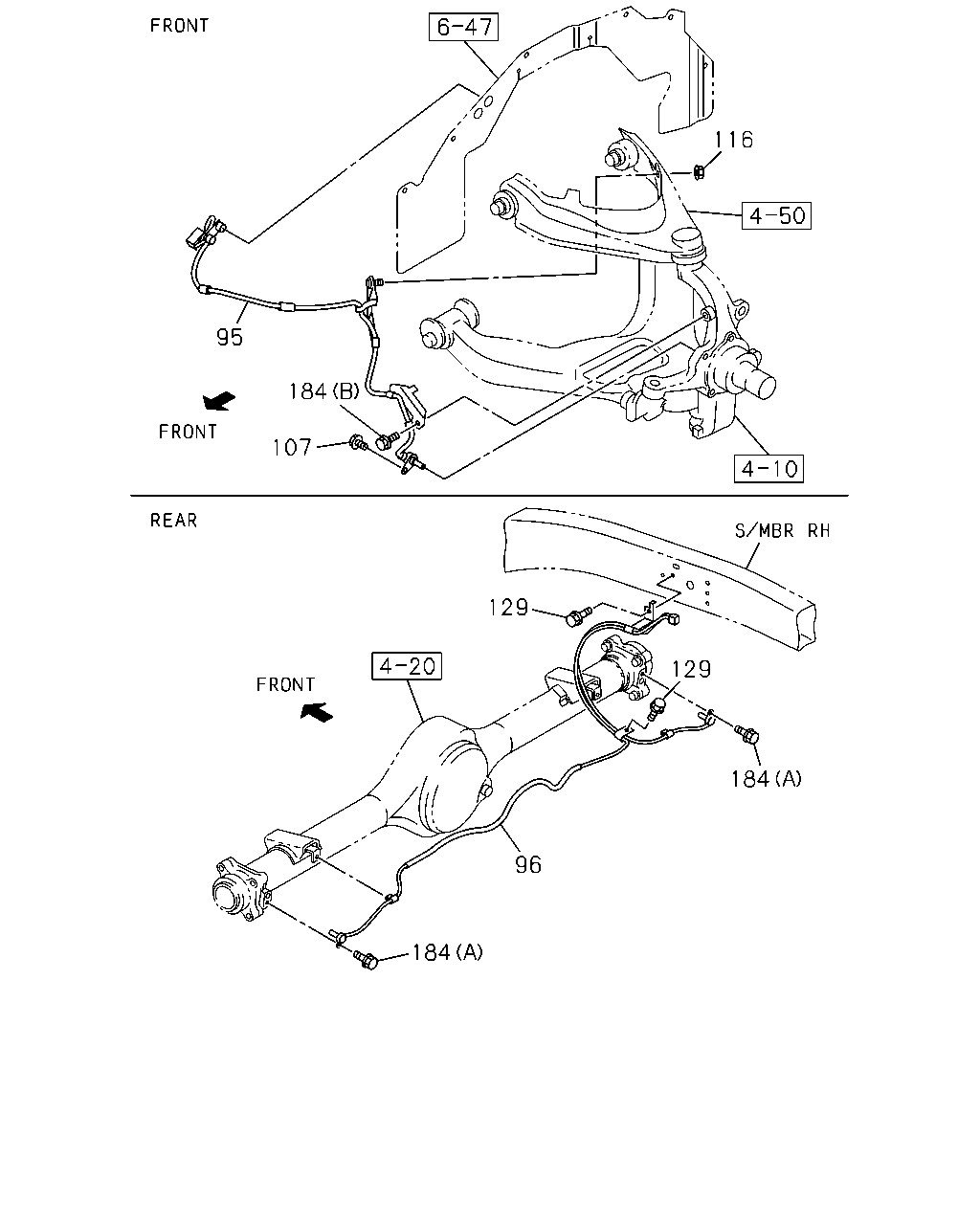

95 184 107 116 129 129 184 96 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	SENSOR; SPD,FRT WHEEL HIGH RIDE SUSPENSION(7YC)	8-98052-119-1	01	1	1410-1509	●
95	SENSOR; SPD,FRT WHEEL	8-98052-119-1	01	1	1410-1509		●
95	SENSOR; SPD,FRT WHEEL HIGH RIDE SUSPENSION(7YC)	8-98292-432-0	01	1	1510-	●
95	SENSOR; SPD,FRT WHEEL	8-98292-432-0	01	1	1510-		●
95	SENSOR; SPD,FRT WHEEL HIGH RIDE SUSPENSION(7YC)	8-98052-120-1	01	1	1410-1509	●
95	SENSOR; SPD,FRT WHEEL	8-98052-120-1	01	1	1410-1509		●
95	SENSOR; SPD,FRT WHEEL HIGH RIDE SUSPENSION(7YC)	8-98292-433-0	01	1	1510-	●
95	SENSOR; SPD,FRT WHEEL	8-98292-433-0	01	1	1510-		●
95	SENSOR; SPD,FRT WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98052-117-1	01	1	1410-1509	●
95	SENSOR; SPD,FRT WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98292-430-0	01	1	1510-	●
95	SENSOR; SPD,FRT WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98052-118-1	01	1	1410-1509	●
95	SENSOR; SPD,FRT WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98292-431-0	01	1	1510-	●
96	SENSOR; SPD,RR WHEEL HIGH RIDE SUSPENSION(7YC)	8-98052-122-1	01	1	1410-	●
96	SENSOR; SPD,RR WHEEL	8-98052-122-1	01	1	1410-		●
96	SENSOR; SPD,RR WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98052-121-1	01	1	1410-	●
107	BOLT; WHEEL SPD SENSOR M6X10 FLANGE	0-28050-610-0	02	1	1410-1509	●	●
107	BOLT; WHEEL SPD SENSOR M6X12 FLANGE	0-28050-612-0	02	1	1510-	●	●
116	NUT M8 FLANGE	0-91180-108-0	02	1	1410-	●	●
129	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	02	1	1410-	●	●
184	BOLT; CLIP (B) M6X10 FLANGE	0-28050-610-0	02	1	1410-1509	●	●
184	BOLT; CLIP (B) M6X12 FLANGE	0-28050-612-0	02	1	1510-	●	●
184	BOLT; CLIP (A) M6X16 FLANGE	0-28650-616-0	02	1	1410-	●	●
